Triconex 7400169-310 9662-1XX Retrofit-Compatible Terminal Panel

Triconex 7400169-310 9662-1XX Retrofit-Compatible Terminal Panel for Legacy Safety Systems

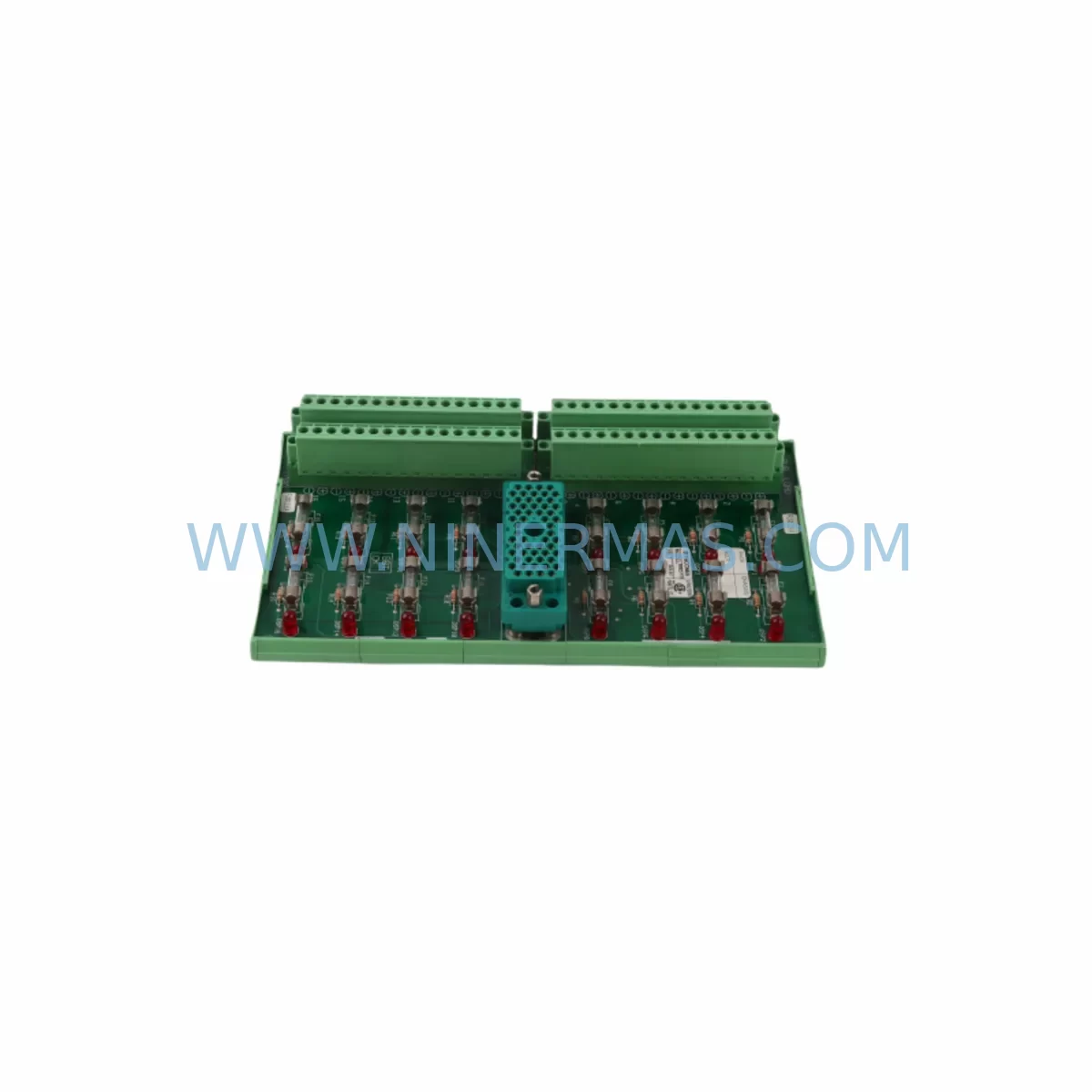

The Triconex 7400169-310 9662-1XX is a retrofit-compatible terminal panel designed for integration into legacy Triple Modular Redundant (TMR) safety instrumented systems. As Triconex continues to evolve its product portfolio, many facilities operating older Tricon and Trident platforms face the challenge of sourcing reliable, drop-in-compatible terminal panels that maintain system integrity without requiring full controller replacement. This panel addresses that need directly — offering verified compatibility with legacy backplane configurations, original terminal pitch spacing, and field-proven wiring layouts that minimize re-engineering effort during planned or emergency retrofits.

Industrial facilities running legacy Triconex Tricon v9 or v10 controllers, or those managing aging Trident safety systems, frequently encounter obsolescence pressure on I/O termination hardware. The 7400169-310 9662-1XX terminal panel serves as a reliable replacement component in these environments, supporting continuity of the safety loop without requiring reprogramming of the Triconex TriStation 1131 application logic or reconfiguration of the safety network. When paired with compatible I/O modules such as the Triconex 3703E analog input module or the 3805E digital output module, the terminal panel maintains the original signal routing architecture, reducing validation scope during the management of change (MOC) process.

For facilities transitioning from older wiring termination schemes, the 9662-1XX panel series supports standard 0.2–2.5 mm² field wiring, compatible with the terminal block configurations found across the Tricon chassis family. Engineers replacing end-of-life termination panels should verify the backplane slot assignment and confirm that the replacement panel’s terminal numbering aligns with the existing loop drawings before energizing the system. In most documented retrofit cases, the 7400169-310 can be installed without modifying the field cable schedule, provided the original I/O module — such as a Triconex 3721 thermocouple input module or a 3501E digital input module — remains in service.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Triconex 7400169-310 9662-1XX terminal panel begins well before the maintenance window opens. Engineering teams should start by auditing the existing control cabinet layout to confirm available rail space, cable tray routing, and proximity to the Tricon main chassis. In many legacy installations, the terminal panel is mounted adjacent to the Triconex 2401 power supply module or the 2402 redundant power supply, and the replacement panel must fit within the same DIN rail segment without interfering with power distribution wiring.

Before the scheduled outage, retrieve the current I/O module configuration from TriStation 1131 and document the channel-to-terminal mapping for every field device connected through the panel. This is especially critical when the panel interfaces with Triconex 3703E analog input channels carrying 4–20 mA signals from pressure transmitters or flow meters, where any terminal transposition will result in incorrect process variable readings and potential spurious trips. Similarly, if the panel supports digital outputs driving solenoid valves through a Triconex 3805E module, verify the output state logic and confirm that the replacement panel’s terminal sequence matches the original before reconnecting field cables.

For systems that include a Triconex 4351B communication module handling Modbus RTU or HART pass-through, confirm that the terminal panel replacement does not affect the communication wiring routed through the same cabinet section. In some installations, the communication cable shield grounding is terminated on the same panel rail, and improper re-termination can introduce ground loops that degrade signal quality on the safety network. Additionally, if the control cabinet houses a Triconex 3008 main chassis or a 3006 expander chassis, verify that the panel’s physical dimensions allow for proper cable management between the chassis backplane connectors and the terminal block rows.

Where the retrofit involves migrating from an older Trident platform to a Tricon-based architecture, the terminal panel replacement is often accompanied by updates to the HMI graphics on the operator workstation. Ensure that the HMI tag database reflects any I/O address changes resulting from the new panel’s slot assignment, and coordinate with the DCS or SCADA team to validate that all alarm setpoints and interlock logic remain intact after the migration. Signal isolators — such as those used to condition thermocouple inputs from a Triconex 3721 module — may also require recalibration if the terminal panel change alters the signal path impedance.

Downtime Control During System Migration

Minimizing unplanned downtime during a terminal panel replacement on a live safety instrumented system requires a structured pre-outage preparation protocol. Begin by placing the affected SIS loop in bypass mode through the Triconex TriStation 1131 bypass management function, and notify the process safety team and operations supervisor before isolating any field device. Document the bypass activation time in the safety management system to ensure compliance with the facility’s SIS bypass procedure and IEC 61511 requirements.

During the physical swap, label every field cable before disconnection using the original loop drawing reference numbers. Use a continuity tester to verify each terminal connection after re-termination, and perform a full loop check from the field device to the I/O module before releasing the bypass. For panels connected to Triconex 3501E digital input modules monitoring emergency shutdown (ESD) initiators, a functional test of the ESD logic should be completed before returning the loop to normal service. This test should confirm that the safety function — including the trip setpoint, response time, and output state — matches the validated safety requirements specification (SRS).

Where the replacement is performed as part of a broader control cabinet upgrade that also involves replacing the Triconex 2401 power supply or adding a 3008 expander chassis, sequence the work to maintain power to the unaffected TMR legs throughout the outage. The Tricon’s triple redundancy architecture allows one leg to be taken offline for maintenance while the remaining two legs continue to execute the safety application, significantly reducing the risk of a spurious trip during the panel replacement. Coordinate the outage schedule with the operations team to align with a planned process shutdown or a low-production period to further reduce operational impact.

Retrofit Support FAQ

Q1: Is the Triconex 7400169-310 9662-1XX a direct replacement for the original terminal panel in my Tricon system?
In most Tricon v9 and v10 installations, the 7400169-310 9662-1XX is a verified drop-in replacement for the original 9662-1XX series terminal panel. Before installation, confirm the backplane slot assignment, terminal numbering sequence, and field wiring gauge compatibility against your existing loop drawings. All units supplied by NINERMAS are tested prior to shipment and covered by a 12-month warranty.

Q2: What commissioning steps are required after installing the replacement terminal panel?
After physical installation and field cable re-termination, perform a full loop check for every channel connected through the panel. For analog input channels (e.g., those served by a Triconex 3703E module), verify the 4–20 mA signal range and zero/span calibration. For digital I/O channels, confirm the correct state logic and functional test the associated interlock or ESD function per the validated SRS. Document all test results before releasing the SIS loop from bypass.

Q3: Can this terminal panel be used in a Trident-to-Tricon migration project?
The 9662-1XX terminal panel is designed for the Tricon TMR platform. If your migration project involves transitioning from a Trident architecture, the terminal panel selection must be validated against the new Tricon chassis backplane and I/O module configuration. NINERMAS can support compatibility verification based on your existing system documentation and I/O list. Contact our technical team at sale@ninermas.com for project-specific guidance.

Q4: What is the lead time and warranty coverage for the Triconex 7400169-310 9662-1XX?
