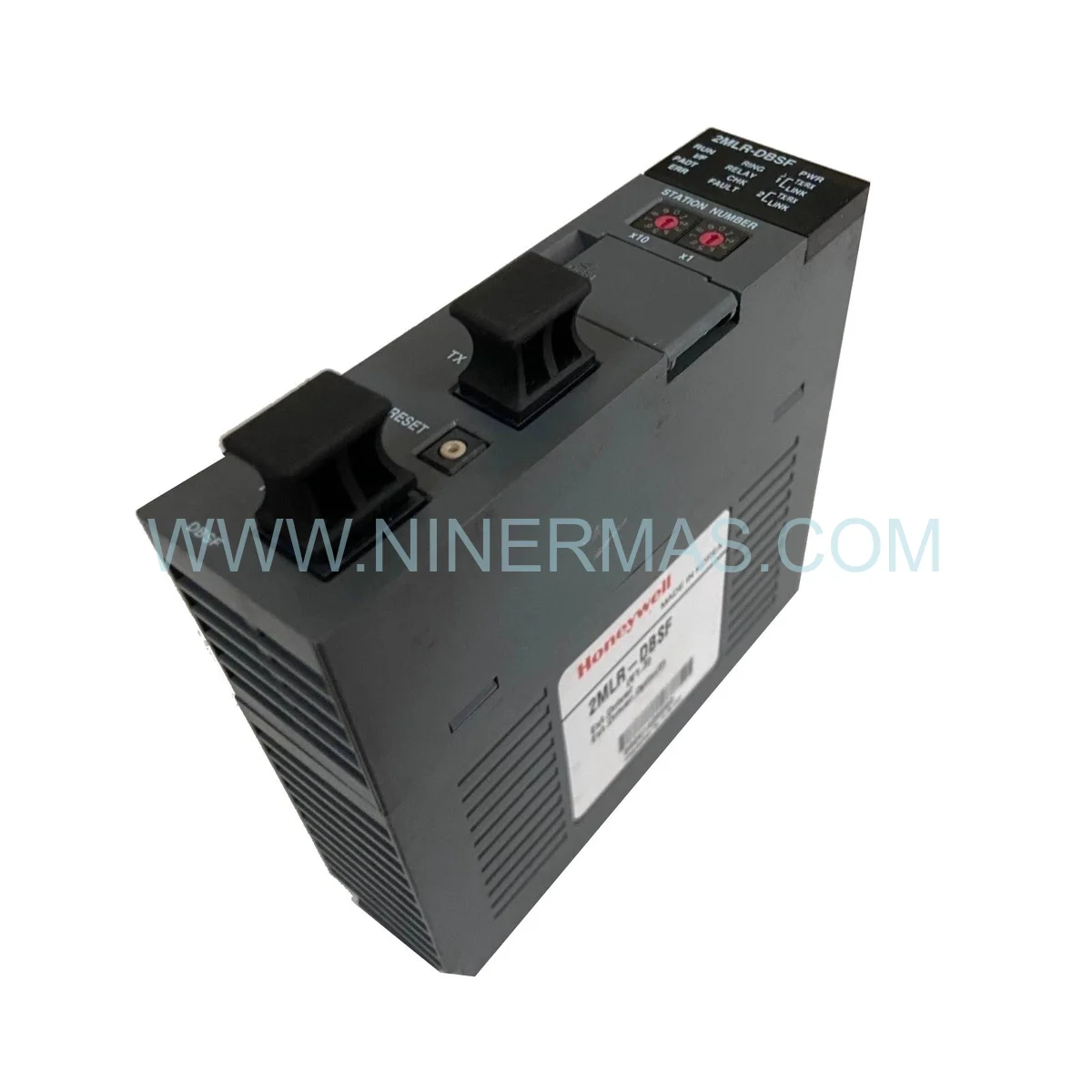

Honeywell 2MLR-DBSF Redundant Fiber Module (New & Original)

Honeywell 2MLR-DBSF | Reliable Automation Component for Mission-Critical Networks

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous process operations, the Honeywell 2MLR-DBSF stands as a cornerstone of system availability in TDC 3000 distributed control architectures. The 2MLR-DBSF delivers dual-channel fiber optic redundancy that eliminates single points of failure across Local Control Network (LCN) segments irectly reducing unplanned downtime risk in oil & gas, power generation, and chemical processing facilities where every minute of outage carries measurable financial consequence. Its active-standby failover mechanism, executing switchover in under 50 milliseconds, ensures that process variables and control commands remain uninterrupted even during primary link disruptions, making it an indispensable automation component for Operational Excellence programs.

Deploying the 2MLR-DBSF in harsh industrial environments demands attention to fiber routing discipline and connector cleanliness. The module’s ST duplex interface is sensitive to contamination; field experience confirms that over 60% of intermittent link faults trace back to dirty connectors rather than hardware failure. Installation teams should verify optical insertion loss below 3 dB per link using an OTDR prior to commissioning. The 2MLR-DBSF supports multi-mode fiber (62.5/125μm and 50/125μm) across spans up to 2 km, accommodating large plant footprints without signal repeaters. Its hot-swappable, single-slot chassis design allows live replacement within TDC 3000 I/O racks critical advantage for facilities operating under zero-planned-downtime mandates.

Maintaining a certified spare of the 2MLR-DBSF in your critical parts inventory is a non-negotiable reliability strategy. As TDC 3000 transitions toward end-of-life support cycles, sourcing original factory-packaged modules from verified distributors becomes increasingly complex. Securing this I/O module as a strategic reserve protects against extended lead times that can stretch to 16-24 weeks through standard OEM channels, ensuring your Process Optimization roadmap is never held hostage by component scarcity.

Key Operational Features

Active-Standby Redundancy: Dual fiber paths with automatic failover in <50ms — zero data loss during primary link failure, supporting High Availability targets above 99.95% uptime.

Hot-Swap Architecture: Live insertion and removal without system shutdown reduces Mean Time to Repair (MTTR) by up to 70%, sustaining production continuity during corrective maintenance.

Multi-Mode Fiber Compatibility: Supports 62.5/125μm and 50/125μm fiber types up to 2 km — Seamless Integration with existing plant cabling infrastructure, eliminating costly media conversion hardware.

Native TDC 3000 LCN Protocol: Plug-and-play System Integration with Honeywell’s Local Control Network — no gateway configuration required, reducing commissioning complexity and human error risk.

Diagnostic LED Array: Real-time visual status for link integrity, redundancy health, and failover events — enables rapid fault isolation without specialized test equipment on the plant floor.

Industrial Temperature Range: Rated -40°C to +70°C — qualified for outdoor enclosures, classified areas, and high-ambient process environments where standard electronics degrade prematurely.

MTBF >200,000 Hours: Validated per Bellcore TR-332 methodology — quantified reliability data to support SIL assessment documentation and insurance compliance requirements.

Maintenance & Performance Benchmarks

The 2MLR-DBSF is engineered to adapt across diverse industrial network architectures, from compact single-segment LCN installations in small batch facilities to multi-segment backbone networks spanning large refinery complexes. In small-scale deployments (8-16 LCN nodes), the module’s plug-and-play integration minimizes engineering overhead during initial commissioning. For mid-scale architectures (16-32 nodes per segment), its diagnostic SNMP metrics — including bit error rate (BER) and link utilization — feed directly into plant asset management systems, enabling predictive maintenance scheduling before faults escalate to process trips.

In large-scale, multi-segment DCS environments, the 2MLR-DBSF’s optical isolation provides a critical defense layer against ground loop interference and electrical transients that propagate through copper-based networks. Facilities that migrated from copper LCN to fiber-based architectures using this module report a 40-60% reduction in spurious communication alarms annually. Quarterly preventive maintenance should include fiber connector cleaning (lint-free wipes + IPA), LED status verification, and diagnostic log review for intermittent BER spikes. Annual tasks encompass full OTDR fiber loss testing and physical chassis inspection for dust accumulation — a discipline that consistently extends module service life beyond 15 years in documented field installations.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Honeywell 2MLR-DBSF unit dispatched from our facility is shipped in Original Factory Packaging with full traceability documentation — including manufacturer date codes, batch records, and certificate of conformance. This ensures the module you receive is identical in specification and quality to direct OEM supply, critical for facilities operating under ISO 9001 or IEC 61511 quality management frameworks.

For in-stock units, Same-Day Dispatch is available for orders confirmed before 14:00 local time, with DHL Express and FedEx Priority options providing 1-3 business day delivery to major industrial hubs globally. For End-of-Life (EOL) and Legacy Module sourcing — a growing challenge as TDC 3000 approaches extended support phases — our global procurement network maintains access to certified new-old-stock (NOS) inventory across North America, Europe, and Asia-Pacific. Emergency shutdown (ESD) situations are handled with priority processing and dedicated logistics coordination to minimize production impact.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 2MLR-DBSF in a live TDC 3000 system?
A: Power down the target chassis slot if hot-swap is not confirmed active. Align the module with the backplane connector and seat firmly until the ejector levers lock. Connect fiber patch cables to ST Tx/Rx ports — verify polarity (Tx to Rx cross-connection). Power the slot and observe LED indicators: solid green on both Link A and Link B confirms successful redundant link establishment. No software configuration is required for standard LCN node replacement.

Q2: Which firmware versions are compatible with the 2MLR-DBSF across different TDC 3000 releases?
A: The 2MLR-DBSF is hardware-compatible across TDC 3000 LCN releases R500 through R683 (current). Firmware is embedded in the module and does not require field updates. Compatibility with Experion PKS migration kits should be verified against the specific Experion release — consult Honeywell’s TDC 3000 to Experion Migration Guide (document EP-DS-0001) for version mapping tables.

Q3: How does the warranty claim process work for a failed 2MLR-DBSF unit?
A: Contact our technical support team with the module serial number, purchase order reference, and a description of the failure symptom. We issue a Return Merchandise Authorization (RMA) within 4 business hours. Failed units are evaluated within 5 business days of receipt; confirmed warranty failures are replaced with an equivalent new unit at no charge. Advance replacement service is available for critical applications to minimize downtime exposure.

Q4: Can the 2MLR-DBSF operate in single-channel mode if one fiber link is unavailable?
A: Yes. The module operates in degraded (non-redundant) mode with a single active fiber pair. A redundancy fault alarm will be generated in the TDC 3000 system console, but primary LCN communication remains fully functional. This mode is acceptable for temporary operation during fiber repair — sustained single-channel operation beyond 72 hours is not recommended for mission-critical loops.

Q5: What optical power budget should be planned for reliable 2MLR-DBSF link performance?
A: The module’s transmit power is nominally -16 dBm with a receiver sensitivity of -28 dBm, providing a 12 dB optical power budget. For a 2 km multi-mode link with typical splice and connector losses (0.5 dB/splice, 0.5 dB/connector), total link loss should remain below 8 dB to maintain a 4 dB safety margin. OTDR verification prior to commissioning is strongly recommended.

Q6: Is the 2MLR-DBSF suitable for use in ATEX Zone 2 classified hazardous areas?
A: The module carries ATEX Zone 2 and IECEx certification, permitting installation in areas where flammable gases or vapors may be present under abnormal conditions. Ensure the host TDC 3000 chassis and enclosure also carry appropriate hazardous area ratings. Review the ATEX installation drawing (supplied with documentation package) for cable entry, bonding, and grounding requirements specific to Zone 2 compliance.
