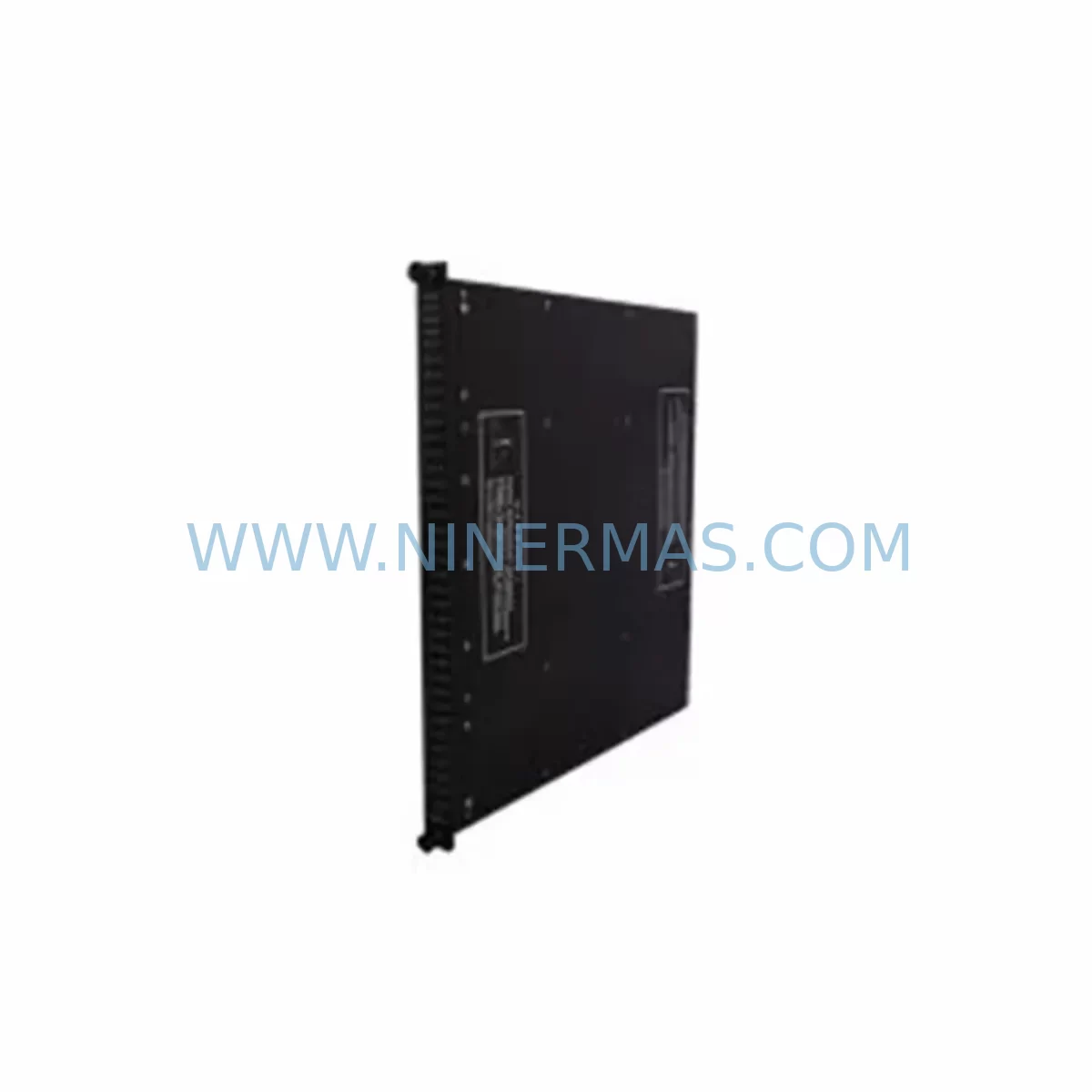

TRICONEX 3005 Retrofit-Compatible Processor Module

TRICONEX 3005 Retrofit-Compatible Processor Module for Legacy Tricon Systems

The TRICONEX 3005 is a Triple Modular Redundant (TMR) main processor module designed for the Tricon Safety Programmable Logic Controller platform — one of the most widely deployed safety-rated control systems in oil & gas, petrochemical, power generation, and critical infrastructure facilities worldwide. Although the 3005 has reached end-of-life status in Schneider Electric’s active product portfolio, it remains an essential spare part and retrofit component for facilities operating legacy Tricon v9 and v10 control systems that are not yet scheduled for full platform migration.

At NINERMAS, we maintain verified inventory of the TRICONEX 3005 processor module to support planned maintenance windows, emergency replacements, and phased system modernization programs. Every unit ships with a 12-month warranty and undergoes pre-shipment functional verification to ensure compatibility with your existing Tricon chassis and I/O configuration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the TRICONEX 3005 processor in a live or recently shut-down safety system requires a structured approach that accounts for both hardware compatibility and software continuity. The following planning checklist reflects the most common engineering considerations encountered during Tricon processor retrofits across refinery, LNG terminal, and power plant control environments.

Power Budget Verification: Before installing a replacement 3005, confirm that the chassis power supply — typically a TRICONEX 3006 or 3007 power supply module — can sustain the full load of the processor plus all installed I/O modules. Aging power supplies in legacy Tricon chassis may be operating near their rated capacity, and a processor swap is an ideal opportunity to assess whether a power supply replacement or upgrade should be scheduled in the same maintenance window.

Backplane and Chassis Inspection: The Tricon main chassis backplane carries both power and communication signals between the 3005 processor and downstream I/O modules such as the 3664 Digital Input Module, 3703E Analog Input Module, and 3805E Digital Output Module. Inspect backplane connectors for oxidation, mechanical damage, or intermittent contact issues before seating the replacement processor. A faulty backplane can cause the new processor to report spurious faults that are incorrectly attributed to the module itself.

Terminal Wiring and I/O Address Mapping: One of the key advantages of a like-for-like 3005 replacement is that field wiring, terminal block assignments, and I/O module addresses remain unchanged. Engineers should nonetheless verify the I/O map against the current TriStation 1131 project to confirm that no address conflicts exist — particularly if any I/O modules such as the 3721 Analog Output Module or 3511 Digital Input Module have been added or relocated since the original system commissioning.

Communication Link Continuity: The 3005 processor communicates with the plant DCS, historian, or safety instrumented system (SIS) network through the TCM 4351A Triconex Communication Module or legacy HiKey interface. Before the processor swap, document all active communication paths, node addresses, and protocol configurations (Modbus RTU, Modbus/TCP, or OPC). After replacement, verify that all communication links re-establish within expected timeframes and that the DCS or HMI — often a Wonderware or DeltaV-based operator station — correctly reflects the restored safety system status.

Program Download and Verification: If the replacement 3005 requires a fresh program download via TriStation 1131, ensure that the correct project revision is loaded from a version-controlled source. Confirm that all function blocks, cause-and-effect logic, and safety instrumented function (SIF) parameters match the approved safety requirements specification (SRS). A partial or incorrect download is one of the most common sources of post-retrofit commissioning delays.

HMI Screen and Alarm Validation: Following processor replacement and program restoration, systematically walk through all HMI faceplates associated with the Tricon safety system. Confirm that analog inputs from the 3603E Thermocouple Input Module are displaying correctly, that digital outputs are responding to manual overrides as expected, and that all safety alarms are active and correctly mapped to the operator workstation.

Physical Installation Space: The 3005 occupies a defined slot in the Tricon main chassis. Confirm that adjacent modules — including any 3008 or MP3008 enhanced processor modules installed in a mixed-revision chassis — are properly seated and that there is adequate airflow around the processor bay. Tricon chassis are designed for front-access maintenance, but cable management in congested control cabinets can complicate module extraction and reinsertion.

NINERMAS maintains ready stock of the TRICONEX 3005 and associated Tricon ecosystem components to support both planned turnaround maintenance and emergency unplanned replacements. Lead times for verified spare parts are typically shorter than OEM channels, and our technical team can assist with pre-shipment configuration review upon request.

Downtime Control During System Migration

For safety-critical systems running on the Tricon TMR platform, minimizing unplanned downtime during a processor replacement is a primary engineering objective. The TMR architecture of the TRICONEX 3005 provides inherent fault tolerance — in a healthy three-leg system, a single processor leg can be replaced while the remaining two legs maintain voting logic and process control continuity. However, this hot-swap capability depends on the system being in a healthy two-of-three (2oo3) voting state prior to maintenance, and should only be attempted by qualified Tricon-certified engineers following the applicable Schneider Electric maintenance procedures.

For systems where the chassis must be fully powered down — due to backplane damage, multi-module failure, or chassis replacement — the following practices help reduce total downtime exposure:

• Pre-stage the replacement 3005 and verify its revision level against the installed chassis before the maintenance window begins.
• Back up the current TriStation 1131 project to a secure, version-controlled location and confirm the backup is readable before powering down.
• Prepare a communication restoration checklist covering all TCM node addresses, Modbus register maps, and DCS integration points so that network links can be re-established systematically after restart.
• Coordinate with the DCS team to place affected safety loops in manual or bypass mode in accordance with the site’s management of change (MOC) and safety bypass procedures.
• Conduct a post-restart functional test of all I/O channels, communication links, and HMI displays before releasing the system back to automatic control.

NINERMAS supports customers through the full replacement lifecycle — from spare part sourcing and pre-shipment testing to post-installation technical consultation. Our 12-month warranty covers the replacement 3005 processor against functional defects, giving your engineering and maintenance teams confidence in the long-term reliability of the retrofit.

Retrofit Support FAQ

Q1: Is the TRICONEX 3005 a direct replacement for a failed processor in my existing Tricon v9 or v10 chassis?
A: In most cases, yes. The 3005 is designed for direct slot-compatible replacement within Tricon v9 and v10 main chassis configurations. However, you should verify the hardware revision of both the replacement module and the installed chassis backplane to ensure compatibility. NINERMAS can assist with revision matching prior to shipment.

Q2: Can I upgrade from the TRICONEX 3005 to the MP3008 or 3008 processor without replacing the entire chassis?
A: A cross-upgrade from the 3005 to the MP3008 or 3008 enhanced processor is possible in some chassis configurations but requires a TriStation 1131 project migration, firmware compatibility review, and in some cases a chassis backplane revision check. This is not a simple drop-in swap and should be planned as a formal engineering change with appropriate MOC documentation.

Q3: What pre-shipment testing does NINERMAS perform on the TRICONEX 3005?
A: Each TRICONEX 3005 unit supplied by NINERMAS undergoes functional verification testing prior to dispatch. This includes power-on self-test confirmation, backplane interface checks, and visual inspection for physical damage or component degradation. Units are packaged in anti-static, shock-protected packaging suitable for international air or sea freight.

Q4: What does the 12-month warranty cover, and how do I initiate a warranty claim?
A: NINERMAS provides a 12-month warranty from the date of shipment covering functional defects under normal operating and installation conditions. Warranty claims are initiated by contacting our technical support team at sale@ninermas.com or +0086 187 5021 5667 with the order reference, unit serial number, and a description of the observed fault. We will arrange for evaluation and replacement or repair as appropriate.
