Triconex 4507 Safety-Reliable Highway Interface Module

Triconex 4507 Safety-Reliable Highway Interface Module for Critical Control Sites

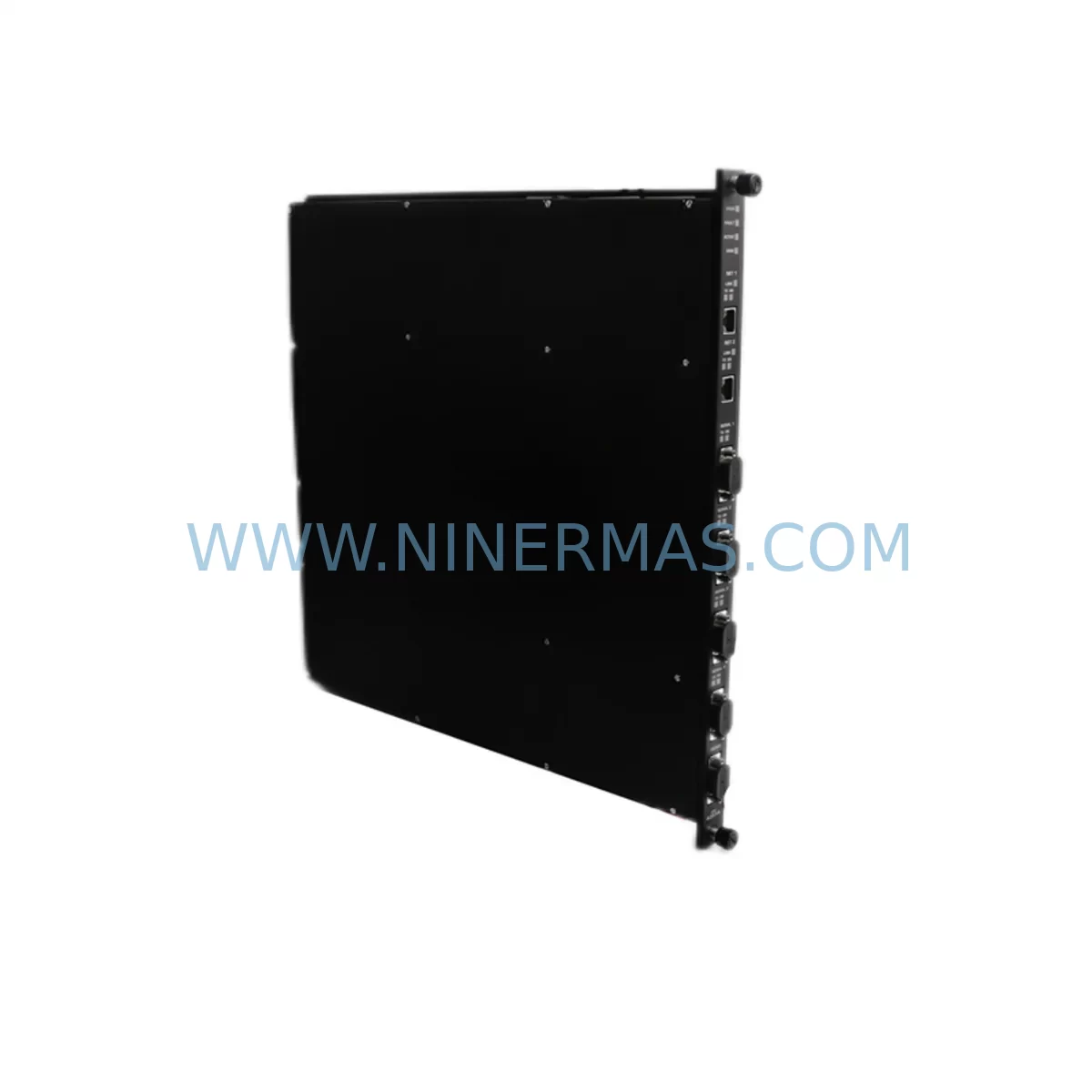

The Triconex 4507 Highway Interface Module (HIM) is a core communication and interface component engineered for deployment within Triconex Triple Modular Redundant (TMR) Safety Instrumented Systems. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, offshore platforms, power generation facilities, mining operations, and continuous process manufacturing sites — the 4507 delivers the signal integrity, fault tolerance, and communication stability that safety-critical control loops demand.

In high-stakes industrial environments where unplanned shutdowns carry enormous financial and safety consequences, the Triconex 4507 serves as the backbone of the Tricon highway communication architecture. It bridges the Main Processor Module (MP) and I/O modules across the Tricon chassis backplane, ensuring that safety logic execution remains uninterrupted even under conditions of extreme electromagnetic interference (EMI), voltage transients, power fluctuations, and mechanical vibration. Its ruggedized design addresses the full spectrum of field hazards that compromise lesser hardware — from airborne particulates and condensation ingress to thermal cycling and surge events on shared power rails.

At NINERMAS, every Triconex 4507 unit is sourced through verified industrial supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. We maintain ready stock to support both planned maintenance outages and emergency spare parts requirements, ensuring your safety system remains operational without extended lead times.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the Triconex 4507 within a properly configured Tricon safety cabinet is only one element of a comprehensive risk reduction strategy. The 4507 operates in concert with the Triconex 3008 Main Processor Module, which executes the safety application logic and coordinates the TMR voting process. Together, these modules form the computational and communication core of the safety instrumented function (SIF).

On the I/O side, digital and analog field signals are conditioned and isolated through modules such as the Triconex 3501 Digital Input Module and the Triconex 3703E Analog Input Module, which provide the 4507 with clean, validated process data even in environments with significant ground noise or common-mode interference. For output-side control — including ESD valve actuation and motor trip commands — the Triconex 3601T Digital Output Module ensures that the 4507’s highway commands are faithfully executed at the field device level.

Power integrity is equally critical. The Tricon chassis relies on redundant power supply modules such as the Triconex 8312 Power Supply Module to maintain stable voltage rails across all slots. Surge and transient events on shared AC distribution panels — common in heavy industrial facilities with large motor loads — are mitigated through proper coordination between the power supply modules and upstream surge protective devices. The 4507’s internal design tolerates the residual ripple and transient energy that inevitably reaches the backplane in such environments.

For facilities operating mixed safety and basic process control architectures, the Triconex 4351B Enhanced Intelligent Communication Module (EICM) extends the Tricon system’s communication reach to Modbus, HART, and OPC-based supervisory networks, while maintaining the isolation boundary that protects the safety layer from BPCS-originated disturbances. Similarly, the Triconex 4119A Remote Hardwired Interface Module supports hardwired safety interlock connections where network-based communication is not appropriate for the safety integrity level.

In high-vibration environments such as compressor buildings, offshore topsides, or heavy mill drives, securing the physical integrity of the Tricon chassis — including proper torque on module ejector latches and chassis mounting hardware — is as important as the electronic design of the 4507 itself. Pairing the 4507 with a well-maintained Triconex chassis enclosure rated for the installation’s IP protection class ensures that dust ingress, moisture, and mechanical shock do not compromise the highway communication path that the 4507 manages.

Critical Industrial Safety Applications

The Triconex 4507 Highway Interface Module is deployed across a wide range of safety-critical industries where control system reliability is non-negotiable:

Petrochemical & Refining: In crude distillation units, hydrocracker reactors, and LNG liquefaction trains, the 4507 supports the Emergency Shutdown (ESD) and High Integrity Pressure Protection (HIPPS) systems that prevent catastrophic overpressure events. Its ability to maintain highway communication integrity during power disturbances — common during large compressor starts — is essential to preventing spurious trips that disrupt continuous production.

Power Generation: Gas turbine and steam turbine control systems rely on Triconex TMR architecture for turbine overspeed protection and flame safeguard logic. The 4507 ensures that the highway communication between the processor and I/O modules remains synchronised at the millisecond level required for turbine protection response times.

Mining & Minerals Processing: In underground mining ventilation control and surface conveyor safety systems, the 4507 operates in environments with extreme dust loading, vibration from blasting and heavy machinery, and wide ambient temperature swings. Its ruggedized construction ensures reliable operation where standard commercial-grade hardware would fail prematurely.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use Triconex systems for chemical dosing interlocks and pump protection. The 4507 supports the reliable execution of these safety functions in facilities where humidity and chemical vapour exposure are persistent environmental challenges.

Metallurgy & Steel: Electric arc furnace (EAF) and continuous casting operations generate intense electromagnetic interference from high-current switching. The 4507’s EMI-hardened design maintains communication integrity in these environments, supporting the safety interlocks that protect personnel and equipment from molten metal hazards.

Port & Marine: Shipboard and port terminal automation systems — including cargo loading arms, mooring systems, and ballast control — require safety controllers that can withstand salt air corrosion, vessel motion, and the electrical noise generated by large marine diesel generators. The Triconex 4507 meets these demands within properly specified marine-grade enclosures.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the Triconex 4507?
All Triconex 4507 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers functional failures under normal operating conditions and includes technical support for installation and commissioning queries. Warranty claims are processed promptly to minimise any impact on your plant’s spare parts programme.

Q2: Is the Triconex 4507 tested before shipment?
Yes. Every unit undergoes pre-shipment functional verification at our facility before dispatch. This testing confirms that the module’s highway communication interfaces, internal diagnostics, and power consumption are within Triconex factory specifications. A test record is available upon request for quality documentation purposes.

Q3: Is the 4507 compatible with my existing Tricon system version?
The Triconex 4507 is compatible with Tricon v9 and v10 chassis configurations and is designed to work alongside Main Processor Modules including the 3006 and 3008 series. If you are operating an earlier Tricon chassis revision or a Trident/Tri-GP system, please contact our technical team at sale@ninermas.com with your system configuration details so we can confirm compatibility before ordering.

Q4: Can NINERMAS support long-term spare parts supply for the Triconex 4507?
Yes. NINERMAS specialises in long-term spare parts programmes for legacy and current-generation industrial control systems. We maintain stock of the Triconex 4507 and related Tricon system components to support planned maintenance shutdowns, insurance spare requirements, and emergency replacement needs. Contact us to discuss a standing supply arrangement tailored to your plant’s maintenance schedule.
