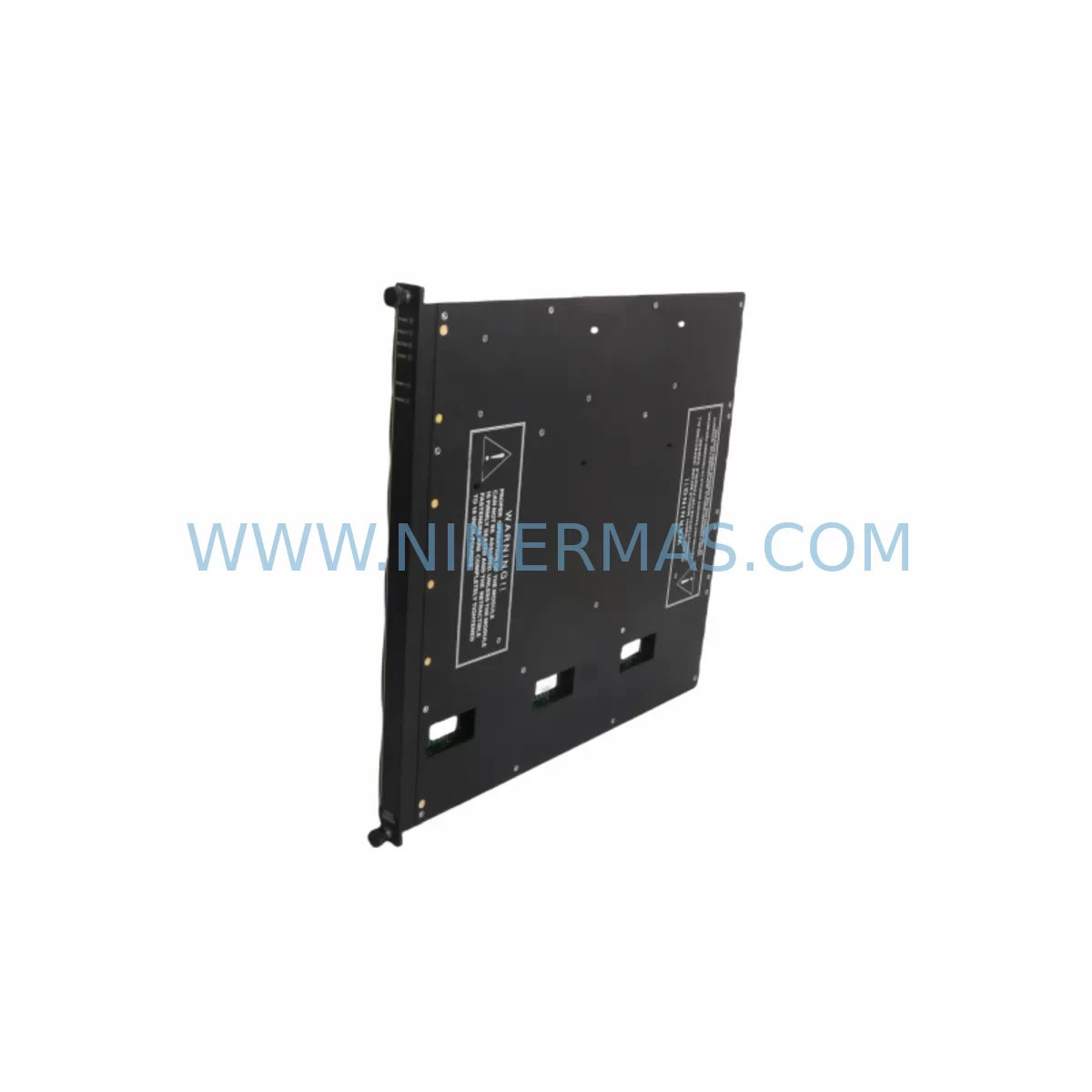

Triconex 3805E Analog Output Module Spare Part

Triconex 3805E Analog Output Module – Service-Ready Spare Part for Industrial Maintenance

The Triconex 3805E Analog Output Module is a critical spare part for Tricon Safety Instrumented Systems (SIS) deployed across continuous process industries. Designed to deliver precise analog output signals in safety-critical control loops, the 3805E supports 4–20 mA output channels with high-integrity signal conditioning, making it an essential component in any well-managed spare parts inventory for facilities operating Triconex Tricon or Trident architectures.

For maintenance engineers responsible for SIS uptime, the 3805E is a direct replacement module that slots into the Tricon chassis backplane without requiring system reconfiguration when properly managed through the TriStation 1131 programming environment. Its ruggedized design addresses the demands of harsh industrial environments — including high ambient temperature, vibration, humidity, and electromagnetic interference — conditions routinely encountered in petrochemical plants, offshore platforms, power generation facilities, and heavy manufacturing sites.

Procurement engineers sourcing replacement modules for aging Tricon systems will find the 3805E available through NINERMAS with verified stock, pre-shipment functional testing, and a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Triconex 3805E Analog Output Module is flagged for replacement during a scheduled turnaround or emergency fault isolation, experienced maintenance engineers know that a single module swap rarely tells the complete story. A thorough inspection of the surrounding system components is essential to prevent repeat failures and ensure the control loop is fully restored to specification.

Begin by verifying the integrity of the Triconex 3805 Power Supply Module, which feeds the output module’s internal circuitry. A degraded power supply can cause intermittent output drift that mimics a faulty 3805E, leading to unnecessary module replacements. Alongside this, inspect the Triconex 3703E Digital Input Module and 3721 Digital Output Module installed in adjacent chassis slots — these modules share the same backplane bus and can be affected by transient faults originating from a failing analog output channel.

The Triconex 3008 Main Chassis backplane connectors should be cleaned and inspected for oxidation or mechanical damage before inserting the replacement 3805E. Backplane connector degradation is a common root cause of intermittent module communication errors in systems that have been in service for more than ten years. If the facility operates a redundant Tricon architecture, also verify the status of the Triconex 3625 Communication Module, which manages peer-to-peer TMR data exchange — a communication fault here can mask analog output errors during diagnostics.

For field wiring, confirm that the 4–20 mA loop cables connected to the 3805E terminal blocks are within impedance specification and free from ground faults. Use a loop calibrator to verify each output channel against the TriStation 1131 configured setpoint before returning the system to service. If the facility uses Phoenix Contact MACX signal isolators or equivalent DIN-rail mounted signal conditioners between the Tricon output and the final control element, these should also be tested — signal isolators in high-temperature environments can develop offset drift that compounds output inaccuracy.

Facilities with aging Tricon installations should also maintain stock of the Triconex 3700A Analog Input Module and 3805 (non-E variant) Analog Output Module as cross-reference spares, since some older chassis configurations may not accept the 3805E without a firmware compatibility check via TriStation. Consulting the Triconex System Planning and Installation Guide before installation is strongly recommended for first-time replacements.

Finally, ensure that the Triconex 3511 Termination Panel or equivalent field termination assembly is in good condition. Loose or corroded termination points at the I/O panel are a frequent source of signal noise that can be incorrectly attributed to a defective output module.

Site Replacement Workflow

Replacing the Triconex 3805E Analog Output Module on an active Tricon system requires careful coordination between the maintenance team and the control room operator to minimize process disruption. The Tricon TMR (Triple Modular Redundancy) architecture allows for online module replacement in most configurations, but the specific procedure depends on the system’s current health status and the number of active voters on the affected output channel.

Step 1 – Pre-Replacement Verification: Confirm the replacement 3805E part number and firmware revision against the installed system’s configuration record in TriStation 1131. Verify that the new module’s hardware revision is compatible with the chassis slot and backplane revision. NINERMAS supplies modules with documented revision traceability to support this verification step.

Step 2 – Loop Isolation: Coordinate with the control room to place the affected output channel in manual mode or bypass, as appropriate for the process safety plan. Document the current output setpoint for each channel before proceeding.

Step 3 – Module Extraction: With the Tricon system in a healthy TMR state, extract the faulty 3805E from its chassis slot. The Tricon chassis supports hot-swap replacement without a full system shutdown, provided the remaining two legs of the TMR architecture are fully operational.

Step 4 – Module Insertion and Initialization: Insert the replacement 3805E and allow the Tricon system to complete its automatic self-test and voter alignment sequence. Monitor the TriStation diagnostic display for any fault codes during the initialization period (typically 30–60 seconds).

Step 5 – Loop Verification: Using a calibrated loop tester, verify each output channel against the configured engineering unit range. Return the channel to automatic control only after all channels pass verification. Update the maintenance record with the replacement date, new module serial number, and test results.

This structured replacement workflow reduces unplanned downtime, maintains SIS integrity, and provides a documented audit trail for functional safety compliance reviews.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the Triconex 3805E supplied by NINERMAS?
All Triconex 3805E Analog Output Modules supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Modules that fail within the warranty period are replaced or repaired at no additional cost, subject to inspection confirming the failure is not due to mishandling, incorrect installation, or operation outside specified parameters.

Q2: How does NINERMAS verify the functional condition of the 3805E before shipment?
Each module undergoes pre-shipment inspection including visual examination for physical damage, connector integrity check, and where test equipment is available, functional output channel verification. Modules are packaged in anti-static protective packaging with desiccant to prevent moisture ingress during transit. A shipment inspection report is available upon request.

Q3: Is the Triconex 3805E compatible with all Tricon chassis configurations?
The 3805E is designed for use with Triconex Tricon 3000 series chassis and is compatible with standard 3008 and 3006 main chassis configurations. Compatibility with specific backplane revisions and firmware versions should be confirmed against the TriStation 1131 system configuration file before installation. NINERMAS technical support can assist with compatibility verification based on your system’s model and revision information.

Q4: Can NINERMAS support long-term supply of the 3805E for multi-year maintenance contracts?
Yes. NINERMAS maintains ongoing sourcing relationships for Triconex spare parts, including the 3805E, to support facilities with long-term maintenance agreements and annual inspection schedules. Customers with multi-year supply requirements are encouraged to contact our sales team to discuss framework agreements, reserved stock arrangements, and priority fulfillment terms.
