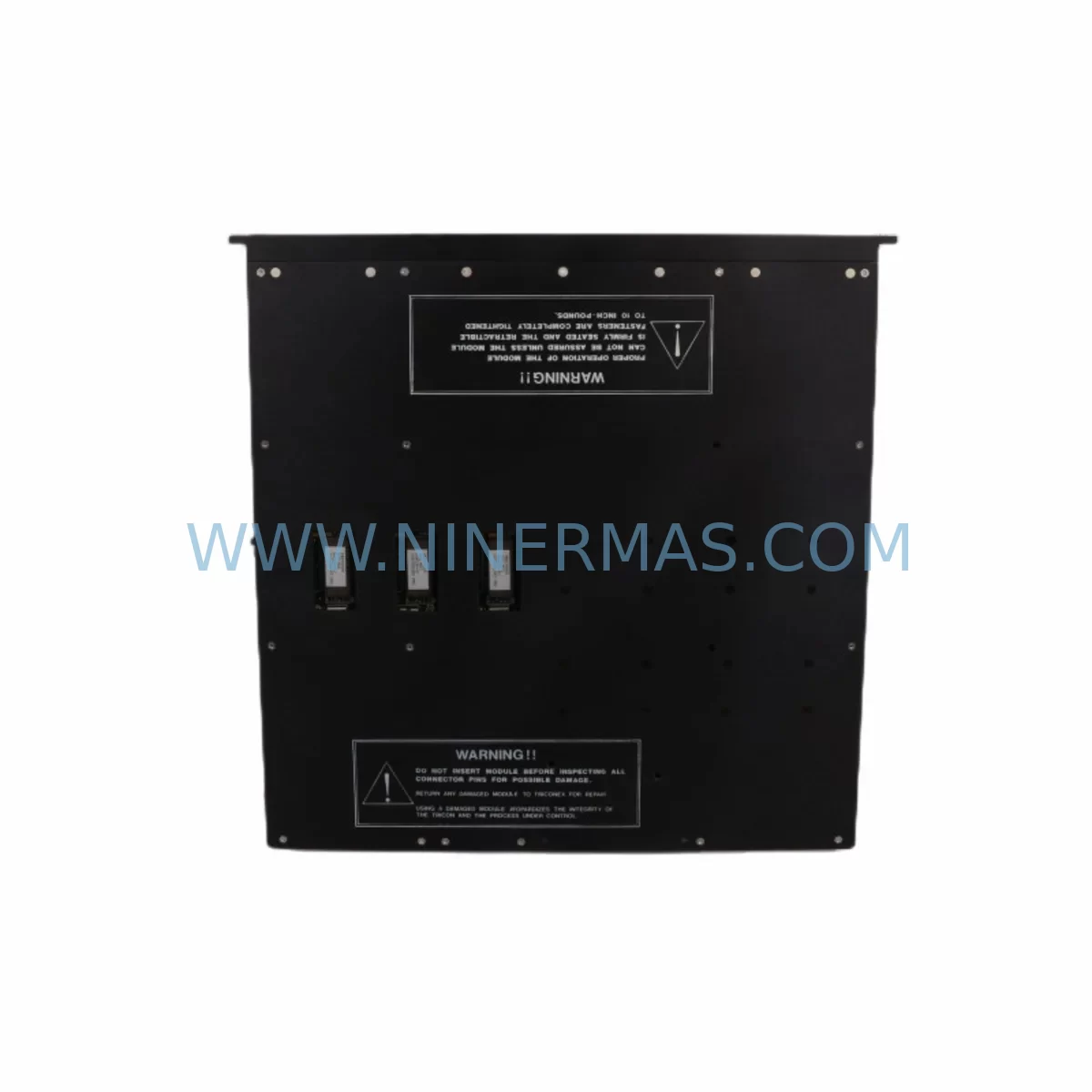

Triconex 3607E Safety-Reliable Digital Output Module

Triconex 3607E Safety-Reliable Digital Output Module for Critical Control Sites

The Triconex 3607E is a high-integrity digital output module engineered for deployment within Triconex Tricon Triple Modular Redundant (TMR) safety systems. Designed to meet the demanding requirements of Safety Instrumented Systems (SIS) operating under IEC 61511 and IEC 61508 standards, the 3607E delivers deterministic, fault-tolerant output control across the most hazardous and continuously operating industrial environments. Whether installed in a petrochemical emergency shutdown panel, a power generation interlock cabinet, or a mining conveyor safety loop, this module provides the output reliability that critical processes depend on — without compromise.

At NINERMAS, every Triconex 3607E unit is sourced from verified supply chains, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory program ensures long-term availability for lifecycle-managed Tricon systems, supporting both planned maintenance windows and emergency spare replacements.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a Tricon-based safety cabinet, the 3607E digital output module operates as the final command executor — translating the TMR voter logic decisions into discrete field-level actuator signals. Its role is inseparable from the broader safety architecture. When paired with the Triconex 3503E Digital Input Module, the system achieves a complete, closed-loop safety instrumented function: inputs are read, logic is processed, and outputs are driven with full TMR redundancy at every stage.

Power integrity is foundational to output reliability. The Triconex 8312 Power Supply Module provides the regulated 24 VDC bus that feeds the 3607E’s output channels. In installations where power quality is a concern — particularly in facilities with heavy motor loads, variable frequency drives, or arc furnace operations — the 8312 works in conjunction with external surge protection devices and UPS systems to eliminate voltage transients that could cause spurious output trips or output latch failures.

Communication between the Tricon main chassis and remote I/O panels is managed through the Triconex 4351B Enhanced Intelligent Communication Module (EICM) or the Triconex 4119A Hiway Interface Module (HIM), depending on the DCS integration architecture. Signal integrity across these communication links directly affects the timeliness of output commands — any communication anomaly that delays a shutdown signal in a high-hazard process represents an unacceptable safety risk. The 3607E’s deterministic output response, combined with robust communication modules, ensures that trip commands are executed within the required safety response time.

For installations in dusty, humid, or chemically aggressive environments — such as offshore platforms, water treatment facilities, or fertilizer plants — the Triconex 3700A Analog Output Module and the 3607E digital output module are often deployed side by side within the same control cabinet, managing both modulating control valves and discrete on/off actuators. Cabinet-level protection, including positive-pressure purging, conformal coating on PCBs, and IP54-rated enclosures, further extends the operational life of these modules in harsh field conditions.

Maintenance teams managing aging Tricon systems frequently pair the 3607E with the Triconex 3501 Digital Input Module and Triconex 3604E Digital Output Module as part of a standardized spare parts kit. Maintaining a minimum of one cold-standby spare per critical output module type — particularly for SIL 2 and SIL 3 loops — is a recognized best practice under IEC 61511 lifecycle management requirements. NINERMAS supports this strategy through its long-term spare parts program, offering committed stock agreements for high-priority SKUs across global customer sites.

In high electromagnetic interference environments — common in steel mills, aluminum smelters, and large motor control centers — the 3607E’s built-in transient suppression and the Tricon system’s optical isolation architecture provide a critical barrier against signal corruption. Complementary EMC measures, such as shielded cable routing, proper grounding of the Triconex chassis backplane, and separation of power and signal wiring within the cabinet, are essential to maintaining output signal integrity under continuous high-EMI exposure.

Critical Industrial Safety Applications

Petrochemical & Refinery Emergency Shutdown (ESD): The 3607E is widely deployed in ESD systems controlling high-integrity pressure protection (HIPPS) valves, blowdown valves, and depressurization actuators. In these applications, the module must execute a de-energize-to-trip (DTT) output command within milliseconds of a SIL 3 logic solver decision — a requirement the Tricon TMR architecture is specifically designed to meet.

Power Generation & Turbine Control: Gas and steam turbine safety systems rely on digital output modules to drive trip solenoids, fuel shutoff valves, and generator breaker trip coils. The 3607E’s hot-swap capability allows maintenance teams to replace a degraded module during a planned outage without requiring a full system restart, minimizing generation downtime.

Mining & Mineral Processing: In underground mining and surface processing plants, conveyor interlocks, crusher protection systems, and ventilation safety loops depend on reliable digital output control. The 3607E’s tolerance for vibration and wide operating temperature range makes it suitable for panel installations in proximity to heavy machinery.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use Tricon-based safety systems to manage chlorine dosing shutoffs, pump protection interlocks, and overflow prevention actuators. The 3607E’s resistance to humidity and its continuous self-diagnostic capability reduce the risk of undetected output failures in these 24/7 critical infrastructure applications.

Metallurgy & Steel Production: Electric arc furnace (EAF) and basic oxygen furnace (BOF) safety systems operate in extreme electromagnetic and thermal environments. The 3607E’s EMI immunity and surge protection make it a dependable output driver for furnace tilt controls, oxygen lance interlocks, and fume extraction safety dampers.

Port & Marine / Offshore Platforms: Offshore oil and gas platforms and LNG terminals require safety systems certified for marine and hazardous area use. The Tricon system, with the 3607E as its output interface, is a recognized solution for fire and gas (F&G) system actuator control, emergency blowdown, and process shutdown in these environments.

Safety and Quality FAQ

Q1: Does the Triconex 3607E come with a warranty?
Yes. Every 3607E unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with Triconex system specifications. Our quality commitment includes pre-shipment functional testing on all modules before dispatch.

Q2: What pre-shipment testing is performed on the 3607E?
Each unit undergoes a full functional verification test prior to shipment, including output channel continuity checks, power-up self-test validation, and visual inspection for physical integrity. Test records are available upon request for customers with documentation requirements under their site quality management systems.

Q3: Is the 3607E compatible with all Tricon chassis versions?
The Triconex 3607E is designed for use within the Tricon TMR platform and is compatible with standard Tricon main chassis and expansion chassis configurations. Compatibility with specific chassis revisions and firmware versions should be verified against the Triconex system documentation for your installation. NINERMAS technical support can assist with compatibility confirmation prior to order placement.

Q4: Can NINERMAS support long-term or recurring supply of the 3607E?
Yes. NINERMAS operates a dedicated long-term spare parts program for lifecycle-managed industrial safety systems, including Triconex Tricon platforms. We offer committed stock agreements, priority allocation for critical SKUs, and flexible delivery scheduling to support planned maintenance programs and emergency replacement requirements across global customer sites. Contact our team at sale@ninermas.com to discuss your supply requirements.
