Siemens G85139-H1750-C810-D Safety-Reliable Drive Module

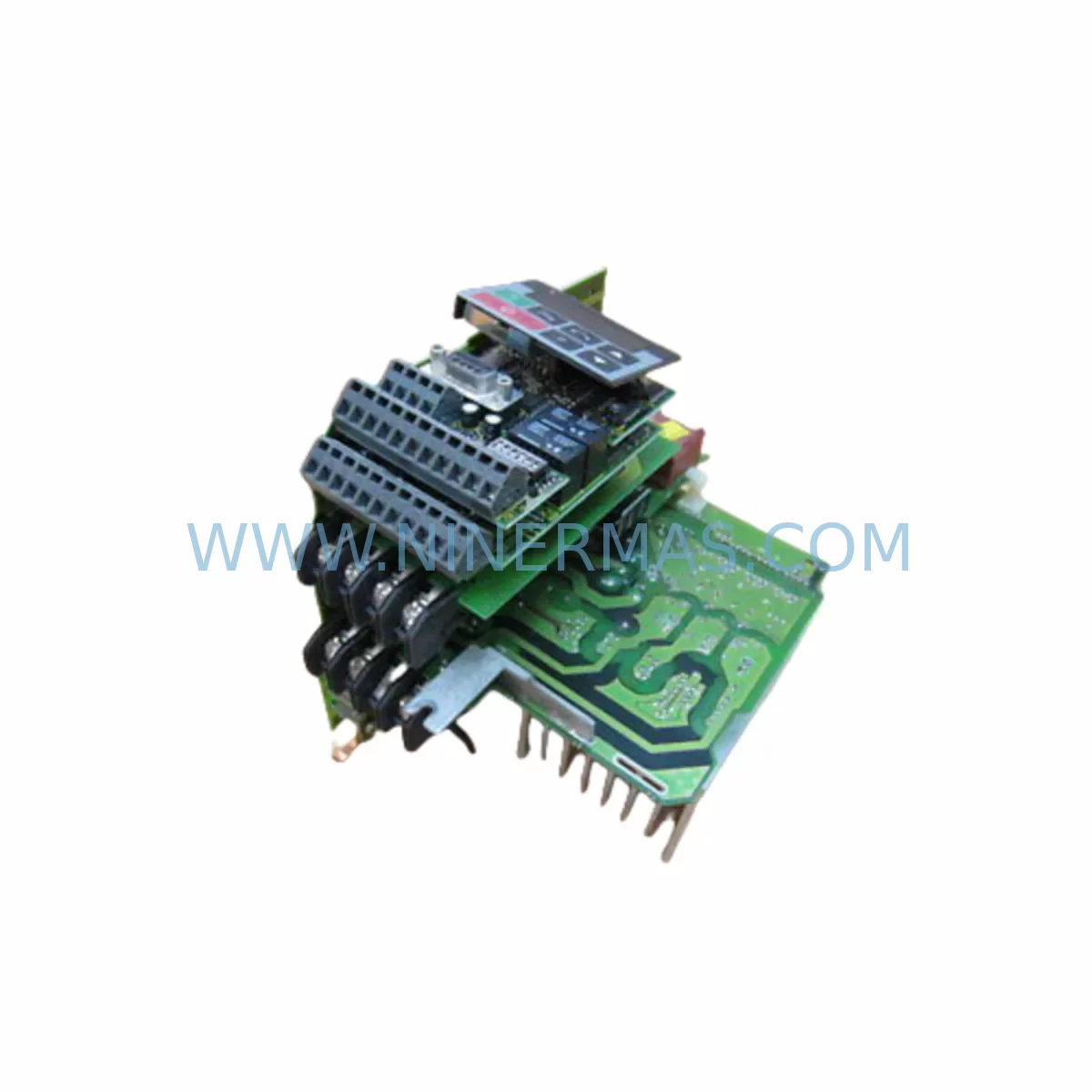

Siemens G85139-H1750-C810-D Safety-Reliable Drive Module: Engineered for Critical Industrial Control

The Siemens G85139-H1750-C810-D is a ruggedized inverter drive module from the SIMODRIVE 611 series, purpose-built for demanding industrial environments where control continuity, safety integrity, and uninterrupted operation are non-negotiable. Deployed across critical control cabinets in continuous manufacturing, heavy process industries, and safety-critical automation loops, this drive module delivers the electrical robustness and signal fidelity required to protect both personnel and production assets. At NINERMAS, every unit is sourced from verified supply channels, pre-shipment tested, and backed by a 12-month warranty — ensuring your spare parts strategy is as reliable as the component itself.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinet environments — whether managing a multi-axis CNC machine tool, a continuous rolling mill drive train, or a critical process pump — a single drive module failure can cascade into unplanned downtime, safety interlock trips, and costly production losses. The Siemens G85139-H1750-C810-D is engineered to minimize these risks within the SIMODRIVE 611 architecture, which is designed as a tightly integrated, modular drive system.

Within a properly configured SIMODRIVE 611 cabinet, the G85139-H1750-C810-D operates in conjunction with the 6SN1145 infeed/regenerative module, which manages DC bus conditioning and energy recovery. Stable DC bus voltage is critical: fluctuations caused by load transients or upstream power events can induce torque ripple, encoder signal drift, and in worst cases, drive fault trips. The 6SN1162 line reactor and 6SN1161 line filter are typically installed upstream to suppress conducted EMI and limit surge currents from the supply network — both essential in environments with heavy motor switching or arc furnace loads nearby.

The G85139-H1750-C810-D interfaces with the 6SN1118 control board, which handles closed-loop speed and torque regulation. Signal integrity between the drive module and the control board is paramount: in high-vibration or high-temperature environments, connector degradation or thermal cycling can introduce intermittent faults. Pairing the drive with a 6SN1112 encoder evaluation module ensures that position and speed feedback remains accurate even under mechanical stress, preventing nuisance trips and protecting the driven load from runaway conditions.

For cabinet-level power distribution, the SITOP PSU series 24 VDC power supply provides stable auxiliary power to control logic, safety relays, and communication interfaces. Voltage sags on the 24 V rail — often caused by inrush from solenoid valves or contactors — can corrupt PROFIBUS or PROFINET communication frames, leading to drive faults or safety system activations. A properly rated SITOP unit with buffering capability eliminates this risk. The 6SN1146 braking module completes the energy management picture, safely dissipating regenerative energy during rapid deceleration cycles and preventing DC bus overvoltage trips that would otherwise shut down the entire drive group.

At the system integration level, the G85139-H1750-C810-D is typically commanded by a SIMATIC S7-400 or S7-300 PLC via the SIMODRIVE 611 communication interface, with drive parameters managed through SIMATIC HMI panels. Maintaining a verified spare of the 6SN1114 drive module alongside the G85139-H1750-C810-D in your critical spare parts inventory ensures that any axis can be restored to service within a single maintenance window — without waiting weeks for a replacement from the OEM supply chain.

Critical Industrial Safety Applications

The Siemens G85139-H1750-C810-D SIMODRIVE 611 inverter drive module is deployed across the most demanding industrial sectors, where control reliability directly impacts operational safety and regulatory compliance.

In petrochemical and refinery plants, this drive module controls compressor trains, boiler feed pumps, and reactor agitators operating within hazardous area boundaries. The ability to maintain precise speed control under variable load — without signal drift or spurious trips — is essential for process safety management systems. Any unplanned drive stop in these environments can trigger emergency shutdown sequences with significant production and safety consequences.

In power generation facilities — including thermal, hydro, and wind — the G85139-H1750-C810-D supports auxiliary drive systems such as cooling fans, lubrication pumps, and pitch control mechanisms. These applications demand continuous availability and fault-tolerant operation, making a verified, tested spare module a critical asset in the plant’s maintenance strategy.

In mining and mineral processing, drives are exposed to extreme dust loading, humidity, and vibration. The ruggedized construction of the G85139-H1750-C810-D makes it suitable for conveyor drives, crusher motors, and slurry pump controls where standard drives would suffer accelerated degradation. Rapid replacement capability — supported by NINERMAS’s in-stock availability — minimizes the cost of unplanned stoppages in high-throughput operations.

In water and wastewater treatment, variable-speed pump drives must operate reliably around the clock. The SIMODRIVE 611 platform’s proven reliability in wet, corrosive environments — combined with the G85139-H1750-C810-D’s EMI immunity — makes it a preferred choice for pump station upgrades and legacy system maintenance. In metallurgical and steel mill applications, the drive supports rolling mill main drives and auxiliary positioning axes, where precise torque control and rapid fault recovery are essential to product quality and worker safety. Port and marine applications similarly rely on this drive for crane hoist controls, winch systems, and vessel propulsion auxiliaries, where saltwater corrosion and vibration demand the highest component reliability standards.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the Siemens G85139-H1750-C810-D?
All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment electrical and functional testing before dispatch. In the event of a warranty claim, NINERMAS provides replacement or repair support to minimize your downtime exposure.

Q2: How is the G85139-H1750-C810-D tested before shipment?
Every unit is subject to a pre-shipment inspection protocol that includes visual inspection, electrical continuity verification, and functional testing against SIMODRIVE 611 system parameters. Units that do not meet specification are quarantined and not dispatched. Test records are available upon request for critical procurement applications.

Q3: Is the G85139-H1750-C810-D compatible with my existing SIMODRIVE 611 cabinet?
The G85139-H1750-C810-D is a direct-fit replacement module for compatible SIMODRIVE 611 drive group configurations. Compatibility depends on your specific cabinet layout, DC bus rating, and control board revision. NINERMAS recommends verifying the module’s power rating and connector configuration against your existing 6SN1123 power module and 6SN1118 control board before installation. Our technical team can assist with compatibility verification.

Q4: Can NINERMAS guarantee long-term supply of this end-of-life Siemens component?
Yes. NINERMAS maintains a dedicated inventory of legacy SIMODRIVE 611 components, including the G85139-H1750-C810-D, sourced through verified global supply channels. We are committed to supporting long-term spare parts strategies for plants operating legacy Siemens drive systems, with ongoing procurement efforts to sustain availability beyond standard OEM end-of-life dates. Contact our team to discuss volume reservation or scheduled supply agreements.
