Allen-Bradley 1785-V40V Safety-Reliable PLC-5 Controller

Allen-Bradley 1785-V40V Safety-Reliable PLC-5 Controller for Critical Industrial Control Sites

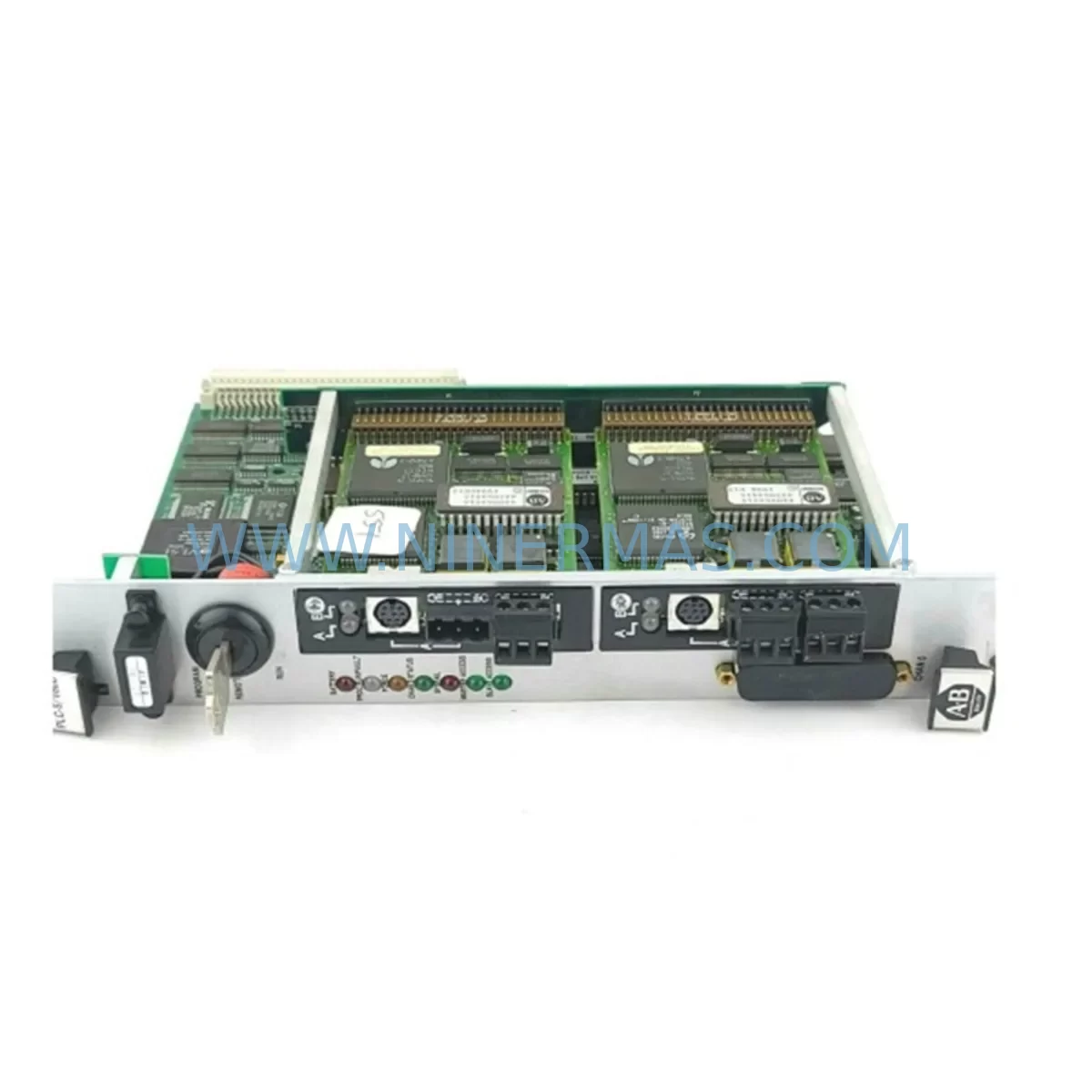

The Allen-Bradley 1785-V40V is a high-performance processor module within the legendary PLC-5 series, engineered to deliver uncompromising safety reliability in the most demanding industrial environments. Designed for continuous production facilities, critical interlock systems, and heavy-duty control cabinets, the 1785-V40V provides the processing backbone that keeps operations running without interruption — even under conditions of high electromagnetic interference, extreme temperature fluctuation, mechanical vibration, dust ingress, and moisture exposure.

At NINERMAS, we supply the 1785-V40V as a verified, tested replacement and upgrade solution for existing PLC-5 architectures. Every unit undergoes pre-shipment functional testing to confirm communication integrity, I/O response accuracy, and processor stability before leaving our facility. With a 12-month warranty and long-term inventory availability, the 1785-V40V is a trusted choice for maintenance engineers, system integrators, and procurement teams managing critical automation assets.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinet deployments, the 1785-V40V processor does not operate in isolation — its safety performance is directly tied to the quality and compatibility of surrounding components. A well-engineered control cabinet pairs the 1785-V40V with a reliable 1771-P4S power supply module to ensure stable, regulated DC power delivery even during grid fluctuations or surge events. Voltage instability is one of the leading causes of PLC processor faults and unplanned shutdowns; a properly rated power supply eliminates this risk at the source.

For I/O signal integrity, the 1785-V40V works in conjunction with 1771-OBD digital output modules and 1771-IBD digital input modules, which provide isolated, noise-filtered signal paths between field devices and the processor. In environments with high electromagnetic interference — such as those near variable frequency drives, large motor starters, or arc welding equipment — these isolated I/O modules prevent signal drift and false triggering that could compromise safety interlocks.

Communication reliability is equally critical. The 1785-V40V’s DH+ network interface connects seamlessly with 1784-KTX Data Highway Plus communication cards and 1785-ENET Ethernet interface modules, enabling real-time supervisory control and SCADA integration without communication dropouts. In multi-node DH+ networks, proper termination resistors and shielded cable routing are essential to prevent reflection-induced communication errors that can cause the processor to enter fault mode.

For applications requiring redundant control, the 1785-V40V can be integrated into architectures alongside 1785-CHBM chassis backup modules, providing hot-standby capability that eliminates single points of failure in continuous process environments. Surge protection at the cabinet level — using 1492-SP surge protection devices on incoming power lines and field signal cables — further reduces the risk of transient-induced processor damage in outdoor substations, coastal facilities, or lightning-prone regions.

Analog process control loops benefit from pairing the 1785-V40V with 1771-IFE analog input modules, which deliver high-resolution 4–20mA signal processing with built-in open-wire detection — a critical safety feature in flow control, pressure monitoring, and temperature regulation loops where signal loss must trigger a safe-state response rather than a frozen output.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 1785-V40V is widely deployed in hydrocarbon processing facilities where emergency shutdown (ESD) systems and safety instrumented systems (SIS) demand absolute processor reliability. Its robust fault detection routines and watchdog timer ensure that any processor anomaly triggers a controlled safe-state output rather than an undefined failure mode — a non-negotiable requirement in explosive atmosphere zones.

Power Generation & Electrical Substations: In thermal, hydro, and gas turbine power plants, the 1785-V40V manages turbine control sequences, generator protection interlocks, and load-shedding logic. Its immunity to high-frequency electrical noise from switchgear and bus bars makes it a preferred processor for substation automation panels operating in close proximity to high-voltage equipment.

Mining & Mineral Processing: Underground and open-pit mining operations subject control systems to extreme vibration, dust, and humidity. The 1785-V40V’s industrial-grade construction and wide operating temperature range make it suitable for conveyor control systems, crusher automation, and ventilation safety interlocks in these harsh environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the 1785-V40V for pump station control, chemical dosing sequences, and SCADA-integrated monitoring. Its reliable DH+ and RS-232 communication ports ensure uninterrupted data exchange with SCADA systems, preventing the communication blackouts that can lead to overflow events or treatment failures.

Metallurgy & Steel Production: In electric arc furnaces, rolling mills, and continuous casting lines, the 1785-V40V handles high-speed sequential control under extreme thermal and electromagnetic stress. Its proven performance in these environments reduces the risk of control interruptions that could result in costly material defects or equipment damage.

Port & Marine Logistics: Crane control systems, ship-to-shore loaders, and bulk material handling equipment in port environments demand controllers that can withstand salt air corrosion, vibration, and wide temperature swings. The 1785-V40V’s robust design and long-term parts availability make it a reliable choice for port automation infrastructure where downtime directly impacts cargo throughput.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1785-V40V?
The 12-month warranty covers all hardware defects, processor communication failures, memory faults, and backplane interface issues identified under normal operating conditions. If a unit fails within the warranty period, NINERMAS provides a replacement or repair at no additional cost. Warranty claims are processed promptly to minimize your downtime.

Q2: What pre-shipment testing is performed on each 1785-V40V unit?
Every 1785-V40V unit undergoes a comprehensive functional test before shipment, including processor boot verification, DH+ and RS-232 communication port testing, I/O chassis backplane communication check, and memory integrity validation. This ensures that the unit you receive is fully operational and ready for installation without additional bench testing.

Q3: Is the 1785-V40V compatible with existing PLC-5 I/O chassis and programming software?
Yes. The 1785-V40V is fully compatible with the 1771 I/O chassis family and is programmed using Rockwell Automation’s RSLogix 5 software. It supports all standard PLC-5 instruction sets, making it a direct drop-in replacement for other PLC-5 processor variants without requiring program rewrites or chassis modifications.

Q4: Can NINERMAS guarantee long-term supply of the 1785-V40V for ongoing maintenance needs?
Yes. NINERMAS maintains dedicated inventory of the 1785-V40V and other PLC-5 series components to support long-term maintenance and spare parts programs. We understand that legacy PLC-5 systems remain in service across many critical industries, and we are committed to providing reliable supply continuity so your operations are never compromised by parts unavailability.
