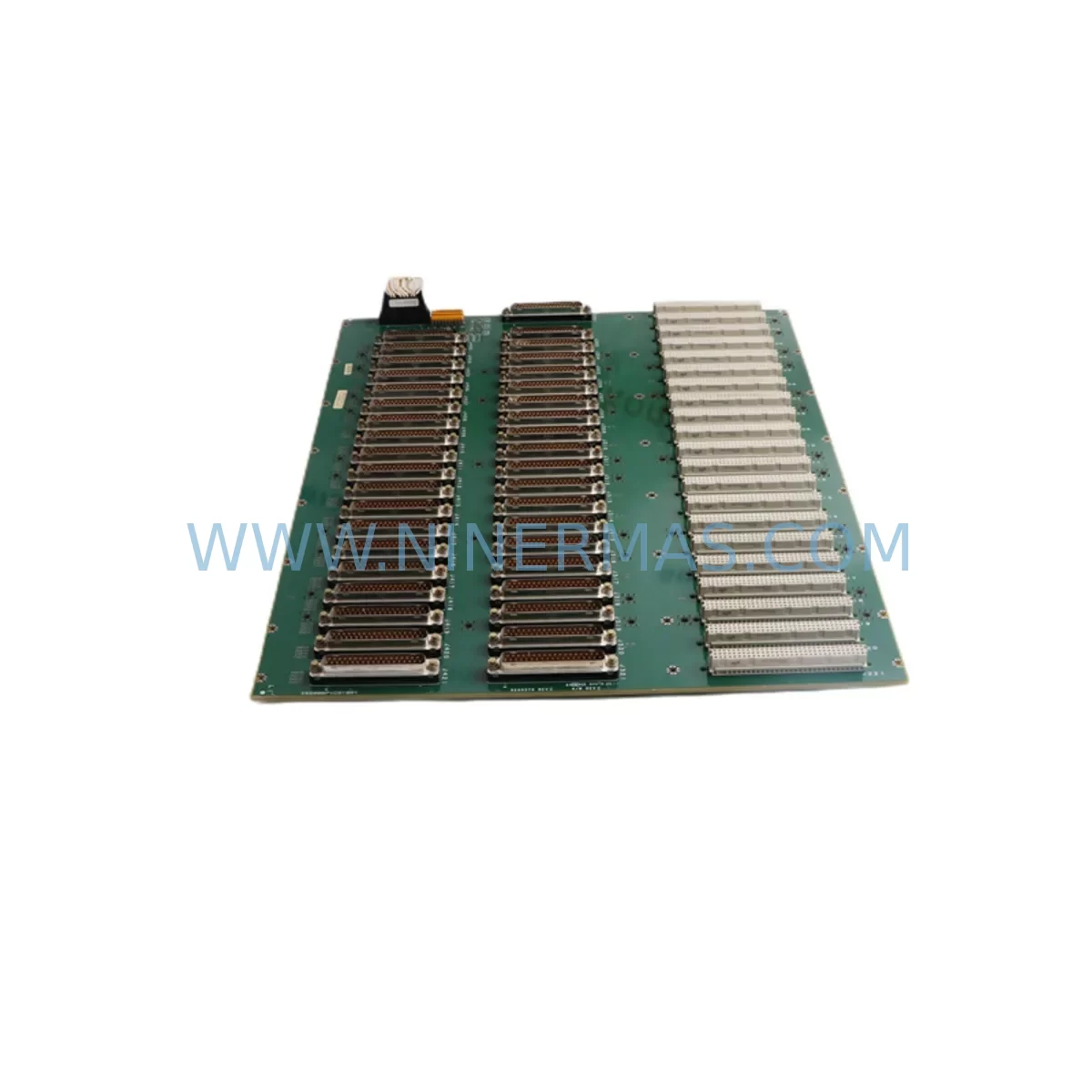

The GE IS200BPVCG1BR1 is a high-reliability turbine control board engineered for the GE Mark VI Speedtronic turbine control system — one of the most widely deployed distributed control architectures in power generation, petrochemical, and heavy industrial environments. Designed to operate continuously in demanding field conditions, the IS200BPVCG1BR1 delivers the signal integrity, electrical isolation, and fault-tolerant performance that critical control loops demand. Whether installed in a gas turbine control cabinet, a combined-cycle power plant, or a refinery compressor train, this board is a cornerstone of safe, uninterrupted turbine operation.

At NINERMAS, every IS200BPVCG1BR1 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — giving maintenance engineers and procurement teams the confidence to plan replacements without compromising plant safety or uptime.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a Mark VI Speedtronic control cabinet, the IS200BPVCG1BR1 functions as the Backup Protection and Voting Control (BPVC) board — a critical safety layer that monitors protective relay outputs and executes turbine trip logic when primary control channels detect fault conditions. Its redundant voting architecture ensures that no single-point failure in the control loop can result in an undetected hazardous state, making it indispensable in facilities where an unplanned turbine trip or runaway event carries severe safety and financial consequences.

To maintain the integrity of the full protection chain, the IS200BPVCG1BR1 works in close coordination with several companion modules within the Mark VI rack. The IS200VTURH1B turbine protection board provides upstream overspeed and flame detection signals that feed directly into the BPVC voting logic. The IS200DSPXH1B digital signal processor board handles real-time control calculations and communicates status to the BPVC layer, ensuring that any anomaly in speed, temperature, or vibration is immediately evaluated for protective action.

On the power supply side, the IS200EPCTG1B power conditioning module regulates the 24 VDC rail that energizes the IS200BPVCG1BR1 and its associated relay drivers. In high-electromagnetic-interference environments — such as those near large motor drives, arc furnaces, or high-voltage switchgear — power rail stability is non-negotiable. A voltage sag or surge on the control power bus can cause spurious relay chatter or, worse, a failure to trip when required. Pairing the IS200BPVCG1BR1 with a properly maintained IS200EPCTG1B and a dedicated 24 VDC UPS module eliminates this vulnerability and ensures the protection board remains energized even during grid disturbances.

Communication reliability is equally critical. The IS200BPVCG1BR1 exchanges health and status data over the Mark VI IONet Ethernet backbone, interfacing with the IS200IOCIH1B I/O controller interface board. Any communication dropout between the BPVC board and the main controller can mask a developing fault condition. Ensuring that the IONet fiber optic cables, IS200IOATH1B I/O terminal boards, and associated network switches are in good condition is part of a comprehensive control cabinet risk reduction strategy. In dusty or humid environments — common in cement plants, mining operations, and coastal power stations — periodic inspection of fiber connectors and terminal board contacts prevents the signal degradation that leads to nuisance trips or missed alarms.

For facilities operating in high-vibration environments such as offshore platforms or reciprocating compressor stations, the mechanical seating of the IS200BPVCG1BR1 in its rack slot should be verified during every planned maintenance window. Loose board connections are a leading cause of intermittent faults that are difficult to diagnose under load. Complementing the BPVC board with a well-maintained IS200VSVOH1B servo control board and IS200TREGH1B turbine regulation board ensures that the entire protective and regulatory control chain operates with the signal fidelity required for safe, continuous production.

Critical Industrial Safety Applications

The GE IS200BPVCG1BR1 is deployed across a broad spectrum of critical industrial environments where turbine control reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery complexes, gas turbine-driven compressors and pumps operate continuously to maintain process pressure and flow. A control board failure in this context can trigger emergency shutdowns that take hours or days to recover from, with significant product loss and flaring penalties. The IS200BPVCG1BR1’s redundant voting logic ensures that protective trips are executed decisively when required, while nuisance trips caused by signal noise or transient faults are filtered out — a balance that is essential in ATEX-classified hazardous areas.

In power generation plants — including combined-cycle gas turbine (CCGT) facilities and simple-cycle peakers — the IS200BPVCG1BR1 is part of the overspeed protection and flame-out detection chain. Grid operators and plant managers rely on the Mark VI system’s protective functions to meet NERC reliability standards and local grid code requirements. Having a verified, tested replacement IS200BPVCG1BR1 in the plant’s critical spare inventory is a standard risk mitigation practice recommended by turbine OEM service guidelines.

In mining and mineral processing operations, large gas turbine generators power crushing, grinding, and conveying systems. The harsh environment — characterized by airborne silica dust, wide temperature swings, and high-current motor starting transients — places exceptional demands on control electronics. The IS200BPVCG1BR1’s robust design and EMI immunity make it well-suited for these conditions, and its availability as a stocked spare at NINERMAS means that a board failure does not have to become a multi-week production outage.

In water and wastewater treatment facilities, turbine-driven blowers and pumps are critical to maintaining treatment capacity. Regulatory compliance requirements mean that unplanned outages carry not only financial penalties but also potential environmental liability. The IS200BPVCG1BR1 supports the protective interlocks that prevent equipment damage and process upsets in these sensitive applications.

In metallurgical and steel production plants, continuous casting and rolling operations cannot tolerate unexpected control system failures. The IS200BPVCG1BR1’s role in the turbine protection chain supports the high-availability requirements of these 24/7 production environments, where every hour of unplanned downtime translates directly to lost revenue and potential equipment damage.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the IS200BPVCG1BR1?
Every IS200BPVCG1BR1 supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. If the board fails under normal operating conditions within the warranty period, NINERMAS will provide a replacement or repair at no additional cost. This warranty reflects our confidence in the quality of our sourcing and pre-shipment testing processes.

Q2: How is the IS200BPVCG1BR1 tested before shipment?
Each unit undergoes a comprehensive pre-shipment functional verification that includes power-on testing, communication interface checks, and relay output verification. Boards that do not meet our quality standards are quarantined and not shipped. A test report is available upon request for customers with documented quality management requirements.

Q3: Is the IS200BPVCG1BR1 compatible with all Mark VI Speedtronic system configurations?
The IS200BPVCG1BR1 is designed for use in GE Mark VI Speedtronic turbine control systems. Compatibility depends on the specific Mark VI hardware revision and software configuration of your system. We recommend providing your system’s Mark VI configuration details when ordering to allow our technical team to confirm compatibility. Our engineers are available to assist with cross-referencing and application guidance.

Q4: Can NINERMAS support long-term supply of the IS200BPVCG1BR1 for ongoing maintenance programs?
Yes. NINERMAS maintains stock of the IS200BPVCG1BR1 and other Mark VI IS200 series boards to support planned maintenance, emergency replacement, and critical spare inventory programs. We work with power plants, refineries, and industrial facilities on a long-term supply basis, providing consistent availability, competitive lead times, and technical support for the life of your Mark VI system.
