GE IS210AEDBH4AGD Safety-Reliable Bridge Interface for Critical Control

GE IS210AEDBH4AGD Safety-Reliable Bridge Interface for Critical Control Sites

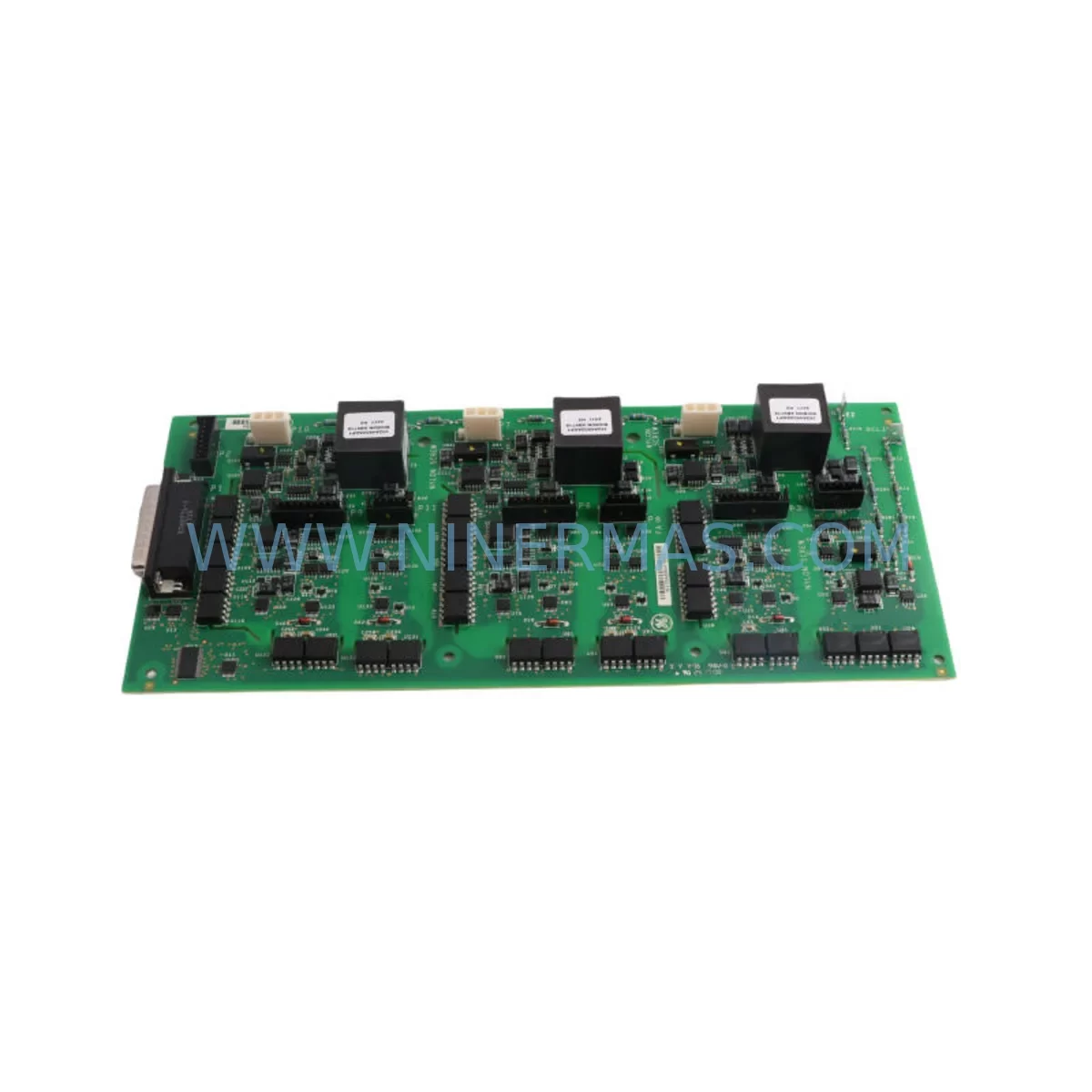

The GE IS210AEDBH4AGD is a high-integrity bridge interface module engineered for the GE Mark VI Turbine Control System — one of the most widely deployed distributed control architectures in power generation, petrochemical processing, and heavy industrial automation. Designed to maintain uninterrupted signal integrity across the control backbone, the IS210AEDBH4AGD serves as a critical communication bridge between the Mark VI I/O packs and the main controller racks, ensuring that control loop continuity is preserved even under the most demanding field conditions.

In continuous production environments where unplanned downtime carries severe operational and financial consequences, the IS210AEDBH4AGD delivers the communication stability and fault tolerance that safety-critical control cabinets demand. Its robust design addresses the core failure modes that plague aging DCS infrastructure: signal drift, communication timeouts, power transient coupling, and electromagnetic interference from adjacent variable frequency drives, high-voltage switchgear, and motor control centers.

NINERMAS maintains verified in-stock inventory of the IS210AEDBH4AGD, fully tested prior to shipment, backed by a 12-month warranty, and supported by long-term spare parts supply commitment for global industrial customers.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a Mark VI-based turbine control cabinet, the IS210AEDBH4AGD does not operate in isolation — it is the communication spine that ties together a layered architecture of safety and control components. A failure at the bridge interface level can cascade into loss of visibility across multiple I/O packs simultaneously, triggering nuisance trips or, worse, masking genuine process faults.

To build a resilient control cabinet around the IS210AEDBH4AGD, engineers typically pair it with the IS200VCRCH1B VME Communication and Relay Card, which handles relay output logic for turbine trip circuits, and the IS215UCVEH2A Mark VI UCVE Controller Card, which executes the core protection algorithms. On the power supply side, the IS200EPSMG1A Excitation Power Supply Module provides stable, conditioned DC power to the I/O rack, preventing voltage sag events from corrupting active communication frames on the IONet bus.

Signal integrity at the field terminal level is further protected by the IS200TTURH1CBB Turbine Terminal Board, which conditions thermocouple, RTD, and speed sensor inputs before they reach the controller. In high-vibration turbine skid installations, the IS200VSVOH1B Servo and Valve Output Board manages actuator command signals, ensuring that valve positioning commands are executed without latency or signal corruption even when the cabinet is subject to mechanical vibration from adjacent rotating equipment.

For plants running redundant Mark VI configurations, the IS210AEBIH3BED Bridge Interface Module (alternate revision) is often stocked alongside the IS210AEDBH4AGD to provide immediate hot-swap capability during planned maintenance windows. Communication health across the IONet backbone is monitored through the IS200DSPXH1D Digital Signal Processor Board, which provides diagnostic feedback on bus utilization, frame error rates, and node response times — all critical indicators of impending communication degradation before it becomes a safety event.

Surge and transient protection at the cabinet entry point is handled by dedicated DIN-rail surge protective devices (SPDs) rated for the Mark VI’s 24 VDC and 125 VDC supply rails, preventing lightning-induced or switching-transient energy from reaching the IS210AEDBH4AGD’s sensitive interface circuitry. Completing the protection architecture, IS200TREGH1B Regulation Terminal Boards manage generator excitation feedback signals, closing the loop between field instrumentation and the Mark VI’s protection response logic.

Critical Industrial Safety Applications

The IS210AEDBH4AGD is deployed across a broad spectrum of safety-critical industrial environments where the Mark VI platform governs turbine and generator control:

Power Generation (Gas & Steam Turbines): In combined-cycle power plants and peaking stations, the IS210AEDBH4AGD maintains the IONet communication link that carries turbine speed, exhaust temperature, and vibration data to the Mark VI controller in real time. Any communication interruption on this path can trigger an unwarranted turbine trip, causing grid instability and significant revenue loss. The module’s robust design minimizes this risk during both steady-state operation and transient load-following events.

Petrochemical & Refinery Sites: In compressor trains and process gas turbines operating within hazardous area classifications, the IS210AEDBH4AGD supports the safety interlock chains that prevent overspeed, over-temperature, and surge events. Its reliable communication performance under high-EMI conditions — generated by large motor drives and heat tracing systems common in refinery environments — is essential for maintaining SIL-rated protection function availability.

Mining & Mineral Processing: Large grinding mill drives and conveyor systems in mining operations increasingly use Mark VI-based control for coordinated motor protection and process interlocking. The IS210AEDBH4AGD ensures that I/O data from distributed field panels reaches the central controller without dropout, even in the dusty, high-vibration environments characteristic of underground and open-pit mining operations.

Water & Wastewater Treatment: Pump station control systems and large blower drives in municipal water treatment facilities rely on continuous I/O communication for flow control, pressure regulation, and alarm management. The IS210AEDBH4AGD’s tolerance for humid, chemically aggressive environments makes it suitable for these installations where condensation and corrosive gases are persistent concerns.

Metallurgy & Steel Production: In electric arc furnace (EAF) and rolling mill control systems, the IS210AEDBH4AGD operates in environments with extreme electromagnetic noise generated by high-current bus bars and thyristor drives. Its shielded interface design maintains communication integrity under these conditions, supporting the precise timing requirements of coordinated drive and furnace control sequences.

Port & Marine Applications: Shipboard power management systems and large port crane drives using GE Mark VI-based control benefit from the IS210AEDBH4AGD’s vibration tolerance and wide operating temperature range, ensuring reliable operation in the dynamic mechanical and thermal environments of marine and port infrastructure.

Safety and Quality FAQ

Q1: What warranty coverage does the IS210AEDBH4AGD carry?
All IS210AEDBH4AGD units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, NINERMAS provides replacement or repair support with priority handling to minimize your site downtime.

Q2: How is the IS210AEDBH4AGD tested before shipment?
Every unit undergoes a full functional verification test prior to dispatch. This includes communication interface continuity checks, power rail integrity verification, and visual inspection for physical damage or component degradation. Test records are available upon request for quality documentation purposes.

Q3: Is the IS210AEDBH4AGD compatible with all Mark VI system revisions?
The IS210AEDBH4AGD is designed for the GE Mark VI platform and is compatible with standard Mark VI control racks using the IONet communication architecture. For specific revision compatibility questions — particularly for older Mark VI installations or mixed-revision cabinets — NINERMAS technical support can assist with cross-reference verification before order placement.

Q4: Can NINERMAS support long-term or blanket supply agreements for the IS210AEDBH4AGD?
Yes. NINERMAS specializes in long-term spare parts supply programs for legacy industrial control systems. We can support scheduled delivery agreements, safety stock arrangements, and multi-year procurement planning for the IS210AEDBH4AGD and related Mark VI components, ensuring your maintenance team always has critical spares available without lead-time risk.
