GE IC698CMX016-ED Service-Ready Spare Part for Industrial Maintenance

GE IC698CMX016-ED Service-Ready Spare Part for Industrial Maintenance

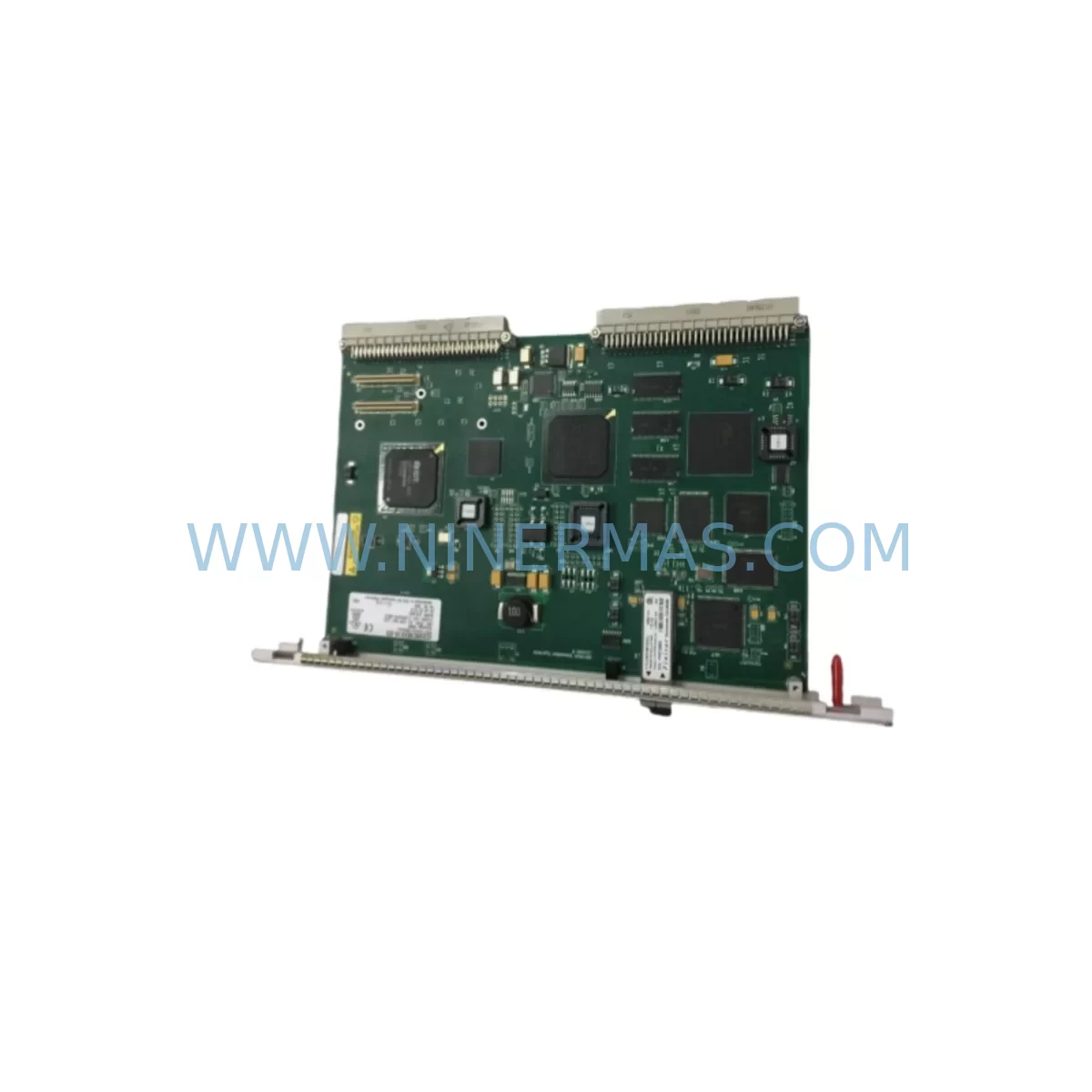

The GE IC698CMX016-ED is an original CMX communication module designed for the PACSystems RX7i control platform — one of GE’s most widely deployed PLC/DCS architectures in continuous process, power generation, oil & gas, and heavy manufacturing environments. As aging RX7i systems approach end-of-life support cycles, maintaining a verified stock of the IC698CMX016-ED has become a critical element of any industrial spare parts strategy.

This module serves as the primary communication backbone within the RX7i rack, enabling high-speed data exchange between the CPU, I/O subsystems, and supervisory control layers. A failure of the IC698CMX016-ED can result in complete loss of rack communication, triggering unplanned shutdowns across entire production lines. For maintenance engineers managing aging control infrastructure, having a service-ready replacement on the shelf is not optional — it is a fundamental risk mitigation measure.

NINERMAS supplies the IC698CMX016-ED as a fully tested, original spare part with a 12-month warranty, pre-shipment functional verification, and documented compatibility confirmation for RX7i rack configurations. Each unit is inspected against GE’s original hardware specifications before dispatch, ensuring that field engineers receive a module ready for immediate installation without additional bench testing delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the IC698CMX016-ED, experienced maintenance engineers treat the module swap as a trigger for a broader control cabinet inspection. Communication module failures in RX7i systems rarely occur in isolation — they are often preceded or accompanied by degradation in adjacent components sharing the same backplane power bus and signal environment.

Before or during replacement of the IC698CMX016-ED, the following components should be inspected and, where applicable, included in the same maintenance window:

• RX7i Power Supply (IC698PSA100 / IC698PSA350) — Verify output voltage stability on the +5 VDC and +24 VDC rails. A marginal power supply is a leading cause of intermittent CMX communication faults and should be replaced proactively if the unit has exceeded 5 years of continuous service.
• RX7i CPU Module (IC698CPE020 / IC698CPE040) — Confirm firmware revision compatibility with the replacement IC698CMX016-ED. Mismatched firmware between CPU and CMX modules can cause rack initialization failures after hot-swap.
• RX7i Universal Backplane (IC698CHS017) — Inspect backplane connector pins for oxidation, mechanical damage, or thermal stress marks. A damaged backplane slot will cause recurring CMX faults regardless of module condition.
• Ethernet Communication Module (IC698ETM001) — If the RX7i rack uses Ethernet-based SCADA or historian connectivity, verify the ETM001 link status and cable integrity during the same maintenance window.
• Analog Input Modules (IC698ALG230 / IC698ALG232) — Check for signal drift or calibration errors that may have been masked by CMX communication faults during the fault period.
• Digital I/O Modules (IC698MDL740 / IC698MDL654) — Inspect field wiring terminations and verify I/O status after CMX replacement to confirm all field signals are correctly re-established.
• Terminal Blocks and Field Wiring — Inspect all terminal block connections within the control cabinet for loose terminations, corrosion, or insulation degradation, particularly on signal and power commons.
• Signal Isolators and Surge Protectors — Verify that signal isolators on 4–20 mA loops and thermocouple inputs are functioning correctly, as transient events that damage CMX modules often affect signal conditioning equipment simultaneously.
• Relay Output Modules and Interposing Relays — Confirm relay contact integrity on output modules connected to motor starters, solenoid valves, and safety interlocks that may have been de-energized during the communication fault period.
• HMI and Operator Panel Connectivity — After CMX replacement, verify that all HMI screens (iFIX, CIMPLICITY, or third-party SCADA) re-establish communication correctly and that no alarm suppression or data logging gaps require reconciliation.

Procurement engineers should note that the IC698CMX016-ED is a long-lead item in the open market due to GE’s reduced production of legacy RX7i components. Establishing a minimum stock level of one to two units per installed RX7i system is strongly recommended for facilities operating in continuous or semi-continuous process environments where unplanned downtime carries significant financial and safety consequences.

Site Replacement Workflow

Replacing the IC698CMX016-ED in an active RX7i system requires a structured approach to minimize downtime and avoid secondary faults during the restoration sequence. The following workflow reflects best practices for field replacement in industrial environments:

1. Pre-Replacement Verification: Confirm the replacement IC698CMX016-ED part number and revision suffix match the installed unit. The “-ED” suffix denotes a specific hardware revision; substituting an incompatible revision may require firmware updates to the CPU module before the rack will initialize correctly.
2. System State Documentation: Before removing the faulty module, capture the current rack configuration using the GE Proficy Machine Edition programming environment. Export the hardware configuration file and verify that the CPU memory backup is current.
3. Controlled Shutdown: Where process conditions permit, execute a controlled shutdown of the affected rack rather than a hot-swap. This eliminates the risk of backplane transients during module removal and reduces the likelihood of I/O state errors on restart.
4. Module Removal and Inspection: Remove the IC698CMX016-ED and inspect the backplane slot connector for damage. Clean the slot with dry compressed air if contamination is present. Do not use liquid solvents near the backplane.
5. Replacement Installation: Seat the replacement IC698CMX016-ED firmly into the rack slot, ensuring the module locking tabs engage correctly. Verify that the module status LEDs indicate normal initialization after power-up.
6. Communication Re-establishment: Confirm that the CPU re-establishes communication with all I/O modules and that the Ethernet or serial communication links to SCADA and historian systems are restored. Check for any fault codes in the CPU fault table.
7. Functional Test: Execute a full I/O scan and verify that all field signals are reading correctly before returning the system to automatic control. Document the replacement in the site maintenance management system (CMMS).

For facilities managing multiple RX7i racks across a plant, a standardized replacement kit — including the IC698CMX016-ED, a spare power supply, and a set of terminal block jumpers — reduces mean time to repair (MTTR) significantly and supports a consistent maintenance response regardless of which technician performs the work.

Spare Parts Support FAQ

Q1: Is the IC698CMX016-ED compatible with all RX7i rack configurations?
The IC698CMX016-ED is designed for use in GE PACSystems RX7i universal backplanes, including the IC698CHS017 and IC698CHS113 chassis. Compatibility with specific CPU revisions should be verified against the GE PACSystems RX7i Hardware Reference Manual. NINERMAS provides compatibility confirmation as part of the pre-shipment documentation for each unit supplied.

Q2: What pre-shipment testing is performed on the IC698CMX016-ED before dispatch?
Each IC698CMX016-ED supplied by NINERMAS undergoes functional verification testing prior to shipment. This includes power-up initialization checks, backplane communication interface testing, and visual inspection against GE’s original hardware specifications. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can NINERMAS support long-term supply of the IC698CMX016-ED for multi-year maintenance contracts?
Yes. NINERMAS specializes in long-term spare parts supply programs for legacy GE PACSystems components, including the RX7i series. We maintain stock reserves and can support annual blanket orders, consignment arrangements, and scheduled delivery programs aligned with customer maintenance cycles. Contact our technical sales team to discuss a tailored supply agreement.

Q4: What should I do if the replacement IC698CMX016-ED does not initialize correctly after installation?
If the replacement module does not initialize, first verify that the CPU firmware is compatible with the installed revision of the IC698CMX016-ED. Check the CPU fault table for specific error codes and confirm that the backplane slot connector is undamaged. If the issue persists, contact NINERMAS technical support — all units supplied carry a 12-month warranty and we will arrange a replacement or provide remote diagnostic assistance at no additional charge.
