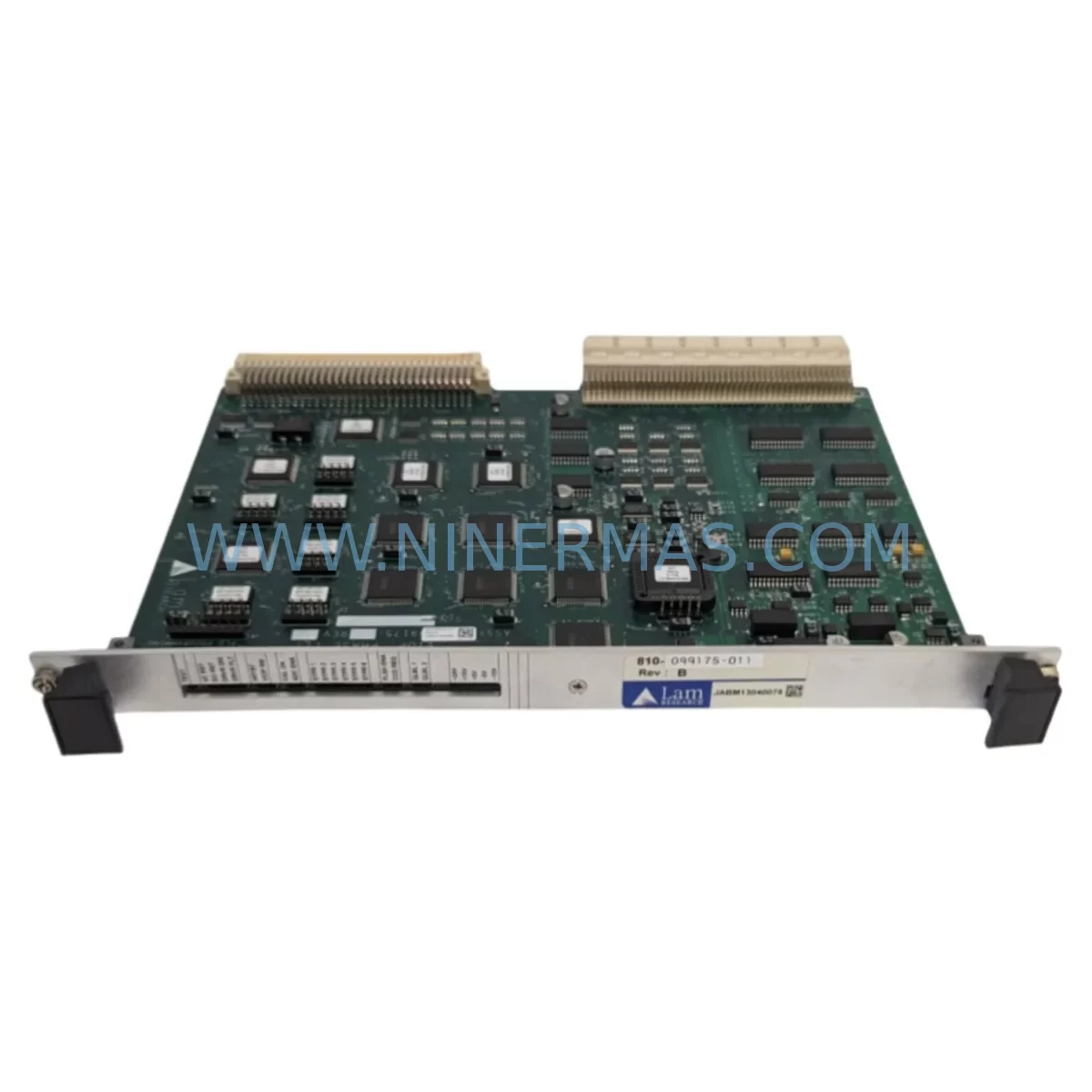

The LAM Research 810-099175-011 is a critical PCB assembly spare part designed to support continuous operation of LAM Research semiconductor processing and industrial control equipment. As production environments demand higher uptime and tighter maintenance windows, having a verified, service-ready replacement for the 810-099175-011 on hand is a cornerstone of any proactive spare parts strategy. NINERMAS supplies this component pre-tested, with full functional verification prior to shipment, backed by a 12-month warranty and long-term supply commitment.

Unplanned downtime caused by PCB-level failures in LAM Research systems can halt entire production lines, triggering costly delays in semiconductor fabrication, chemical vapor deposition (CVD), or etch process environments. The 810-099175-011 board interfaces directly with the system’s control architecture, and its failure typically manifests as process interruption, communication faults, or I/O signal loss. Maintenance engineers who carry this spare in their critical inventory can execute a rapid board swap and restore system operation within a single maintenance window — avoiding extended outages that compound into significant production losses.

For procurement engineers managing multi-vendor spare parts programs, the 810-099175-011 represents a high-priority line item. LAM Research equipment is widely deployed across 200mm and 300mm wafer fabs, and legacy system lifecycle extension is a growing priority as OEM support windows close. NINERMAS maintains stock of this part and related assemblies to support both emergency replacement and scheduled annual maintenance programs, with fast international logistics to key manufacturing regions in Asia, Europe, and North America.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 810-099175-011 PCB assembly in a LAM Research system, a thorough site inspection of the surrounding control cabinet and electrical circuit is essential to prevent repeat failures and ensure stable resumed operation. Maintenance engineers should treat this board swap as an opportunity to audit the full control loop.

Begin by inspecting the system power supply module that feeds the board’s logic and I/O rails — voltage ripple or transient spikes are a common root cause of PCB failure in process equipment. Verify that the backplane or card cage connectors show no signs of oxidation, bent pins, or thermal stress, as poor backplane contact can cause intermittent faults that damage replacement boards prematurely. Check the I/O terminal blocks and field wiring connected to this board’s signal channels; loose terminations or shielding failures introduce noise that can corrupt control signals and accelerate component wear.

If the system uses communication modules — such as SERCOS, DeviceNet, or proprietary LAM Research fieldbus interfaces — confirm that the communication harness and protocol settings are intact before powering up the replacement board. In systems with signal isolation barriers or optocoupler-based I/O cards, inspect these components for degradation, as they protect the PCB from field-side voltage transients. Fuse holders and circuit protection devices on the power distribution rail should be checked and replaced if any show signs of thermal discoloration.

For systems with an HMI or operator panel connected to this control board, verify that the communication link re-establishes correctly after board replacement and that all process parameters and alarm setpoints are retained or restored from backup. Relay output modules and solid-state relay (SSR) banks driven by this board’s digital outputs should be tested for correct switching response. Finally, review the cooling and airflow within the control enclosure — inadequate thermal management is a leading cause of PCB failure recurrence in high-duty-cycle semiconductor equipment.

Maintaining a coordinated spare parts inventory that includes the 810-099175-011 alongside related power, I/O, communication, and protection components ensures that your maintenance team can resolve complex faults without waiting on multiple procurement cycles.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the affected system and discharge any stored energy in the power supply capacitor banks before opening the control cabinet.

Step 2 — ESD Protection: Use a grounded wrist strap and ESD-safe mat. The 810-099175-011 PCB contains sensitive CMOS and mixed-signal components that are susceptible to electrostatic discharge.

Step 3 — Documentation: Photograph the existing board’s connector positions, jumper settings, and any field-applied labels before removal. Record the slot address and any DIP switch or configuration settings visible on the board.

Step 4 — Board Removal: Disconnect all harnesses and cables in sequence. Remove the board from the card cage or mounting rail, handling only by the edges.

Step 5 — Inspection & Comparison: Compare the replacement 810-099175-011 against the removed board. Confirm revision markings, connector types, and any configurable jumpers match the system’s requirements.

Step 6 — Installation: Seat the replacement board firmly in the backplane slot. Reconnect all harnesses in reverse removal order. Verify connector locking mechanisms are fully engaged.

Step 7 — Power-Up & Verification: Restore power in stages. Monitor system diagnostics, communication status LEDs, and process controller feedback to confirm the board is recognized and operating correctly.

Step 8 — Functional Test: Run a controlled process cycle or I/O check sequence to validate all channels and outputs before returning the system to full production.

This structured workflow minimizes re-work risk, protects the replacement component, and supports a complete maintenance record for audit and compliance purposes.

Spare Parts Support FAQ

Q1: Is the 810-099175-011 supplied as an original OEM part or a compatible replacement?
NINERMAS supplies this part as original LAM Research stock or verified OEM-equivalent, confirmed at the time of order. All units undergo functional testing prior to shipment. If you require a specific revision or condition grade, please specify at inquiry stage.

Q2: What is the warranty coverage and what does it include?
All 810-099175-011 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair options, subject to inspection of the returned unit.

Q3: Can NINERMAS support long-term or blanket purchase orders for this part?
Yes. NINERMAS operates a long-term spare parts supply program for legacy LAM Research components, including the 810-099175-011. We can support scheduled delivery agreements, consignment stock arrangements, and annual maintenance kit procurement to reduce your exposure to spot-market lead times and price volatility.

Q4: How do I verify compatibility before placing an order?
Provide your system model, tool serial number, and the existing board’s revision marking when contacting us. Our technical team will confirm compatibility and advise on any configuration differences between board revisions before shipment. We recommend cross-referencing the part number against your LAM Research field service documentation or BOM.
