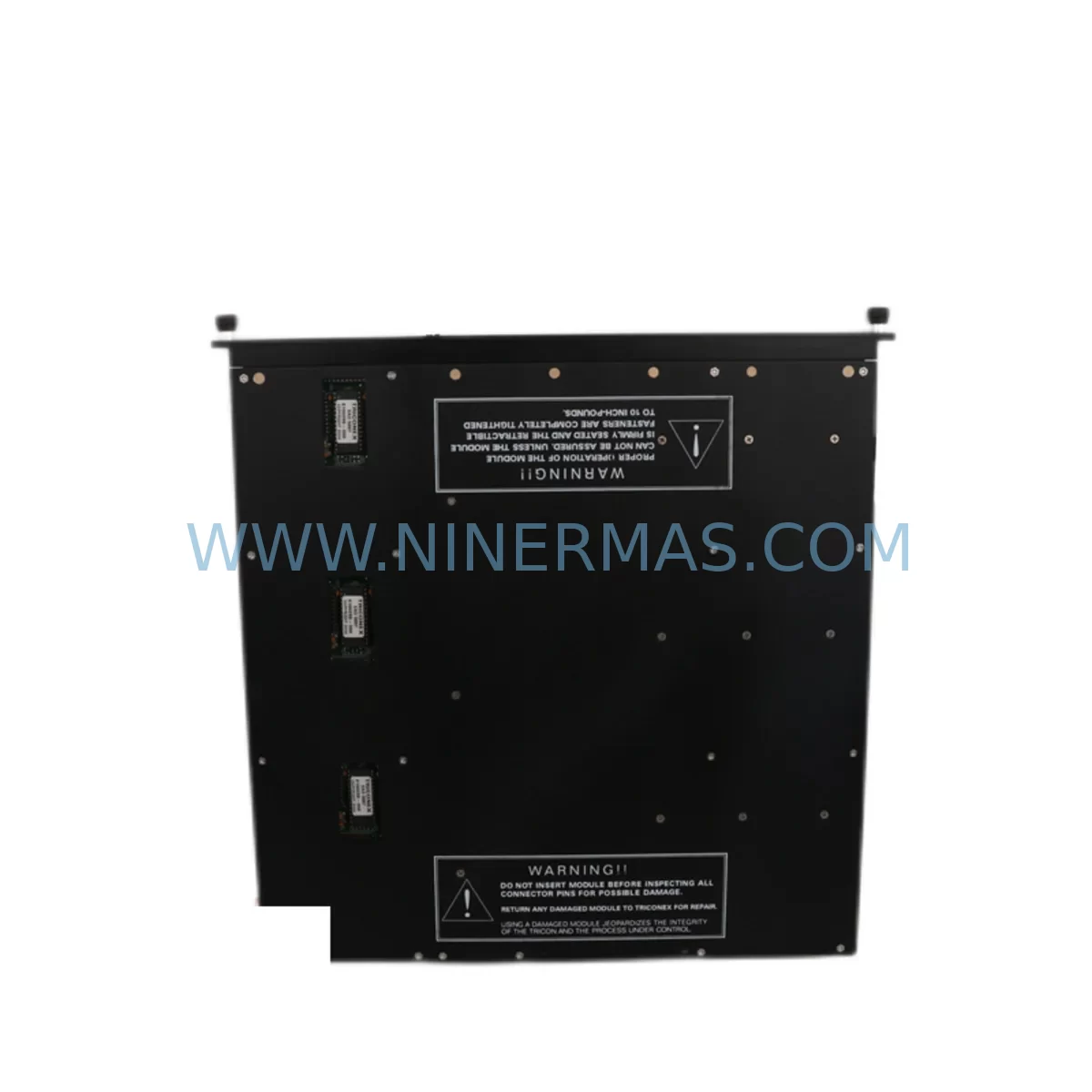

TRICONEX 3805EN Retrofit-Compatible Analog Output Module

TRICONEX 3805EN Retrofit-Compatible Analog Output Module: Legacy System Compatibility & Smooth Upgrade

The TRICONEX 3805EN is a ruggedized analog output module engineered for the Tricon Safety Instrumented System (SIS) platform. As aging control infrastructure reaches end-of-life and original spare parts become increasingly scarce, the 3805EN has become a critical component in retrofit projects across oil & gas, petrochemical, power generation, and process manufacturing facilities. Whether you are replacing a failed module in an existing Tricon chassis, upgrading a legacy control cabinet, or migrating from an older Triconex platform, the 3805EN delivers the signal fidelity, environmental resilience, and backplane compatibility required for uninterrupted safety loop operation.

Facilities running legacy Tricon v9 or v10 systems frequently encounter obsolescence challenges when sourcing analog output capacity. The 3805EN addresses this directly — it slots into the standard Tricon main chassis backplane without mechanical modification, preserves existing terminal wiring configurations, and maintains compatibility with the Triconex TriStation 1131 programming environment. Engineers undertaking a retrofit must verify power budget allocation within the chassis, confirm that the module address assignment does not conflict with existing I/O map entries, and validate that the 4–20 mA output range matches the field instrument calibration records before commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3805EN retrofit begins well before the module arrives on site. The engineering team should pull the existing I/O list and cross-reference every analog output channel against the current field instrument loop drawings. In many legacy Tricon installations, the TRICONEX 3703E Digital Input Module and TRICONEX 3704E Digital Output Module occupy adjacent slots in the same main chassis — their slot assignments and wiring must remain undisturbed during the analog output module swap to avoid inadvertent safety function impairment.

Power architecture is a frequent oversight in retrofit planning. The Tricon main chassis relies on redundant power supplies — commonly the TRICONEX 8312 Power Supply Module — to maintain TMR voting integrity. Before inserting the 3805EN, engineers must calculate the incremental current draw and confirm that the existing power supply headroom is sufficient. If the chassis is already near capacity, a power supply upgrade or load redistribution across a secondary Tricon Expansion Chassis may be necessary.

Communication continuity is equally important. Many facilities use a TRICONEX 4351B Network Communication Module (NCM) or its successor to bridge the Tricon safety controller to the plant DCS via Modbus TCP or OPC. During the 3805EN installation window, the NCM link should be placed in a controlled hold state to prevent spurious alarms from propagating to the distributed control system. If the site is also migrating from an older TRICONEX 3008 Main Processor Module to a newer Tricon CX controller, the analog output module replacement and processor upgrade should be sequenced carefully to avoid incompatible firmware handshakes.

Terminal wiring adaptation is another critical checkpoint. The 3805EN uses the standard Tricon field termination assembly — in many installations this is a TRICONEX 3000-series Terminal Panel or equivalent marshalling panel. Technicians should inspect terminal screw torque, verify shield grounding continuity, and confirm that no field cables have been re-routed since the original installation. Where signal isolation is required between the Tricon output and a legacy field device, a DIN-rail mounted signal isolator or loop-powered isolator may be inserted in series without affecting the 4–20 mA output accuracy.

For facilities that also operate TRICONEX 3501 Analog Input Modules or TRICONEX 3601 Thermocouple Input Modules in the same chassis, the retrofit window is an ideal opportunity to audit the entire analog I/O complement, replace any modules showing diagnostic faults, and update the TriStation 1131 project file with current hardware revision records. A TRICONEX programming cable or TriStation communication adapter should be on hand throughout the process to allow real-time program monitoring and online diagnostics without interrupting the safety function.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing analog output modules in a live safety instrumented system. The recommended approach is to schedule the 3805EN swap during a planned maintenance window aligned with the facility’s turnaround or partial shutdown schedule. Prior to the window, the replacement module should be bench-tested and functionally verified — NINERMAS ships every 3805EN with a pre-shipment functional test report confirming channel-by-channel output accuracy across the full 4–20 mA range.

Before pulling the legacy module, the control room operator should place all affected safety loops in manual bypass mode in accordance with the site’s Management of Change (MOC) and Safety Integrity Level (SIL) bypass procedures. The TriStation 1131 project should be saved and backed up to a secure engineering workstation. If the system is running a Tricon TMR controller in triple-redundant mode, the hot-swap capability of the Tricon architecture allows module replacement without a full system shutdown — however, this must be confirmed against the specific firmware version and chassis configuration before proceeding in the field.

Once the 3805EN is seated and the field termination assembly is reconnected, the technician should perform a channel-by-channel loop check using a calibrated mA source/meter, verify that the TriStation diagnostics panel shows no module faults, and confirm that the DCS historian is receiving expected analog values before releasing the loops from bypass. Documenting the as-found and as-left conditions for each channel supports future audits and reduces risk during the next planned maintenance cycle.

Retrofit Support FAQ

Q1: Is the TRICONEX 3805EN a direct replacement for the legacy 3805 and 3805E modules?
The 3805EN is designed as a form-fit-function upgrade for earlier 3805-series analog output modules. In most Tricon v9 and v10 chassis configurations, it installs without mechanical or wiring modification. Customers should confirm the firmware revision of their main processor module and consult the Triconex compatibility matrix or contact our technical team before finalizing the replacement order.

Q2: Has the 3805EN been tested before shipment, and what warranty is provided?
Yes. Every TRICONEX 3805EN supplied by NINERMAS undergoes a pre-shipment functional test covering all 8 analog output channels across the full 4–20 mA operating range. A test report is included with each unit. All modules are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: What should I verify regarding wiring and terminal compatibility before installation?
Technicians should confirm that the existing field termination assembly (terminal panel) is compatible with the 3805EN connector pinout, inspect terminal screw condition and torque, verify cable shield grounding, and check that field instrument loop resistance falls within the module’s specified load range. If signal isolation is required, a loop-powered isolator can be added in series without affecting output performance.

Q4: Do you maintain stock of the 3805EN, and how quickly can it ship?
NINERMAS maintains warehouse inventory of the TRICONEX 3805EN to support urgent retrofit and emergency replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. For time-critical shutdowns or emergency breakdowns, please contact our sales team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm real-time availability and expedited shipping options.
