ABB UNITROL1010 3BHE035301R0001 Service-Ready Spare Part

ABB UNITROL1010 3BHE035301R0001 Service-Ready Spare Part for Industrial Maintenance

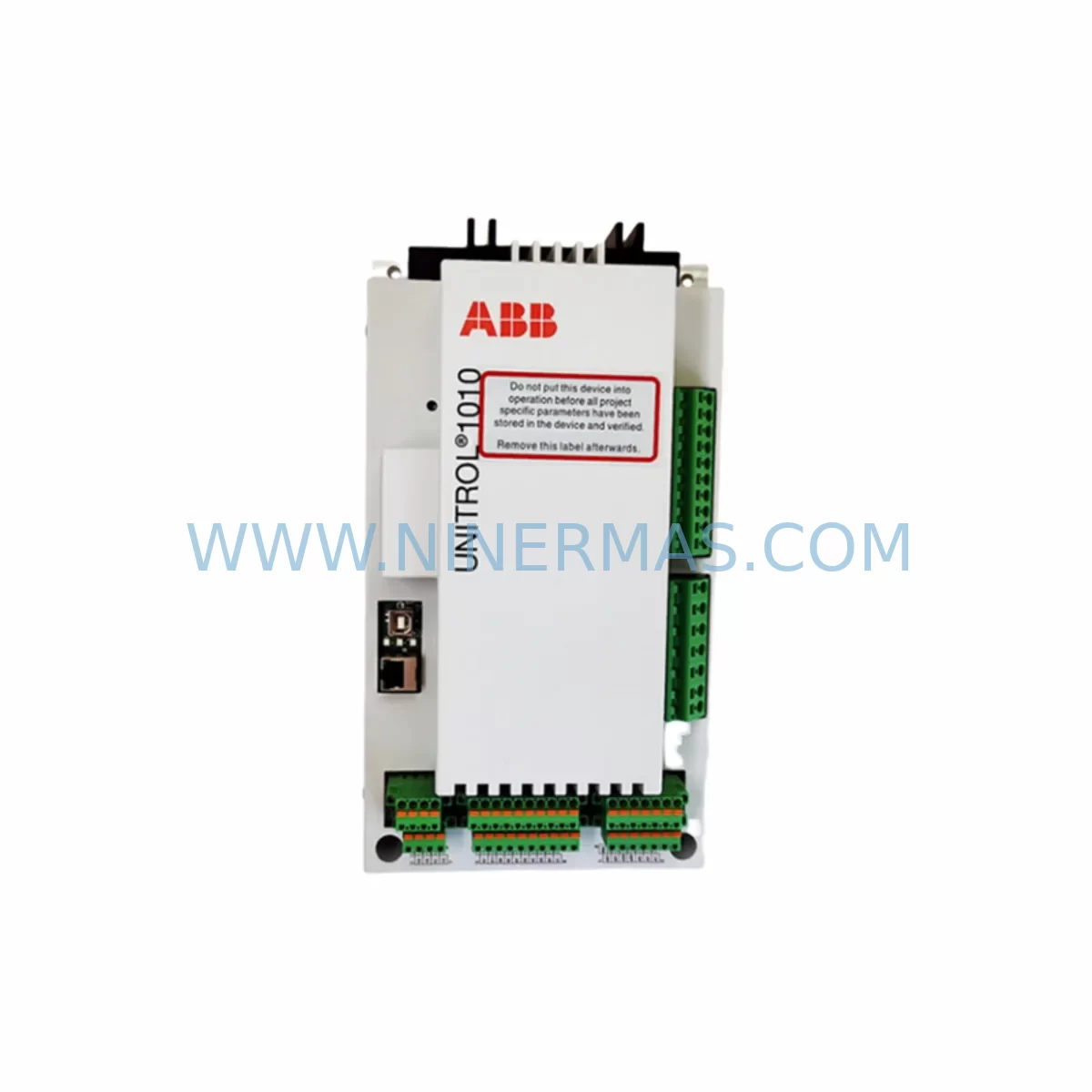

The ABB UNITROL1010 3BHE035301R0001 (variant UNS0121 A-Z, V1) is a precision excitation control module engineered for synchronous generators and large industrial drives operating within ABB’s UNITROL 1010 automatic voltage regulator (AVR) platform. For maintenance engineers managing rotating machinery, power generation assets, or heavy industrial drive systems, unplanned downtime caused by a failed excitation controller can cascade into hours or days of lost production. Stocking a verified, service-ready replacement of the 3BHE035301R0001 is one of the most effective strategies to compress mean time to repair (MTTR) and restore generator or drive availability with confidence.

At Ninermas, every unit of the UNITROL1010 3BHE035301R0001 is sourced through controlled supply channels, inspected against OEM electrical and mechanical specifications, and dispatched with full test documentation. Our 12-month warranty covers functional performance under normal industrial operating conditions, giving procurement engineers a defensible basis for approved vendor list (AVL) qualification and long-term supply agreements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a UNITROL1010 3BHE035301R0001 excitation control module is flagged during routine inspection or fails under load, the replacement scope rarely ends with the module itself. A disciplined maintenance engineer will treat the event as a trigger for a broader cabinet audit to prevent secondary failures from undermining the repair investment.

Begin with the excitation power supply feeding the UNITROL 1010 rack — voltage ripple or transient spikes are a leading cause of AVR module degradation. Inspect and, if necessary, replace the associated ABB UNITROL 1010 power supply board (typically referenced within the UNS0121 platform BOM) alongside the main module. Check all terminal blocks and wiring harnesses within the excitation cabinet for insulation breakdown, loose crimps, or corrosion at the field winding connection points; these are high-stress nodes that accumulate wear in parallel with the control electronics.

The field current measurement transducer and voltage sensing transformer inputs to the UNITROL 1010 should be verified for calibration drift — a faulty transducer can cause the replacement module to regulate incorrectly from day one. Similarly, inspect the PT (potential transformer) fuses and CT (current transformer) shorting links in the measurement circuit; these low-cost protective components are frequently overlooked during emergency repairs and can cause nuisance trips after the AVR is restored.

For sites running the UNITROL 1010 in a parallel generator configuration, the cross-current compensation module and reactive power sharing resistors should be checked for drift. If the installation includes an ABB UNITROL 1010 HMI panel or remote monitoring interface, verify that firmware compatibility is maintained after module replacement — version mismatches between the new 3BHE035301R0001 and the HMI can suppress alarm visibility and mask developing faults.

Procurement engineers building a comprehensive spare parts kit around the UNITROL 1010 platform should also consider stocking the ABB UNITROL 1010 I/O expansion module, communication gateway card, and signal isolation barriers for the analog measurement inputs. These components share the same service life exposure as the main AVR module and are subject to the same obsolescence risk as the UNITROL 1010 platform matures. Maintaining a minimum of one spare per critical component category — excitation controller, power supply, measurement transducer, and communication interface — is the industry-standard approach for generation assets with high availability requirements.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the excitation circuit and confirm zero voltage at the field winding terminals before opening the UNITROL 1010 cabinet.

Step 2 — Documentation: Photograph all wiring, terminal assignments, and DIP switch / parameter settings on the outgoing 3BHE035301R0001 module. Record the firmware version displayed on the HMI or commissioning tool before removal.

Step 3 — Module removal: Disconnect field wiring, measurement inputs, and communication connectors in sequence. Remove the module from its mounting position, noting any mechanical wear indicators on the connector pins.

Step 4 — Incoming inspection: Verify the replacement unit’s part number (3BHE035301R0001) and variant (UNS0121 A-Z, V1) against the outgoing module label and the site’s approved spare parts list. Confirm the test report is present.

Step 5 — Parameter transfer: Using the ABB UNITROL 1010 commissioning software or HMI, upload the saved parameter set to the replacement module before energization. Do not rely on factory defaults for a live generator application.

Step 6 — Reconnection and pre-energization checks: Reconnect all wiring per the documented terminal assignments. Verify PT and CT input polarities. Check that all protective relay interlocks (over-excitation, under-excitation, loss-of-field) are armed and set correctly.

Step 7 — Commissioning: Energize in manual control mode first. Verify field current response, then transfer to automatic voltage regulation. Confirm reactive power sharing if operating in parallel. Log the commissioning results and update the site maintenance record.

This workflow minimizes re-work risk, preserves system compatibility, and ensures the replacement 3BHE035301R0001 delivers full AVR performance from first energization — reducing total downtime to the minimum achievable with a pre-stocked, service-ready spare.

Spare Parts Support FAQ

Q1: Is the 3BHE035301R0001 a direct drop-in replacement for all UNITROL 1010 variants?
The 3BHE035301R0001 (UNS0121 A-Z, V1) is designed for the UNITROL 1010 platform. Compatibility with specific sub-variants depends on cabinet configuration and firmware revision. Ninermas recommends providing your existing module’s full nameplate data and site configuration details before ordering to confirm fit. Our technical team will cross-reference your application at no charge.

Q2: What testing is performed before shipment?
Each unit undergoes functional inspection covering power-up self-test, I/O continuity, and communication interface verification. A test report is included with every shipment. Units that do not pass inspection are not dispatched. This pre-shipment testing protocol is the foundation of our 12-month warranty commitment.

Q3: How should the 3BHE035301R0001 be stored as a long-term spare?
Store in original anti-static packaging in a climate-controlled environment (temperature 5–40 °C, relative humidity <85% non-condensing). Avoid proximity to strong magnetic fields or vibration sources. Inspect the unit annually for connector oxidation and re-seal packaging after inspection. Properly stored units maintain full serviceability well beyond the 12-month warranty window.

Q4: Can Ninermas support long-term supply for the UNITROL 1010 platform as it approaches end-of-life?
Yes. Ninermas specializes in sustaining supply for mature and discontinued ABB industrial automation products. We maintain strategic inventory of UNITROL 1010 series components and actively source from controlled channels to support customers through platform end-of-life transitions. Contact our team to discuss a long-term supply agreement or blanket order arrangement tailored to your maintenance schedule.
