ABB 3BSE018298R1 DSDO 115A Retrofit-Compatible Digital Output

ABB 3BSE018298R1 DSDO 115A Retrofit-Compatible Digital Output for Legacy Systems

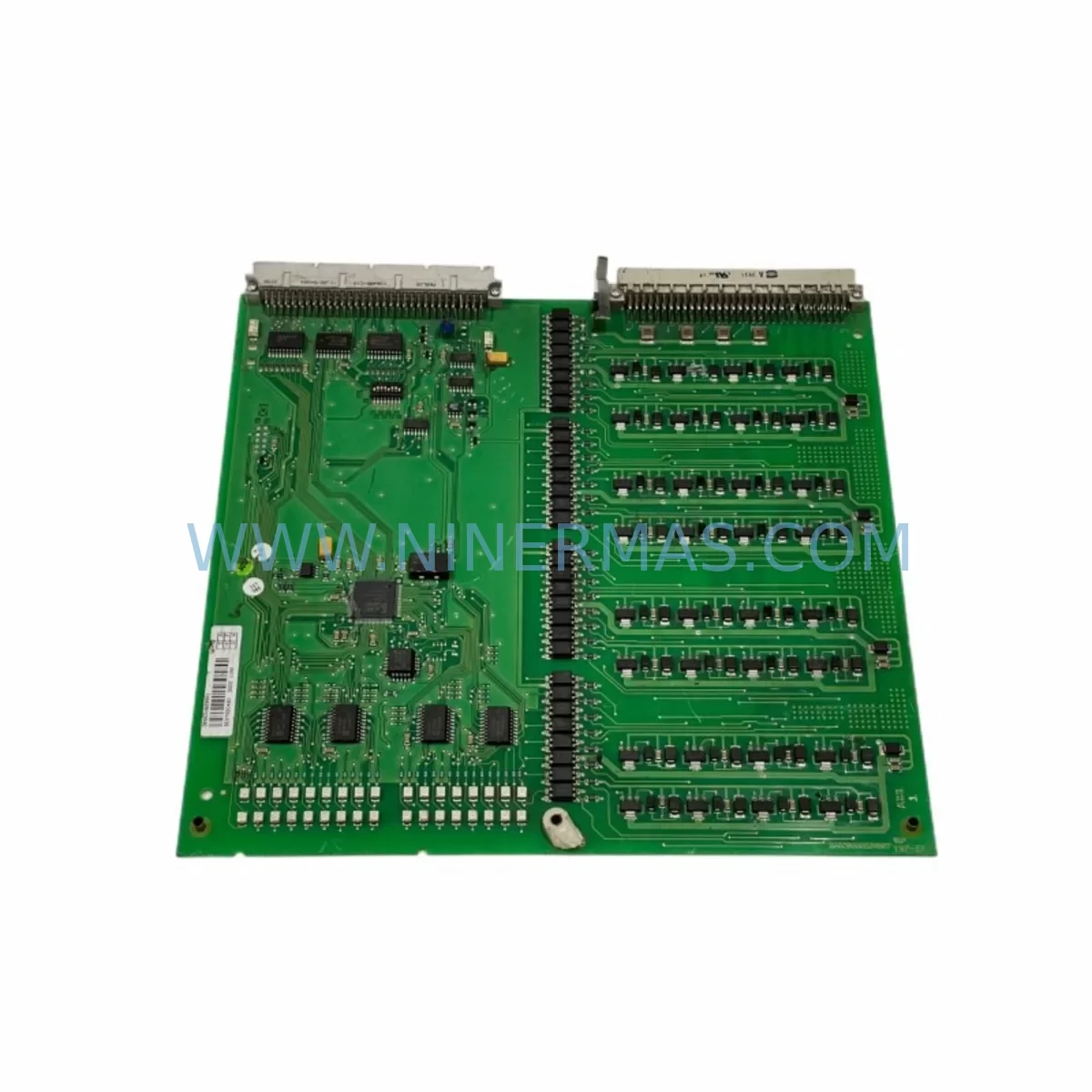

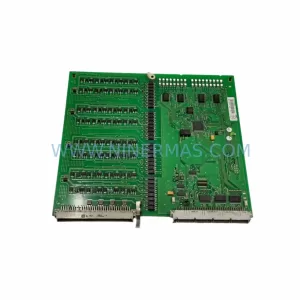

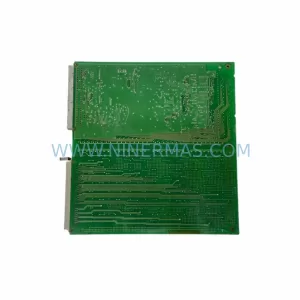

The ABB 3BSE018298R1 DSDO 115A is a 24 VDC digital output module designed for the ABB S800 I/O platform, widely deployed across process automation, power generation, oil & gas, and chemical plant control systems. As ABB continues to evolve its automation portfolio, many facilities running legacy AC 800M controller-based architectures face the challenge of sourcing compatible spare parts for aging control cabinets. The DSDO 115A remains one of the most sought-after replacement modules for plants that need to maintain operational continuity without committing to a full DCS migration.

NINERMAS maintains verified stock of the ABB 3BSE018298R1 DSDO 115A, fully tested and backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm output channel integrity, terminal block seating, and backplane communication before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the ABB 3BSE018298R1 DSDO 115A, engineers must account for the full scope of the S800 I/O station architecture. The DSDO 115A slots into a TB820V2 or TB840A terminal base, which must be inspected for corrosion, terminal wear, and backplane connector integrity before the new module is seated. In many legacy installations, the terminal base itself may need replacement alongside the output module — a detail that is frequently overlooked during initial retrofit scoping.

The S800 I/O station is typically connected to an AC 800M controller via a CI840A PROFIBUS-DP communication interface or a CI854A PROFIBUS DP/PA link. Before swapping the DSDO 115A, technicians should verify that the communication interface module is functioning correctly and that the DP address assigned to the I/O station has not been altered. Any address conflict will prevent the replacement module from being recognized by the controller after restart.

Power supply integrity is another critical checkpoint. The SD821 or SD822 power supply module feeding the S800 rack must be confirmed to deliver stable 24 VDC within tolerance. Degraded power supplies are a common root cause of intermittent output faults that are mistakenly attributed to the DSDO module itself. Replacing the output module without verifying the power supply can result in repeat failures within weeks of commissioning.

For plants running mixed I/O configurations, the DSDO 115A often coexists in the same rack with analog input modules such as the AI810 or AI820, and digital input modules like the DI810 or DI820. When performing a partial rack replacement, engineers should document the existing module slot assignments and cross-reference them against the Control Builder M hardware configuration to avoid slot address mismatches that can cause the controller to generate I/O configuration alarms on startup.

In facilities where the control system communicates with a System 800xA HMI, replacing the DSDO 115A requires confirming that the associated graphic objects and faceplates in the operator station are mapped to the correct I/O channel tags. A module swap that changes the internal channel numbering — even subtly — can cause HMI display errors or incorrect alarm thresholds if the tag database is not reviewed post-installation.

For sites migrating from older DSDO 110 or first-generation S800 modules, the 3BSE018298R1 revision offers improved diagnostics and enhanced channel fault reporting. This makes it a preferred upgrade path for plants that want to extend the operational life of their S800 infrastructure without investing in a full migration to the ABB Ability™ System 800xA next-generation platform. The retrofit can typically be completed within a single planned maintenance window, provided all replacement components — including the terminal base, module, and any required TK212A programming cable for local configuration — are staged on-site in advance.

Downtime Control During System Migration

Minimizing downtime during a DSDO 115A replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the existing module’s channel configuration, DIP switch settings, and I/O tag assignments should be fully documented. A backup of the AC 800M controller application — including the hardware configuration file — should be exported from Control Builder M and stored offline. This ensures that if the controller loses its hardware configuration during the module swap, the application can be reloaded without requiring a full re-engineering effort.

During the swap itself, the S800 I/O station can often be powered down selectively without shutting down the entire control cabinet, provided the station is not on the critical control path. This allows adjacent I/O stations — handling analog inputs, safety interlocks, or communication links — to remain operational while the DSDO 115A is replaced. Once the new module is seated and the terminal base is secured, the station should be powered up and the controller allowed to perform an automatic hardware scan. If the module address and slot position match the stored hardware configuration, the controller will recognize the replacement module without requiring a manual download.

Post-installation, each output channel should be individually tested against the field device it controls — whether that is a solenoid valve, motor starter, or signal lamp — to confirm that the wiring terminations are correct and that the output signal reaches the intended actuator. This channel-by-channel verification, combined with a review of the HMI alarm log for any new I/O faults, provides confidence that the retrofit has been completed successfully before the plant returns to normal operation.

Retrofit Support FAQ

Q: Is the ABB 3BSE018298R1 DSDO 115A a direct replacement for the DSDO 115 (3BSE018298R0)?
A: Yes. The DSDO 115A (3BSE018298R1) is the revised version of the DSDO 115 (3BSE018298R0) and is designed as a direct drop-in replacement. Both modules use the same TB820V2 or TB840A terminal base and share the same S800 ModuleBus backplane interface. No hardware modification is required, though it is recommended to verify the terminal base revision and confirm the DIP switch address settings match the original module before powering up.

Q: What commissioning steps are required after installing the replacement module?
A: After seating the DSDO 115A, power up the S800 I/O station and allow the AC 800M controller to perform a hardware scan. Confirm that the module is recognized in Control Builder M without configuration alarms. Perform a channel-by-channel output test to verify field wiring continuity. If the controller reports a hardware mismatch, download the stored hardware configuration and perform a cold restart of the I/O station.

Q: Does NINERMAS provide pre-shipment testing for the 3BSE018298R1?
A: Yes. Every ABB 3BSE018298R1 DSDO 115A unit shipped by NINERMAS undergoes functional testing prior to dispatch, including output channel verification, backplane communication check, and terminal block inspection. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains ready stock of the ABB 3BSE018298R1 DSDO 115A to support urgent retrofit and breakdown replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity or project-based procurement, please contact our sales team directly to confirm availability and arrange expedited shipment.
