ABB DSDO115A 3BSE018298R1 Retrofit-Compatible Digital Output

ABB DSDO115A 3BSE018298R1 Retrofit-Compatible Digital Output Module for Legacy Automation Systems

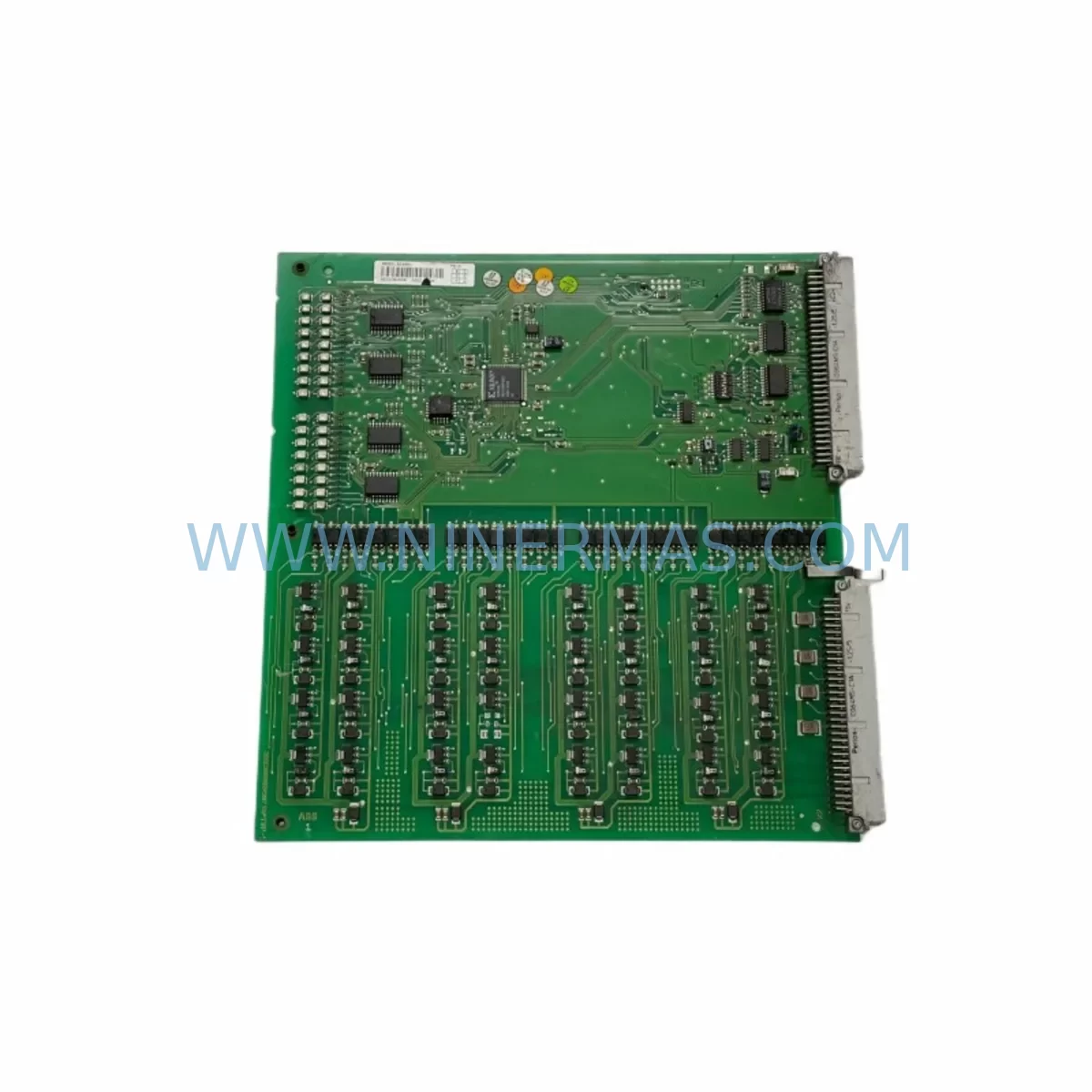

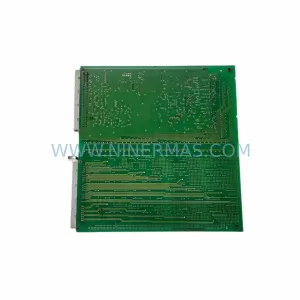

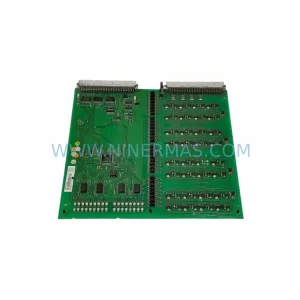

The ABB DSDO115A (3BSE018298R1) is a ruggedized 24 VDC digital output module belonging to ABB’s S800 I/O series, purpose-engineered for deployment within AC800M controller environments. Designed to withstand harsh industrial conditions — including elevated vibration, wide temperature ranges, and high electromagnetic interference — this module is a critical spare part for process automation plants, power generation facilities, and heavy manufacturing lines that continue to operate on legacy ABB Advant or AC800M control platforms.

As ABB progressively phases out older S800 I/O variants, procurement engineers and automation integrators face increasing pressure to source verified replacement units that maintain full backward compatibility with existing backplane wiring, module addressing schemes, and controller firmware. The DSDO115A 3BSE018298R1 fulfills this role precisely: it slots directly into TB820V2 or TB840A Modulebus cluster bases without requiring re-termination of field wiring, preserving the original I/O channel mapping and minimizing retrofit downtime.

NINERMAS maintains verified stock of the DSDO115A 3BSE018298R1 with a 12-month warranty, pre-shipment functional testing, and documented traceability — making it a reliable source for both emergency breakdown replacements and planned lifecycle extension programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a digital output module in a live S800 I/O cluster demands careful pre-engineering to avoid unplanned process interruptions. Before removing the DSDO115A from service, engineers should document the existing module address configured on the TB820V2 or TB840A cluster base, as this address directly governs how the AC800M PM866 or PM891 controller maps I/O signals in the application program. Mismatched addressing after module swap is one of the most common causes of post-retrofit faults.

Field wiring termination on the cluster base remains unchanged during a like-for-like DSDO115A replacement, which eliminates the need to re-label or re-test individual DO channels. However, if the retrofit is part of a broader control cabinet upgrade — for example, migrating from an older Advant OCS platform to a modern AC800M architecture — engineers must account for differences in terminal block pinout between the legacy DSDO110 and the current DSDO115A. In such cases, a wiring adapter or re-termination on a new TB820V2 base may be required.

Power budget verification is essential when adding or replacing modules in an existing S800 cluster. The SD821, SD822, or SD823 power supply units feeding the cluster must have sufficient residual capacity to support the DSDO115A’s field-side load, particularly when multiple output channels are energized simultaneously. If the existing PSU is already near capacity, a supplementary SD831 or SD832 unit may need to be added to the cabinet before the new module is commissioned.

For plants integrating the DSDO115A into a mixed S800 cluster alongside analog modules such as the DSAI130A or DSAO120A, the Modulebus coupler — typically a CI820V1 or CI854A — must be confirmed as compatible with the total cluster configuration. The coupler’s Modulebus address range and maximum module count should be validated in Control Builder M before the replacement module is inserted. If the plant uses a PROFIBUS DP or PROFINET gateway alongside the Modulebus cluster, the gateway configuration in the DCS should also be reviewed to ensure no address conflicts arise post-swap.

HMI screens connected to the AC800M via OPC DA or OPC UA server tags referencing the affected DO channels should be tested in simulation mode before live commissioning. This is especially important in plants where the 800xA System operator workplace displays process status derived directly from S800 I/O module diagnostics. A pre-commissioning checklist covering signal forcing, channel inhibit, and module health status in the 800xA faceplate will significantly reduce the risk of operator confusion during the cutover window.

Downtime Control During System Migration

Minimizing production downtime during a digital output module replacement requires a structured migration sequence. Where the AC800M controller and CI coupler support hot-swap operation, the DSDO115A can be replaced without a full controller shutdown — provided the affected output channels are placed in a safe, de-energized state and the process is in a hold condition. This approach is particularly valuable in continuous process industries such as oil refining, chemical production, and power generation, where even brief unplanned outages carry significant financial and safety consequences.

For plants that cannot tolerate any interruption to the control loop, a parallel commissioning strategy is recommended: install the replacement DSDO115A on a spare cluster base position, configure and verify its module address and channel assignments in Control Builder M, and then perform a controlled switchover during a scheduled maintenance window. This approach preserves the original application program logic intact and allows the engineering team to validate all DO channel outputs against the field device responses before the old module is decommissioned.

Protecting the existing program logic is paramount. Before any hardware swap, a full backup of the AC800M application — including all function block diagrams, signal lists, and controller configuration — should be archived using Control Builder M’s project export function. If the retrofit involves a firmware upgrade on the PM866 or PM891 controller, the compatibility matrix between the new firmware version and the existing S800 I/O module library must be verified to prevent unexpected module recognition failures after restart.

Post-installation, a structured commissioning test covering all 16 DO channels — including open-circuit detection, short-circuit protection response, and channel status reporting in the 800xA diagnostic display — should be completed and signed off before the plant returns to normal operation. NINERMAS supplies each DSDO115A 3BSE018298R1 with a pre-shipment test report confirming channel functionality, insulation resistance, and module communication integrity, reducing on-site commissioning time and supporting a faster return to full production.

Retrofit Support FAQ

Q1: Is the DSDO115A 3BSE018298R1 a direct drop-in replacement for the DSDO110 or earlier DSDO115 revisions?
In most AC800M and Advant OCS installations, the DSDO115A is backward compatible with earlier DSDO110 and DSDO115 variants when installed on the same TB820V2 or TB840A cluster base. Terminal wiring does not need to be changed. However, if the original module was installed on an older TB810 or TB811 base, a base replacement may be required. NINERMAS technical support can assist with compatibility verification prior to order.

Q2: What commissioning steps are required after installing the DSDO115A in an existing S800 cluster?
After physical installation, confirm the module address DIP switch setting matches the original configuration. In Control Builder M, perform a hardware scan to verify the module is recognized by the CI coupler. Force each DO channel individually to confirm field device response. Check the 800xA diagnostic faceplate for module health status. If the cluster uses redundant couplers, verify that the redundancy switchover function operates correctly with the new module in place.

Q3: How does NINERMAS verify the DSDO115A 3BSE018298R1 before shipment?
Every unit undergoes a pre-shipment functional test covering all 16 digital output channels, Modulebus communication integrity, power consumption within specification, and visual inspection for physical damage. A test report is included with each shipment. The module is covered by a 12-month warranty from the date of shipment, with direct technical support from NINERMAS for installation and commissioning queries.

Q4: Can NINERMAS support long-term spare parts programs for the DSDO115A and related S800 I/O modules?
Yes. NINERMAS offers structured spare parts programs for plants operating legacy ABB S800 I/O systems, including the DSDO115A, DSAI130A, DSAO120A, DSDP170, and associated CI couplers and power supplies. Long-term stock commitments, priority allocation for critical SKUs, and consolidated shipment scheduling are available. Contact sale@ninermas.com to discuss your plant’s lifecycle requirements.
