ABB 87TSO11-E GJR2368900R2340 Safety-Reliable Bus Transmitter

ABB 87TSO11-E GJR2368900R2340 Safety-Reliable Bus Transmitter for Critical Control Sites

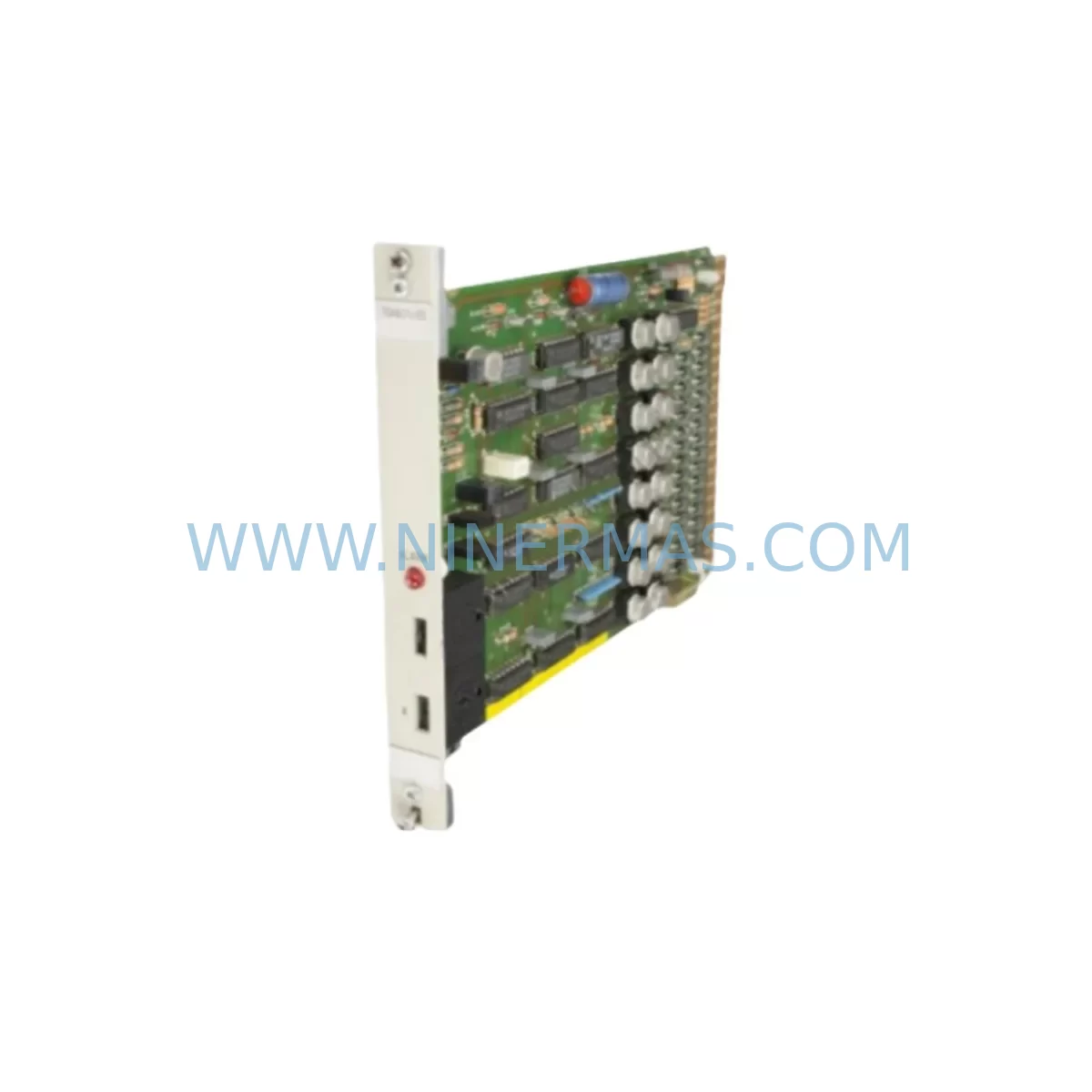

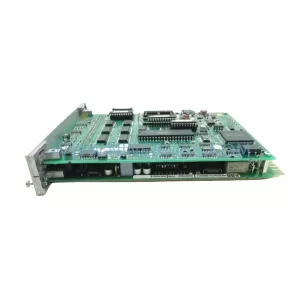

The ABB 87TSO11-E (ordering number GJR2368900R2340) is an optical station bus transmitter module designed for the ABB Advant OCS distributed control system. In continuous production environments — petrochemical plants, power generation facilities, metallurgical operations, and water treatment stations — the integrity of the station bus communication backbone is a non-negotiable safety requirement. A single point of failure in the optical transmission path can cascade into control loop interruptions, interlock misoperation, and unplanned process shutdowns. The 87TSO11-E is engineered to eliminate that risk, providing stable, high-fidelity optical signal transmission across the Advant OCS station bus under the most demanding industrial conditions.

Unlike copper-based communication links that are vulnerable to ground loops, electromagnetic interference, and surge transients from adjacent high-voltage switchgear, the 87TSO11-E uses fiber-optic transmission to achieve complete galvanic isolation between nodes. This makes it the preferred choice for control cabinets installed near large motor drives, transformer bays, arc furnaces, or any environment where electromagnetic noise levels routinely exceed the tolerance of conventional copper bus interfaces. Signal drift, data corruption, and communication timeouts — common failure modes in electrically noisy industrial environments — are effectively suppressed by the optical isolation architecture of this module.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered Advant OCS control cabinet, the 87TSO11-E optical transmitter works in concert with a carefully selected set of complementary modules to form a resilient, low-risk communication and control architecture. The paired optical receiver — the 87TSO01 — completes the transmit/receive link on the station bus, and both modules must be maintained in matched condition to preserve bus timing integrity. Replacing one without verifying the condition of the other is a common oversight that leads to intermittent communication faults under thermal cycling.

The station bus communication chain depends on a stable backplane power environment. The SA801F power supply module, frequently deployed in Advant OCS cabinets, provides the regulated 24 VDC rail that feeds the bus interface modules. Power ripple or voltage sag from a degraded SA801F can manifest as spurious bus resets or CRC errors on the optical link — symptoms that are often misdiagnosed as transmitter faults. Verifying the SA801F output quality is a recommended first step in any 87TSO11-E troubleshooting workflow.

At the controller level, the DSPC172H processor module manages the station bus master function in many AC450 configurations. A processor module with degraded memory or clock instability can generate irregular bus polling cycles that stress the optical transmitter and cause downstream I/O modules — such as the DSAI130 analog input module and the DSDO120 digital output module — to report communication timeouts. In safety-critical interlock loops, these timeouts can trigger spurious shutdowns or, worse, mask genuine process alarms.

For installations using the AF100 fieldbus architecture alongside the station bus, the CI520V1 communication interface module bridges the two networks. Ensuring that the CI520V1 firmware version is compatible with the 87TSO11-E bus timing parameters is essential for stable multi-network operation. Similarly, the CI532V02 communication interface, used in AC410 and AC160 controller configurations, must be verified for compatibility when the 87TSO11-E is installed as a replacement in legacy systems.

Digital I/O integrity is equally important in safety-rated control loops. The DSTD150 digital I/O module, commonly used for interlock and permissive signal handling in Advant OCS systems, relies on the station bus communication path maintained by the 87TSO11-E. Any degradation in optical signal quality directly affects the scan cycle reliability of the DSTD150 and similar I/O modules. For network-level diagnostics and bus health monitoring, the NTCS02 network interface module provides the communication gateway needed to perform remote fault analysis without interrupting the live process.

Finally, the 3BSE008580R1 backplane connector assembly — the physical interface between the 87TSO11-E and the Advant OCS subrack — should be inspected for oxidation, mechanical damage, or pin deformation whenever the optical transmitter module is replaced. A compromised backplane connector is a leading cause of intermittent module faults that are incorrectly attributed to the module itself, resulting in unnecessary spare parts consumption and extended troubleshooting time.

Critical Industrial Safety Applications

The ABB 87TSO11-E optical station bus transmitter is deployed across a wide range of safety-critical industrial sectors where communication reliability is directly linked to process safety and regulatory compliance.

In petrochemical and refinery operations, the 87TSO11-E supports the station bus communication backbone in emergency shutdown (ESD) and safety instrumented system (SIS) architectures. The optical isolation it provides is essential in environments where high-voltage cable runs, large rotating machinery, and flammable atmosphere zones create extreme electromagnetic interference conditions. A communication failure in this context can delay the execution of a safety interlock, with potentially catastrophic consequences.

In power generation and grid substations, Advant OCS systems equipped with the 87TSO11-E manage turbine control, boiler management, and grid synchronization functions. The module’s immunity to surge transients — common during switching operations in high-voltage substations — ensures that control commands are transmitted without corruption even during fault clearance events.

In mining and mineral processing, where heavy equipment, conveyor drives, and crusher motors generate continuous high-amplitude EMI, the fiber-optic isolation of the 87TSO11-E prevents noise coupling into the control bus. This is particularly important in longwall mining automation and ore processing plant control, where a communication dropout can halt production and create hazardous conditions for personnel.

In water and wastewater treatment, the 87TSO11-E supports the reliable operation of pump control, chemical dosing, and filtration management systems. These facilities often operate in high-humidity environments with variable temperature conditions — precisely the operating range for which the 87TSO11-E is rated and tested.

In metallurgical and steel production facilities, the module is used in electric arc furnace control, rolling mill automation, and continuous casting line management — all environments characterized by extreme thermal gradients, heavy vibration, and intense electromagnetic fields generated by high-current bus bars and induction heating systems.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the ABB 87TSO11-E (GJR2368900R2340)?
Every 87TSO11-E unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes technical support for installation and commissioning. Warranty claims are processed promptly to minimize downtime at critical production sites.

Q2: Is the 87TSO11-E tested before shipment?
Yes. Each unit undergoes a full functional test prior to dispatch. Testing verifies optical signal output integrity, backplane interface continuity, and module initialization behavior consistent with ABB Advant OCS system requirements. A test record is maintained for traceability. Units that do not meet OEM performance specifications are not shipped.

Q3: Is the GJR2368900R2340 compatible with all Advant OCS controller variants?
The 87TSO11-E is compatible with ABB Advant OCS AC450, AC410, and AC160 controller families that use the station bus optical interface. Compatibility with specific subrack configurations and firmware versions should be verified against the ABB Advant OCS system documentation for your installation. NINERMAS technical support can assist with compatibility verification prior to order placement.

Q4: Can long-term supply of the 87TSO11-E be arranged for ongoing maintenance programs?
Yes. NINERMAS maintains reserved inventory agreements for end-of-life and long-lead ABB Advant OCS components, including the GJR2368900R2340. Maintenance engineers and procurement teams managing multi-year spare parts programs are encouraged to contact us to discuss volume pricing, reserved stock arrangements, and scheduled delivery schedules that align with planned maintenance windows.
