GE UR-9DH Safety-Reliable CPU Module for Critical Control

GE UR-9DH Safety-Reliable CPU Module for Critical Control Sites

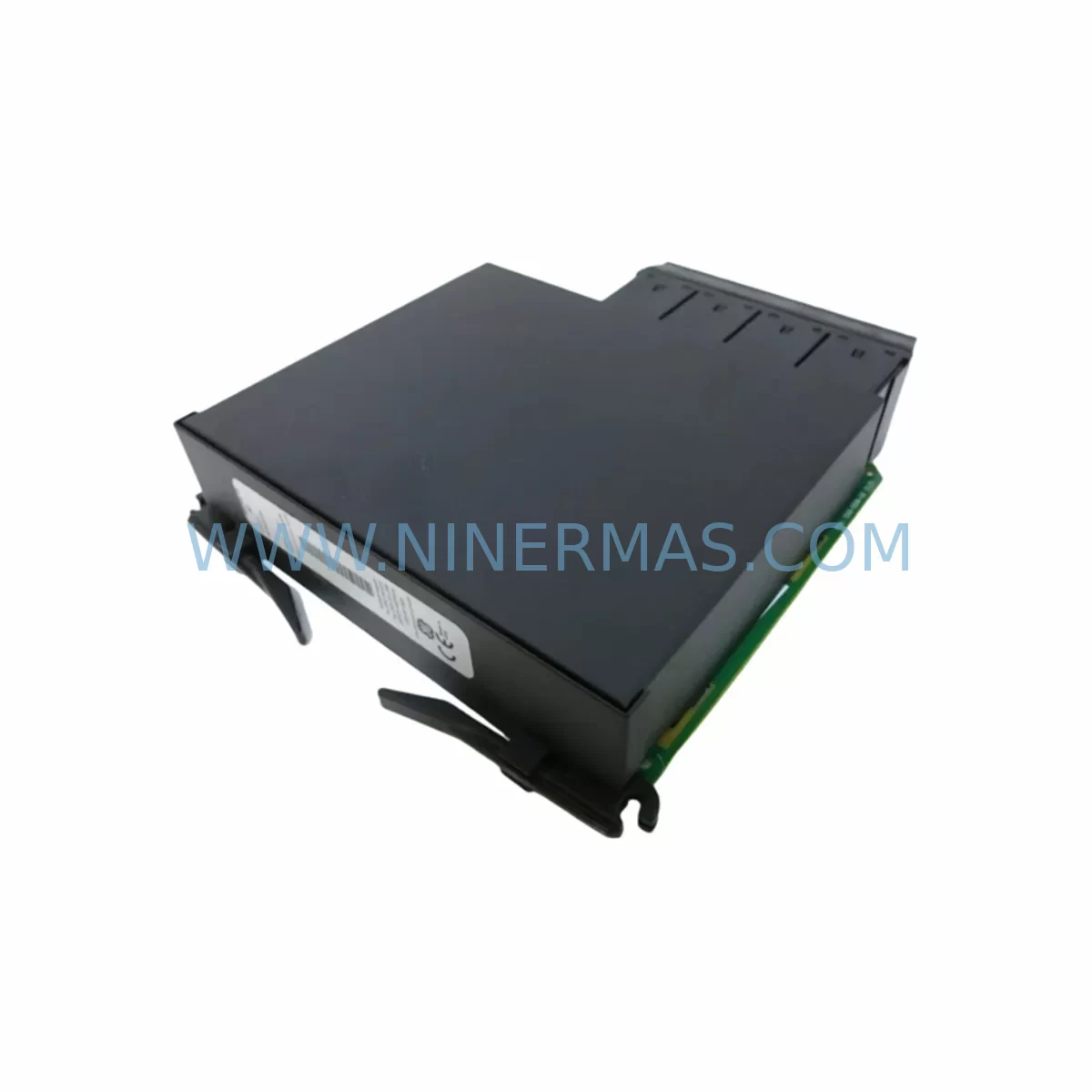

The GE Grid Solutions UR-9DH CPU Module is an original industrial spare component engineered for the GE UR Series protection and control platform — one of the most trusted relay families deployed across power utilities, petrochemical plants, mining operations, and continuous manufacturing facilities worldwide. Designed to operate reliably in the harshest electrical environments, the UR-9DH delivers the processing backbone that keeps critical protection functions active, communication links stable, and control logic executing without interruption — even under conditions of high electromagnetic interference, voltage surges, thermal stress, and mechanical vibration.

In critical industrial sites where an unplanned control interruption can cascade into equipment damage, production loss, or personnel hazard, the integrity of the CPU module is non-negotiable. The UR-9DH is built to GE Grid Solutions’ stringent quality standards, ensuring that protection algorithms — including differential, overcurrent, distance, and busbar protection schemes — continue to execute with microsecond-level precision. Its robust architecture minimizes the risk of signal drift, spurious tripping, and communication anomalies that can compromise the safety of high-voltage switchgear, transformer bays, and motor control centers.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered protection and control cabinet, the GE UR-9DH CPU Module sits at the center of a layered safety architecture. Its reliable operation depends on — and in turn supports — a carefully selected ecosystem of complementary components. On the power supply side, a stable GE UR-9GH Power Supply Module or equivalent UR Series PSU ensures that the CPU receives clean, regulated DC power free from ripple and transient spikes that could cause processor resets or memory corruption. Upstream, a quality DC/DC converter or UPS buffer module protects against station battery fluctuations during switching events or grid disturbances.

For communication integrity, the UR-9DH works in close coordination with GE UR Series communication modules such as the UR-9GH Ethernet module or fiber-optic interface cards, enabling IEC 61850 GOOSE messaging for high-speed inter-relay tripping without the latency risks of copper-based signaling. In substations with dense electromagnetic environments, fiber communication eliminates ground loop interference that can corrupt DNP3 or Modbus polling cycles.

On the I/O side, GE UR Series digital input/output modules — including contact input cards and high-speed output relay cards — interface directly with the UR-9DH CPU to execute trip commands, alarm signals, and interlock logic. Pairing these with surge protection devices (SPDs) on all field wiring terminals is a critical risk-reduction measure in environments prone to lightning strikes or capacitor bank switching transients. Similarly, GE Multilin relay test switches and test blocks allow maintenance teams to safely isolate and test the protection scheme without de-energizing the primary equipment — a key requirement for continuous production facilities.

For sites operating under functional safety requirements, the UR-9DH integrates into safety instrumented systems (SIS) alongside GE RX3i safety PLCs or third-party SIL-rated logic solvers, providing the protection relay layer that complements the process safety layer. In motor control applications, coordination with GE 469 Motor Management Relays or GE 339 Motor Protection Relays ensures that the CPU’s overcurrent and differential protection functions are properly coordinated with motor thermal models, preventing nuisance trips while maintaining genuine fault protection.

Finally, maintaining a spare UR-9DH CPU module in the site’s critical spare inventory — alongside spare UR Series I/O modules and power supply cards — is a proven strategy for minimizing mean time to repair (MTTR) after an unexpected module failure, keeping unplanned downtime measured in minutes rather than days.

Critical Industrial Safety Applications

Power Generation & Transmission: The UR-9DH is widely deployed in transformer differential protection, busbar protection, and line distance protection schemes at 110 kV to 500 kV substations. Its fast processing speed ensures that fault clearance times remain within the sub-cycle requirements of high-voltage protection coordination, preventing transformer damage and grid instability.

Petrochemical & Refinery Plants: In continuous process environments where a protection misoperation can trigger a plant-wide emergency shutdown, the UR-9DH’s deterministic processing and high EMI immunity make it the preferred CPU for motor feeder protection, generator protection, and tie-line control in hazardous area switchrooms.

Mining Operations: Underground and open-pit mining sites subject protection relays to extreme vibration, dust ingress, and wide temperature swings. The UR-9DH’s industrial-grade construction and sealed module design maintain reliable operation in dragline, conveyor, and crusher motor protection panels where a relay failure can halt production for an entire shift.

Water & Wastewater Treatment: Municipal water authorities rely on UR Series relays for pump station motor protection and feeder protection. The UR-9DH ensures that critical pumping infrastructure remains protected against overloads, phase loss, and ground faults — conditions that, if undetected, can lead to costly motor burnouts and service interruptions.

Metallurgy & Steel Mills: Arc furnace and rolling mill environments generate some of the most severe power quality disturbances in industry. The UR-9DH’s robust CPU architecture maintains protection function integrity even during rapid load swings, voltage dips, and harmonic distortion events that would cause less robust relays to malfunction or lose communication.

Port & Marine Applications: Shore power systems, crane motor controls, and vessel electrical distribution boards in port environments demand protection relays that can withstand salt-laden air, humidity, and vibration from heavy machinery. The UR-9DH, installed in sealed control cabinets with appropriate IP-rated enclosures, provides reliable protection in these demanding coastal and marine environments.

Safety and Quality FAQ

Q1: What warranty does the GE UR-9DH CPU Module carry?
Every UR-9DH unit supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical diagnosis, replacement dispatch, and application guidance to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Each UR-9DH module undergoes a comprehensive outgoing functional inspection before dispatch, verifying power-up integrity, communication port functionality, and module identification. Units that do not pass inspection are quarantined and not shipped. A test report is available upon request for critical project applications.

Q3: Is the UR-9DH compatible with all GE UR Series relay models?
The UR-9DH is designed for the GE UR Series platform and is compatible with a wide range of UR-based relays including the D60, T60, L90, C60, F60, and B90 families. Compatibility depends on the specific firmware version and chassis configuration of your installed relay. We recommend confirming your relay’s model number and firmware revision with our technical team before ordering to ensure a direct fit replacement.

Q4: Can NINERMAS support long-term supply of UR-9DH modules for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated inventory of GE UR Series spare modules, including CPU cards, I/O modules, and power supply units, to support planned maintenance, emergency replacements, and multi-site spare pooling programs. We offer framework supply agreements for utilities and industrial operators who require guaranteed stock availability and priority dispatch for critical spare components.
