GE UR8CH Service-Ready Spare Part for Industrial Maintenance

GE UR8CH Service-Ready Spare Part for Industrial Maintenance

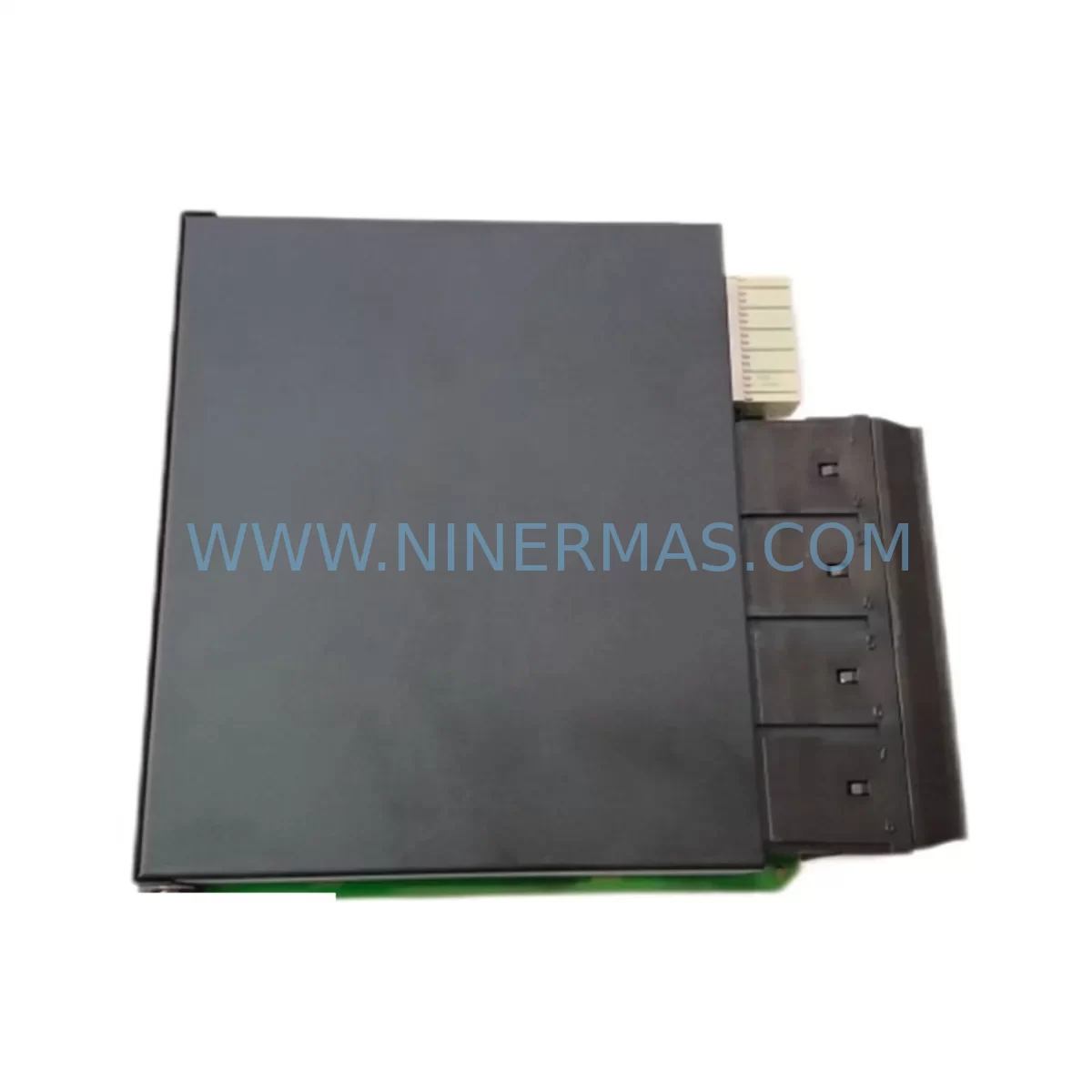

The GE UR8CH is an original Digital I/O Module designed for the GE Multilin UR Series protection relay platform — one of the most widely deployed relay families in power generation, transmission, and industrial distribution systems worldwide. For maintenance engineers managing aging protection panels or executing planned overhauls, the UR8CH represents a critical spare that directly impacts system availability and relay response integrity.

When a Digital I/O module fails or degrades in a UR Series relay, the consequences extend beyond a single relay trip. Binary input signals from field devices — breaker auxiliary contacts, motor status feedback, transformer tap positions — may be lost entirely, leaving the protection system blind to real-time plant conditions. Equally, digital output commands to trip coils, alarm annunciators, and interlock circuits become unreliable. Stocking a verified UR8CH spare eliminates this risk and enables same-shift restoration without waiting for emergency procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The UR8CH does not operate in isolation. In a typical UR Series protection panel, the Digital I/O module interfaces with a dense ecosystem of components that must all be evaluated during any planned or corrective maintenance event. When replacing the UR8CH, maintenance engineers should simultaneously inspect the UR power supply module (such as the 9G-UR-PSM-24 or equivalent) to confirm stable DC rail voltage, as I/O module failures are frequently preceded by power supply ripple or undervoltage conditions.

The UR CPU module (e.g., UR-CPU-1 or UR-CPU-2) should be checked for firmware version compatibility with the replacement UR8CH, particularly in mixed-revision chassis environments. Mismatched firmware between the CPU and I/O modules can cause silent communication faults that are difficult to diagnose under time pressure. Alongside the CPU, the UR communications module — whether a URPC (IEC 61850 GOOSE), RS-485 DNP3, or fiber-optic interface card — should be verified for intact fiber connectors and correct protocol mapping, since digital output commands are often coordinated through SCADA or substation automation systems.

Terminal blocks and wiring harnesses connected to the UR8CH’s binary input channels deserve close attention. Loose or corroded Phoenix Contact or Weidmüller terminal blocks on the relay panel’s marshalling cabinet are a common source of intermittent I/O faults that are misdiagnosed as module failures. Replacing the UR8CH without inspecting field wiring and terminal integrity risks repeat failures within weeks.

For facilities running UR Series relays in motor protection applications, the UR8CH binary outputs often drive interposing relay modules (such as Finder or Omron 24VDC relay bases) that in turn control motor contactors and circuit breakers. These interposing relays should be tested for coil resistance and contact continuity as part of the same maintenance window. Similarly, signal isolators on analog input channels adjacent to the digital I/O slots should be inspected for drift, especially in high-EMI environments near variable frequency drives.

In substations where the UR Series relay communicates with an HMI panel (such as a GE Multilin EnerVista workstation or a third-party SCADA HMI), the I/O status mapping should be re-verified after UR8CH replacement to confirm that all binary input and output assignments are correctly reflected in the HMI display. Failure to re-validate HMI mapping after a module swap is a common source of post-maintenance incidents. Finally, panel fuses and miniature circuit breakers protecting the DC control circuits feeding the UR8CH input channels should be tested for correct rating and continuity — a blown fuse on a binary input circuit will render the channel permanently inactive regardless of module condition.

Site Replacement Workflow

Replacing the UR8CH in a live protection panel requires a structured approach to minimize downtime and avoid protection gaps. Begin by coordinating with the operations team to confirm that the relay can be taken out of service safely, with backup protection in place if required by site procedures. Before removing the existing module, use the GE EnerVista UR Setup software to export the full relay settings file, including I/O assignment maps, so that the replacement module can be configured identically without manual re-entry.

With the relay de-energized or the chassis slot isolated, remove the defective UR8CH by releasing the front-panel latch and sliding the module from the rear chassis. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit. After seating the new UR8CH, re-energize the relay and use EnerVista to verify that all binary input and output channels are recognized and responding correctly. Perform a functional test of each output contact using a continuity tester or relay test set before returning the relay to service.

For sites managing multiple UR Series relays across a substation or plant, maintaining a minimum of one UR8CH spare per relay type in the local spare parts store is strongly recommended. This eliminates the lead time risk associated with emergency procurement and ensures that any future I/O module failure can be resolved within a single maintenance shift, keeping mean time to repair (MTTR) within acceptable operational limits.

Spare Parts Support FAQ

Q1: Is the UR8CH compatible with all UR Series relay models?
The UR8CH is designed for the GE Multilin UR Series platform and is compatible with a wide range of UR relay models including C30, C60, D60, F60, G60, L90, M60, T60, and others that use the standard UR chassis backplane. Compatibility depends on chassis slot configuration and firmware version. We recommend confirming your relay model and firmware revision before ordering.

Q2: How is the UR8CH tested before shipment?
Every UR8CH unit is functionally tested prior to dispatch, including verification of all binary input channels, output contact continuity, and backplane communication integrity. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the UR8CH replace older or discontinued I/O module variants?
In many cases, yes. The UR Series platform has maintained strong backward compatibility across hardware revisions. However, specific slot assignments and firmware compatibility should be verified using GE EnerVista UR Setup software before installation. Our technical team can assist with compatibility verification based on your relay model and existing chassis configuration.

Q4: What is your lead time and long-term supply commitment for the UR8CH?
We maintain stock of the UR8CH and can typically ship within 1–3 business days for in-stock units. For customers requiring long-term supply agreements or annual blanket orders to support multi-site maintenance programs, we offer dedicated inventory reservation arrangements. Our supply chain covers both current-production and refurbished-tested units to support legacy UR Series installations that may no longer be covered by OEM support.
