GE UR9NH Safety-Reliable Protection Module for Critical Sites

GE UR9NH Safety-Reliable Protection Module for Critical Control Sites

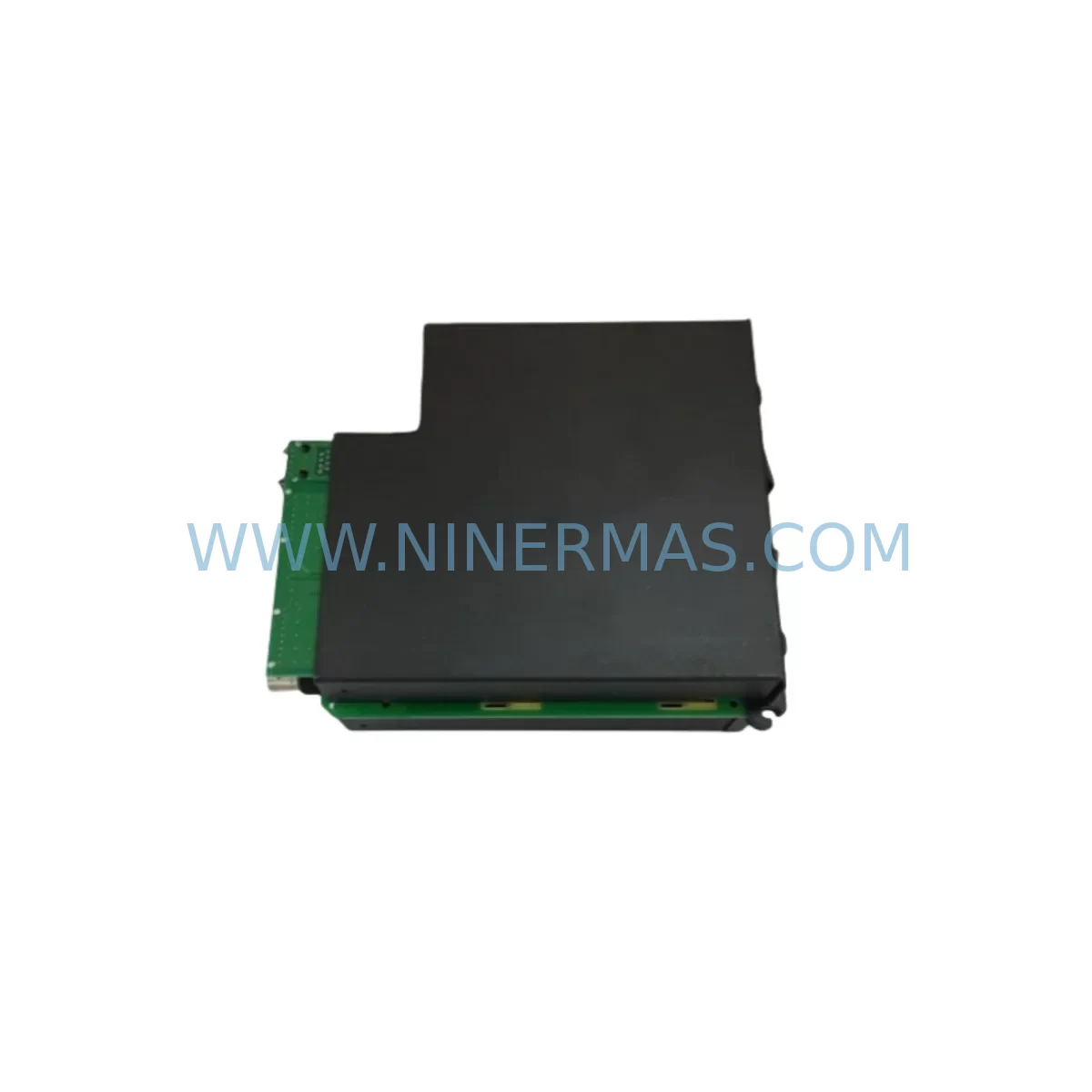

The GE UR9NH is a high-integrity protection relay module designed for the GE Grid Solutions UR Series platform — one of the most widely deployed digital protection and control architectures in power generation, transmission, and critical industrial infrastructure worldwide. Engineered to deliver uninterrupted protection in demanding environments, the UR9NH module plays a central role in safeguarding control loops, electrical feeders, and safety interlocks where any failure carries severe operational or safety consequences.

In continuous production facilities, power substations, and heavy industrial control cabinets, protection relay modules must perform flawlessly under conditions of high electromagnetic interference, voltage transients, thermal cycling, and mechanical vibration. The UR9NH is built to meet these demands, providing stable signal processing and reliable trip output even when surrounding equipment — including high-current motor starters, variable frequency drives, and bus-coupled switchgear — generates significant electrical noise. Its robust hardware design minimizes the risk of signal drift, false tripping, and missed fault detection that can lead to unplanned shutdowns or, worse, undetected fault propagation.

Within the UR Series chassis, the UR9NH integrates seamlessly with companion modules such as the UR6NH power supply module, the UR8NH CPU module, and digital I/O cards including the UR7NH and UR4NH series. This modular architecture allows protection engineers to configure the relay platform precisely for the application — whether that is a distance protection scheme for a 220 kV transmission line, a differential protection function for a large power transformer, or a motor protection relay for a critical process drive. The ability to replace individual modules such as the UR9NH without disturbing the entire relay chassis significantly reduces maintenance downtime and simplifies spare parts management in facilities that operate on tight maintenance windows.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Effective risk reduction in a protection and control cabinet begins with selecting components that are proven, interoperable, and maintainable over the long service life of the installation. The GE UR9NH module addresses this requirement directly by providing a field-replaceable hardware element within the UR Series platform that maintains protection continuity during module swap operations.

In a typical high-voltage substation or industrial switchgear room, the UR Series relay chassis may house multiple functional modules operating in concert. The UR6NH power supply module provides regulated DC power to the chassis, ensuring that voltage fluctuations on the station battery bus — caused by battery charger switching, load shedding events, or surge currents from closing coils — do not propagate into the relay logic circuits. Alongside it, the UR8NH CPU module executes the protection algorithms, processes analog inputs from current transformers and voltage transformers, and manages communication with the SCADA system via IEC 61850 or DNP3 protocols.

The UR9NH module expands the I/O capacity of the relay, enabling engineers to connect additional binary inputs from auxiliary contacts, pressure switches, temperature relays, and Buchholz relay contacts — all of which are critical inputs in transformer protection and generator protection schemes. In petrochemical plants and LNG terminals, where safety instrumented systems (SIS) must interface with the basic process control system (BPCS), the UR9NH provides the additional contact inputs needed to integrate emergency shutdown (ESD) signals into the protection relay logic without requiring a separate relay panel.

Surge protection devices such as the Phoenix Contact TRABTECH series or Weidmuller surge arresters are commonly installed on the binary input wiring to the UR9NH to prevent transient overvoltages — generated by switching operations on long cable runs in mining or port facilities — from damaging the module’s input circuits. Similarly, signal isolators and loop-powered barriers protect the analog input channels of companion UR Series analog input modules from ground loop interference in environments with multiple earthing points, such as offshore platforms and ship electrical systems.

For facilities managing long-term spare parts inventories, maintaining a stocked UR9NH module alongside the UR8NH CPU, UR6NH power supply, and relevant I/O cards ensures that the mean time to repair (MTTR) for a UR Series relay remains within the maintenance window defined by the facility’s reliability program. This is particularly important in continuous process industries — pulp and paper, cement, steel, and chemical manufacturing — where an unprotected feeder or transformer represents not only a production loss but a potential safety hazard to personnel and equipment.

Critical Industrial Safety Applications

Power Generation and Transmission: The GE UR9NH is widely used in generator protection panels, transformer differential protection schemes, and bus protection relays at power plants and grid substations. Its compatibility with the full UR Series platform — including the F60 feeder protection relay, the T60 transformer protection relay, and the G60 generator protection relay — makes it a standard spare part for utilities and independent power producers operating GE-based protection systems.

Petrochemical and Refinery Facilities: In oil refineries and chemical plants, motor protection relays and feeder protection relays based on the UR Series platform protect critical process drives — compressors, pumps, and agitators — from electrical faults that could trigger fires, explosions, or toxic releases. The UR9NH module’s additional I/O capacity supports the integration of process safety signals, enabling the protection relay to participate in the facility’s safety instrumented system (SIS) architecture.

Mining and Mineral Processing: Underground and surface mining operations rely on robust protection relay systems to protect high-voltage distribution networks feeding draglines, conveyors, crushers, and hoists. The UR Series platform’s proven performance in high-vibration, high-dust environments — combined with the modular replaceability of components like the UR9NH — makes it a preferred choice for mine electrical engineers managing aging protection infrastructure.

Water and Wastewater Treatment: Municipal water authorities and industrial water treatment plants use UR Series relays to protect pump motors, transformer feeders, and emergency generator connections. The UR9NH module supports the additional binary inputs required for pump status monitoring, level switch integration, and emergency stop circuit supervision in these critical utility applications.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines impose extreme electrical stress on protection systems due to rapid load cycling and harmonic distortion. The UR Series platform’s harmonic-tolerant measurement algorithms, supported by properly functioning I/O modules such as the UR9NH, ensure that protection functions remain stable and selective even under these challenging power quality conditions.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the GE UR9NH module?
All UR9NH modules supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement dispatch and technical documentation to minimize site downtime.

Q2: Is the UR9NH tested before shipment?
Yes. Every UR9NH module undergoes a full functional verification test prior to dispatch. This pre-shipment testing confirms that all I/O channels, communication interfaces, and power rails perform within specification, reducing the risk of receiving a non-functional module on a critical maintenance job.

Q3: Which GE UR Series relay models is the UR9NH compatible with?
The UR9NH is designed for use within the GE Grid Solutions UR Series relay chassis platform. It is compatible with relay models including the C60, C70, D60, F60, G60, L90, and T60, subject to firmware version and chassis slot configuration. Buyers are advised to confirm chassis compatibility with their existing relay firmware version before installation.

Q4: Can long-term supply of the UR9NH be assured for ongoing maintenance programs?
NINERMAS maintains stock of UR9NH modules and key UR Series spare parts to support facilities with long-term maintenance contracts and reliability programs. For bulk orders or scheduled supply agreements covering multiple UR Series modules, please contact our technical sales team to discuss availability and lead times.
