Metso D200533 BIU82 Service-Ready Spare Part for Industrial Maintenance

Metso D200533 BIU82 Service-Ready Spare Part for Industrial Maintenance

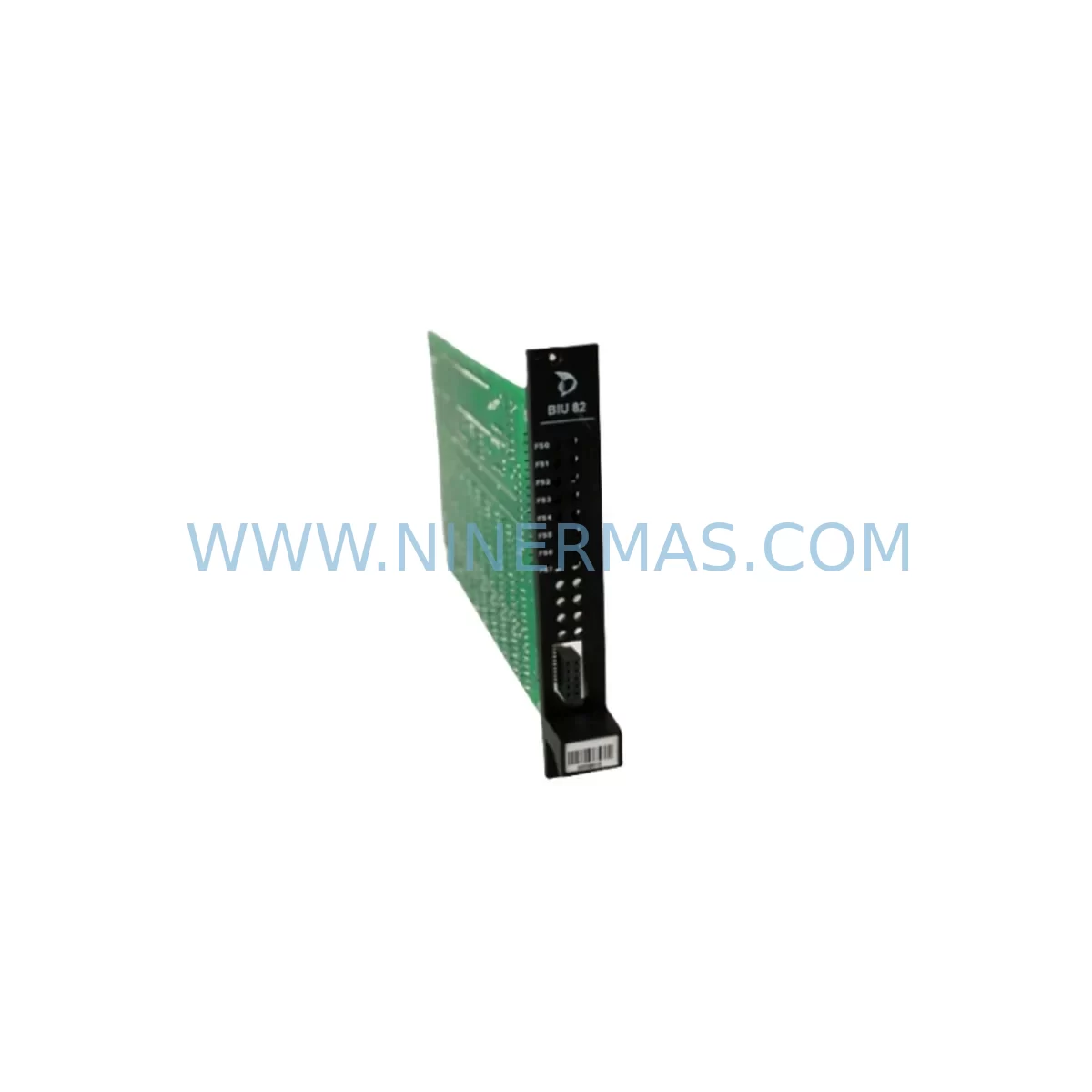

The Metso D200533 BIU82 is a ruggedized Safety I/O Module engineered for deployment in harsh industrial environments within the Metso DNA Distributed Control System (DCS) platform. Designed to meet the demanding requirements of process industries — including pulp and paper, mining, oil and gas, and power generation — this module provides reliable digital and analog I/O signal handling with integrated safety logic support. Sourced as an original spare part, the D200533 BIU82 is a critical component for maintenance engineers managing aging Metso DNA control cabinets, ensuring uninterrupted process control and rapid recovery from unplanned shutdowns.

For procurement engineers and plant maintenance teams, maintaining a stocked unit of the D200533 BIU82 is a proven strategy to reduce mean time to repair (MTTR) and avoid costly production downtime. This module is pre-shipment tested, ships with a 12-month warranty, and is available for immediate dispatch to global destinations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the Metso D200533 BIU82 Safety I/O Module, a thorough inspection of the surrounding control cabinet infrastructure is essential to prevent cascading failures and ensure a clean, verified restoration of the safety loop. Maintenance engineers should treat this replacement as an opportunity for a broader cabinet health audit.

Begin by verifying the Metso DNA backplane and bus connector integrity — a faulty backplane slot can cause intermittent I/O faults that mimic module failure. Inspect the 24 VDC power supply module (such as the Metso D200500 series PSU) feeding the I/O rack; voltage ripple or under-voltage conditions accelerate module degradation. Check all field wiring terminal blocks connected to the BIU82’s I/O channels for corrosion, loose crimps, or insulation breakdown — particularly in high-humidity or chemically aggressive environments.

For safety-critical loops, verify the associated safety relay modules (e.g., Metso D200540 or equivalent SIL-rated relay units) and confirm that the safety logic configuration in the Metso DNA Engineering Tool matches the replacement module’s firmware revision. Mismatched firmware between the BIU82 and the controller can prevent the safety loop from initializing correctly after hot-swap.

Inspect the fieldbus communication cables and connectors linking the I/O module to the Metso DNA controller node. Signal degradation on the internal fieldbus — often caused by damaged shielding or improper grounding — can produce spurious I/O errors that are incorrectly attributed to the module itself. A signal isolator or surge protection device on high-noise analog channels should also be checked and replaced if showing signs of wear.

During annual shutdowns, it is advisable to simultaneously inspect the Metso DNA controller module (ACN or equivalent) paired with this I/O unit, as well as any HMI workstation connections and OPC communication interfaces that rely on the I/O data from the BIU82. Fuse holders and miniature circuit breakers (MCBs) protecting the I/O field circuits should be tested for correct trip characteristics. Finally, review the grounding and shielding bus bars within the cabinet — poor grounding is a leading cause of unexplained I/O module faults in Metso DNA installations.

Stocking a spare D200533 BIU82 alongside complementary components — including a spare DNA power supply module, a set of terminal block connectors, and a replacement fieldbus cable assembly — constitutes a minimum viable spare parts kit for any plant running Metso DNA automation.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the exact part number D200533 BIU82 against the cabinet label and the Metso DNA hardware configuration database. Cross-reference the module’s slot address and I/O channel assignments in the DNA Engineering Tool before removal.

Step 2 — Safe Isolation: Place the associated safety loop in bypass mode per your site’s Management of Change (MOC) procedure. De-energize the I/O rack section using the dedicated MCB. Do not rely solely on software inhibit for safety I/O modules.

Step 3 — Module Removal: Disconnect field wiring terminal blocks (label all connectors before removal). Release the module locking mechanism and slide the BIU82 out of the backplane slot. Inspect the backplane connector pins for damage or contamination.

Step 4 — Replacement Installation: Insert the new D200533 BIU82 into the correct backplane slot. Reconnect all labeled terminal blocks. Verify torque on all screw terminals per Metso specifications (typically 0.5–0.6 Nm for signal terminals).

Step 5 — Commissioning and Loop Test: Re-energize the rack. Confirm module recognition in the Metso DNA system. Perform a full I/O loop test for all channels — digital inputs, digital outputs, and safety channels. Verify safety loop integrity before releasing the bypass.

Step 6 — Documentation: Update the plant’s spare parts register, record the replacement in the CMMS (e.g., SAP PM or Maximo), and log the removed module’s condition for root cause analysis.

This structured workflow minimizes downtime, ensures system compatibility, and maintains the integrity of the safety instrumented system (SIS) — reducing the risk of nuisance trips or undetected dangerous failures after maintenance.

Spare Parts Support FAQ

Q1: Is the D200533 BIU82 compatible with all versions of the Metso DNA DCS platform?
The D200533 BIU82 is designed for the Metso DNA I/O architecture. Compatibility depends on the specific DNA system version and firmware revision in your installation. We recommend confirming the hardware revision of your existing module before ordering. Our technical team can assist with compatibility verification based on your system’s hardware configuration list (HCL).

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, contact us at sale@ninermas.com with the order reference and a description of the fault. We will arrange replacement or repair at no additional cost within the warranty period.

Q3: Can you guarantee long-term supply of the D200533 BIU82 for multi-year maintenance contracts?
Yes. We maintain dedicated inventory for legacy Metso DNA spare parts to support plants operating beyond the original product lifecycle. For multi-year supply agreements or blanket purchase orders, contact our procurement team to discuss reserved stock arrangements and volume pricing.

Q4: How is the module tested before shipment, and what documentation is provided?
Every D200533 BIU82 unit is functionally tested on a Metso DNA-compatible test bench prior to dispatch. A test report confirming I/O channel functionality is available upon request. Units are shipped in anti-static packaging with appropriate labeling for traceability. A certificate of conformity can be provided for quality-controlled procurement processes.
