ProSoft MVI56-DFCM Safety-Reliable DF1 Module for Critical Control

ProSoft MVI56-DFCM Safety-Reliable DF1 Module for Critical Control

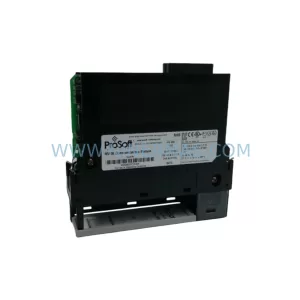

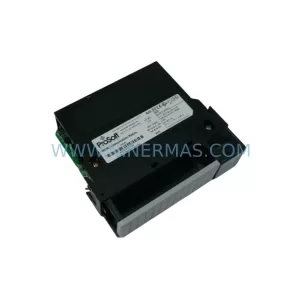

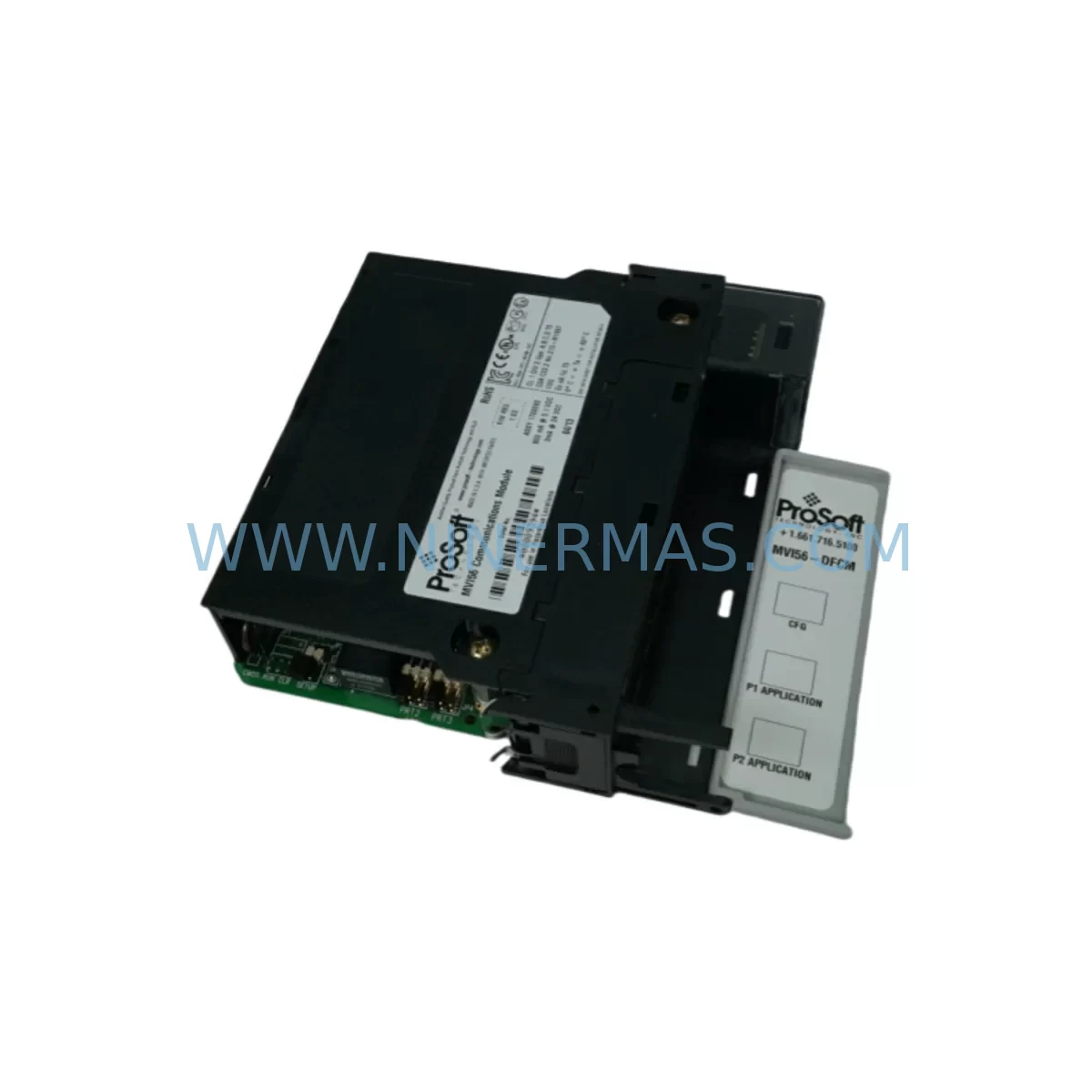

The ProSoft MVI56-DFCM is a high-performance DF1/DH485 multi-protocol communication module engineered for Allen-Bradley ControlLogix (MVI56 series) platforms. Designed to meet the demanding requirements of continuous industrial production environments, this module delivers stable, interference-resistant serial communication in critical control cabinets where unplanned downtime is simply not an option. Whether deployed in petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, or port logistics automation, the MVI56-DFCM provides the communication backbone that safety-critical control loops depend on.

At NINERMAS, every MVI56-DFCM unit undergoes rigorous pre-shipment functional testing — verifying protocol handshaking, data throughput integrity, and electrical isolation performance — before it leaves our warehouse. Backed by a 12-month warranty and long-term inventory availability, the MVI56-DFCM is a trusted replacement and upgrade solution for aging MVI56-series communication infrastructure.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a modern industrial control cabinet serving a continuous production line, communication failure between the PLC and field devices is one of the highest-risk failure modes. The MVI56-DFCM directly addresses this risk by providing robust, optically isolated DF1 and DH485 serial communication that maintains signal integrity even when the cabinet is subjected to high-frequency switching noise from variable frequency drives (VFDs), contactor chatter, or nearby welding equipment.

When integrated into a ControlLogix rack alongside the 1756-L71 ControlLogix L7 CPU, the MVI56-DFCM enables deterministic data exchange with legacy DF1-compatible devices — including older PanelView HMI terminals, third-party RTUs, and weighing controllers — without requiring costly protocol converters. This preserves the integrity of the safety interlock logic residing in the CPU while extending the communication reach of the control system.

For power quality protection within the same cabinet, pairing the MVI56-DFCM installation with a 1756-PA75 ControlLogix power supply ensures that backplane voltage remains stable during mains fluctuations, preventing the module from experiencing spurious resets that could disrupt active communication sessions. In high-surge environments such as substations or motor control centers, adding a dedicated surge protection device (SPD) on the incoming AC feed further reduces the risk of transient-induced communication faults.

The MVI56-DFCM’s RS-485 port configuration is particularly valuable in multi-drop serial networks where a single communication fault can cascade across multiple slave devices. By configuring the module in DF1 Half-Duplex Master mode, the ControlLogix CPU maintains polling control over all downstream nodes — including PowerFlex 40 and PowerFlex 700 drives connected via DF1 — ensuring that a single device fault does not cause the master to lose visibility of the entire network segment.

In safety-critical applications requiring redundant communication paths, the MVI56-DFCM can be deployed alongside a MVI56-MCM Modbus Communication Module in the same chassis, providing a secondary protocol path for cross-verification of process values. This dual-protocol architecture is commonly used in water treatment SCADA systems and chemical dosing control panels where data integrity directly impacts process safety.

For installations in dusty or humid environments — such as cement plants, grain handling facilities, or coastal port terminals — the ControlLogix chassis housing the MVI56-DFCM should be installed within an IP54 or IP65-rated enclosure, complemented by filtered ventilation units and desiccant humidity control. The module’s wide operating temperature range and vibration-rated design ensure continued reliable operation even when the enclosure is subject to mechanical vibration from nearby conveyors or compressors.

When planning a control system upgrade or migration from an older SLC 500 or MicroLogix platform, the MVI56-DFCM provides a direct migration path for existing DF1 and DH485 device networks, preserving field wiring investments while delivering the processing power and memory capacity of the ControlLogix platform. NINERMAS maintains replacement stock for both the MVI56-DFCM and related MVI56-series modules, supporting rapid spare parts fulfillment to minimize unplanned downtime during emergency replacements.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous refining processes, the MVI56-DFCM enables reliable DF1 communication between the ControlLogix safety PLC and legacy analyzer systems, flow computers, and custody transfer meters. Communication interruption in these environments can trigger unplanned shutdowns with significant safety and financial consequences. The module’s optical isolation prevents ground potential differences between field instruments and the control room from corrupting serial data frames.

Power Generation & Substation Automation: Substations and power plant auxiliary control systems frequently operate in environments with extreme electromagnetic interference from high-voltage switching. The MVI56-DFCM’s EMI-hardened design maintains stable DH485 network communication between the ControlLogix controller and legacy relay protection panels, energy meters, and excitation control systems, reducing the risk of false trip signals caused by communication noise.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to vibration, dust ingress, and wide temperature swings. The MVI56-DFCM’s industrial-grade construction supports reliable serial communication for conveyor control systems, crusher automation, and ventilation safety interlocks — applications where a communication dropout can trigger emergency stops across an entire production section.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous SCADA communication to monitor dosing pumps, flow meters, and level sensors. The MVI56-DFCM provides the DF1 communication link between the ControlLogix controller and remote I/O panels or third-party instrumentation, supporting uninterrupted process monitoring and regulatory compliance reporting.

Metallurgy & Steel Production: In electric arc furnace (EAF) and rolling mill environments, the combination of high current switching, mechanical vibration, and elevated ambient temperatures creates one of the most challenging conditions for serial communication hardware. The MVI56-DFCM’s robust design and configurable baud rates allow it to maintain reliable data exchange with drive systems and process controllers even under these extreme conditions.

Safety and Quality FAQ

Q1: What warranty does the MVI56-DFCM carry when purchased from NINERMAS?
Every MVI56-DFCM sold by NINERMAS is covered by a 12-month warranty from the date of shipment. If the module fails due to manufacturing defects or component failure under normal operating conditions within the warranty period, NINERMAS will provide a replacement unit or full refund. Our warranty support team is reachable at sale@ninermas.com.

Q2: What pre-shipment testing is performed on each MVI56-DFCM unit?
Each unit undergoes a full functional test prior to shipment, including protocol communication verification on both serial ports, backplane interface integrity check, and visual inspection for physical damage. Test records are maintained internally and available upon request for quality-critical procurement processes.

Q3: Is the MVI56-DFCM compatible with all ControlLogix chassis and firmware versions?
The MVI56-DFCM is compatible with all standard 1756 ControlLogix chassis sizes (4, 7, 10, 13, and 17 slots) and is configured using ProSoft Configuration Builder (PCB) software, which is freely available from ProSoft Technology. It is compatible with RSLogix 5000 / Studio 5000 Logix Designer ladder logic integration via the module’s Add-On Profile (AOP). For specific firmware compatibility questions, contact our technical team before ordering.

Q4: Can NINERMAS support long-term or repeat supply of the MVI56-DFCM for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated inventory of the MVI56-DFCM and related MVI56-series communication modules to support planned maintenance programs, spare parts contracts, and emergency replacement requirements. We offer priority fulfillment for customers with critical production environments. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss volume pricing and supply agreements.
