ProSoft MVI46-GSC Service-Ready Spare Part for Industrial Maintenance

ProSoft MVI46-GSC Service-Ready Spare Part for Industrial Maintenance

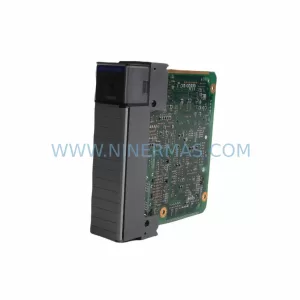

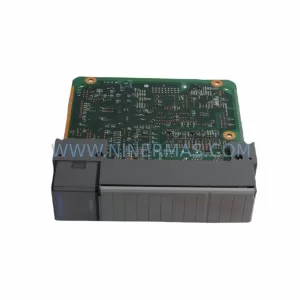

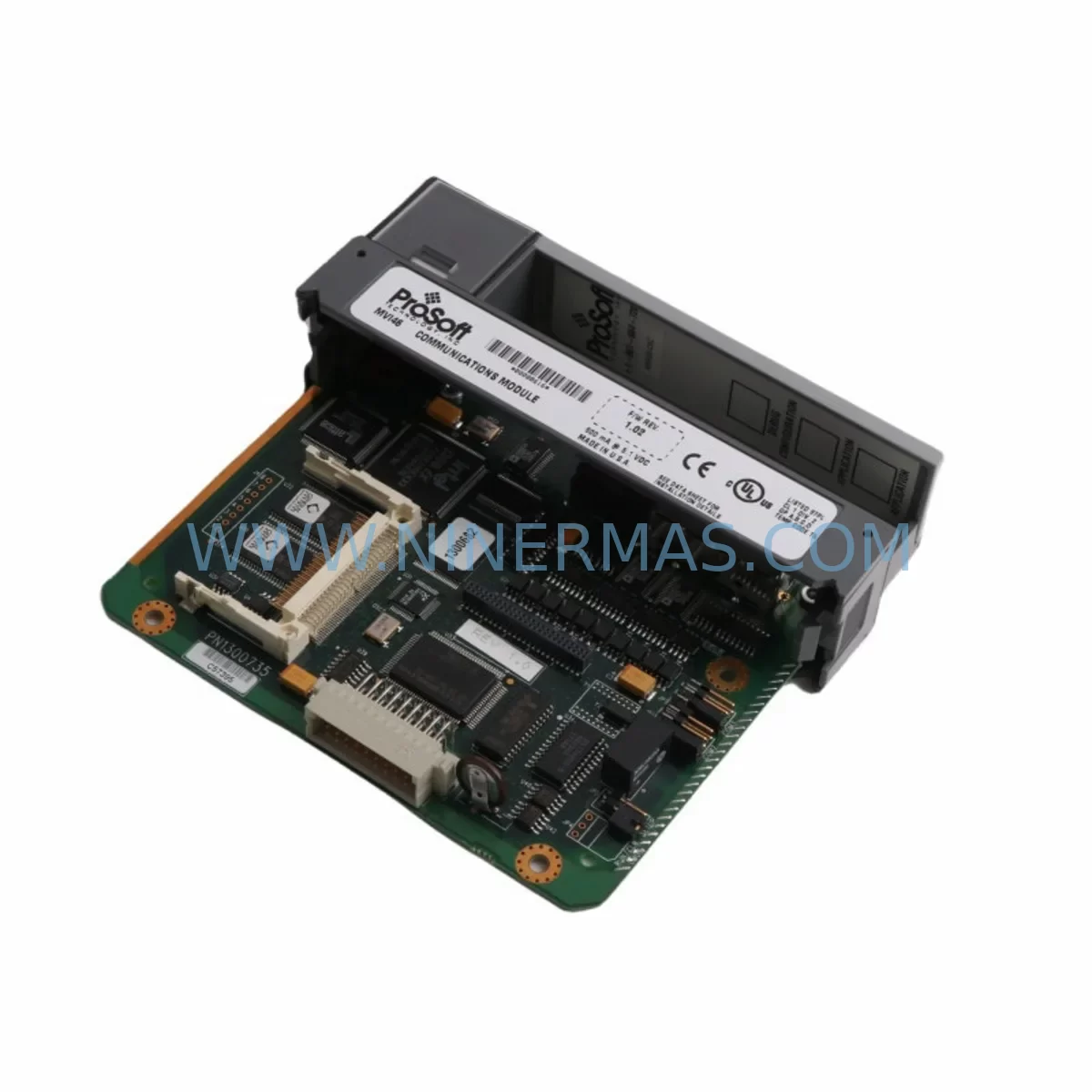

The ProSoft MVI46-GSC is a Generic Serial Communication module designed for Allen-Bradley SLC 500 series programmable logic controllers. As a service-ready spare part, the MVI46-GSC enables maintenance engineers to restore serial communication links between SLC 500 racks and third-party devices — including drives, meters, barcode readers, and legacy SCADA terminals — with minimal downtime. Whether you are managing a planned annual shutdown, responding to an unscheduled line stoppage, or building a strategic spare parts inventory for aging control systems, the MVI46-GSC represents a critical component in any SLC 500-based facility’s maintenance toolkit.

ProSoft Technology engineered the MVI46-GSC to support multiple serial protocols including Modbus RTU, Modbus ASCII, DF1, and user-defined ASCII, making it one of the most versatile communication modules available for the SLC 500 platform. Its broad protocol flexibility means a single stocked unit can serve multiple communication roles across different production lines, reducing the total number of unique spare parts a facility must maintain.

For maintenance engineers, the MVI46-GSC slots directly into any SLC 500 I/O chassis alongside standard digital and analog I/O modules, power supplies, and the SLC 5/03, 5/04, or 5/05 processor. Replacement is straightforward: power down the rack, remove the failed module, insert the MVI46-GSC, restore the configuration file from the processor’s memory card or a backup laptop, and return the system to service. When performing this replacement, it is also best practice to inspect adjacent components in the same chassis — including the SLC 500 power supply module (such as the 1746-P4 or 1746-P7), the processor module itself, and any 1746-series digital I/O modules — for signs of thermal stress, loose terminal connections, or capacitor aging that could trigger a secondary failure shortly after the primary repair.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for SLC 500-based control systems requires more than simply stocking the MVI46-GSC itself. A comprehensive spare parts strategy for a typical SLC 500 control cabinet should also include the following components, which are commonly found in the same electrical circuit or communication loop as the MVI46-GSC:

The 1746-P4 or 1746-P7 SLC 500 power supply is the first component to inspect when a communication module fails unexpectedly. Power supply degradation — particularly output voltage ripple on the 5 VDC backplane rail — can cause intermittent module resets that mimic a faulty communication module. Stocking at least one power supply per chassis type is strongly recommended for facilities with aging SLC 500 systems.

The SLC 5/04 or SLC 5/05 processor module (1747-L541 or 1747-L551) should be verified for firmware compatibility with the MVI46-GSC configuration file. Mismatched firmware versions can prevent the module from initializing correctly after replacement. A backup processor with the correct firmware pre-loaded is an invaluable asset during emergency repairs.

Serial communication cables — particularly RS-232 and RS-485 shielded cables connecting the MVI46-GSC to field devices such as variable frequency drives, flow meters, or barcode scanners — are a frequent source of communication faults that are misdiagnosed as module failures. Maintaining a stock of pre-terminated serial cables in standard lengths (1 m, 3 m, 5 m) eliminates this diagnostic ambiguity and accelerates fault isolation.

The 1746-series digital I/O modules (such as 1746-IB16 or 1746-OB16) sharing the same chassis backplane should be inspected for blown fuses, failed output transistors, or loose field wiring during any MVI46-GSC replacement event. A backplane fault on an adjacent I/O module can cause the entire rack to cycle power, which may be the root cause of the communication module failure.

For systems where the MVI46-GSC interfaces with a PanelView or PanelView Plus HMI via serial DF1 protocol, the HMI’s serial port settings — baud rate, parity, stop bits — must be verified against the replacement module’s configuration to avoid communication timeouts after the swap. Stocking a spare HMI compact flash card with the current application image prevents extended downtime if the HMI itself requires replacement during the same maintenance window.

Signal isolation barriers and DIN-rail mounted signal isolators on the RS-485 loop should also be checked. These devices protect the MVI46-GSC’s serial ports from ground loop currents and voltage transients originating from field instrumentation. A failed isolator can destroy the serial port of a new module within hours of installation if not identified before commissioning the replacement.

Finally, terminal blocks and DIN-rail mounted fuse holders within the control cabinet should be inspected for loose connections, discoloration from heat, or corroded contacts. Poor terminal connections are a leading cause of intermittent serial communication errors in industrial environments and are often overlooked during module-level fault diagnosis.

Site Replacement Workflow

Replacing the MVI46-GSC on-site is a structured process that, when followed correctly, minimizes total downtime and ensures the replacement module is fully operational before the production line is restarted.

Step 1 — Pre-Replacement Preparation: Before powering down the SLC 500 rack, document the current module slot position, the serial port wiring configuration (port 1 and port 2 pinouts), and the ProSoft Configuration Builder (PCB) project file version. Confirm that a backup of the SLC 500 processor program is available on a laptop or memory card.

Step 2 — Safe Power-Down: Follow your facility’s lockout/tagout (LOTO) procedure to de-energize the SLC 500 chassis. Verify that the 1746 power supply output LEDs are extinguished before touching any module.

Step 3 — Module Removal and Inspection: Remove the failed MVI46-GSC and inspect the backplane connector for bent pins or carbon deposits. Inspect the chassis slot for debris. If the backplane connector is damaged, the chassis itself may require replacement before installing the new module.

Step 4 — New Module Installation: Insert the service-ready MVI46-GSC into the correct slot. Reconnect all serial port cables, ensuring correct pinout orientation for RS-232 or RS-485 wiring. Tighten all terminal screws to the specified torque.

Step 5 — Configuration Restore and Commissioning: Power up the chassis and use ProSoft Configuration Builder to download the saved configuration to the new MVI46-GSC. Verify that the module’s status LEDs indicate normal operation (APP and BP ACT LEDs active). Confirm that the connected field devices are communicating correctly before releasing the system to production.

Step 6 — Post-Replacement Documentation: Record the replacement date, the new module’s serial number, and any observations about the failed module’s condition. Update the facility’s spare parts inventory to trigger a reorder of the consumed MVI46-GSC unit.

Spare Parts Support FAQ

Q1: Is the MVI46-GSC compatible with all SLC 500 chassis sizes?
Yes. The MVI46-GSC is compatible with all 1746 I/O chassis sizes — 4-slot, 7-slot, 10-slot, and 13-slot — as well as the modular SLC 500 chassis. It occupies one I/O slot and draws power from the chassis backplane. No external power supply is required for the module itself.

Q2: How is the MVI46-GSC tested before shipment?
Each MVI46-GSC unit is powered on and subjected to a functional communication test prior to dispatch. The module’s firmware version is verified, and the unit is inspected for physical damage. It is then packed in anti-static protective packaging to prevent electrostatic discharge damage during transit.

Q3: What is the warranty coverage and how is it claimed?
All MVI46-GSC units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. To initiate a warranty claim, contact our support team at sale@ninermas.com with the order number, module serial number, and a description of the fault. We will arrange a replacement or repair at no additional cost within the warranty period.

Q4: Can the MVI46-GSC replace older or discontinued ProSoft serial communication modules?
The MVI46-GSC is designed as a current-production replacement for legacy ProSoft serial communication modules used in SLC 500 systems. In many cases, it can serve as a functional replacement for older modules that have been discontinued, provided the serial protocol and port configuration requirements are compatible. Our technical team can assist with compatibility verification before purchase to ensure the replacement module will integrate correctly with your existing system configuration.
