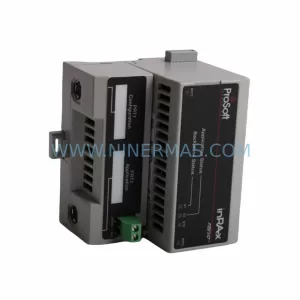

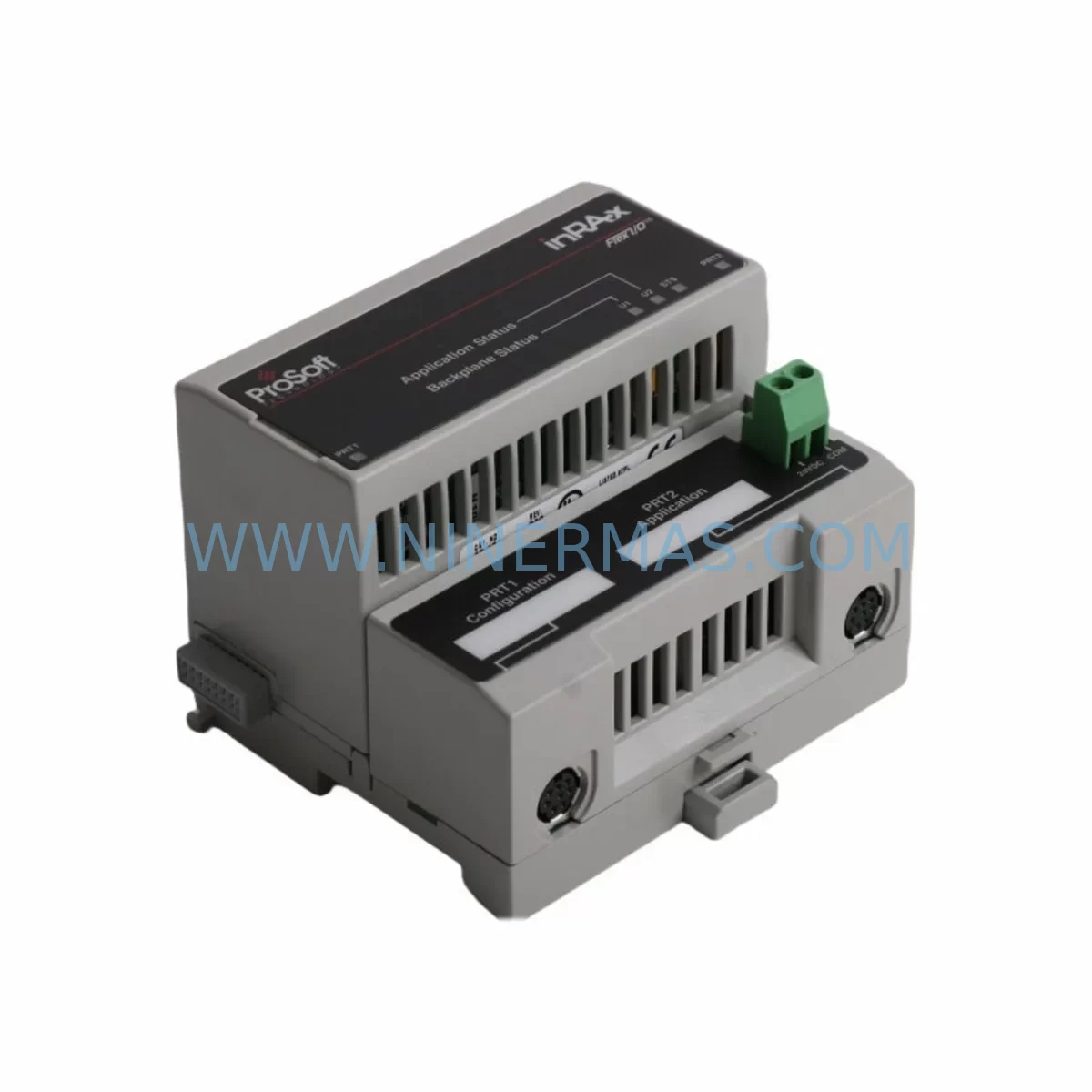

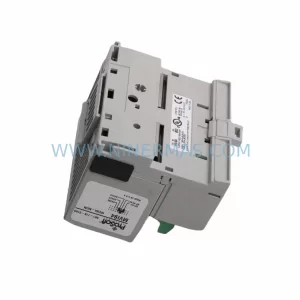

The ProSoft MVI94-ADM (SKU: MVI94-ADM) is a communication module designed for the MVI94 series platform, widely deployed in industrial automation environments for protocol conversion and data bridging between PLCs, DCS systems, and field devices. When a production line experiences an unexpected communication fault traced to the MVI94-ADM module, every minute of downtime translates directly into lost output and recovery costs. Sourcing a verified, service-ready replacement from a reliable spare parts supplier is the fastest path back to full operation.

At NINERMAS, we stock the MVI94-ADM as a tested, original-specification spare part, ready for immediate dispatch. Each unit undergoes pre-shipment functional verification and ships with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to hold this module in their critical spare inventory without risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MVI94-ADM in the field is rarely an isolated task. Experienced maintenance engineers know that a communication module failure often signals stress across adjacent components in the same control cabinet or communication loop. When scheduling a replacement of the MVI94-ADM, a thorough site inspection should cover the following areas to prevent repeat failures and ensure stable resumption of operations.

Begin with the MVI94 backplane and rack assembly — inspect for corrosion, loose card guides, and backplane connector wear, as a degraded backplane can cause intermittent faults even after a module swap. Check the 24VDC power supply module feeding the rack; voltage sag or ripple is a common root cause of communication module resets. If the system uses a ProSoft MVI94-MCM or MVI94-MNET alongside the ADM module, verify their firmware versions and configuration files are backed up before any intervention.

Inspect all RS-232, RS-485, and RS-422 serial communication cables connected to the MVI94-ADM port. Cable shielding integrity and termination resistor values should be confirmed, particularly in high-noise environments near variable frequency drives or large motor starters. Review the I/O module assignments in the adjacent slots — a digital input/output module or analog I/O card sharing the same rack may have accumulated faults that were masked by the communication error.

For systems integrated with a SCADA or DCS host, confirm that the communication gateway or protocol converter upstream of the MVI94-ADM is operating within normal parameters. Check Ethernet switches and managed network infrastructure if the ADM module bridges to an Ethernet backbone. Signal isolators and surge protection devices on serial lines should be tested, as transient events that damaged the MVI94-ADM may have also degraded these protective components.

Finally, review the HMI panel connected to this communication node — verify that tag mappings and communication timeouts are correctly configured after the module replacement to avoid nuisance alarms during system restart. Procurement engineers should also consider holding a ProSoft MVI94-ADM as a permanent line item in the critical spare parts inventory, alongside compatible power supply modules and serial communication cables, to reduce mean time to repair (MTTR) for future incidents.

Site Replacement Workflow

Replacing the MVI94-ADM on-site follows a structured sequence to minimize downtime and avoid configuration loss. Before removing the faulty module, export the current configuration using ProSoft Configuration Builder (PCB) software and save the project file to a secure location. Document the current LED status indicators and any active fault codes displayed on the module or the host PLC.

Power down the rack following the site’s lockout/tagout (LOTO) procedure. Remove the MVI94-ADM by releasing the card latch and sliding it from the backplane slot. Inspect the backplane connector pins for damage before inserting the replacement unit. Seat the new MVI94-ADM firmly and restore power. Load the saved configuration file via PCB, verify communication status LEDs, and confirm data exchange with the host PLC or DCS within the first five minutes of operation.

This workflow is compatible with legacy MVI94 installations and supports a like-for-like replacement without requiring changes to the host PLC program, making it suitable for sites that need to maintain system compatibility while extending the operational life of older control architectures. Proper documentation of the replacement event — including the date, technician name, and new module serial number — supports warranty claims and future maintenance audits.

Spare Parts Support FAQ

Q1: Is the MVI94-ADM supplied by NINERMAS an original ProSoft Technology part?
Yes. NINERMAS supplies original, manufacturer-specification MVI94-ADM modules. Each unit is sourced through verified supply channels and undergoes pre-shipment functional testing before dispatch.

Q2: What is the warranty coverage and how is it handled?
All MVI94-ADM units ship with a 12-month warranty from the date of shipment. If a unit exhibits a defect within the warranty period under normal operating conditions, NINERMAS will arrange a replacement or repair. Contact sale@ninermas.com with your order reference and fault description to initiate a warranty claim.

Q3: Can the MVI94-ADM replacement be installed without modifying the existing PLC program?
In most cases, yes. The MVI94-ADM is designed for like-for-like replacement within the MVI94 series rack. Provided the configuration file from the original module is available and loaded correctly via ProSoft Configuration Builder, no changes to the host PLC ladder logic are required. Always verify firmware compatibility if the replacement unit carries a different hardware revision.

Q4: Does NINERMAS support long-term or recurring supply of the MVI94-ADM for ongoing maintenance programs?
Yes. NINERMAS supports long-term supply agreements for critical spare parts including the MVI94-ADM. Procurement engineers managing annual maintenance budgets or multi-site spare parts programs are welcome to contact us to discuss volume pricing, reserved stock arrangements, and scheduled delivery options.
