ABB RF616 3BSE010997R1 Retrofit-Compatible Field Bus Module

ABB RF616 3BSE010997R1 Retrofit-Compatible Field Bus Module for Legacy Systems

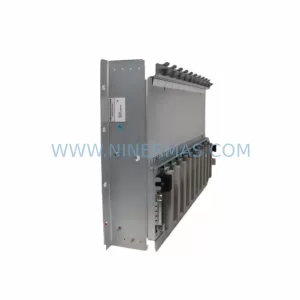

The ABB RF616 (part number 3BSE010997R1) is a PROFIBUS DP field bus communication module designed for the ABB S800 I/O series, widely deployed across DCS, process automation, and industrial control platforms. As legacy ABB Advant, MOD 300, and early AC 800M installations approach end-of-life, the RF616 3BSE010997R1 has become a critical retrofit component for engineers tasked with modernizing control cabinets, extending system life, and maintaining production continuity without full platform migration.

Whether you are replacing a failed communication module in an existing S800 rack, upgrading a PROFIBUS segment to support additional I/O nodes, or migrating from an older ABB CI810 or CI820 communication interface to a more current architecture, the RF616 3BSE010997R1 provides a proven, field-tested solution. NINERMAS maintains ready stock of this module with full functional testing, outgoing inspection, and a 12-month warranty on every unit shipped.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting an S800 I/O segment around the RF616 3BSE010997R1 requires a structured approach to avoid unplanned downtime and configuration errors. Before removing the existing communication module, engineers should document the current PROFIBUS node address, verify the rack slot assignment, and export the active hardware configuration from ABB Control Builder M. This baseline snapshot protects the program logic and I/O mapping during the physical swap.

Power capacity is the first checkpoint. The S800 TB820 or TB840 termination unit and the associated SB821 or SB822 power supply module must be confirmed to support the combined load of all installed I/O modules plus the RF616. In dense racks where AI810, AO810, DI810, or DO810 modules are fully populated, available backplane power headroom can be marginal, and adding a communication module without verifying the power budget risks nuisance trips or module faults.

Terminal wiring for the PROFIBUS segment should be inspected before installation. The RF616 connects to the PROFIBUS DP network via a standard DB9 connector or a site-specific screw terminal adapter. Cable shielding, termination resistors at both ends of the PROFIBUS segment, and correct polarity on the A/B data lines are essential for stable communication, particularly in electrically noisy environments such as motor control centers or high-voltage switchgear rooms.

Backplane slot position matters. In multi-rack S800 configurations using an RB520 rack bus coupler or an EB815 expansion bus interface, the RF616 must be installed in the designated communication slot of the primary rack. Placing it in an expansion rack without proper bus coupler configuration will result in the module not being recognized by the AC 800M controller during the hardware scan.

Module address assignment is performed either via onboard DIP switches or through software parameterization in Control Builder M, depending on the firmware revision of the RF616. After physical installation, the PROFIBUS master — typically the AC 800M PM866 or PM891 processor module — must be configured to recognize the new node address. If the replacement RF616 carries a different firmware version than the original, a GSD file update in the PROFIBUS master configuration may be required before the segment comes online cleanly.

HMI screen updates are often overlooked during module replacement. If the plant runs ABB 800xA or an earlier Operate IT environment, the faceplate and signal list associated with the replaced communication module should be verified against the new hardware configuration. Signal tags mapped through the RF616 to downstream AI810 or DI810 modules must retain their original addresses to avoid alarm floods or control loop interruptions at startup.

For sites migrating from older PROFIBUS segments to PROFINET or Ethernet-based I/O, the RF616 3BSE010997R1 can serve as an interim solution while the broader network migration is planned. Pairing the RF616 with an AF100 fieldbus interface or a CI854 PROFINET communication interface on the controller side allows a phased migration where legacy PROFIBUS devices remain operational while new Ethernet I/O nodes are commissioned in parallel.

Installation space confirmation is critical in retrofit projects where the original control cabinet was designed to tight tolerances. The RF616 occupies a standard S800 module slot width. If the existing rack is an older TB810 or TB825 unit, confirm that the slot is mechanically compatible and that the module locking mechanism engages correctly before applying power.

Downtime Control During System Migration

Minimizing downtime during an RF616 replacement begins with pre-staging. Before the maintenance window opens, the replacement module should be bench-tested, the PROFIBUS address pre-configured, and the Control Builder M project file backed up and verified on a laptop ready for field use. Having the programming cable — typically a USB-to-serial adapter with the ABB TK212A or equivalent driver — prepared in advance eliminates one of the most common sources of delay during live commissioning.

Where process conditions allow, a hot-standby approach using an AC 800M redundant controller pair can reduce the impact of the communication module swap to a brief bumpless transfer rather than a full process shutdown. In non-redundant systems, coordinating the swap during a scheduled low-production window and pre-notifying downstream control loops to hold their last output value reduces the risk of process upsets during the few minutes the PROFIBUS segment is offline.

After the RF616 is seated and powered, the PROFIBUS segment should be verified using a PROFIBUS diagnostic tool or the built-in diagnostics in Control Builder M before releasing the process back to automatic control. Confirming that all downstream I/O modules — including any AI830, DI830, or AO830 HART-enabled modules on the segment — are reporting correctly prevents partial restarts that can be more disruptive than the original planned outage.

Program logic protection is maintained by ensuring that the Control Builder M project downloaded to the AC 800M controller is not modified during the hardware swap. The replacement RF616 should be treated as a transparent hardware substitution, with no changes to function block diagrams, signal lists, or alarm configurations unless a specific functional improvement is being implemented as part of the same maintenance window.

Retrofit Support FAQ

Q: Is the ABB RF616 3BSE010997R1 a direct drop-in replacement for earlier S800 field bus modules?
A: In most cases, yes. The RF616 3BSE010997R1 is designed for the S800 I/O rack and uses the same ModuleBus backplane interface as earlier communication modules in the RF6xx family. However, firmware version differences may require a GSD file update in the PROFIBUS master configuration. NINERMAS recommends confirming the existing module’s firmware revision before ordering to ensure seamless substitution.

Q: What commissioning steps are required after installing the RF616?
A: After physical installation, verify the PROFIBUS node address matches the original configuration, perform a hardware scan in ABB Control Builder M, confirm all downstream I/O modules are recognized, and check signal integrity on the PROFIBUS segment using diagnostic tools. If the AC 800M controller is running a redundant pair, perform a controlled switchover test to confirm the new module operates correctly under both primary and backup controller states.

Q: Does NINERMAS test the RF616 3BSE010997R1 before shipment?
A: Yes. Every RF616 3BSE010997R1 unit shipped by NINERMAS undergoes functional testing and outgoing inspection prior to dispatch. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures. Test reports are available upon request for critical applications.

Q: What is the typical lead time and are units available from stock?
A: NINERMAS maintains in-stock inventory of the RF616 3BSE010997R1 and can ship within 2 business days of order confirmation. For urgent breakdown situations, expedited shipping options are available. Contact our team directly to confirm current stock levels and arrange priority dispatch.
