Emerson VE4002S1T1B2 KJ3001X1-BG1 Service-Ready Spare Part

Emerson VE4002S1T1B2 KJ3001X1-BG1 Service-Ready Spare Part: Minimizing Downtime Risk in DeltaV DCS Environments

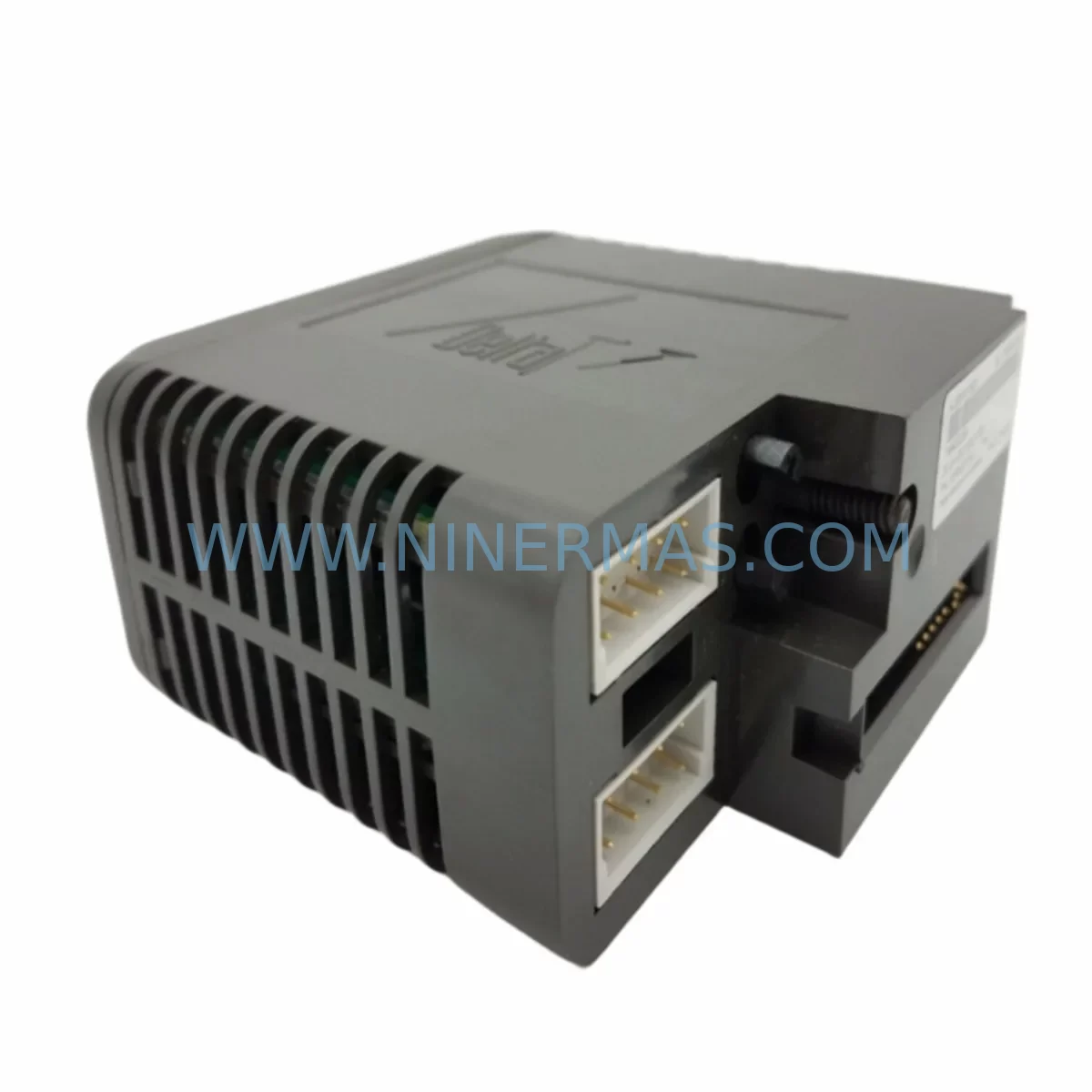

The Emerson VE4002S1T1B2 KJ3001X1-BG1 12P0557X162 is a critical output module within the Emerson DeltaV S-series distributed control system (DCS) platform, widely deployed across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing facilities. When this module fails or degrades, the consequences extend far beyond a single I/O channel — unplanned shutdowns, process deviations, and costly emergency procurement can cascade rapidly. Maintaining a verified, service-ready spare in your critical spares inventory is the most effective strategy to protect continuous operation and reduce mean time to repair (MTTR).

NINERMAS supplies the VE4002S1T1B2 / KJ3001X1-BG1 / 12P0557X162 as an original, tested spare part with full compatibility verification against the DeltaV S-series controller and I/O subsystem architecture. Each unit undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring your maintenance team receives a field-ready component — not a shelf-aged unknown.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the VE4002S1T1B2 in a live DeltaV environment is rarely an isolated task. Experienced maintenance engineers understand that an output module fault is often a symptom of broader cabinet-level stress — and a planned replacement window is the right moment to audit adjacent components before the next unplanned event.

When scheduling replacement of this module, your site team should simultaneously inspect the KJ3001X1-BG1 I/O carrier assembly for backplane connector wear and terminal block integrity. The DeltaV S-Series power supply module (such as the KJ3002X1-BA1 or equivalent 24 VDC rail supply) should be load-tested, as degraded bus voltage is a leading cause of premature output module failure. Check the DeltaV MD or SD controller module firmware revision to confirm compatibility with the replacement unit’s hardware revision level.

Field wiring connected to this output module — particularly marshalling terminal blocks and signal cables running to final control elements such as control valves, solenoids, or motor starters — should be inspected for insulation degradation, loose terminations, and moisture ingress. In aging facilities, signal isolators and loop-powered barriers installed between the DCS output and field devices are common failure points that go undetected until a module swap reveals persistent loop errors.

For facilities running redundant DeltaV architectures, verify that the redundancy module (e.g., KJ3003X1-BA1 or equivalent) is functioning correctly and that switchover has been tested within the last maintenance cycle. Communication health between the I/O subsystem and the DeltaV workstation or application station should be confirmed via the DeltaV Diagnostics tool before and after module replacement.

Additionally, review the status of fuse blocks and circuit protection on the 24 VDC distribution rail within the control cabinet. A blown or weakened fuse on the output loop supply is frequently misdiagnosed as a module fault. Inspect DIN rail-mounted relay modules used for output signal amplification or interlock logic — these components share the same maintenance window and are often overlooked in reactive maintenance scenarios.

For facilities with aging infrastructure, consider stocking a companion spare: the KJ3001X1-BG1 carrier, a DeltaV-compatible HART multiplexer for analog output diagnostics, and a replacement I/O subsystem termination assembly to cover the full replacement scenario without a second procurement cycle.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number (VE4002S1T1B2), hardware revision, and firmware compatibility against your DeltaV system’s current software version. Download the module’s configuration from the DeltaV Explorer before removal to enable rapid re-commissioning.

Step 2 — Safe Isolation: Place the affected I/O channel in manual mode at the DeltaV workstation. Notify operations of the planned output interruption. For critical loops, confirm that field devices are in a safe state (valve closed, motor stopped) before proceeding.

Step 3 — Module Removal: De-energize the I/O carrier if required by site safety procedures. Remove the VE4002S1T1B2 by releasing the module latch and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or contamination before installing the replacement.

Step 4 — Replacement Installation: Insert the new VE4002S1T1B2 into the carrier slot. The DeltaV system will automatically recognize the module and download the stored configuration. Verify that the module status LED indicates normal operation within 60 seconds of insertion.

Step 5 — Loop Verification: Perform a full output loop check from the DeltaV workstation. Confirm that field device response matches the commanded output across the full operating range. Return the loop to automatic control only after successful verification.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System), including the old module’s serial number, failure mode, and the new unit’s installation date. This data supports future predictive maintenance scheduling and warranty tracking.

This structured workflow reduces average replacement time to under 45 minutes for experienced DeltaV technicians, minimizing process impact and ensuring system integrity is maintained throughout the procedure.

Spare Parts Support FAQ

Q1: Is the VE4002S1T1B2 compatible with all DeltaV S-Series controller revisions?
The VE4002S1T1B2 is designed for the Emerson DeltaV S-Series I/O subsystem. Compatibility is confirmed with DeltaV MD, MD Plus, SD, and SD Plus controllers running DeltaV v11 and later. For earlier software versions, please contact our technical team with your current DeltaV software revision for confirmation before ordering.

Q2: How does NINERMAS verify spare parts before shipment?
Every unit undergoes a pre-shipment functional test including power-on verification, I/O channel continuity check, and visual inspection for physical damage. Units that do not pass testing are not shipped. A test report is available upon request for critical spare orders.

Q3: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, NINERMAS will provide a replacement unit or full refund after fault verification.

Q4: Can NINERMAS support long-term spare parts programs for DeltaV systems?
Yes. NINERMAS offers long-term supply agreements for critical DeltaV spare parts, including the VE4002S1T1B2 and related I/O modules. We maintain buffer stock for high-demand SKUs and can provide annual procurement planning support to align spare parts inventory with your facility’s maintenance schedule and lifecycle extension strategy.
