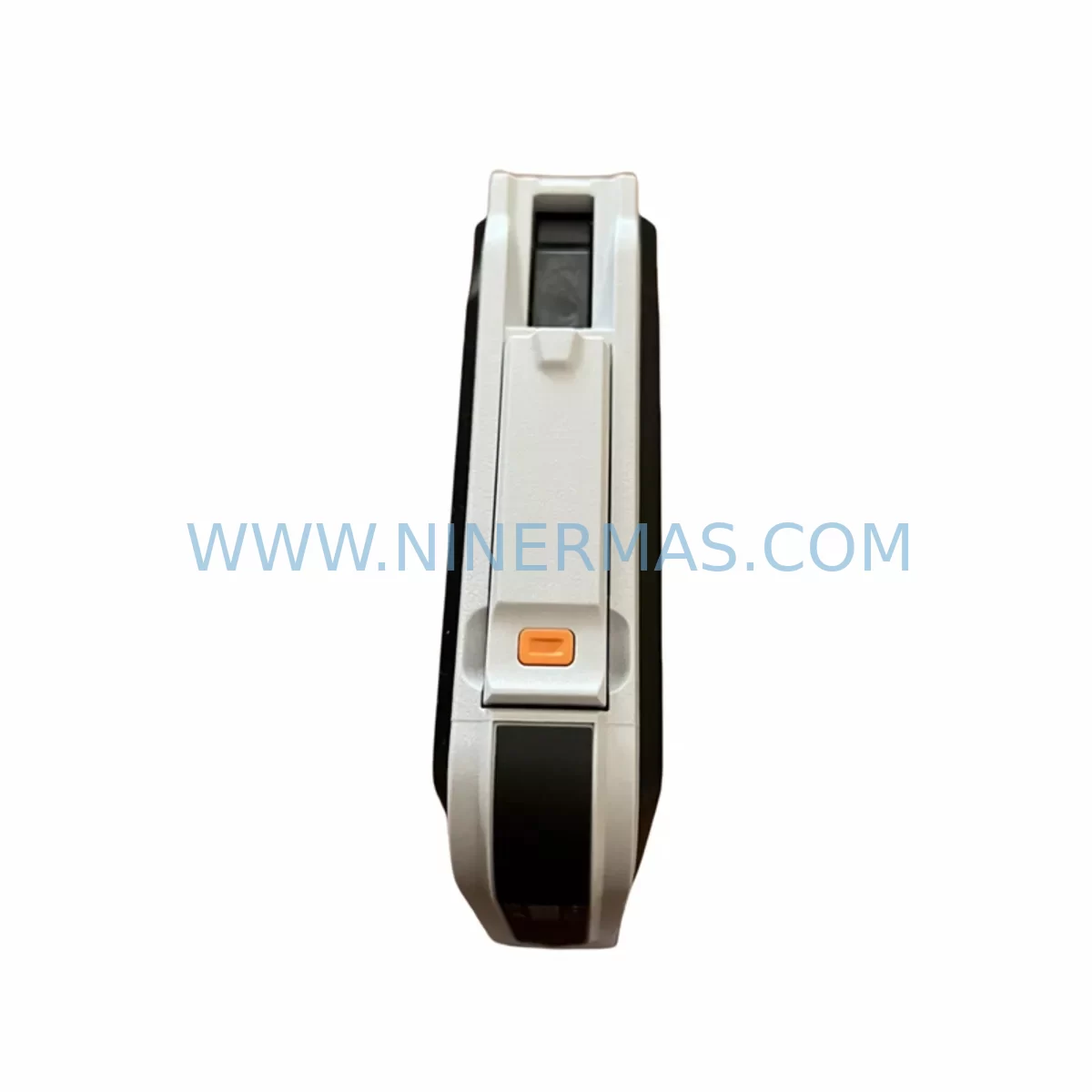

EMERSON KL2101X1-BA1 12P4987X162 Safety-Reliable CHARM I/O

EMERSON KL2101X1-BA1 12P4987X162 Safety-Reliable CHARM I/O Module for Critical Control Sites

The EMERSON KL2101X1-BA1 12P4987X162 is a ruggedized CHARM (Characterization Module) I/O module engineered for deployment within Emerson DeltaV distributed control system architectures. Designed to operate reliably in the most demanding industrial environments — including petrochemical processing units, power generation facilities, mining operations, water treatment plants, and continuous manufacturing lines — this module delivers the signal integrity, environmental resilience, and long-term operational stability that safety-critical control applications demand.

In high-stakes industrial facilities where control interruption carries significant safety and financial consequences, the KL2101X1-BA1 12P4987X162 provides a dependable I/O interface that minimizes the risk of signal drift, spurious trips, and unplanned shutdowns. Its ruggedized construction addresses the real-world challenges of field-level installation: high electromagnetic interference from variable frequency drives and large motor loads, ambient temperature extremes, mechanical vibration from rotating equipment, and ingress of dust and moisture in non-climate-controlled enclosures.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the KL2101X1-BA1 12P4987X162 as part of a comprehensive DeltaV control cabinet strategy significantly reduces the probability of control loop failure and unplanned process interruption. Within a well-engineered DeltaV cabinet, this CHARM module works in concert with the Emerson DeltaV CIOC (CHARM I/O Card), which serves as the primary backplane interface, aggregating multiple CHARM channels and managing communication to the DeltaV controller over a redundant control network.

Power integrity is foundational to CHARM I/O reliability. The Emerson KJ3221X1-BA1 Power Supply and associated redundant power modules ensure that voltage fluctuations, brownouts, and surge events — common in facilities with large motor starters and welding equipment — do not propagate into the I/O subsystem. Pairing the KL2101X1-BA1 with a properly specified Emerson DeltaV redundant power conditioner eliminates the risk of I/O card resets caused by transient power events.

For safety instrumented system (SIS) applications, the CHARM architecture supports integration with Emerson DeltaV SIS Logic Solvers, enabling the same physical I/O infrastructure to serve both basic process control (BPCS) and safety functions under IEC 61511 requirements. This dual-use capability reduces cabinet footprint while maintaining the required independence between safety and control layers.

Communication reliability is maintained through the Emerson DeltaV redundant controller pair (e.g., MD Plus or MQ series controllers), which provides bumpless failover in the event of a primary controller fault. The CHARM I/O architecture’s inherent redundancy means that a single module failure — including the KL2101X1-BA1 — can be addressed through hot-swap replacement without process interruption, a critical advantage in continuous production environments where scheduled downtime windows are measured in hours per year.

Surge and transient protection at the field terminal level is best achieved by pairing CHARM modules with Phoenix Contact or Weidmuller surge protection devices (SPDs) on analog and discrete signal lines entering the cabinet. In environments with frequent lightning strikes or large inductive load switching — such as mining substations or port crane control rooms — these SPDs prevent the cumulative degradation of I/O module input circuits that leads to signal drift and eventual module failure.

For facilities managing fieldbus or HART-enabled instrumentation alongside discrete I/O, the Emerson DeltaV HART Multiplexer and associated CHARM HART-capable modules allow simultaneous process variable monitoring and device diagnostics without additional wiring infrastructure. This integration supports predictive maintenance programs that identify instrument degradation before it causes a process upset or safety demand.

Grounding and shielding discipline within the control cabinet — including the use of Emerson DeltaV recommended cable shields and terminal grounding bars — is essential to achieving the EMI immunity that the KL2101X1-BA1 is rated for. In high-interference environments, improper grounding can negate the module’s built-in EMI protection, leading to signal noise, false discrete transitions, and analog measurement errors that compromise both process efficiency and safety.

Critical Industrial Safety Applications

The EMERSON KL2101X1-BA1 12P4987X162 CHARM I/O module is deployed across a broad spectrum of critical industrial applications where control system reliability directly impacts personnel safety, environmental compliance, and production continuity.

Petrochemical and Refining: In crude distillation units, hydrotreaters, and catalytic cracking processes, the KL2101X1-BA1 interfaces with pressure transmitters, temperature elements, and on/off valve positioners within safety instrumented functions (SIFs) designed to prevent overpressure, runaway reactions, and toxic releases. The module’s ability to maintain signal integrity in high-temperature, high-vibration environments adjacent to fired heaters and rotating compressors makes it a preferred choice for SIS I/O in these facilities.

Power Generation: Thermal power plants and combined-cycle facilities rely on DeltaV CHARM I/O for turbine control, boiler management, and balance-of-plant automation. The KL2101X1-BA1 supports the high-density I/O requirements of these applications while maintaining the hot-swap capability needed to perform maintenance during scheduled outages without full system shutdown.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust loading, mechanical shock, and wide temperature swings. The ruggedized design of the KL2101X1-BA1 ensures reliable operation in conveyor control systems, crusher automation, and ventilation safety interlocks where a control failure can result in equipment damage or personnel injury.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use DeltaV CHARM I/O to manage pump stations, chemical dosing systems, and filtration processes. The module’s resistance to humidity and its compatibility with HART instrumentation support the remote diagnostics capabilities that reduce the need for on-site maintenance visits in unmanned or remotely monitored installations.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mills generate intense electromagnetic interference and mechanical vibration. The KL2101X1-BA1’s EMI immunity and ruggedized construction allow it to maintain reliable I/O communication in these environments, supporting the precise temperature and position control required for product quality and equipment protection.

Port and Marine Applications: Ship loading systems, crane automation, and terminal management systems in port environments require control equipment that can withstand salt air corrosion, humidity, and the mechanical shock of heavy load handling. The CHARM I/O architecture’s modularity and the KL2101X1-BA1’s environmental resilience make it suitable for these demanding maritime-adjacent applications.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the KL2101X1-BA1 12P4987X162?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with the module’s rated specifications. Warranty claims are supported by our technical team with replacement dispatch prioritized for critical production sites.

Q2: What pre-shipment testing is performed on this module?
Every KL2101X1-BA1 12P4987X162 unit undergoes a comprehensive functional test and signal integrity verification prior to dispatch. Testing confirms correct I/O characterization, communication handshake with DeltaV CIOC infrastructure, and absence of physical damage or connector degradation. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with current DeltaV S-Series and CHARM I/O Card (CIOC) installations?
Yes. The KL2101X1-BA1 12P4987X162 is designed for use within the Emerson DeltaV CHARM I/O architecture and is compatible with DeltaV S-Series controllers and CIOC baseplates. For specific firmware version compatibility or mixed-generation system integration, our technical team can provide application guidance based on your installed DeltaV version and hardware revision.

Q4: Can NINERMAS support long-term and repeat supply of this module?
Yes. NINERMAS maintains a committed long-term spare parts program for Emerson DeltaV CHARM I/O modules, including the KL2101X1-BA1 12P4987X162. We support lifecycle extension programs for facilities operating legacy DeltaV installations where OEM supply has been discontinued or lead times are unacceptable for production continuity planning. Contact our team to discuss volume commitments, consignment stock arrangements, and priority supply agreements.
