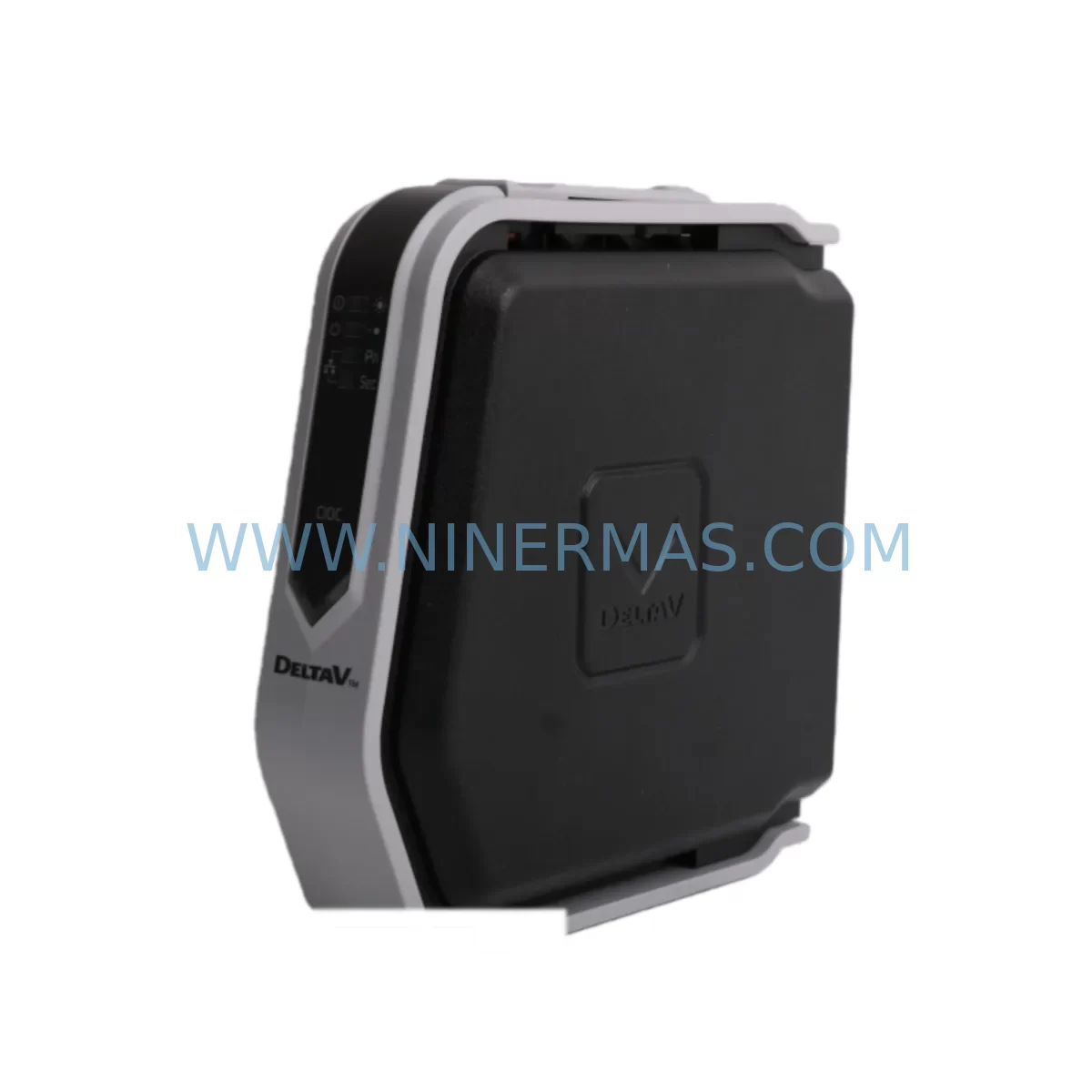

Emerson KL2101X1-BA1 SE6501T01 CHARM I/O Spare Part

Emerson KL2101X1-BA1 SE6501T01 CHARM I/O Spare Part: Rapid Replacement for DeltaV System Downtime Recovery

The Emerson KL2101X1-BA1 SE6501T01 is an original CHARM (Characterization Module) I/O card designed for use within Emerson DeltaV distributed control systems. As a service-ready spare part, this module plays a critical role in maintaining continuous process control across petrochemical, oil & gas, power generation, pharmaceutical, and advanced manufacturing facilities. When a CHARM I/O card fails or degrades, the impact on production can be immediate — signal loss, loop dropout, and unplanned shutdowns are common consequences. Stocking a verified replacement unit of the KL2101X1-BA1 SE6501T01 is one of the most effective strategies a maintenance team can adopt to minimize mean time to repair (MTTR) and protect operational continuity.

At NINERMAS, every KL2101X1-BA1 SE6501T01 unit is sourced, inspected, and tested before dispatch. Our supply chain supports long-term procurement for maintenance engineers and spare parts buyers who require reliable access to original Emerson DeltaV components — including both current-production and legacy system modules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The KL2101X1-BA1 SE6501T01 CHARM I/O card sits at the heart of the DeltaV CHARM architecture, where each channel is individually characterized by a pluggable CHARM module. When planning a replacement or conducting a scheduled cabinet inspection, maintenance engineers should treat this card as part of a broader system health review — not an isolated component swap.

During a planned outage or emergency replacement, it is essential to verify the condition of the CHARM I/O Card Carrier (CIOC) that hosts this module. A degraded carrier can cause intermittent faults even after a new I/O card is installed. Similarly, the DeltaV CHARM Power Supply feeding the CIOC should be load-tested; an undersized or aging power supply is a common root cause of CHARM module instability. Inspect the DeltaV Electronic Marshalling cabinet bus connections and terminal block integrity — loose or corroded field wiring terminations at the CHARM baseplate can mimic I/O card failures and lead to misdiagnosis.

For signal integrity, review the CHARM signal isolators and any intrinsic safety barriers in the loop. In hazardous area installations, IS barriers or Zener barriers in the field circuit must be confirmed within calibration and continuity spec before the replacement card is commissioned. If the affected loop includes a HART-enabled CHARM (such as an AI CHARM or AO CHARM), verify that the HART pass-through configuration in DeltaV Explorer is correctly mapped to the new card after installation.

Procurement engineers building annual MRO spare parts lists for DeltaV CHARM systems should also consider stocking the KJ3221X1-BA1 (DI CHARM), KJ3222X1-BA1 (DO CHARM), and KJ3223X1-BA1 (AI CHARM) alongside the KL2101X1-BA1 SE6501T01, as these modules share the same carrier infrastructure and are subject to similar wear patterns in high-cycle environments. The DeltaV CIOC Controller and associated DeltaV SIS Logic Solver modules should also be reviewed during any CHARM cabinet audit, particularly in safety-instrumented systems where proof-test intervals drive spare parts consumption. For older DeltaV installations, the MD Plus Controller and M-series I/O cards may coexist in the same control room — cross-referencing the spare parts matrix across both architectures reduces procurement gaps and prevents last-minute emergency sourcing.

Site Replacement Workflow

Replacing the KL2101X1-BA1 SE6501T01 in a live DeltaV CHARM system follows a structured sequence to minimize loop disruption and ensure system compatibility:

1. Pre-replacement verification: Confirm the replacement unit’s part number and revision level match the installed module. In DeltaV, navigate to the CHARM I/O card properties in DeltaV Explorer to record the current firmware version and channel assignments. Download a backup of the controller configuration before proceeding.

2. Loop isolation: Place affected control loops in manual mode at the DeltaV workstation. Notify the operations team and document the loop tag numbers impacted. For safety loops, follow the site Management of Change (MOC) and bypass authorization procedure.

3. Physical replacement: The CHARM I/O card is hot-swappable in most DeltaV CHARM configurations — confirm this with your site’s DeltaV system documentation before proceeding without a full shutdown. Remove the faulty KL2101X1-BA1 SE6501T01 by releasing the card latch, slide in the replacement unit, and verify the carrier LED status returns to normal within the expected commissioning window.

4. Post-installation validation: In DeltaV Diagnostics, confirm the new card is recognized and all CHARM channels are reporting correctly. Perform a loop check on each affected I/O point before returning loops to automatic. Document the replacement in the site CMMS with the new unit’s serial number and installation date to support the 12-month warranty tracking.

5. System compatibility note: The KL2101X1-BA1 SE6501T01 is designed for use within the Emerson DeltaV CHARM ecosystem. If your facility is migrating from legacy M-series or S-series DeltaV I/O to CHARM architecture, consult the Emerson DeltaV CHARM Migration Guide to confirm backplane and controller compatibility before ordering replacement stock.

Spare Parts Support FAQ

Q1: How long is the warranty on the KL2101X1-BA1 SE6501T01?
All KL2101X1-BA1 SE6501T01 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair options depending on the fault assessment.

Q2: Is the KL2101X1-BA1 SE6501T01 tested before shipment?
Yes. Every unit undergoes a pre-shipment functional inspection to verify physical integrity and basic operational readiness. For customers requiring extended burn-in testing or third-party inspection certificates, please contact our sales team to discuss project-specific testing arrangements prior to order placement.

Q3: Can this module replace older or discontinued Emerson CHARM I/O cards?
The KL2101X1-BA1 SE6501T01 is an original Emerson part. Compatibility with specific DeltaV system versions and CIOC carrier revisions should be confirmed against your site’s DeltaV hardware compatibility matrix. NINERMAS technical support can assist with cross-referencing part numbers for legacy system replacement scenarios, including systems running older DeltaV versions where CHARM card revisions may differ.

Q4: Do you support long-term or contract supply of the KL2101X1-BA1 SE6501T01?
Yes. NINERMAS supports annual MRO contracts, blanket purchase orders, and long-term supply agreements for the KL2101X1-BA1 SE6501T01 and related DeltaV CHARM components. This is particularly valuable for facilities managing aging DeltaV systems where Emerson has announced end-of-life timelines for certain hardware generations. Contact our procurement team to discuss volume pricing, lead time guarantees, and inventory reservation options.
