Westinghouse IC31227G01 Retrofit-Compatible Analog Input Module

Westinghouse IC31227G01 Retrofit-Compatible Analog Input Module for Legacy Systems

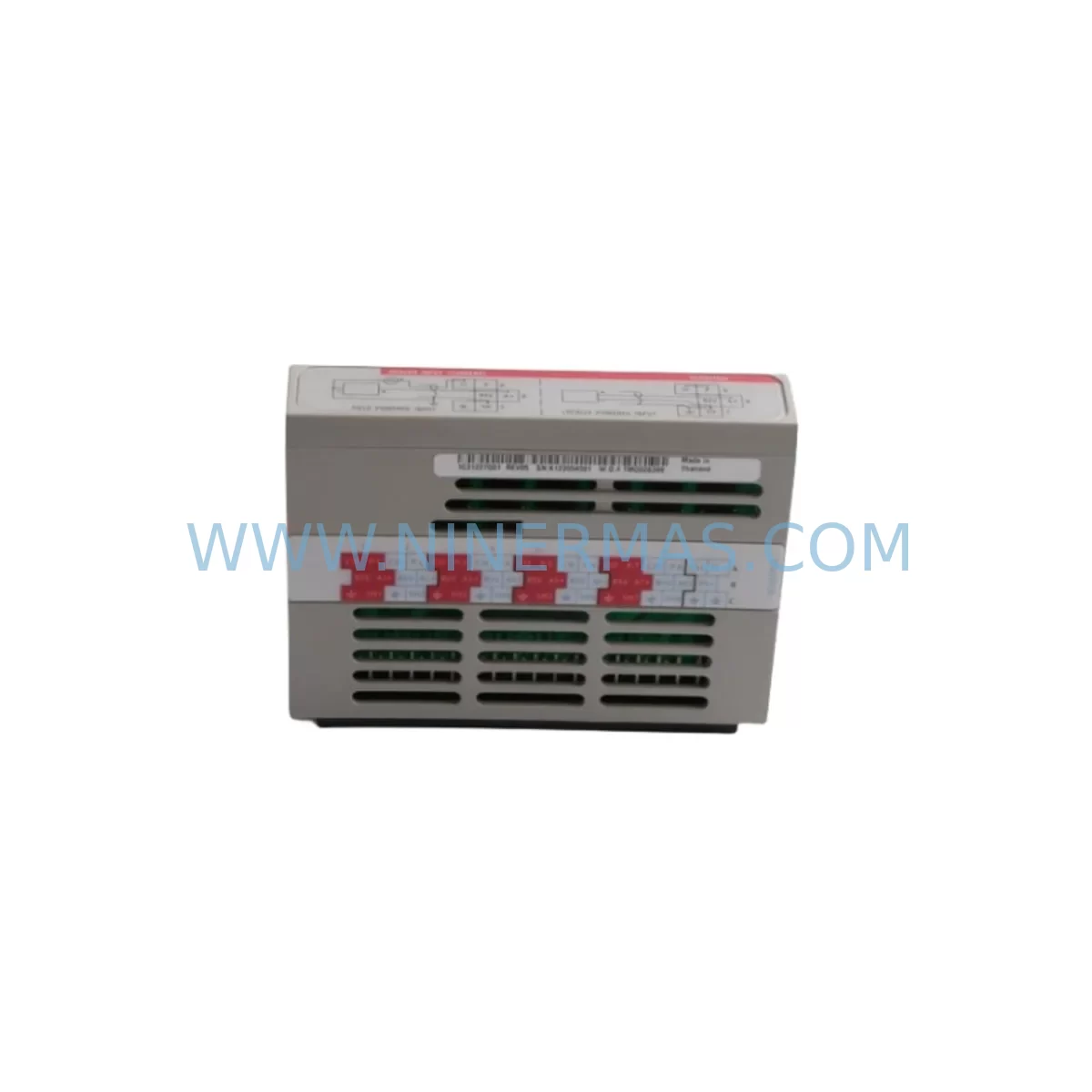

The Westinghouse IC31227G01 is a proven analog input module designed for the Ovation Distributed Control System (DCS) platform — one of the most widely deployed process control architectures in power generation, petrochemical refining, and continuous manufacturing environments. As legacy Ovation systems approach end-of-life support cycles, the IC31227G01 remains a critical spare and retrofit component for facilities that need to extend operational continuity without committing to a full platform migration. NINERMAS maintains verified stock of the IC31227G01, fully tested and backed by a 12-month warranty, ensuring procurement teams can source this module with confidence.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting an Ovation DCS installation requires careful coordination across multiple hardware layers. When replacing the IC31227G01, engineers must first confirm that the target I/O rack — typically an Ovation I/O Nest or equivalent backplane assembly — has the correct slot assignment and that the module address is configured to match the original channel mapping in the Ovation database. Failure to align the module address will cause the Ovation controller node to flag the channel as faulted, triggering alarm floods and potentially forcing a process hold.

Beyond the module itself, a complete retrofit assessment should include the Ovation controller module (such as the OCR400 or OCR1100 series) to confirm firmware compatibility with the IC31227G01 revision level. In many aging installations, the Ovation power supply module — often an IC31234G01 or equivalent 24 VDC I/O bus supply — may also be approaching end-of-life and should be evaluated for simultaneous replacement to avoid a secondary failure shortly after the analog input module is restored.

Signal wiring is another critical checkpoint. The IC31227G01 accepts field wiring through a dedicated Ovation field termination assembly (FTA), such as the IC31232G01 or IC31233G01 marshalling panel. Technicians should verify that the FTA is correctly matched to the module type — an analog input FTA cannot be substituted with a digital I/O termination panel without rewiring. Cable shield grounding at the FTA terminal block must also be confirmed to prevent 50/60 Hz noise from corrupting the 4–20 mA signal chain, particularly in high-EMI environments near variable frequency drives or large motor starters.

For facilities running HART-enabled field instruments — such as pressure transmitters, flow meters, or temperature sensors wired to the IC31227G01 — it is important to confirm whether the replacement module supports HART pass-through communication. If the existing Ovation configuration uses an AMS Device Manager or equivalent HART multiplexer for asset management, the HART communication path must be re-validated after module swap. In some cases, a HART modem or signal conditioner may need to be re-addressed.

When the retrofit scope extends beyond a single module, project teams often find it efficient to simultaneously upgrade the Ovation workstation software and the Ovation network communication modules — such as the OCN module or the Ovation network interface card — to ensure that the refreshed I/O hardware is fully supported by the current software revision. This is especially relevant in plants that have deferred software updates for several years and are now running Ovation versions that are approaching the end of vendor support.

NINERMAS can supply not only the IC31227G01 but also companion components commonly required in Ovation retrofit projects, including analog output modules, digital input modules, digital output modules, redundant controller modules, and I/O rack power supplies. Our procurement team works with plant maintenance engineers to build a consolidated bill of materials, reducing the number of separate purchase orders and simplifying incoming inspection.

Downtime Control During System Migration

Minimizing unplanned downtime during an Ovation DCS module replacement is a primary concern for operations teams in continuous process industries. The IC31227G01 replacement procedure, when properly planned, can typically be completed within a scheduled maintenance window of two to four hours — provided that all prerequisite steps are completed in advance.

The most effective downtime reduction strategy begins with a pre-swap database export from the Ovation engineering workstation. This export captures the current channel configuration, scaling parameters, alarm setpoints, and HART device assignments for all channels on the target module. Having this data on hand allows the commissioning engineer to rapidly re-enter or verify parameters after the new IC31227G01 is installed, rather than reconstructing the configuration from memory or paper records.

Where process conditions permit, a hot-standby approach using a redundant I/O configuration can allow the failed or degraded module to be swapped without interrupting the control loop. In Ovation systems configured with redundant I/O, the controller automatically transfers to the healthy module while the faulty unit is removed and replaced. For non-redundant configurations, the affected control loops must be placed in manual mode at the operator workstation before the module is removed, and field operators must be stationed at the relevant control valves or actuators to maintain process stability during the swap interval.

After the IC31227G01 is seated in the rack and the I/O bus connection is established, the Ovation controller will perform an automatic module recognition sequence. The commissioning engineer should monitor the Ovation diagnostic display to confirm that all 16 channels report healthy status and that no channel faults or calibration errors are flagged. A loop check — verifying that a known 4 mA and 20 mA signal from a calibrator produces the correct engineering unit reading at the operator workstation — should be performed on a representative sample of channels before the loops are returned to automatic control.

NINERMAS ships all IC31227G01 modules with a factory-equivalent functional test report, confirming that each channel has been verified across the full input range prior to dispatch. This pre-shipment testing significantly reduces the risk of receiving a module that fails during commissioning, which is the most common cause of extended downtime in legacy DCS retrofit projects. Combined with our standard 12-month warranty, this testing protocol gives maintenance teams the confidence to proceed with planned replacement schedules rather than deferring critical maintenance due to spare parts uncertainty.

Retrofit Support FAQ

Q1: Is the IC31227G01 a direct replacement for the original Westinghouse Ovation analog input module?
A: Yes. The IC31227G01 is the original Westinghouse/Emerson Ovation part number for this analog input module. It installs directly into the existing Ovation I/O rack slot without mechanical modification. Channel configuration is retained in the Ovation database and does not need to be re-entered, provided the module address is correctly set to match the original assignment.

Q2: What pre-shipment testing does NINERMAS perform on the IC31227G01?
A: Each IC31227G01 unit is functionally tested across all input channels using calibrated signal sources before dispatch. The test verifies linearity, channel isolation, and signal accuracy across the 4–20 mA input range. A test report is included with each shipment. All units are covered by a 12-month warranty from the date of delivery.

Q3: Can NINERMAS supply companion modules for a broader Ovation retrofit project?
A: Yes. NINERMAS maintains stock of a wide range of Ovation DCS components, including analog output modules, digital I/O modules, controller modules, power supply modules, and field termination assemblies. We can consolidate multi-item orders and provide a single shipment to reduce logistics complexity for planned maintenance outages.

Q4: What is the lead time for IC31227G01, and is long-term supply available?
A: NINERMAS maintains ready stock of the IC31227G01 for immediate dispatch. For customers with planned maintenance schedules or long-term spare parts programs, we offer inventory reservation arrangements to guarantee availability over a 12–24 month horizon. Contact our team to discuss a tailored supply agreement.
