WESTINGHOUSE 2840A21G01 Retrofit-Compatible Analog Output Module

WESTINGHOUSE 2840A21G01 Retrofit-Compatible Analog Output Module: Seamless Legacy System Upgrade

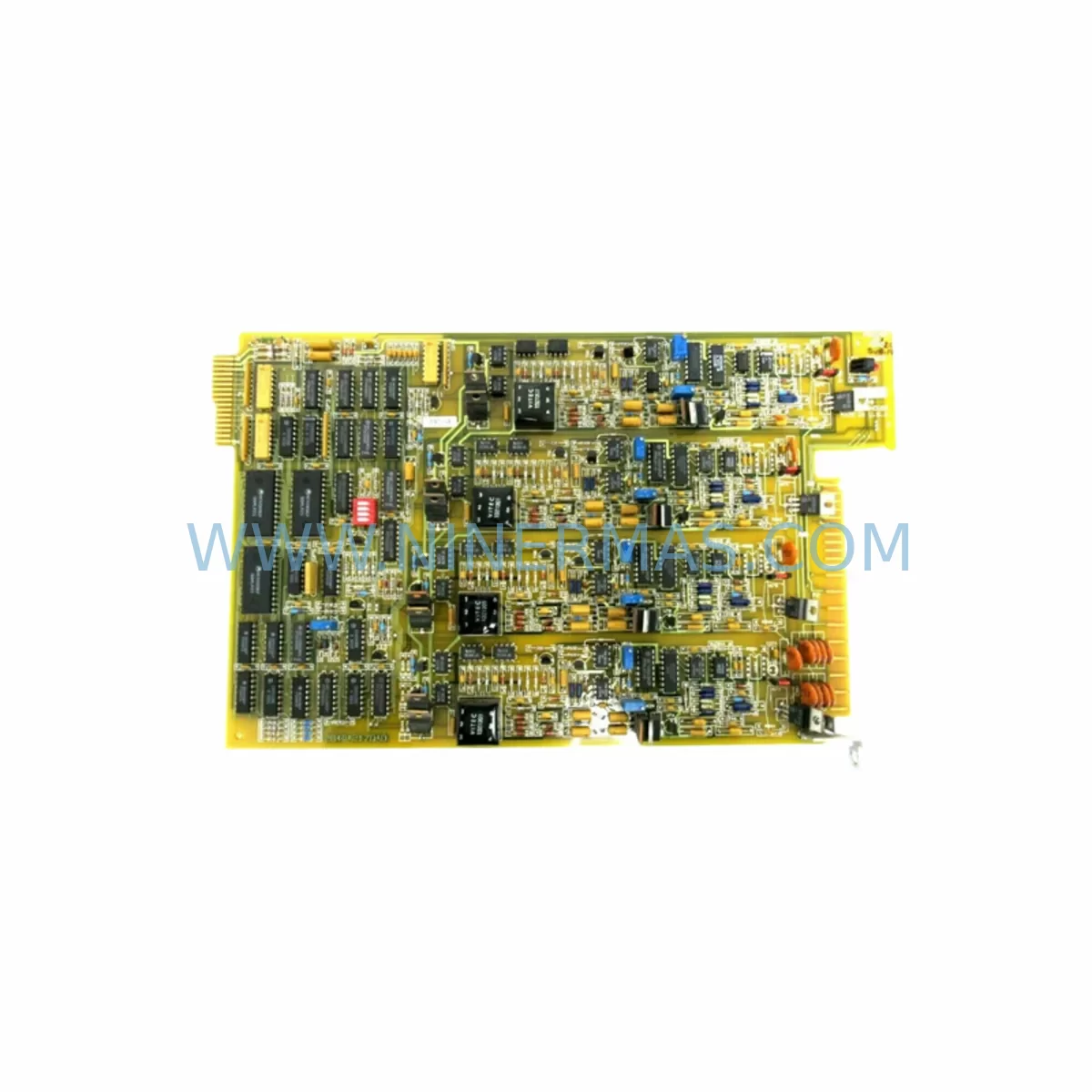

The WESTINGHOUSE 2840A21G01 is a ruggedized analog output module engineered for demanding industrial environments and widely deployed across legacy Westinghouse WDPF (Distributed Processing Family) distributed control systems. As original equipment manufacturers discontinue support for aging automation platforms, facilities running WDPF-based control architectures face increasing pressure to source reliable replacement modules that maintain signal integrity, backplane compatibility, and process continuity without requiring a full system overhaul. The 2840A21G01 addresses this need directly — serving as a proven retrofit solution for plants seeking to extend the operational life of their existing control infrastructure while deferring the cost and risk of a complete DCS migration.

This module delivers analog output signals to field devices including control valves, variable frequency drives, and positioners, typically providing 4–20 mA current loop outputs across multiple channels. Its ruggedized design makes it suitable for harsh process environments including power generation, petrochemical refining, pulp and paper, and water treatment facilities where temperature extremes, vibration, and electrical noise are constant concerns.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 2840A21G01 within an operational WDPF system requires careful pre-engineering to avoid unplanned process uptime loss. Before procurement, maintenance engineers should audit the existing rack configuration to confirm the number of occupied slots, the current power supply loading, and whether the replacement module’s firmware revision is compatible with the installed WDPF data highway controller. In many aging installations, the WDPF Multifunction Processor (MFP) or the WDPF Network Interface Module (NIM) may also be approaching end-of-life, and it is prudent to assess their condition concurrently to avoid repeat outages.

Terminal wiring is a critical checkpoint. The 2840A21G01 connects to field wiring via a dedicated I/O termination panel or marshalling cabinet. Engineers must verify that existing cable labels, loop numbers, and terminal assignments match the replacement module’s channel map before energizing. Where wiring documentation is incomplete or outdated, a point-to-point continuity check against the original loop drawings is strongly recommended. If the facility is simultaneously upgrading field instruments — for example, replacing pneumatic positioners with HART-enabled smart positioners — the analog output channels must be reconfigured to support HART communication pass-through if the new WDPF firmware revision supports it.

For plants undertaking a broader control system modernization — migrating from WDPF to a modern DCS platform such as Emerson DeltaV, Honeywell Experion PKS, or ABB 800xA — the 2840A21G01 can serve as a bridging component during a phased migration. In this scenario, the analog output module continues to drive existing field devices while new I/O subsystems are installed in parallel, allowing engineers to migrate control logic loop by loop without a single extended plant shutdown. During this phase, the WDPF Operator Interface Station (OIS) and associated HMI graphics remain active, and tag names must be carefully preserved to ensure continuity between the legacy and new control environments.

Rack and cabinet space planning is equally important. The 2840A21G01 occupies a standard WDPF module slot, but if the retrofit involves adding supplementary I/O — such as a WDPF Digital Input Module or a WDPF Digital Output Module to handle additional discrete signals from upgraded field devices — engineers must confirm that sufficient free slots exist in the existing rack or that a WDPF Expansion Rack can be accommodated within the control cabinet footprint. Where cabinet space is constrained, signal isolators or signal conditioners may be required to interface new field devices with legacy analog channels, adding to the overall panel layout requirements.

Communication link integrity should be validated before and after module replacement. The WDPF data highway uses a proprietary coaxial or fiber-optic network depending on the installation vintage, and any disruption to the highway during module hot-swap can affect other nodes on the same segment. Coordinating the replacement with the control room operator and confirming that the WDPF Highway Interface Unit (HIU) is functioning correctly before and after the swap is a standard best practice. Where the facility also operates a WDPF Sequence of Events (SOE) recorder or a WDPF Historian, data continuity across the replacement window should be confirmed with the DCS vendor’s field service team.

Downtime Control During System Migration

Minimizing process downtime during a 2840A21G01 replacement begins with pre-staging. The replacement module should be bench-tested and, where possible, pre-configured with the correct channel addresses and output ranges before it arrives on-site. Many experienced maintenance teams use a spare WDPF rack or a portable test bench to verify module functionality against a known-good configuration file before committing to an in-service swap.

Where the process cannot tolerate even a brief interruption to the analog output signals — for example, in a boiler feedwater control loop or a reactor temperature control application — the replacement should be scheduled during a planned maintenance window with the affected control loops placed in manual mode at the DCS operator station. The operator should confirm that all downstream final control elements (control valves, VFDs) are in a safe, stable position before the module is removed. Loop controllers should remain in manual throughout the swap and loop calibration verification, and should only be returned to automatic control after the replacement module’s output signals have been confirmed at the field device.

Original control logic and program files stored in the WDPF engineering workstation should be backed up before any hardware change. Even a direct module replacement carries a small risk of configuration loss if the module’s internal memory is not correctly initialized during installation. Retaining a verified backup of the WDPF database — including all loop configurations, alarm setpoints, and HMI tag assignments — ensures that the system can be restored to its pre-maintenance state within minutes if an unexpected issue arises during commissioning.

Post-replacement commissioning should include a full loop check on all channels of the 2840A21G01, verifying that each analog output channel drives the correct field device to the correct engineering unit value across the full 4–20 mA range. Any discrepancy between the commanded output and the field device position should be investigated before the loop is returned to automatic control. Where HART-enabled field devices are present, a HART communicator should be used to confirm device configuration and trim after the new module is energized.

Retrofit Support FAQ

Q: Is the 2840A21G01 a direct drop-in replacement for a failed unit in my existing WDPF rack?
A: Yes, in most cases the 2840A21G01 is a direct slot-for-slot replacement within a compatible WDPF rack. However, you should verify the firmware revision of the replacement module against your installed WDPF system version, and confirm that the module address configuration matches the original unit before installation. Our team can assist with pre-shipment configuration verification upon request.

Q: How do I verify wiring compatibility before installing the replacement module?
A: Cross-reference your existing loop drawings and termination panel schedules against the 2840A21G01 channel pinout. Confirm that field cable polarity, shield grounding, and loop power source (active vs. passive output) match the module’s specifications. If your wiring documentation is incomplete, a point-to-point continuity check from the termination panel to the field device is recommended before energizing the new module.

Q: What testing is performed before shipment, and what warranty is provided?
A: Every 2840A21G01 unit is functionally tested prior to shipment to verify analog output accuracy, channel isolation, and backplane communication. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Units are shipped with appropriate ESD protection and packaging to prevent transit damage.

Q: Can you supply the 2840A21G01 from stock, and what is the typical lead time?
A: We maintain inventory of the 2840A21G01 to support urgent replacement requirements. In-stock units are typically available for same-day or next-business-day dispatch. For large quantity requirements or long-term supply agreements, please contact our sales team to discuss availability and scheduling.
