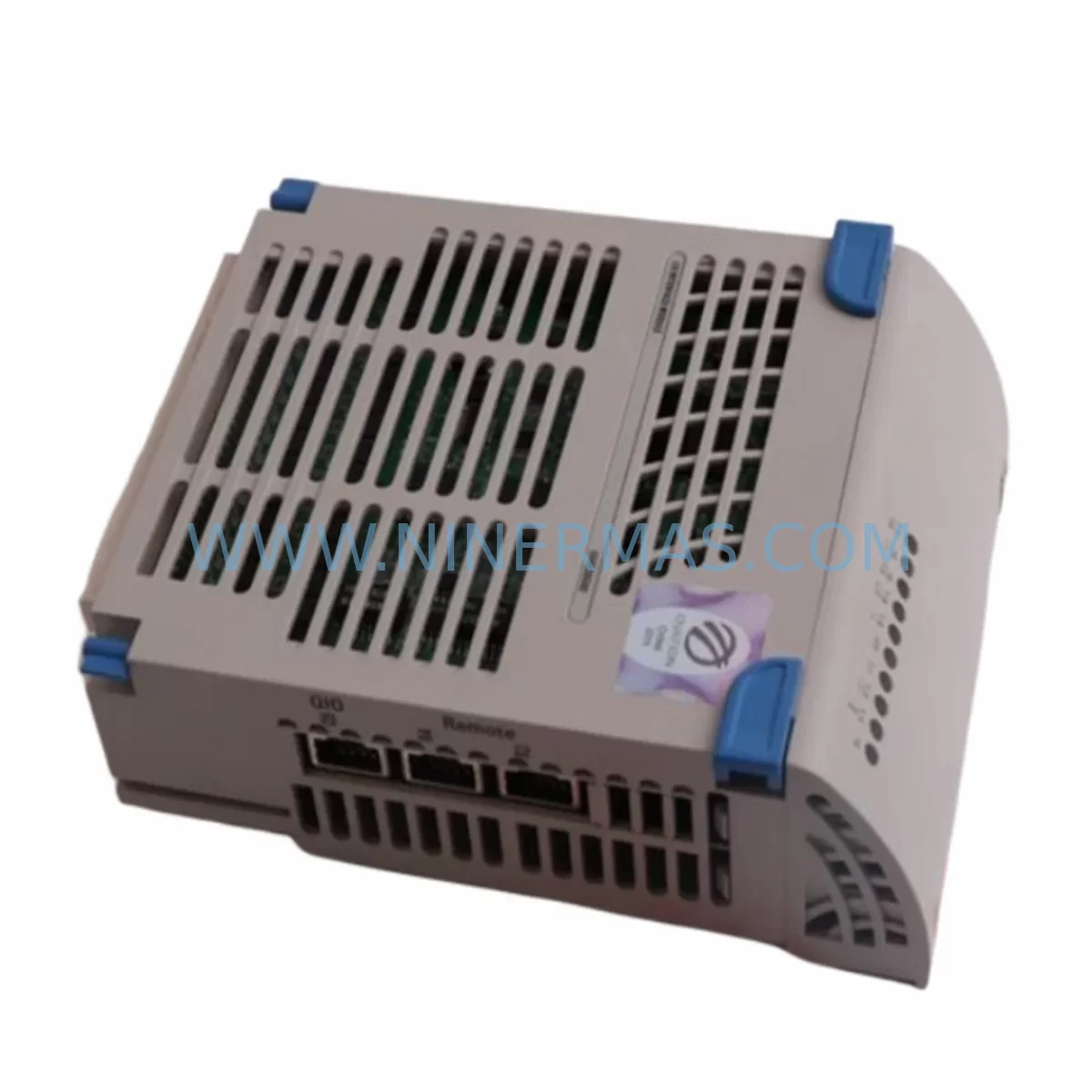

Westinghouse 1C31147G01 Retrofit-Compatible Pulse Accumulator Module

Westinghouse 1C31147G01 Retrofit-Compatible Pulse Accumulator Module: Legacy DCS Compatibility & Smooth System Upgrade

The Westinghouse 1C31147G01 is a ruggedized Pulse Accumulator Module originally designed for deployment in harsh industrial environments within the WDPF (Westinghouse Distributed Processing Family) and early Ovation DCS platforms. As these legacy control systems approach end-of-life and OEM support is discontinued, the 1C31147G01 remains a critical spare part for power generation facilities, chemical processing plants, and continuous manufacturing operations that depend on accurate pulse counting and high-frequency signal accumulation for flow metering, turbine speed monitoring, and rotating equipment control.

NINERMAS COMPANY LIMITED maintains verified inventory of the 1C31147G01 to support retrofit projects, emergency replacements, and planned maintenance programs. Each unit undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring operational confidence for critical process control applications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 1C31147G01 in an active WDPF or legacy Ovation installation requires a structured approach to avoid unplanned downtime and protect existing program logic. Before initiating the swap, maintenance engineers should conduct a full audit of the control cabinet, documenting the rack configuration, slot assignments, and field wiring terminations associated with the pulse accumulator channel.

In many WDPF installations, the 1C31147G01 shares a rack with companion modules such as analog input cards (e.g., 1C31116G01), digital output modules, and communication interface cards that connect to the WDPF Data Highway. The rack itself — typically a 1C31166G01 or similar chassis — must be confirmed as mechanically and electrically compatible before inserting the replacement module. If the rack’s backplane shows signs of corrosion or connector wear, this is the appropriate time to address those issues to prevent recurrence.

Power supply integrity is a prerequisite for any module replacement. The WDPF power supply module — such as the 1C31169G01 — should be load-tested to confirm it can sustain the full rack complement after the replacement. Undersized or aging power supplies are a common root cause of intermittent module faults in legacy DCS installations and should be evaluated as part of the retrofit scope.

Field wiring connected to the 1C31147G01 typically originates from turbine speed pickups, flow transmitters with pulse outputs, or proximity sensors on rotating equipment. Before disconnecting field cables, engineers should photograph or sketch the terminal block layout and verify continuity of the signal cable shield grounding. Termination panels associated with WDPF I/O — including marshalling cabinets with dedicated terminal strips — should be inspected for loose connections that may have contributed to the original module failure.

For sites planning a broader migration from WDPF to the Ovation platform, the 1C31147G01 replacement can serve as a bridge solution while the migration project is engineered. Ovation I/O modules, Ovation controller nodes, and the Ovation Network Interface Card (NIC) will eventually replace the WDPF backplane architecture, but interim spare parts supply ensures production continuity during the transition period. Signal isolators and pulse-to-analog converters may be required to interface legacy field devices with new Ovation I/O cards during phased migration.

Where HMI systems such as Ovation Operator Stations or legacy WDPF Operator Consoles are in use, a direct module swap of the 1C31147G01 requires no changes to display graphics or tag databases, provided the replacement module is configured identically to the original. Engineers should confirm that the process variable tag associated with the pulse accumulator channel is correctly mapped in the controller database before returning the loop to automatic control.

Programming cables and configuration tools compatible with the WDPF platform should be on-site during the replacement to allow rapid verification of module status and channel diagnostics following installation. If the site uses a Westinghouse WDPF Engineering Workstation or a compatible laptop-based configuration tool, a pre-tested configuration backup should be available to restore module parameters if required.

Downtime Control During System Migration

Minimizing process interruption during a 1C31147G01 replacement depends on preparation quality and the availability of a pre-tested spare. NINERMAS recommends the following approach to downtime control for critical DCS module replacements:

Pre-Replacement Preparation: Before the maintenance window, confirm that the replacement 1C31147G01 has been functionally tested and that all module address settings (DIP switches or jumpers) have been pre-configured to match the original unit. Prepare a written step-by-step procedure covering power isolation, module extraction, replacement, address verification, and loop checkout. Assign a dedicated technician to monitor the HMI for alarm conditions throughout the procedure.

Program Logic Protection: Place the affected control loop in manual mode at the DCS controller level before removing the faulty module. This prevents the controller from generating spurious output signals during the module swap. For turbine speed or flow control loops, coordinate with the operations team to confirm that the process can be safely held in manual for the duration of the replacement — typically 15 to 45 minutes for a practiced team with a pre-tested spare on hand.

Field Control Continuity: Where the pulse accumulator channel feeds a critical interlock or safety function, consult the site’s Management of Change (MOC) procedure before proceeding. Temporary bypass of the interlock may be required and must be authorized by the appropriate engineering authority. Ensure that the bypass is clearly documented and that all field personnel are informed of the temporary configuration change.

Post-Replacement Verification: After installing the 1C31147G01 replacement, verify module status via the DCS diagnostic display before returning the loop to automatic. Confirm that the pulse count is incrementing correctly in response to field device signals, and that the engineering unit conversion (e.g., pulses per unit volume or pulses per revolution) matches the original configuration. Return the loop to automatic only after a stable reading has been confirmed for a minimum observation period agreed with the operations team.

Retrofit Risk Reduction: Maintaining a minimum of one qualified spare 1C31147G01 on-site at all times is the most effective risk mitigation for legacy WDPF installations. NINERMAS supports long-term spare parts programs with scheduled inventory replenishment, ensuring that critical modules are available before failures occur rather than after.

Retrofit Support FAQ

Q1: Is the 1C31147G01 a direct drop-in replacement for the original module in my WDPF rack?
Yes, for like-for-like replacement within the same WDPF rack and slot position, the 1C31147G01 is a direct functional replacement. You must replicate the original DIP switch address settings and verify backplane connector condition before insertion. No software changes are required at the controller or HMI level for a same-type swap.

Q2: What pre-shipment testing is performed on the 1C31147G01 before delivery?
Each 1C31147G01 unit supplied by NINERMAS undergoes functional testing to verify pulse accumulation, channel response, and backplane communication integrity. A test report is available on request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can the 1C31147G01 be used during a phased migration from WDPF to the Ovation platform?
Yes. The 1C31147G01 is well-suited as a bridge solution during phased Ovation migrations. It maintains full WDPF backplane compatibility and allows production to continue on the legacy platform while Ovation I/O, controller nodes, and network infrastructure are being commissioned in parallel. Signal interface requirements between WDPF field wiring and new Ovation I/O should be reviewed by a qualified DCS engineer.

Q4: What is the typical lead time and do you maintain stock for urgent replacement orders?
NINERMAS maintains verified inventory of the 1C31147G01 to support both planned maintenance programs and emergency replacement requirements. Lead times for in-stock units are typically 3–7 business days for international shipments, subject to export documentation and destination customs clearance. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and arrange expedited shipping if required.

—
