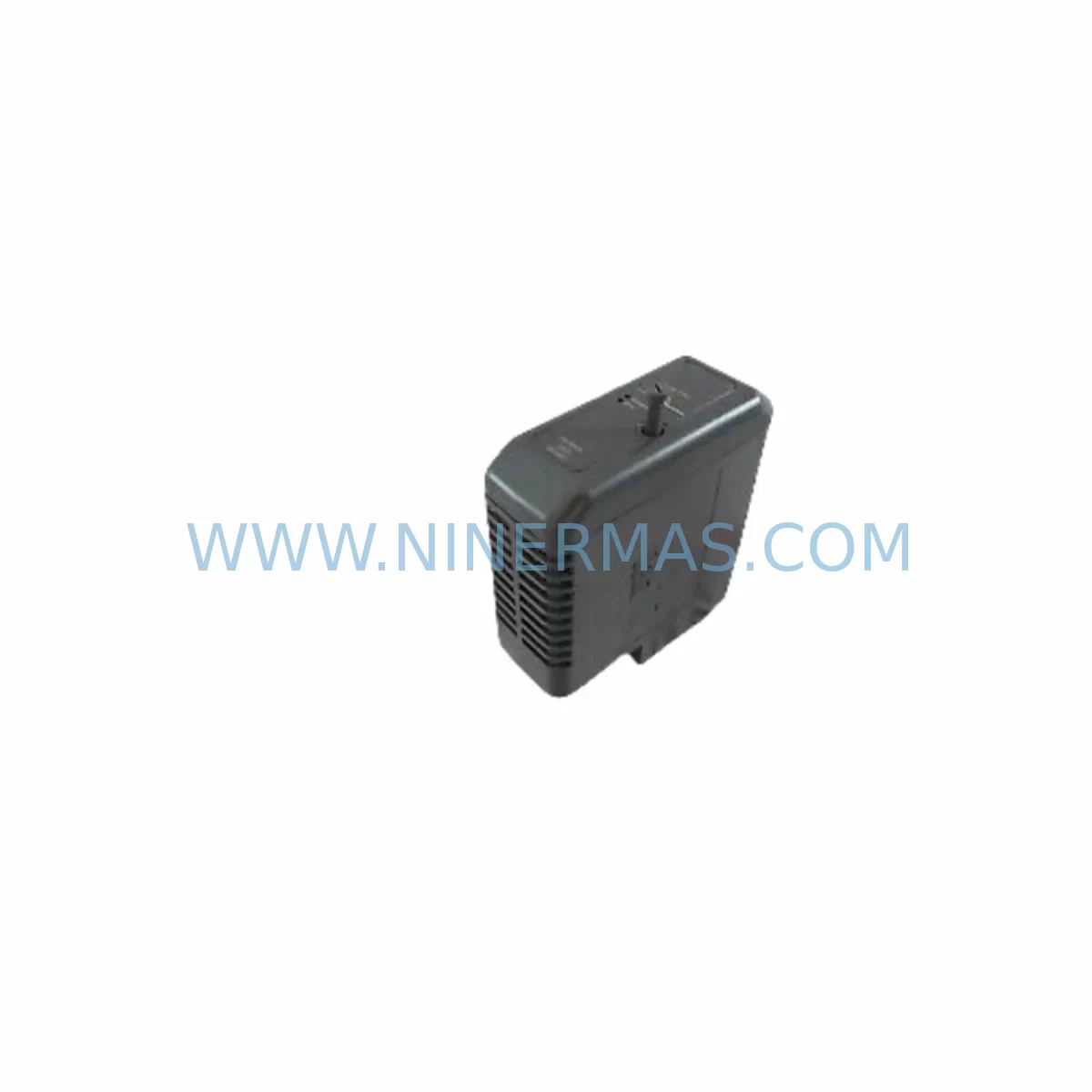

Emerson KC3021X1-BA2 13P0054X022 Service-Ready Spare Part

Emerson KC3021X1-BA2 13P0054X022 Service-Ready Spare Part: Spare Replacement and Downtime Risk Control

The Emerson KC3021X1-BA2 13P0054X022 is an original DeltaV-series industrial spare part engineered to support continuous process control operations across manufacturing, oil & gas, chemical processing, and power generation environments. As a service-ready replacement module, this unit is pre-tested prior to shipment and backed by a 12-month warranty, enabling maintenance engineers and procurement teams to deploy it with full confidence during scheduled turnarounds, emergency fault recovery, or annual cabinet inspections.

Sourced for long-term spare parts programs, the KC3021X1-BA2 13P0054X022 integrates seamlessly into existing Emerson DeltaV distributed control system architectures. Whether managing a planned annual shutdown or responding to an unplanned module failure, having this component in your on-site spare parts inventory eliminates critical lead-time risk and accelerates system restoration — reducing mean time to repair (MTTR) and protecting production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the KC3021X1-BA2 13P0054X022 in a DeltaV control cabinet, a thorough inspection of adjacent components is essential to prevent repeat failures and ensure system stability. Maintenance engineers should begin by verifying the integrity of the DeltaV controller power supply module — such as the KJ3221X1-BA1 or equivalent PS-series unit — since unstable bus voltage is a common root cause of module degradation in long-running DCS installations. A failing power supply can cause intermittent faults that are easily misattributed to the control module itself.

Next, inspect the DeltaV I/O subsystem, including any connected 8-channel analog input (AI) or analog output (AO) cards, for signs of signal drift, loose field wiring terminations, or corroded terminal blocks. The DeltaV CHARM I/O modules and associated CIOC (CHARM I/O Card) units in the same loop should be checked for firmware version alignment and channel calibration status. Mismatched firmware across I/O cards is a known source of intermittent communication errors in mixed-generation DeltaV cabinets.

For systems relying on fieldbus communication, verify the condition of the DeltaV Fieldbus H1 interface card and associated FF segment couplers. Communication faults at the fieldbus layer can mask or mimic module-level failures, leading to misdiagnosis during fault isolation. Similarly, the DeltaV PROFIBUS DP interface module should be inspected if the control loop interfaces with third-party variable frequency drives or remote I/O stations. Procurement engineers building annual spare parts kits should also consider stocking DeltaV SIS logic solver modules for safety-instrumented systems, redundant controller cards, and DeltaV workstation interface cards to cover the full scope of a potential cabinet-level failure event.

Fuse holders, 24 VDC marshalling panel power supplies, and signal isolators for 4–20 mA loops are low-cost, high-impact additions to any DeltaV spare parts inventory. For facilities operating legacy DeltaV S-series or older M-series hardware, the risk of obsolescence-driven downtime is significant. Proactively sourcing modules such as the KC3021X1-BA2 13P0054X022 through a long-term supply agreement ensures that critical replacement parts remain available even after Emerson discontinues active production of specific SKUs — a growing concern for plants managing 15- to 25-year-old DCS installations.

During annual cabinet inspections, maintenance teams should also audit the condition of DeltaV I/O terminal blocks and marshalling wiring, check the status of redundant Ethernet switch modules within the DeltaV network infrastructure, and confirm that DeltaV controller redundancy modules (CRM) are functioning correctly. These components operate in close electrical proximity to the KC3021X1-BA2 13P0054X022 and are subject to the same thermal and vibration stresses in continuous-process environments.

Site Replacement Workflow

Replacing the KC3021X1-BA2 13P0054X022 on-site follows a structured procedure to minimize control system disruption. Begin by placing the affected DeltaV controller in manual mode or transferring loop control to a redundant controller if available. Document the current module configuration using DeltaV Explorer or the DeltaV Operate interface before powering down the affected chassis slot. Photograph all field wiring connections and record terminal assignments to support accurate re-termination after module swap.

Remove the failed module by releasing the backplane locking tab and sliding the card free from the DeltaV carrier. Insert the replacement KC3021X1-BA2 13P0054X022 into the same slot, ensuring the backplane connector is fully seated. Power the chassis and allow the DeltaV system to perform automatic module recognition and configuration download — a standard feature of the DeltaV plug-and-play architecture that significantly reduces re-commissioning time compared to legacy PLC platforms requiring manual parameter re-entry.

After restoration, verify all I/O channel assignments, confirm field device communication status in DeltaV Diagnostics, and perform a loop check on critical control loops before returning the system to automatic mode. This workflow is compatible with both hot-standby redundant controller configurations and simplex installations, making the KC3021X1-BA2 13P0054X022 a versatile replacement option across multiple DeltaV system generations. For aging DeltaV installations where original module firmware is no longer supported, this service-ready spare provides a tested, field-proven alternative that maintains system compatibility without requiring a full platform migration — extending the operational life of your existing DCS investment and deferring costly system upgrades.

Spare Parts Support FAQ

Q1: Is the KC3021X1-BA2 13P0054X022 compatible with all DeltaV system versions?
The KC3021X1-BA2 13P0054X022 is designed for use within the Emerson DeltaV DCS platform. Compatibility should be verified against your specific DeltaV system version and controller series (S-series, M-series, or CHARM-based architecture). Our technical team can assist with compatibility confirmation prior to order placement to eliminate procurement risk.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers functional defects identified under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, replacement or repair is arranged promptly to minimize your operational impact and avoid extended downtime.

Q3: Can this spare part be sourced under a long-term supply agreement?
Yes. NINERMAS offers long-term spare parts commitment programs for critical DeltaV components, including the KC3021X1-BA2 13P0054X022. These programs provide inventory reservation, fixed lead times, and priority allocation for facilities managing multi-year maintenance schedules or obsolescence risk on legacy DeltaV hardware.

Q4: How is the unit tested before shipment?
Each KC3021X1-BA2 13P0054X022 unit is subject to functional verification testing prior to dispatch. Testing confirms power-up integrity, communication bus response, and I/O channel operability where applicable. A test report can be provided upon request for quality assurance documentation and incoming inspection purposes.
