Emerson KJ2201X1-HA1 12P3322X022 Service-Ready Spare Part

Emerson KJ2201X1-HA1 12P3322X022 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

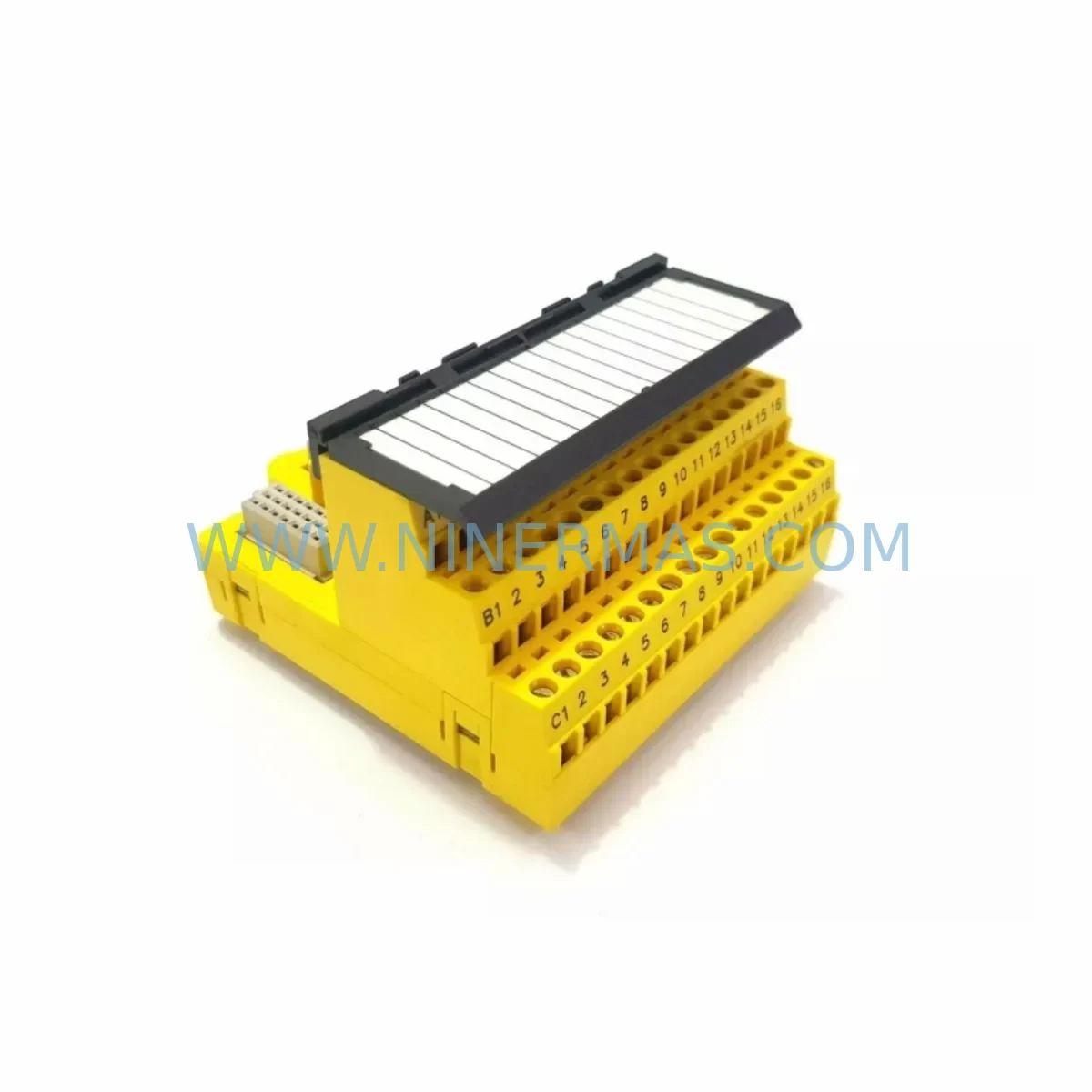

The Emerson KJ2201X1-HA1 (part number 12P3322X022) is an original I/O module designed for the Emerson DeltaV distributed control system platform. As a critical interface component between field instrumentation and the DeltaV controller network, this module plays a central role in process signal acquisition, loop control continuity, and real-time data integrity across the control cabinet. For maintenance engineers managing aging DeltaV installations, securing a verified service-ready spare of the KJ2201X1-HA1 is a foundational step in any proactive downtime prevention strategy.

Whether you are responding to an unplanned fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory for a long-running process plant, the KJ2201X1-HA1 12P3322X022 delivers the original Emerson engineering specification required for seamless drop-in replacement. Unlike third-party alternatives, original spare parts eliminate firmware compatibility risks, I/O mapping conflicts, and DeltaV commissioning errors that can extend outages from hours to days.

Procurement engineers sourcing this module should note that the KJ2201X1-HA1 is a legacy-generation DeltaV component. Lead times from OEM channels are increasingly unpredictable, making independent spare parts suppliers with verified stock an essential part of the supply chain. Each unit shipped by NINERMAS undergoes pre-shipment functional verification and is covered by a 12-month warranty, providing documented assurance for plant asset management records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KJ2201X1-HA1 module is flagged during a control cabinet inspection or fails during operation, the replacement workflow should extend beyond the module itself. Experienced DeltaV maintenance engineers know that a single I/O module fault is frequently a symptom of broader cabinet-level stress. A thorough site assessment should include the following associated components:

Begin with the DeltaV I/O carrier or sub-system carrier that hosts the KJ2201X1-HA1. Carrier backplane connectors degrade over time, particularly in high-vibration or high-humidity environments, and a worn carrier can damage a replacement module within weeks of installation. Inspect and, if necessary, replace the carrier alongside the I/O module.

The DeltaV power supply module (such as the KJ1501X1-BA2 or equivalent redundant power supply) feeding the I/O sub-system should be load-tested. Voltage sag or ripple on the system bus is a leading cause of I/O module communication errors and premature failure. Confirm that both primary and redundant power supply outputs are within specification before commissioning the replacement KJ2201X1-HA1.

Review the DeltaV controller module (MD, MD Plus, or SD controller) associated with the affected I/O sub-system. Controller firmware version compatibility with the KJ2201X1-HA1 should be verified in the DeltaV Explorer before the module is brought online. Mismatched firmware revisions can prevent the module from being recognized by the controller, resulting in a failed commissioning event.

Field wiring terminations at the terminal block assemblies connected to the I/O module should be inspected for corrosion, loose ferrules, and insulation breakdown. In legacy DeltaV installations, terminal blocks are often original to the plant commissioning date and may require replacement as part of the maintenance event. Marshalling cabinet terminal strips and associated signal cables should be continuity-tested before the new module is energized.

For analog I/O channels, check associated signal isolators or signal conditioners in the loop. A failed isolator can inject noise or DC offset into the channel, causing the replacement KJ2201X1-HA1 to report erroneous process values. Similarly, inspect fuse holders and protection fuses on the I/O sub-system power rail — a blown fuse that caused the original module failure must be identified and the root cause resolved before replacement.

If the affected I/O sub-system includes HART-enabled channels, verify that the HART multiplexer or HART interface module is functioning correctly. A failed HART interface can mask I/O module faults and complicate fault isolation during the maintenance event. For systems with Foundation Fieldbus or PROFIBUS segments, inspect the associated fieldbus interface module and segment terminator resistors.

Finally, review the DeltaV Operator Workstation (OWS) or Engineering Workstation (EWS) alarm history for the period leading up to the module failure. Recurring I/O communication alarms, module health warnings, or power supply alerts in the DeltaV Diagnostics view often provide advance warning of impending failures in adjacent modules — including redundant I/O modules, communication interface cards, and DeltaV SIS logic solvers in safety-instrumented system architectures.

Site Replacement Workflow

Replacing the KJ2201X1-HA1 12P3322X022 in a live DeltaV system requires a structured approach to minimize process disruption and ensure a clean commissioning outcome. The following workflow reflects best practice for industrial maintenance teams executing a spare parts replacement on a legacy DeltaV I/O sub-system:

Step 1 — Pre-Replacement Verification: Confirm the replacement module part number (KJ2201X1-HA1) and reference number (12P3322X022) match the installed module exactly. Cross-reference the DeltaV Hardware Reference Manual and the plant’s as-built documentation. Verify that the DeltaV controller firmware version is compatible with the replacement module revision.

Step 2 — Process Impact Assessment: Identify all I/O channels hosted on the affected module. Coordinate with the process control team to place associated control loops in manual mode or to activate bypass logic where available. For safety-critical loops, engage the SIS team before proceeding.

Step 3 — Module Removal: If the carrier supports hot-swap, the module can be removed without de-energizing the sub-system. Confirm hot-swap capability in the DeltaV documentation for the specific carrier model. If hot-swap is not supported, follow the plant’s electrical isolation procedure (LOTO) before removal.

Step 4 — Carrier and Wiring Inspection: With the module removed, inspect the carrier backplane connector for bent pins, corrosion, or debris. Inspect field wiring terminations at the terminal block. Clean and re-torque as required.

Step 5 — Module Installation and Commissioning: Insert the replacement KJ2201X1-HA1 into the carrier. Monitor the DeltaV Diagnostics display for module recognition and channel health status. Commission the module in DeltaV Explorer if required. Restore control loops to automatic mode after confirming correct process variable readings on all channels.

Step 6 — Post-Replacement Documentation: Record the replacement event in the plant’s CMMS (Computerized Maintenance Management System), including the module serial number, installation date, and pre-shipment test certificate reference. Update the spare parts inventory to trigger reorder of a replacement KJ2201X1-HA1 for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is the KJ2201X1-HA1 12P3322X022 still available as a new original spare?
The KJ2201X1-HA1 is a legacy DeltaV component that has reached end-of-active-production status with Emerson. However, original spare units — both new old stock and fully refurbished to OEM specification — remain available through specialist industrial spare parts suppliers. NINERMAS maintains verified stock of this module and can confirm availability and lead time upon inquiry. Each unit is functionally tested before shipment and covered by a 12-month warranty.

Q2: How do I verify compatibility between the KJ2201X1-HA1 and my installed DeltaV controller version?
Compatibility is determined by the DeltaV controller type (MD, MD Plus, SD, SD Plus, or FPD), the DeltaV software version running on the Engineering Workstation, and the firmware revision of the replacement module. Consult the Emerson DeltaV Hardware Reference Manual (D800025X012 or equivalent) and the DeltaV Release Notes for your installed software version. If you require compatibility confirmation before purchase, provide your DeltaV system version and controller model to our technical team at sale@ninermas.com.

Q3: What pre-shipment testing is performed on the KJ2201X1-HA1 before dispatch?
Each KJ2201X1-HA1 unit undergoes functional verification prior to shipment. This includes power-on self-test confirmation, backplane connector integrity check, and channel communication verification where test equipment permits. A test record is maintained for each unit. The 12-month warranty covers functional failure under normal operating conditions from the date of shipment.

Q4: Can NINERMAS support long-term supply of the KJ2201X1-HA1 for multi-year maintenance contracts?
Yes. NINERMAS specializes in long-term spare parts supply for legacy DCS and PLC platforms, including the Emerson DeltaV series. We can support blanket purchase orders, consignment stock arrangements, and annual supply agreements for the KJ2201X1-HA1 and associated DeltaV components. Contact our procurement team to discuss volume pricing, lead time commitments, and warranty terms for multi-year supply contracts.
