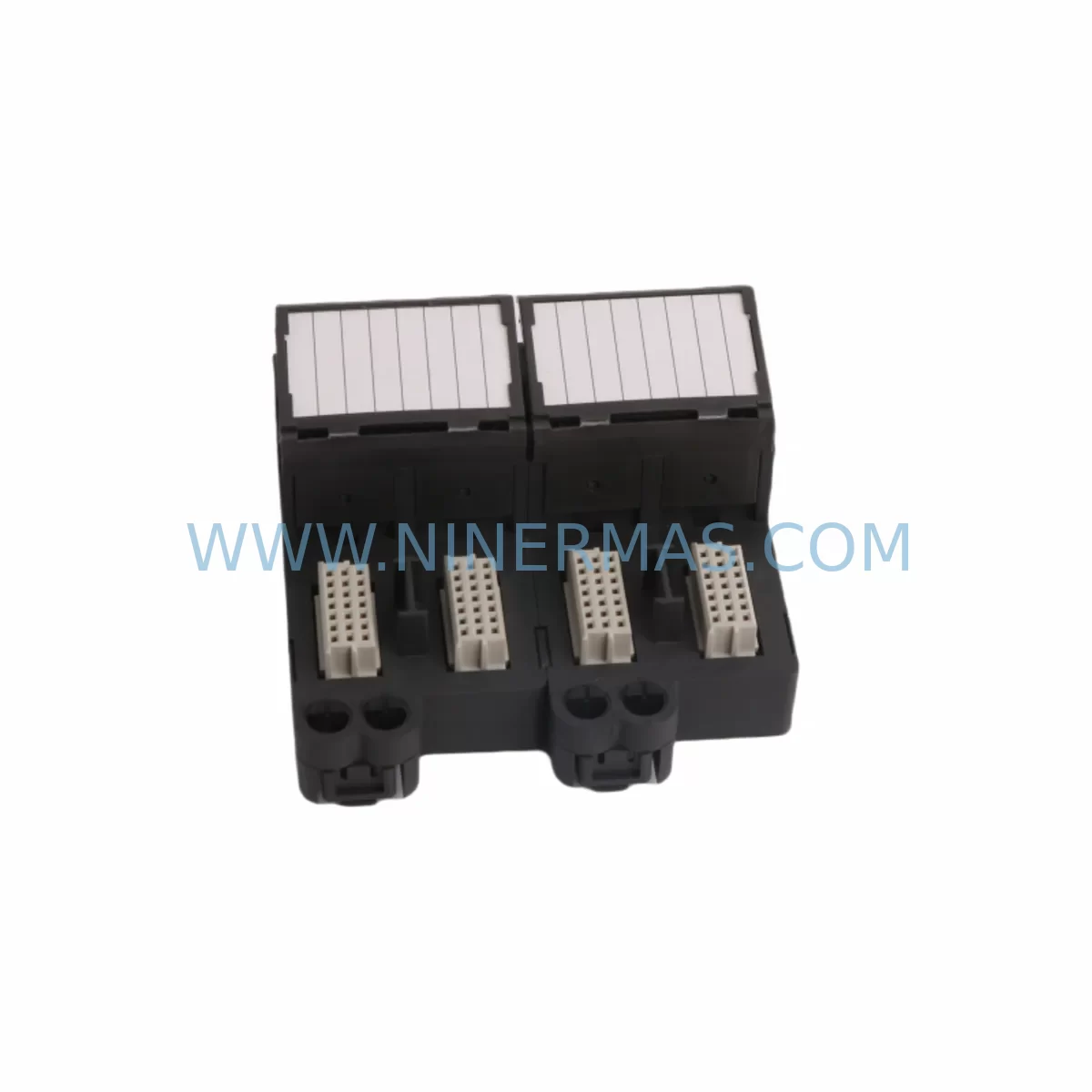

Emerson KJ3241X1-EA1 12P2565X052 Service-Ready Spare Part

Emerson KJ3241X1-EA1 12P2565X052 Service-Ready Spare Part: Spare Part Replacement & Downtime Risk Control

The Emerson KJ3241X1-EA1 (part number 12P2565X052) is a field-proven I/O module designed for the Emerson DeltaV distributed control system. In process manufacturing environments — including oil & gas, chemical, power generation, and pharmaceutical plants — this module plays a critical role in signal acquisition, field device interfacing, and real-time process data transmission to the DeltaV controller. When this module fails or degrades, the consequences extend beyond a single I/O channel: entire control loops can go offline, safety interlocks may be compromised, and unplanned shutdowns can cascade across interconnected process units.

Maintaining a service-ready KJ3241X1-EA1 12P2565X052 in your spare parts inventory is not optional for facilities running DeltaV-based automation — it is a fundamental element of maintenance risk management. This listing provides an original, pre-shipment tested unit backed by a 12-month warranty, available for immediate dispatch to support emergency replacement, scheduled turnaround maintenance, or proactive stock replenishment programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the KJ3241X1-EA1 12P2565X052 in a live DeltaV system requires a structured approach that goes beyond swapping the module itself. Maintenance engineers and procurement teams should treat this replacement as an opportunity to audit the surrounding I/O subsystem and confirm that all interconnected components remain within their service life.

Begin with the DeltaV I/O backplane or carrier assembly that houses the KJ3241X1-EA1. Backplane connectors are subject to oxidation and mechanical wear over years of field service; a degraded backplane can cause intermittent communication faults even after a new module is installed. Inspect the carrier for bent pins, corrosion, or heat discoloration before seating the replacement unit.

Next, verify the DeltaV controller module — such as the KJ2003X1-BA1 MD Plus Controller or equivalent — that manages the I/O subsystem. Controller firmware version compatibility with the KJ3241X1-EA1 should be confirmed in the DeltaV system configuration tool before commissioning the replacement. Mismatched firmware can prevent the module from being recognized or cause erratic channel behavior.

The field wiring termination assembly connected to the I/O module should also be inspected. Terminal blocks, marshalling panels, and field junction boxes associated with the KJ3241X1-EA1 channels are common sources of signal degradation. Loose terminations, moisture ingress, or corroded conductors can produce fault symptoms that are incorrectly attributed to the I/O module itself.

For facilities using HART-enabled field instruments on DeltaV I/O channels, confirm that the replacement KJ3241X1-EA1 supports the HART communication protocol version required by your transmitters and control valves. HART multiplexers or HART interface modules in the same cabinet should be checked for firmware currency and channel mapping integrity.

The DeltaV power supply modules — including the KJ1501X1-BG2 or similar redundant power conditioners — that feed the I/O subsystem should be load-tested during the maintenance window. An undersized or aging power supply can cause voltage sag under full I/O load, leading to module resets or data corruption that mimics a faulty I/O card.

If the plant uses DeltaV SIS (Safety Instrumented System) modules in the same cabinet or control network, verify that the replacement activity does not inadvertently affect SIS I/O assignments or safety logic downloads. SIS modules such as the KJ3221X1-BA1 operate under IEC 61511 constraints and must be re-validated after any adjacent hardware change.

Procurement engineers building annual maintenance budgets should also consider stocking DeltaV redundant I/O interface modules, communication interface cards (such as the KJ4001X1-BA1 Ethernet I/O interface), and DeltaV workstation interface cards as part of a comprehensive DeltaV spare parts kit. A single unplanned outage caused by an unavailable spare can cost far more than maintaining a modest buffer stock of critical KJ-series modules.

Finally, signal isolators and surge protection devices installed between field instruments and DeltaV I/O channels should be inspected for degradation. These passive components are often overlooked during routine maintenance but can cause subtle signal errors that reduce control loop performance and accelerate wear on the I/O module itself.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement KJ3241X1-EA1 12P2565X052 part number and firmware revision against the DeltaV system configuration database. Download the current module configuration from the DeltaV Explorer before removing the faulty unit to preserve channel assignments, scaling parameters, and alarm setpoints.

Step 2 — Safe Isolation: Place the affected I/O module in bypass or manual mode within the DeltaV operator workstation. Notify the control room operator and obtain a permit-to-work if required by site safety procedures. De-energize the I/O carrier slot using the DeltaV hot-swap procedure if supported, or follow the site lockout/tagout protocol.

Step 3 — Module Removal and Inspection: Remove the faulty KJ3241X1-EA1 and inspect the carrier slot for debris, moisture, or connector damage. Clean the slot with approved electronics-grade contact cleaner if contamination is present. Document the fault condition and any visible damage for maintenance records.

Step 4 — Replacement Installation: Seat the new KJ3241X1-EA1 12P2565X052 firmly into the carrier slot. The DeltaV system should automatically recognize the module and begin the commissioning sequence. Confirm the module status LED indicates normal operation before restoring I/O channels to automatic control.

Step 5 — Post-Replacement Validation: Verify all channel readings against field instrument values using the DeltaV Diagnostics tool. Perform a loop check on critical control loops associated with the replaced module. Update the maintenance management system (CMMS) with the replacement date, new module serial number, and next scheduled inspection interval.

This structured workflow minimizes downtime, reduces the risk of commissioning errors, and ensures full system compatibility — allowing the plant to return to normal operation with confidence in the integrity of the replaced I/O subsystem.

Spare Parts Support FAQ

Q1: Is the KJ3241X1-EA1 12P2565X052 compatible with all DeltaV system versions?
The KJ3241X1-EA1 is designed for the Emerson DeltaV KJ-series I/O subsystem and is compatible with DeltaV S-Series and M-Series controller platforms. Compatibility with specific DeltaV software versions should be verified against the Emerson DeltaV hardware compatibility matrix for your installed system version. Our technical team can assist with compatibility confirmation prior to order placement.

Q2: What pre-shipment testing is performed on each unit?
Every KJ3241X1-EA1 12P2565X052 unit is functionally tested prior to shipment to verify module initialization, channel communication, and power consumption within OEM specifications. Test records are available upon request. Units are shipped in anti-static packaging with protective covers on all connectors to prevent transit damage.

Q3: What does the 12-month warranty cover, and how are warranty claims handled?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed by contacting our support team at sale@ninermas.com; defective units are replaced or credited after return inspection.

Q4: Can NINERMAS support long-term supply agreements for the KJ3241X1-EA1?
Yes. For facilities managing DeltaV lifecycle extension programs or multi-year maintenance contracts, NINERMAS offers blanket purchase order arrangements and reserved stock programs for the KJ3241X1-EA1 12P2565X052 and related KJ-series modules. Contact our procurement team to discuss volume pricing, lead time commitments, and consignment stock options tailored to your maintenance planning cycle.
