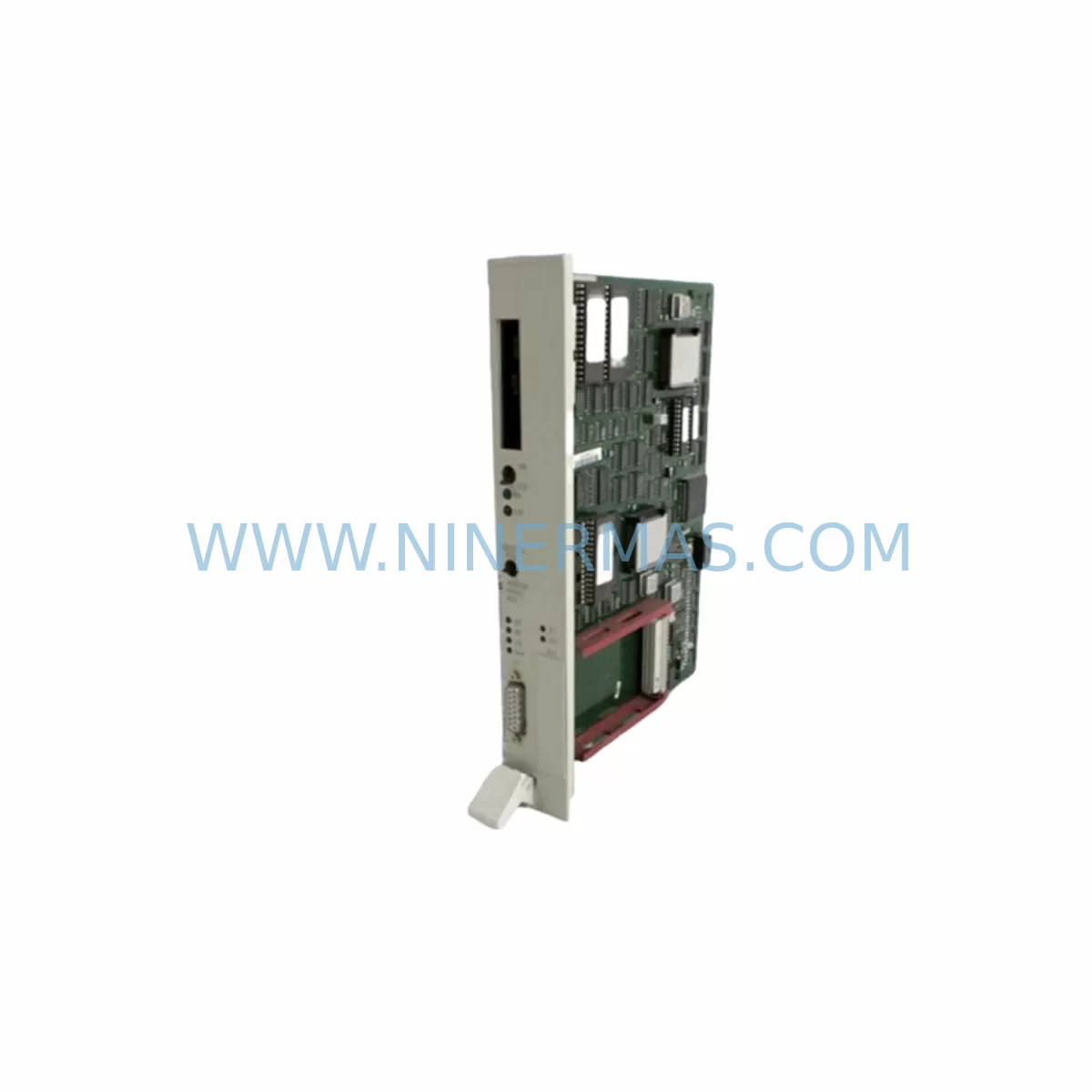

The Siemens 6ES5355-3UA11 is an original SIMATIC S5 series CPU/coordinator module designed for continuous-duty industrial control environments. As legacy S5 systems remain operational across manufacturing plants, process facilities, and utility infrastructure worldwide, maintaining a verified stock of service-ready spare parts such as the 6ES5355-3UA11 is a critical element of any proactive maintenance strategy. This module supports direct replacement in S5-135U and S5-155U rack configurations, enabling maintenance engineers to restore control system availability with minimal downtime and without requiring full system migration.

At NINERMAS, every unit of the 6ES5355-3UA11 is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Whether you are managing a planned annual overhaul, responding to an unscheduled fault, or building a strategic spare parts buffer for a multi-line facility, this module is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES5355-3UA11 CPU module is flagged during routine control cabinet inspection or fails during production, the replacement process rarely ends with the module itself. Experienced maintenance engineers understand that a CPU fault in an S5 rack is often accompanied by — or can cause — stress on adjacent components. A thorough site assessment should include the following areas:

Power Supply Integrity: Verify the S5 rack power supply unit (such as the 6ES5955-3LC41 or equivalent PS module) is delivering stable 24 V DC to the backplane. A degraded power supply is a common root cause of intermittent CPU faults and should be inspected or replaced concurrently.

Memory Submodules: The 6ES5355-3UA11 works in conjunction with EPROM and RAM memory submodules (e.g., 6ES5375-1LA21 or 6ES5375-0LC21). Confirm that the installed memory submodule is correctly seated, undamaged, and compatible with the replacement CPU firmware revision.

I/O Modules and Signal Cards: Digital input modules (e.g., 6ES5421-8MA11) and digital output modules (e.g., 6ES5441-8MA11) connected to the same rack should be checked for address conflicts and physical connector integrity. Analog I/O cards in the same loop should also be verified for signal continuity.

Backplane Bus and Rack Connectors: Inspect the S5 central rack backplane for oxidation, bent pins, or loose slot connectors. A compromised backplane bus can cause the replacement CPU to report faults immediately after installation, masking the true repair success.

Communication and Interface Modules: If the S5 system uses CP (Communications Processor) modules such as the 6ES5523-3UA11 for PROFIBUS or serial communication, verify that these modules are still correctly configured and that their firmware is compatible with the replacement CPU. MPI or SINEC H1 network segments should be tested for continuity after the CPU swap.

Relay Output and Protection Circuits: Relay output modules and associated fuse protection (e.g., 2A fast-blow fuses on output channels) should be inspected. A shorted field device can cause output relay damage that goes undetected until the new CPU attempts to activate the output.

Signal Isolation and Terminal Blocks: Signal isolators and terminal strip assemblies (e.g., 6ES5700-series interface submodules or third-party DIN rail isolators) between the PLC I/O and field instruments should be checked for correct isolation resistance and continuity. Degraded isolators can introduce noise that destabilizes the new CPU’s analog input readings.

HMI and Operator Panel Connectivity: If the S5 system drives an OP (Operator Panel) or TD (Text Display) via the programming port or MPI, confirm that the HMI communication parameters are still aligned after the CPU replacement. Devices such as the Siemens OP7 or OP17 may require a re-download of the screen configuration if the CPU memory was cleared.

Addressing these adjacent components during the same maintenance window reduces the risk of a repeat callout and maximizes the value of the planned downtime.

Site Replacement Workflow

Replacing the 6ES5355-3UA11 in a live industrial environment requires a structured approach to minimize system downtime and avoid configuration loss:

1. Pre-Replacement Backup: Use STEP 5 programming software to upload and archive the current CPU program, data blocks, and system parameters to a PC or programming device before powering down the rack. Confirm the backup is complete and readable.
2. Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the control cabinet and verify zero-energy state before removing the CPU module from its slot.
3. Module Extraction: Release the front panel locking mechanism, disconnect any programming cables, and carefully extract the 6ES5355-3UA11 from the rack slot. Note the slot position and any jumper or DIP switch settings on the outgoing module.
4. Replacement Installation: Insert the new 6ES5355-3UA11 into the same slot. Verify that memory submodules are correctly transferred or replaced. Confirm DIP switch and jumper settings match the original configuration.
5. Program Download and Verification: Re-energize the rack and download the archived program from the backup. Perform a full I/O force test to confirm all digital and analog channels respond correctly before releasing the system to production.
6. System Handover: Document the replacement in the site maintenance log, record the new module serial number, and update the spare parts inventory to reflect the consumed unit.

This workflow is compatible with both emergency unplanned replacements and scheduled annual maintenance windows, and it supports the goal of keeping legacy S5 systems operational without requiring a full migration to S7 or TIA Portal platforms.

Spare Parts Support FAQ

Q1: Is the 6ES5355-3UA11 still available for long-term supply?
Yes. NINERMAS maintains ongoing sourcing for SIMATIC S5 series modules including the 6ES5355-3UA11. As Siemens has officially discontinued the S5 product line, availability depends on verified secondary market and new-old-stock (NOS) channels. We recommend customers with multi-unit facilities place buffer stock orders to secure supply for 2–3 years of planned maintenance cycles.

Q2: How is compatibility with my existing S5 rack verified before shipment?
Each 6ES5355-3UA11 unit is inspected against the published Siemens S5 hardware compatibility matrix. Pre-shipment testing includes power-on verification and basic bus communication checks. Customers are encouraged to provide their rack configuration (central rack model, installed CPU firmware version, and memory submodule type) so our technical team can confirm compatibility before dispatch.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined in the Siemens S5 hardware specification. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the rated environmental parameters. Warranty claims are processed with a replacement unit dispatched after fault confirmation.

Q4: Can the 6ES5355-3UA11 be used as a direct drop-in replacement for earlier S5-355 CPU variants?
In most cases, yes — provided the rack slot, memory submodule type, and STEP 5 program structure are compatible with the 3UA11 hardware revision. Minor firmware differences between S5-355 CPU variants may require a program re-download rather than a direct memory transfer. Our technical support team can advise on revision-specific compatibility before your order is confirmed.
