Siemens 6SE7022-6TC84-1HF3 Service-Ready Spare Part

Siemens 6SE7022-6TC84-1HF3 Service-Ready Spare Part for Industrial Maintenance

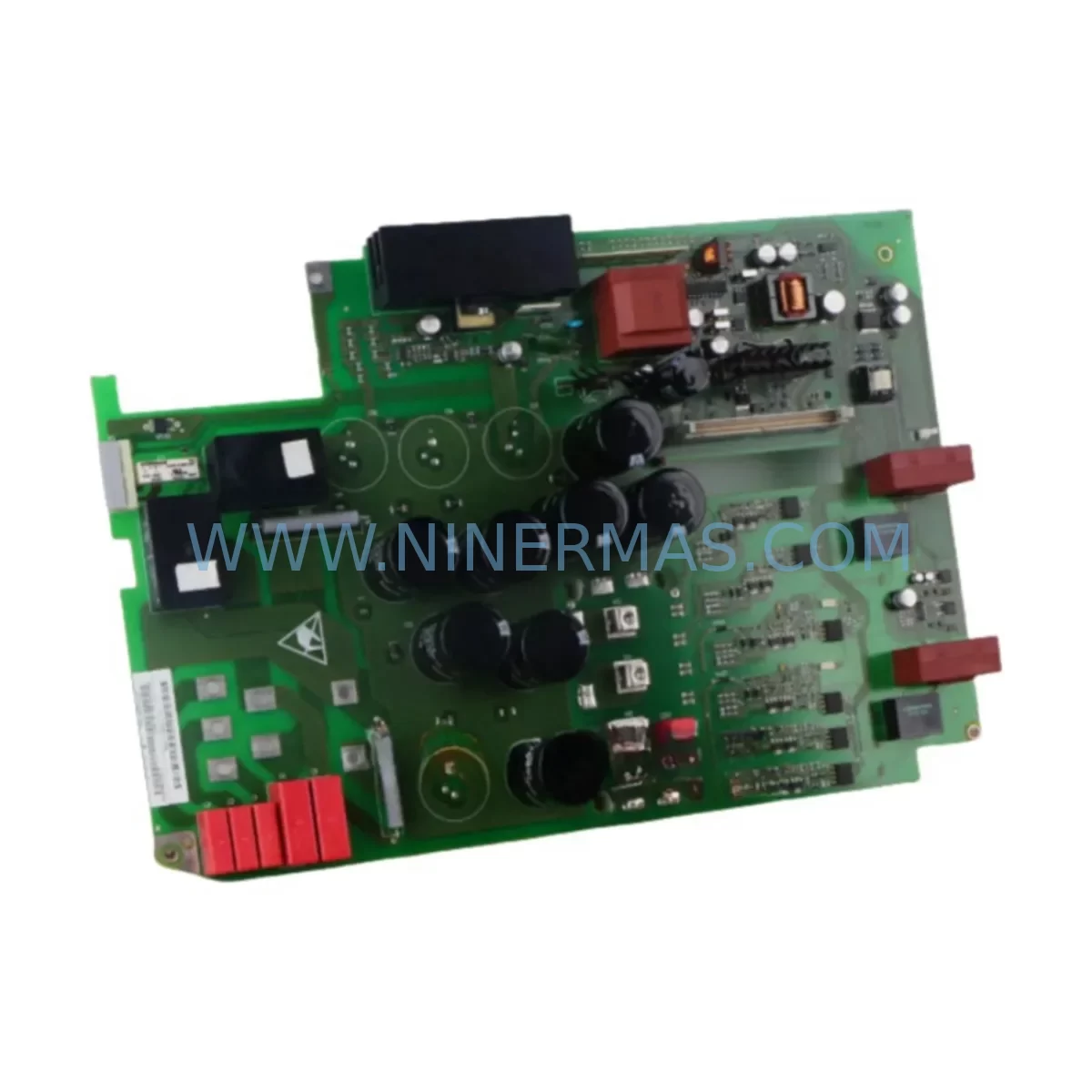

The Siemens 6SE7022-6TC84-1HF3 is a ruggedized drive controller module from the SIMOVERT MASTERDRIVES series, engineered for demanding industrial environments where uptime is non-negotiable. As a service-ready spare part stocked by NINERMAS, this unit is tested, verified, and dispatched with a 12-month warranty — giving maintenance engineers and procurement teams the confidence to act fast when a drive fault threatens production continuity.

Whether you are managing a scheduled annual overhaul, responding to an unplanned drive trip, or building a strategic spare parts buffer for a critical production line, the 6SE7022-6TC84-1HF3 is a direct-fit replacement that eliminates the risk of extended lead times from OEM channels. NINERMAS maintains ready stock to support emergency dispatch and long-term supply agreements for facilities running legacy SIMOVERT MASTERDRIVES installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6SE7022-6TC84-1HF3 drive module is flagged for replacement during a routine control cabinet inspection or after a fault event, experienced maintenance engineers know that the drive itself is rarely the only component that requires attention. A thorough site assessment should encompass the full electrical circuit surrounding the inverter to prevent repeat failures and ensure a clean, stable restart.

Begin by inspecting the 24 VDC auxiliary power supply feeding the drive’s control electronics — a degraded SITOP PSU100S or equivalent Siemens power supply unit can cause erratic drive behavior that mimics a faulty inverter. Check the input line reactor (e.g., 4EP3600-8US00) for signs of overheating or insulation breakdown, as line reactors protect the drive from voltage spikes and harmonic disturbances on the supply bus.

On the output side, verify the condition of the motor output filter or du/dt filter if one is installed — these components protect motor windings from high-frequency switching transients and are often overlooked during emergency replacements. Inspect all power cable terminations at the drive’s U, V, W output terminals and the PE ground connection; loose or corroded terminals are a leading cause of premature drive failure in high-vibration environments.

For facilities using PROFIBUS-DP communication, confirm the integrity of the CBP2 communication board seated in the drive’s option slot. A faulty CBP2 can prevent the SIMATIC S7-300 or S7-400 PLC from establishing a valid drive connection after replacement, causing unnecessary commissioning delays. Similarly, check the PROFIBUS cable termination resistors at both ends of the bus segment — an unterminated bus is a common source of intermittent communication faults post-replacement.

Within the control cabinet, inspect the 24 VDC relay outputs and digital I/O terminal blocks (such as Siemens SIRIUS 3RH or 3RT contactors and relay modules) that interface with the drive’s enable, fault reset, and speed reference signals. Worn contactor contacts or chattering relay coils can introduce signal noise that triggers nuisance drive trips. Also review the analog signal isolators on the speed reference and actual value feedback channels — signal drift from aging isolation amplifiers is a subtle but impactful source of drive instability in older installations.

For systems with an OP1S operator panel or external HMI connected to the drive, verify that the panel communication cable and connector are undamaged and that the HMI firmware is compatible with the replacement drive’s parameter set. Uploading a saved parameter backup from the OP1S before decommissioning the old drive is strongly recommended to minimize re-commissioning time. Finally, check the drive’s internal fan and the cabinet’s ventilation filters — blocked airflow is the single most common cause of thermal shutdown in SIMOVERT MASTERDRIVES installations operating in dusty or high-ambient-temperature environments.

Site Replacement Workflow

Step 1 — Isolation & Safety: Follow LOTO (Lockout/Tagout) procedures. Isolate the main supply and wait for the DC bus voltage to discharge below 50 V before opening the drive enclosure. Verify with a calibrated multimeter at the DC bus terminals.

Step 2 — Parameter Backup: If the existing drive is still partially functional, use the OP1S operator panel or STARTER/SCOUT commissioning software via the USS/PROFIBUS interface to upload and save the full parameter set (P0 to P999 range). Store the backup file with the equipment maintenance record.

Step 3 — Physical Replacement: Disconnect all power, motor, control, and communication cables, labelling each connection. Remove the faulty 6SE7022-6TC84-1HF3 unit from its mounting position. Install the replacement unit, ensuring correct torque on all terminal screws per the SIMOVERT MASTERDRIVES installation manual (typically 1.5–2.5 Nm for power terminals).

Step 4 — Parameter Restore & Commissioning: Download the saved parameter backup to the replacement drive. Verify motor data parameters (P095–P109), ramp times, and PLC interface configuration. Perform a no-load test run before reconnecting the mechanical load.

Step 5 — System Verification: Confirm PROFIBUS communication status on the PLC diagnostic screen. Check drive fault history (r947) is clear. Run the motor under load and monitor output current, temperature, and speed feedback for at least 15 minutes before returning the line to production.

This structured workflow minimizes downtime, preserves system compatibility, and ensures the replacement 6SE7022-6TC84-1HF3 is fully integrated before production resumes — typically achievable within 2–4 hours for a prepared maintenance team with a pre-stocked spare unit on site.

Spare Parts Support FAQ

Q1: Is the NINERMAS 6SE7022-6TC84-1HF3 an original Siemens spare part?
Yes. NINERMAS supplies original Siemens spare parts sourced through authorized industrial distribution channels. Each unit undergoes a pre-shipment functional inspection and is dispatched in anti-static protective packaging with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I verify compatibility with my existing SIMOVERT MASTERDRIVES installation?
The 6SE7022-6TC84-1HF3 is a direct replacement for units of the same part number within the SIMOVERT MASTERDRIVES 6SE70 series. Confirm the rated output current (22.6 A), supply voltage class (400 V), and frame size match your existing installation. If your system uses optional communication boards (CBP2, SBP, etc.) or technology boards (T100, T400), verify these are transferred from the old unit or ordered separately as required.

Q3: Can NINERMAS support long-term supply agreements for this part number?
Yes. NINERMAS specializes in long-term spare parts programs for legacy industrial automation equipment. We can commit to scheduled stock reservations, blanket purchase orders, and priority dispatch agreements for facilities managing extended lifecycle SIMOVERT MASTERDRIVES installations. Contact our team at sale@ninermas.com to discuss volume pricing and supply continuity planning.

Q4: What is included in the 12-month warranty and what does the pre-shipment test cover?
Every 6SE7022-6TC84-1HF3 unit dispatched by NINERMAS is bench-tested for power-on functionality, DC bus integrity, and control board response before shipment. The 12-month warranty covers functional failure under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental ratings. Warranty claims are supported with direct technical assistance from our engineering team.
