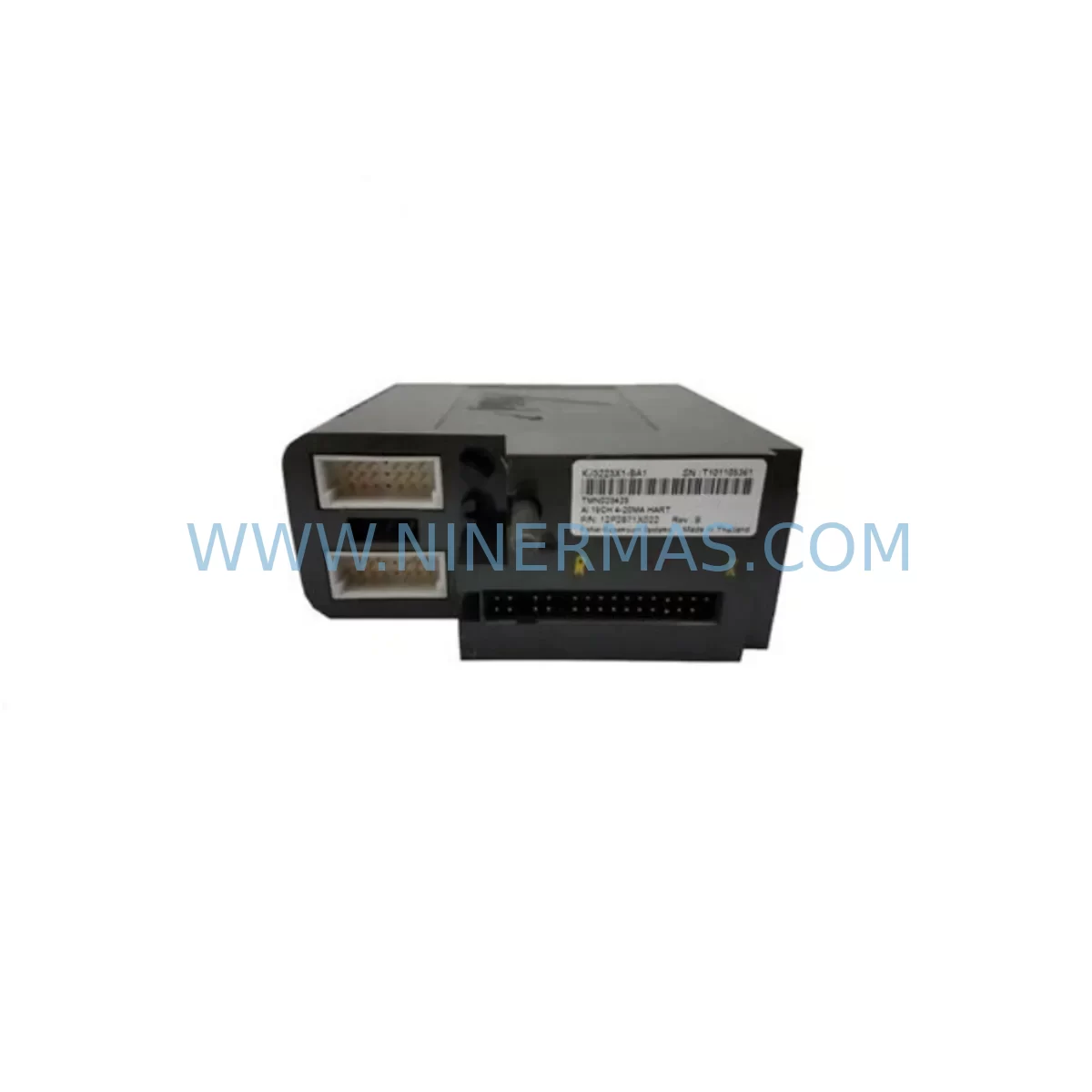

The Emerson KJ3241X1-BA1 (part number 12P2506X062) is a redundant serial interface module designed for DeltaV distributed control systems. As legacy automation infrastructure ages and original equipment manufacturers discontinue support for older serial communication hardware, the KJ3241X1-BA1 has become a critical retrofit component for maintenance engineers and system integrators managing long-lifecycle production environments. Whether you are replacing a failed unit in a running plant or executing a planned control system upgrade, this module provides a verified, drop-in compatible solution that preserves existing program logic, wiring infrastructure, and HMI screen configurations without requiring a full system overhaul.

The KJ3241X1-BA1 supports RS-232 and RS-485 serial communication protocols, making it directly applicable to legacy serial device integration scenarios including barcode readers, weighing systems, third-party analyzers, and older HART-compatible field instruments that have not yet been migrated to digital fieldbus architectures. Its redundant design ensures that a single module failure does not interrupt serial communication to critical field devices, which is especially important in continuous process industries such as refining, chemical production, and power generation where unplanned downtime carries significant operational cost.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ3241X1-BA1 into an existing DeltaV control architecture requires careful pre-installation planning across several dimensions. Before removing the failed or obsolete module, maintenance teams should document the current serial port configuration parameters — baud rate, parity, stop bits, and data bits — as these settings must be replicated exactly in the replacement unit to avoid communication faults with connected field devices.

Power capacity on the host carrier is a primary verification point. The KJ2003X1-BA2 carrier and KJ2005X1-MQ1 terminal block assemblies commonly used in DeltaV I/O cabinets have defined power budgets per slot. Adding or replacing a redundant serial interface module requires confirming that the carrier’s available power margin accommodates the module’s draw without triggering an overload condition on the KJ3002X1-BA1 power supply module serving that segment of the I/O bus.

Backplane slot assignment and module addressing must be verified against the existing DeltaV configuration database. The KJ3241X1-BA1 must be assigned to the same node address and port number as the module it replaces. If the replacement is part of a broader cabinet upgrade that also involves adding KJ4001X1-CA1 discrete I/O modules or KJ4010X1-BG1 analog input modules to expand I/O capacity, the node addressing scheme should be reviewed holistically to avoid address conflicts that would prevent the DeltaV controller from recognizing newly installed hardware.

For sites running older DeltaV versions where the KJ3241X1-BA1 was originally commissioned, it is advisable to verify that the current DeltaV software version supports the module’s firmware revision. In most cases, the module is backward compatible with DeltaV v11 and later, but sites running earlier versions may require a software patch before the module can be fully commissioned. The VE5009 DeltaV chassis and associated backplane infrastructure should also be inspected for corrosion or connector wear if the cabinet has been in service for more than ten years, as degraded backplane contacts can cause intermittent communication faults that are difficult to distinguish from module-level failures.

Where the retrofit scope includes migrating serial devices to a FOUNDATION Fieldbus or PROFIBUS architecture, the KJ3241X1-BA1 can serve as a transitional interface during the migration period, maintaining serial communication to legacy instruments while new fieldbus segments are commissioned in parallel. This phased approach, often used alongside KJ3243X1-BA1 serial interface variants and SE4002S1T2B6 controller modules, allows engineering teams to validate the new fieldbus configuration without taking the entire serial device network offline simultaneously.

HMI screen configurations referencing serial device data points should be reviewed before cutover. DeltaV Operate faceplates and trend displays linked to serial interface tags will continue to function correctly after module replacement provided the tag database and module addressing remain unchanged. If the replacement is accompanied by a DeltaV version upgrade, HMI display compatibility should be validated in a staging environment using a 12P3270X022 configuration cable and a laptop running the DeltaV engineering workstation software before the live cutover is executed.

Downtime Control During System Migration

Minimizing production downtime during serial interface module replacement requires a structured approach to pre-outage preparation, execution, and post-installation verification. The most effective strategy is to complete all configuration documentation, spare parts staging, and tool preparation during normal production hours so that the actual module swap can be executed within a single planned maintenance window.

Before the outage begins, export the current DeltaV module configuration and serial port parameters to a backup file. This ensures that if the replacement module requires reconfiguration, the correct parameter set is immediately available without relying on memory or legacy paper records. Confirm that the KJ3241X1-BA1 replacement unit has been pre-tested and that all shipping packaging has been removed and inspected for transit damage.

During the swap, follow the DeltaV hot-swap procedure if the system supports it for this module type. In redundant configurations, the secondary module can often be replaced while the primary remains active, eliminating the need for a full communication outage. After installing the replacement, verify that the module’s status LEDs indicate normal operation before releasing the serial communication path back to the control system. Conduct a redundancy switchover test to confirm that the new module correctly assumes the primary role when the original primary is taken offline.

Post-installation, monitor serial communication quality for at least one full production cycle before closing the maintenance work order. Log the replacement in the plant’s asset management system with the module serial number, installation date, and warranty expiry date to support future maintenance planning and warranty claim processing.

Retrofit Support FAQ

Q: Is the KJ3241X1-BA1 a direct replacement for all KJ3241 series variants?
A: The KJ3241X1-BA1 (12P2506X062) is compatible with the standard DeltaV redundant serial interface slot and is a verified replacement for the most common KJ3241 series variants. For less common sub-variants, please provide your existing module’s full part number so our technical team can confirm compatibility before shipment.

Q: What commissioning steps are required after installation?
A: After physical installation, verify module address assignment in the DeltaV configuration database, confirm serial port parameters match the original configuration, perform a communication test with all connected serial devices, and execute a redundancy switchover test. Full commissioning typically requires 30–90 minutes depending on the number of connected serial devices.

Q: Can the existing wiring and terminal connections be reused?
A: Yes. The KJ3241X1-BA1 uses the standard DeltaV carrier terminal interface. Existing field wiring connected to the carrier’s terminal block does not need to be disturbed during module replacement, which significantly reduces installation time and eliminates the risk of wiring errors.

Q: What does the 12-month warranty cover and how is stock availability managed?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. All units are pre-shipment tested before dispatch. We maintain dedicated reserve inventory for KJ3241X1-BA1 to support urgent replacement requirements, with typical lead times of 3–7 business days for standard orders and expedited options available for critical plant situations.
