Hirschmann MM2-2FLM4 Safety-Reliable Media Module for Critical Control Sites

Hirschmann MM2-2FLM4 Safety-Reliable Media Module for Critical Control Sites

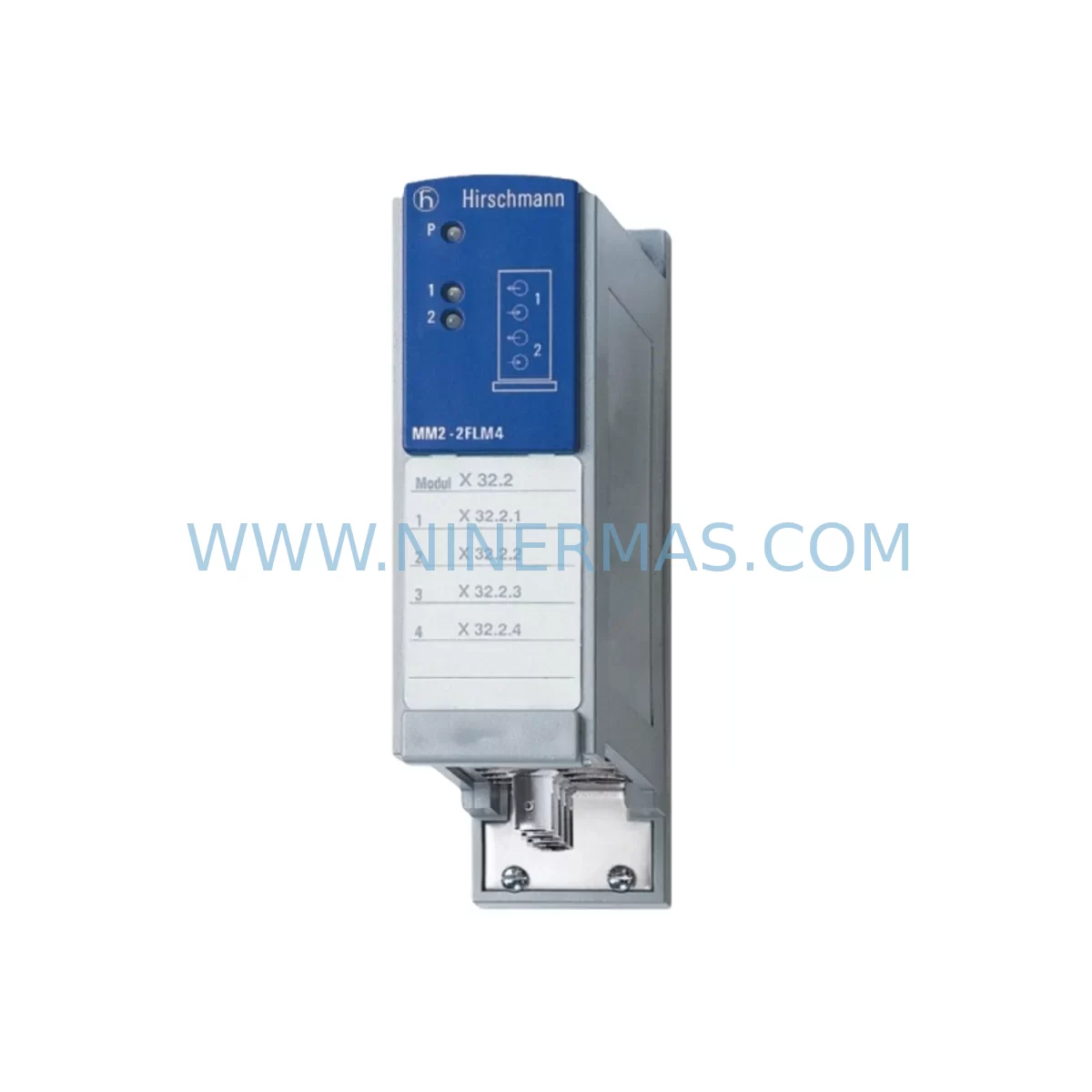

The Hirschmann MM2-2FLM4 is a dual fiber-optic media module engineered for the MICE modular industrial Ethernet switch platform, purpose-built to sustain uninterrupted data communication in the most demanding control environments. Where copper-based links are vulnerable to ground loops, high-frequency electromagnetic interference, and voltage transients generated by heavy motor drives, VFDs, and high-power contactors, the MM2-2FLM4’s fiber-optic signal path provides complete galvanic isolation — eliminating conducted noise at the physical layer before it can propagate into the control network. For engineers responsible for continuous production lines, critical interlock circuits, and safety-instrumented systems, this module is a foundational component in building a resilient, fault-tolerant communication architecture.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the MM2-2FLM4 does not operate in isolation — it is one layer in a coordinated defense against communication failure and unplanned downtime. When installed in a Hirschmann MICE MS4-8PoE or MICE RS2-8 chassis, the module extends the managed switch’s fiber backbone to remote I/O panels, operator workstations, or safety PLCs located hundreds of meters away, without any susceptibility to the common-mode noise that plagues copper runs routed alongside power cables.

On the power supply side, pairing the MICE switch with a Hirschmann PS24VDC redundant power supply module ensures that a single PSU failure does not interrupt the network backbone. For installations where the incoming AC supply is subject to voltage sags, surges, or brief outages — common in facilities with large compressors or arc furnaces — a 24 VDC industrial UPS buffer module provides ride-through capability, keeping the switch and its fiber links alive during power quality events.

Signal integrity at the field level is further protected by deploying Hirschmann SPIDER II unmanaged switches at remote junction boxes, feeding back to the MICE core over the MM2-2FLM4 fiber uplink. This star-and-ring topology, combined with Hirschmann HiPER-Ring or MRP (Media Redundancy Protocol) configured on the MICE managed switch, delivers sub-200 ms ring recovery — a critical parameter for motion control and safety interlock applications where a prolonged network outage would trigger an emergency stop.

For cabinet-level surge protection, Phoenix Contact TRABTECH or Weidmüller VARITECTOR surge protection devices installed on the 24 VDC bus protect the switch power input from conducted transients originating on the plant floor. Complementing this, Hirschmann GECKO or BAT series wireless access points can be integrated for maintenance laptop connectivity without introducing copper paths into the safety network. Where the control system communicates with a Siemens S7 or Allen-Bradley ControlLogix PLC, a Profinet or EtherNet/IP-capable media converter in the same cabinet ensures protocol-transparent, fiber-isolated connectivity between the controller and the MICE switch fabric.

Finally, for cabinets operating in dusty, humid, or chemically aggressive environments — such as those found in water treatment dosing stations or chemical batch reactors — sealing the cabinet to IP54 or higher and using anti-condensation heaters with thermostat controllers alongside the MM2-2FLM4 ensures that the fiber module’s optical connectors remain clean and the switch chassis maintains its rated operating temperature range year-round.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous cracking and distillation units, the MM2-2FLM4 provides the fiber backbone between the DCS marshalling cabinet and remote I/O panels located in Zone 2 classified areas. Fiber’s inherent intrinsic safety advantage — no electrical energy at the field end — simplifies hazardous area compliance and eliminates the risk of ignition from network faults.

Power Generation & Substation Automation: In 110 kV and 220 kV substations, the electromagnetic environment generated by bus-bar switching and transformer energization is severe enough to corrupt copper Ethernet frames. The MM2-2FLM4’s fiber link between protection relay panels and the substation SCADA switch is immune to these transients, ensuring that IEC 61850 GOOSE messages — which carry time-critical trip commands — are delivered without corruption or delay.

Mining & Mineral Processing: Longwall mining and conveyor control systems demand network availability around the clock. The MM2-2FLM4, deployed in MICE ring topologies along the conveyor drive cabinets, provides the redundant fiber path that allows the network to self-heal within milliseconds of a cable cut — preventing a single point of failure from halting an entire production section.

Water & Wastewater Treatment: Pump station control panels in outdoor or partially enclosed enclosures are exposed to condensation, insects, and corrosive hydrogen sulfide gas. The MM2-2FLM4’s fiber interface eliminates the corrosion risk associated with copper RJ45 connectors in these environments, and its compatibility with the MICE managed switch platform allows VLAN segmentation to isolate SCADA traffic from general IT traffic on the same physical infrastructure.

Port & Maritime Crane Control: Ship-to-shore and rubber-tyred gantry cranes generate intense electrical noise from their variable-frequency drives and slip-ring assemblies. Fiber-optic media modules like the MM2-2FLM4 are the standard solution for crane control network backbones, providing the noise immunity and transmission distance needed to connect the crane cabin PLC to the quayside control room without signal degradation.

Steel & Metallurgical Plants: Rolling mill and electric arc furnace environments combine extreme heat, vibration, and electromagnetic interference. The MM2-2FLM4 sustains reliable Ethernet connectivity between the process control system and drive controllers in these conditions, supporting the real-time data exchange required for precise speed and tension control in continuous casting and rolling operations.

Safety and Quality FAQ

Q1: What warranty does the MM2-2FLM4 carry, and what does it cover?
Every MM2-2FLM4 supplied by NINERMAS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period, we provide a replacement unit from stock — minimizing your downtime and eliminating the need to source an emergency spare on the open market.

Q2: What pre-shipment testing is performed on each unit?
Each MM2-2FLM4 undergoes a full functional inspection before dispatch, including optical power level verification, link establishment testing with a compatible MICE chassis, and physical connector inspection. Units that do not meet specification are quarantined and not shipped. A test record is retained for traceability.

Q3: Is the MM2-2FLM4 compatible with all MICE switch chassis variants?
The MM2-2FLM4 is designed for the Hirschmann MICE modular switch platform and is compatible with MICE MS and RS series chassis that accept standard MICE media modules. Compatibility should be verified against your specific chassis model and firmware version. Our technical team can assist with compatibility confirmation prior to order placement.

Q4: Can NINERMAS support long-term or scheduled spare parts supply for the MM2-2FLM4?
Yes. NINERMAS operates a dedicated long-term spare parts program for industrial automation components, including legacy and end-of-life Hirschmann MICE series modules. We can hold allocated stock under a blanket purchase agreement, provide scheduled delivery against your planned maintenance calendar, and offer advance notification if supply conditions change — giving your procurement and maintenance teams the lead time needed to plan alternative strategies without production risk.
