Emerson KJ3204X1-BA1 12P3275X042 Safety-Reliable Discrete Output

Emerson KJ3204X1-BA1 12P3275X042 Safety-Reliable Discrete Output Module for Critical Control Sites

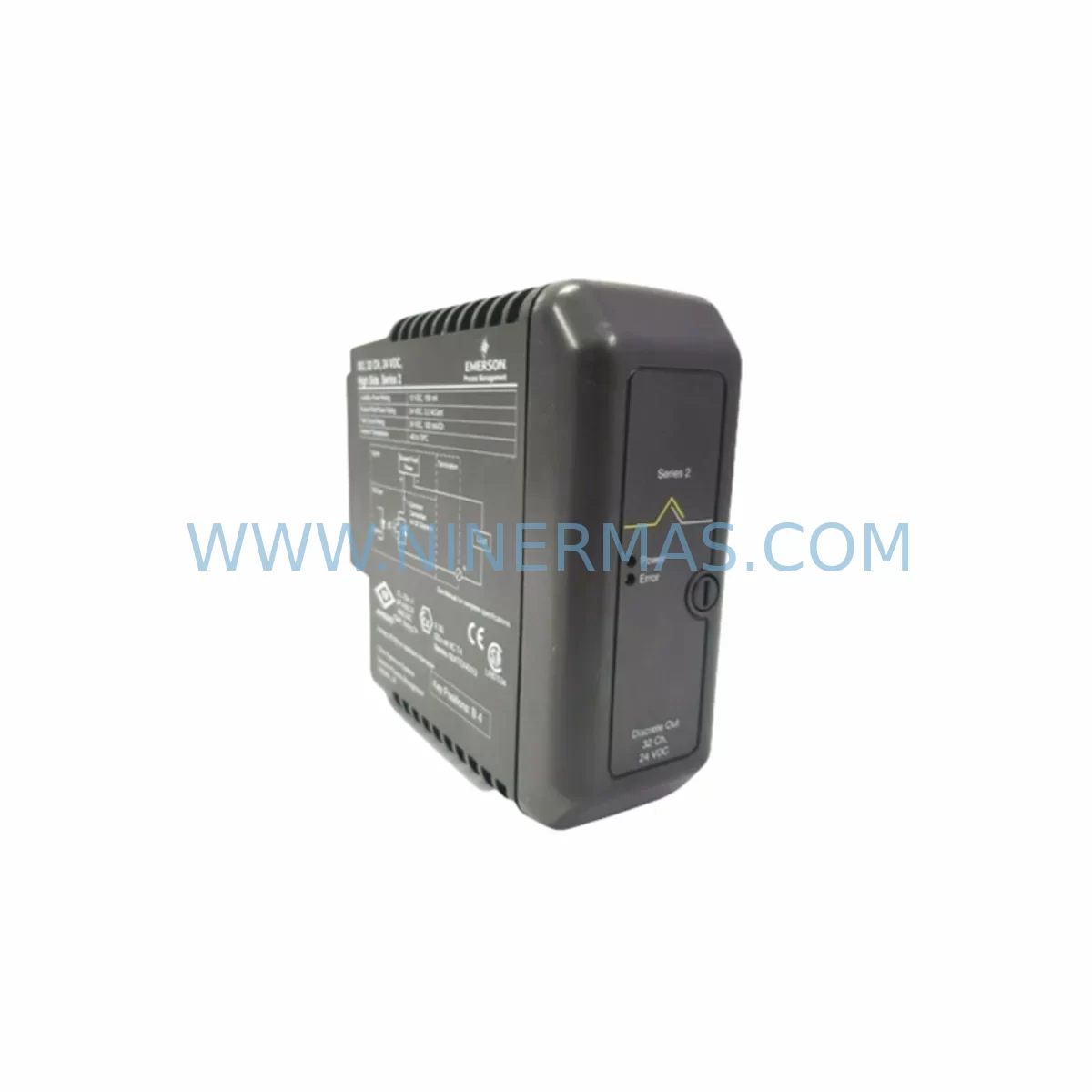

The Emerson KJ3204X1-BA1 (12P3275X042) is a high-integrity discrete output module engineered for the DeltaV distributed control system platform. Designed to meet the demanding requirements of continuous production environments, critical interlock circuits, and heavy-duty control cabinets, this module delivers consistent, interference-resistant signal switching that plant engineers and reliability teams depend on to keep operations running without unplanned interruption.

In industries where a single output failure can cascade into a process trip, equipment damage, or a safety incident, the KJ3204X1-BA1 provides the deterministic switching performance required to maintain loop integrity. Its robust design addresses the core risks found in real-world industrial sites: control interruption, spurious actuation, signal drift, power fluctuation, communication anomalies, surge impact, and unscheduled downtime.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A reliable discrete output module is only as effective as the system architecture surrounding it. In a well-engineered DeltaV control cabinet, the KJ3204X1-BA1 operates alongside a coordinated set of components that collectively minimize the probability of control failure. The Emerson KJ3101X1-BA1 discrete input module provides the upstream signal acquisition that feeds interlock logic, while the KJ3221X1-BA1 analog input module monitors process variables such as temperature, pressure, and flow — all of which may trigger discrete output commands through the KJ3204X1-BA1.

Power integrity is foundational to output reliability. The Emerson KJ4001X1-BA1 DeltaV power supply module delivers regulated, filtered DC power to the I/O bus, protecting the KJ3204X1-BA1 from voltage sags, surges, and ripple that could cause nuisance trips or latent output faults. In redundant power architectures, a secondary KJ4002X1-BA1 power supply module provides automatic failover, ensuring that a single power supply fault does not interrupt discrete output commands to field devices such as solenoid valves, motor starters, or safety relays.

Communication reliability is equally critical. The Emerson KJ2003X1-BA1 DeltaV controller module manages the real-time execution of control strategies and communicates output commands to the KJ3204X1-BA1 over the DeltaV I/O bus. In high-EMI environments — common in motor control centers, variable frequency drive (VFD) rooms, and arc furnace facilities — the bus isolation architecture of the DeltaV S-Series prevents electromagnetic noise from corrupting output commands or causing spurious actuations.

For safety instrumented system (SIS) applications, the KJ3204X1-BA1 is often deployed in conjunction with Emerson DeltaV SIS logic solvers and SIS I/O modules to form a complete safety loop from sensor to final element. Surge protection devices and Phoenix Contact or Weidmuller terminal block assemblies are commonly installed on the field wiring side to absorb transient energy from long cable runs in outdoor or substation environments, preventing surge damage to the module’s output circuits.

Preventive maintenance programs that include periodic hot-swap replacement of aging I/O modules — using tested, warranted spares such as the KJ3204X1-BA1 — are a proven strategy for reducing mean time to repair (MTTR) and avoiding the extended lead times associated with sourcing obsolete or end-of-life DeltaV components during an unplanned outage.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation, hydrocracking, and catalytic reforming units, the KJ3204X1-BA1 controls discrete outputs to emergency shutdown valves (ESDVs), blowdown valves, and pump motor starters. Its optical isolation and surge suppression are essential in environments where ground loops and high-voltage transients from large rotating equipment are common. A spurious output actuation in these environments can trigger a full unit shutdown, making the module’s deterministic switching behavior a direct contributor to process safety.

Electric Power Generation and Transmission: In thermal power plants and hydroelectric facilities, discrete output modules manage turbine trip circuits, excitation system controls, and auxiliary equipment interlocks. The KJ3204X1-BA1’s compatibility with DeltaV redundant controller architectures ensures that a single module failure does not compromise the availability of critical protection functions.

Mining and Mineral Processing: Conveyor interlock systems, crusher protection circuits, and ventilation fan controls in underground and surface mining operations demand output modules that perform reliably in high-dust, high-vibration, and wide-temperature-range conditions. The KJ3204X1-BA1’s industrial-grade construction and DeltaV diagnostic integration allow maintenance teams to detect degrading output channels before they cause a production stoppage.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use discrete output modules to control pump start/stop sequences, valve actuators, and chemical dosing systems. In these environments, high humidity and corrosive atmospheres are constant challenges. The KJ3204X1-BA1’s sealed construction and conformal-coated PCB design provide long-term reliability in these conditions.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mill control systems generate extreme electromagnetic interference. The KJ3204X1-BA1’s high-immunity EMI design and channel isolation prevent interference-induced output errors that could damage equipment or injure personnel in these high-energy environments.

Port Logistics and Marine Applications: Ship-to-shore crane control systems, bulk material handling equipment, and vessel automation systems require discrete output modules that can withstand salt-laden air, vibration from heavy machinery, and wide ambient temperature swings. The KJ3204X1-BA1’s robust mechanical design and DeltaV platform integration make it a reliable choice for these demanding applications.

Safety and Quality FAQ

Q1: What warranty coverage does the KJ3204X1-BA1 carry when purchased from NINERMAS?
All KJ3204X1-BA1 modules supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. Our quality assurance team performs pre-shipment functional testing on every unit to verify output channel integrity, isolation performance, and bus communication before dispatch.

Q2: How is the module tested before shipment, and what documentation is provided?
Each KJ3204X1-BA1 undergoes a structured pre-shipment inspection that includes visual examination, output channel continuity verification, and power-on functional testing using DeltaV-compatible test equipment. A test report is available upon request. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

Q3: Is the KJ3204X1-BA1 compatible with my existing DeltaV system version?
The KJ3204X1-BA1 is designed for the DeltaV S-Series I/O subsystem and is compatible with a wide range of DeltaV controller generations and software versions. For specific compatibility confirmation with your DeltaV system version or carrier hardware, please contact our technical team at sale@ninermas.com with your system configuration details.

Q4: Can NINERMAS support long-term supply of this module for ongoing maintenance programs?
Yes. NINERMAS maintains stock of the KJ3204X1-BA1 and other DeltaV I/O modules to support planned maintenance, emergency replacement, and capital spares programs. We understand that DCS I/O modules are long-lifecycle assets, and we work with plant maintenance teams to ensure consistent supply availability, even for modules that have reached end-of-life status with the original manufacturer.
