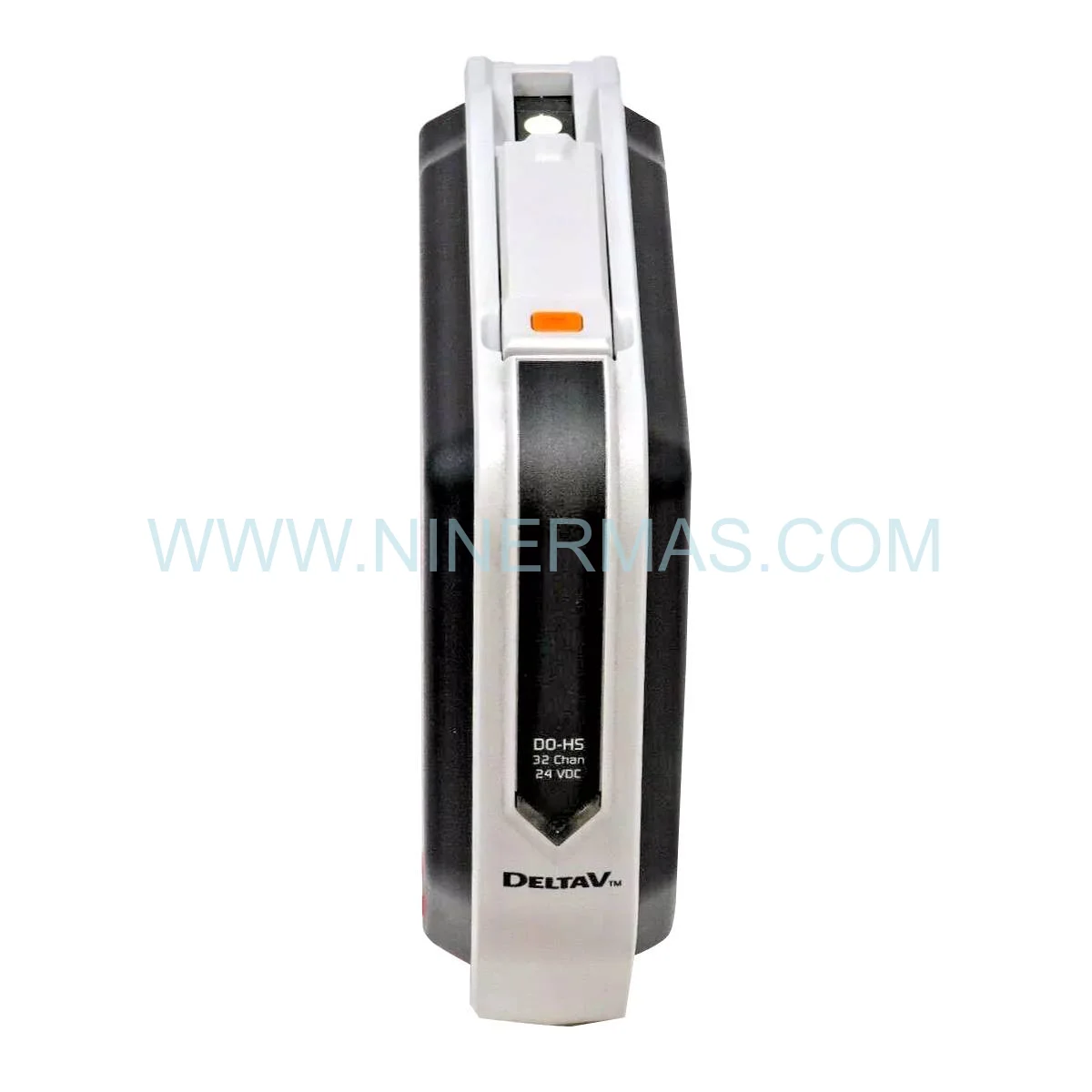

Emerson KJ3204X1-BK1 32-Ch DO Module | New & Original in Stock

Emerson KJ3204X1-BK1 | Reliable Automation Component for Mission-Critical Process Control

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Emerson KJ3204X1-BK1 stands as a cornerstone I/O component in sustaining system availability across DeltaV S-Series distributed control architectures. Its 32-channel high-side 24VDC sourcing design consolidates discrete output capacity into a single-slot footprint, directly reducing the number of field devices that must be monitored, calibrated, and replaced during scheduled turnarounds. The KJ3204X1-BK1 integrates seamlessly into existing S-Series carrier assemblies, enabling process optimization without requiring controller reconfiguration or network downtime — a decisive advantage in mission-critical applications where every minute of unplanned outage carries measurable financial consequence.

Deployed across oil & gas separation trains, chemical batch reactors, and pharmaceutical fill-finish lines, this module demonstrates exceptional durability under harsh industrial conditions. Its optical isolation barrier — rated at 1500VAC channel-to-backplane — shields the control bus from field-side voltage transients, ground loops, and EMI interference common in heavy industrial environments. Installation teams should note that the hot-swap capability allows field replacement without de-energizing the carrier, provided standard ESD precautions are observed and the DeltaV controller is placed in the appropriate maintenance mode prior to module extraction. Conformal coating on the PCB assembly provides additional protection against humidity ingress and corrosive atmospheric contaminants.

For reliability-focused procurement teams, maintaining at least one spare KJ3204X1-BK1 unit in the site storeroom is a recognized best practice under IEC 61511 functional safety management frameworks. Given the module’s role in driving solenoid valves, motor starters, and annunciator systems, its failure mode directly impacts process availability. Sourcing a verified original unit with full factory documentation ensures that mean-time-to-repair (MTTR) targets remain achievable during unplanned outage events.

Key Operational Features

32-Channel High-Density Architecture — Maximizes I/O density per cabinet slot, reducing wiring complexity and supporting system integration across large-scale automation networks.
Hot-Swap Field Replacement — Enables module exchange without process shutdown, supporting high availability targets and minimizing mean-time-to-repair.
Optical Isolation (1500VAC) — Channel-to-backplane galvanic separation protects the DeltaV control bus from field-side electrical disturbances.
Per-Channel Diagnostics — Real-time short-circuit and open-load detection with alarm notification, accelerating fault isolation during corrective maintenance.
Redundancy-Ready Design — Compatible with redundant I/O carrier configurations for fault-tolerant output control in SIL 2 safety instrumented systems.
Wide Temperature Range — Operational from -40°C to +70°C, supporting deployment in both climate-controlled control rooms and outdoor field enclosures.
ATEX / IECEx / FM / CSA Certified — Approved for Zone 2 and Division 2 hazardous area installations without additional barriers in most configurations.

Maintenance & Performance Benchmarks

The KJ3204X1-BK1 is engineered to perform across a broad spectrum of industrial network architectures — from compact skid-mounted systems with fewer than 50 I/O points to enterprise-scale distributed control networks spanning multiple process units with thousands of field devices. Its LocalBus communication interface delivers a 10ms typical scan cycle, ensuring that discrete output commands are executed within the response time budgets required by most safety and regulatory control loops.

Predictive maintenance programs benefit from the module’s embedded diagnostic register set, which logs channel-level fault events with timestamps accessible through DeltaV Operate and AMS Device Manager. This data supports condition-based maintenance scheduling, allowing reliability engineers to identify degrading field wiring or actuator coil resistance trends before they escalate to process trips. MTBF is rated at greater than 500,000 hours at 40°C ambient — a benchmark that supports multi-year maintenance interval planning in accordance with ISA-84 and IEC 61511 lifecycle requirements.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every KJ3204X1-BK1 unit dispatched from our facility is shipped in original factory packaging with intact manufacturer labels, serial number traceability, and accompanying quality documentation. We maintain bonded inventory of both current-production and end-of-life (EOL) legacy modules, ensuring that facilities operating older DeltaV configurations can source verified replacement parts without compromising system integrity.

For urgent operational requirements, same-day dispatch is available on confirmed in-stock units when orders are placed before the daily logistics cutoff. Our global express freight partnerships cover major industrial hubs across North America, Europe, the Middle East, Southeast Asia, and Oceania — with typical transit times of 3-7 business days to most destinations. All shipments include full export documentation, commercial invoices, and certificates of conformance to support customs clearance in regulated markets.

Procurement teams managing global spare parts programs will find our multi-unit pricing structures and consignment stocking arrangements particularly suited to reducing per-unit acquisition costs while maintaining regional inventory buffers aligned with operational risk assessments.

Engineering Support & FAQ

Q1: What are the installation steps for replacing a KJ3204X1-BK1 in a live DeltaV system?
A: Place the associated DeltaV controller in maintenance mode via the DeltaV Explorer. Disconnect field wiring from the termination block (if non-hot-swap type). Extract the module by pressing the ejector tabs and sliding it from the carrier. Insert the replacement KJ3204X1-BK1 until the connector seats fully. Restore controller to normal mode and verify channel diagnostics in DeltaV Operate before returning the loop to automatic control.

Q2: Which DeltaV firmware versions are compatible with this module?
A: The KJ3204X1-BK1 requires DeltaV v11.3 or later for full S-Series I/O functionality and enhanced per-channel diagnostics. Systems running earlier firmware versions will require a controller upgrade. Contact our engineering team for compatibility assessment if your site is operating on a legacy DeltaV release.

Q3: Can the KJ3204X1-BK1 be used in SIL 2 safety instrumented systems?
A: Yes. The module is SIL 2 capable when deployed in accordance with Emerson’s functional safety manual and IEC 61511 system design requirements. A Safety Instrumented System (SIS) application requires validated proof-test procedures and documented demand rate analysis — consult your functional safety engineer for site-specific SIL verification.

Q4: How do I claim warranty service for a defective unit?
A: Contact our technical support team at sale@ninermas.com with the module serial number, purchase order reference, and a description of the observed fault. Our team will issue a Return Merchandise Authorization (RMA) within one business day. Replacement units are dispatched upon receipt and inspection of the returned module, with the 12-month warranty period applying from the original invoice date.

Q5: Are spare termination blocks and carriers available for the KJ3204X1-BK1?
A: Yes. Compatible S-Series I/O carriers, fused termination blocks, and redundant interface assemblies are maintained in stock. Provide your system configuration details and we will confirm compatible part numbers for your specific installation.

Q6: What inductive load suppression is built into the output channels?
A: Each output channel incorporates an internal flyback diode for inductive load suppression, suitable for standard solenoid valve coils and relay coils up to 10W. For larger inductive loads — such as high-power solenoids or motor contactors — external metal oxide varistors (MOVs) or RC snubber circuits are recommended to prevent voltage spike damage to the output stage.
