Emerson KJ3204X1-BA1 Spare Part for Industrial Maintenance

Emerson KJ3204X1-BA1 Spare Part for Industrial Maintenance: Minimising Downtime Risk in DeltaV DCS Systems

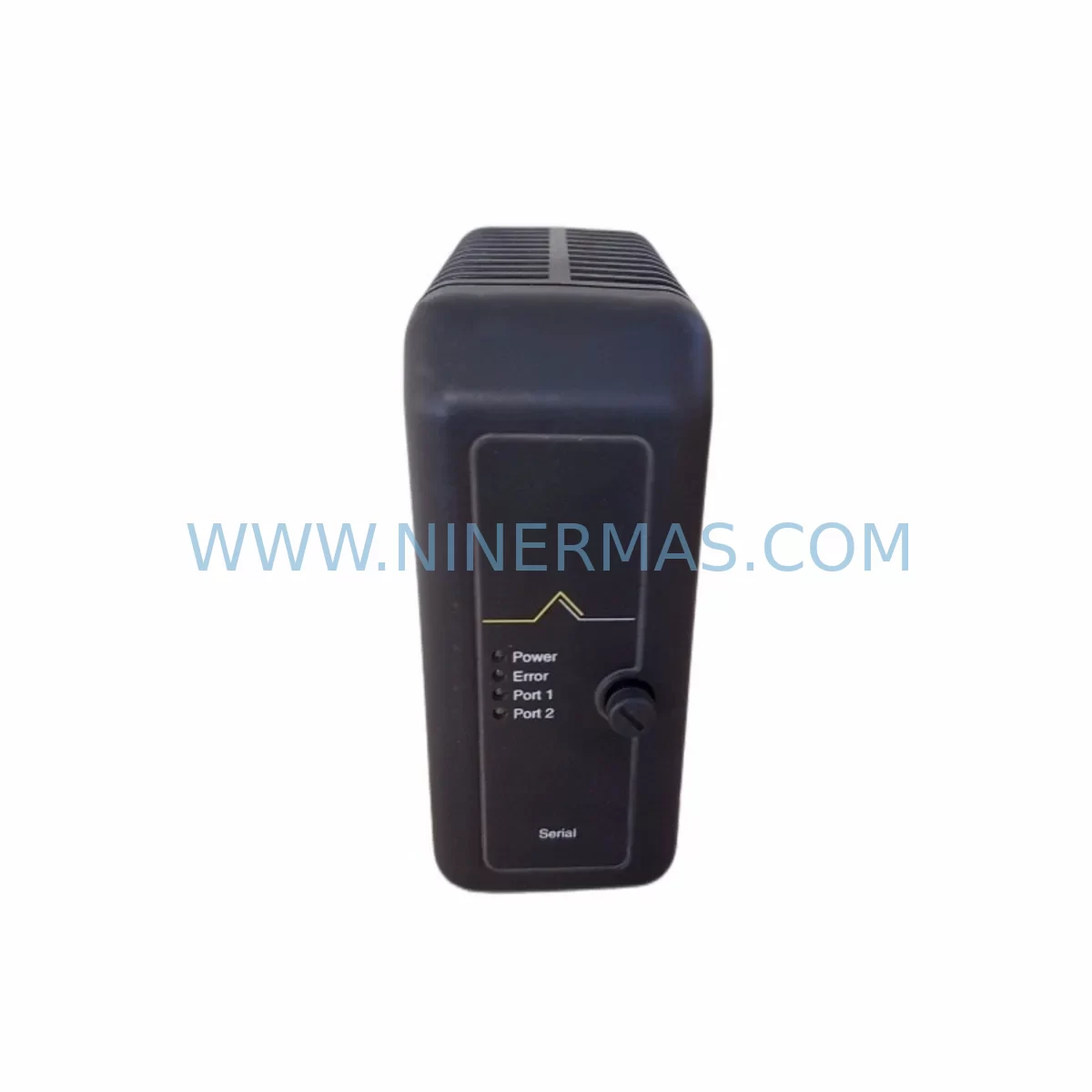

The Emerson KJ3204X1-BA1 (also referenced as VE4002S1T2B5, part number 12P3275X022) is a ruggedized digital output module engineered for deployment within Emerson DeltaV distributed control systems operating in harsh and hazardous process environments. Designed to deliver reliable discrete output switching across demanding industrial applications — including oil & gas processing, petrochemical refining, power generation, and continuous manufacturing — this module is a critical field device whose failure can directly trigger unplanned process shutdowns.

For maintenance engineers managing aging DeltaV cabinets, holding a verified service-ready spare of the KJ3204X1-BA1 is not optional — it is a fundamental element of any credible spare parts programme. When a DO module fails in a live control loop, the window for recovery is measured in minutes. Having a pre-tested, OEM-compatible replacement on the shelf eliminates the procurement lead time that would otherwise extend a forced outage into a multi-day production loss event.

NINERMAS supplies the KJ3204X1-BA1 as a fully inspected, functionally verified spare part backed by a 12-month warranty. Each unit undergoes pre-shipment bench testing to confirm channel integrity, output switching response, and backplane communication before dispatch. This ensures that the module arriving at your site is ready for immediate installation — not a source of additional troubleshooting delay.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the KJ3204X1-BA1 in a live DeltaV system is rarely an isolated task. Experienced maintenance engineers understand that a failed output module is frequently a symptom of broader stress within the I/O subsystem — and that a thorough site replacement should include a systematic inspection of adjacent components to prevent secondary failures from occurring within weeks of the initial repair.

When pulling a KJ3204X1-BA1 from service, the following components in the same control cabinet or I/O loop should be evaluated concurrently:

• DeltaV I/O Carrier / Backplane (KJ3001X1-BA1 or equivalent): Inspect backplane connector pins for oxidation, mechanical damage, or intermittent contact. A degraded carrier can cause repeated module faults even after a new DO module is installed.
• DeltaV Controller Module (MD Plus / MD Controller): Verify controller firmware version and confirm the replacement DO module is supported. Mismatched firmware can prevent proper channel commissioning.
• 24 VDC I/O Bus Power Supply (KJ4001X1-BA1 or PS-series equivalent): Measure bus voltage under load. Voltage sag below 22 VDC can cause intermittent output switching errors that mimic module failure.
• Field Terminal Assembly (FTA) and Marshalling Cabinet Wiring: Inspect field-side terminal blocks, cable shields, and wire ferrules. Loose terminations on the FTA are a common root cause of DO channel faults reported at the module level.
• Relay Output Modules (KJ3222X1-BA1 or similar): If the KJ3204X1-BA1 drives relay-coupled loads, inspect the associated relay modules for contact wear, coil resistance drift, and arc damage — particularly in high-cycle switching applications.
• Signal Isolators and Intrinsic Safety Barriers: For loops running into hazardous areas, verify that Zener barriers or galvanic isolators (such as MTL or P+F series) are within calibration and show no signs of thermal stress.
• DeltaV Digital Input Modules (KJ3101X1-BA1 or equivalent): Cross-check DI modules in the same I/O subsystem for similar fault patterns — shared power rail issues often affect both DO and DI modules simultaneously.
• Communication Network Infrastructure: Confirm DeltaV control network switch ports, fibre patch cables, and redundant network cards are operating without packet loss. Network instability can cause false module health alarms.
• Fuse and Circuit Protection: Replace field-side fuses on the affected output channels as a matter of course. Fuses that have experienced overcurrent events may test within tolerance but fail prematurely under normal operating load.
• HMI Alarm and Event Historian: Review the DeltaV Operate or DeltaV Insight historian for alarm patterns in the 30–90 days preceding the module failure. Recurring intermittent alarms on the same I/O node are a strong indicator of power supply or backplane degradation rather than a single module fault.

Procuring these components as part of a coordinated spare parts kit — rather than reacting to each failure individually — significantly reduces total maintenance cost and eliminates the compounding downtime risk of sequential failures within the same I/O subsystem.

Site Replacement Workflow

The KJ3204X1-BA1 is designed for hot-swap replacement within a DeltaV I/O subsystem, provided the system is configured for redundant I/O or the affected loop can be placed in manual control prior to module removal. The following workflow reflects best practice for site replacement in a live process environment:

Step 1 — Pre-Replacement Preparation: Notify the control room operator and place all affected output channels in manual or safe-state hold. Document current output states for each channel before proceeding. Confirm the replacement KJ3204X1-BA1 part number and firmware compatibility against the installed DeltaV system version.

Step 2 — Module Removal: Disengage the module locking tab and slide the KJ3204X1-BA1 from the carrier slot. Inspect the backplane connector on both the module and the carrier for contamination or pin damage before installing the replacement.

Step 3 — Replacement Installation: Seat the new module firmly into the carrier slot until the locking tab engages. The DeltaV system will automatically detect the new module and begin commissioning. Monitor the DeltaV Explorer or Diagnostics view to confirm the module transitions to a healthy state within 60–90 seconds.

Step 4 — Channel Verification: Perform a channel-by-channel output test from the DeltaV Operate interface. Confirm field device response for each channel before returning loops to automatic control. Document the replacement in the site maintenance management system (CMMS) with the new module serial number and installation date.

Step 5 — Spare Parts Replenishment: Immediately initiate a replenishment order for the consumed spare. Maintaining a minimum of one service-ready KJ3204X1-BA1 in the site spare parts store is recommended for any facility operating more than four DeltaV I/O nodes.

This workflow applies equally to planned annual turnaround replacements and emergency unplanned outage recovery scenarios. The key differentiator between a 2-hour recovery and a 2-day outage is almost always the availability of a pre-tested spare on site.

Spare Parts Support FAQ

Q1: Is the KJ3204X1-BA1 supplied by NINERMAS compatible with all DeltaV system versions?
The KJ3204X1-BA1 is compatible with Emerson DeltaV S-series and M-series I/O subsystems. Compatibility with specific DeltaV software versions (v11 through v15+) should be confirmed against your site’s controller firmware. NINERMAS technical support can assist with compatibility verification prior to order placement. Units are supplied as OEM-equivalent service-ready spares.

Q2: What pre-shipment testing does NINERMAS perform on the KJ3204X1-BA1?
Each unit undergoes functional bench testing covering output channel switching, backplane communication handshake, and power rail integrity before dispatch. A test record is available upon request. This process ensures that the module is operationally verified before it reaches your site, eliminating the risk of receiving a defective spare during a critical outage recovery.

Q3: What is the warranty coverage and what does it include?
NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by direct technical liaison. Replacement or credit is provided for confirmed warranty failures. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling on site.

Q4: Can NINERMAS support long-term or scheduled spare parts supply agreements for the KJ3204X1-BA1?
Yes. NINERMAS supports long-term spare parts supply programmes for DeltaV I/O modules, including scheduled annual procurement, multi-unit framework agreements, and priority stock reservation for critical site spares. Contact our team at sale@ninermas.com to discuss a supply arrangement aligned with your site’s maintenance schedule and turnaround planning cycle.
