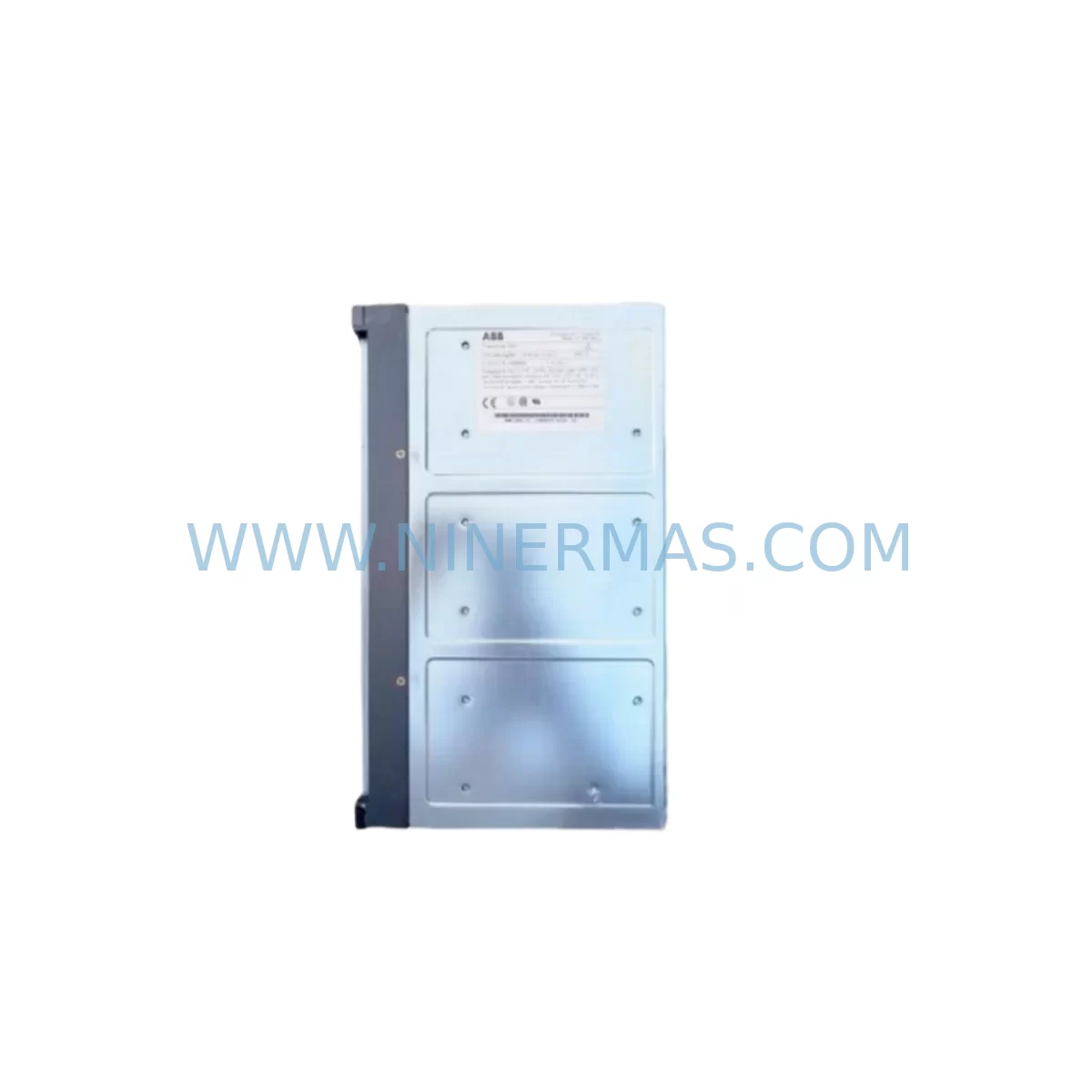

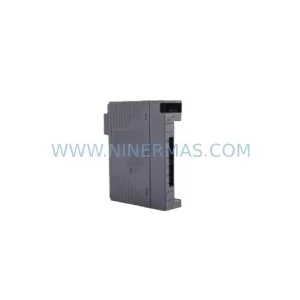

The ABB DAO01 (P3717-4-0369629) is a retrofit-compatible analog output module engineered for seamless integration into legacy Advant OCS and S800 I/O automation platforms. As manufacturing facilities face increasing pressure to extend the operational life of installed control infrastructure, the DAO01 provides a verified drop-in replacement path that eliminates the need for full system overhauls. Whether your facility is managing a phased migration, responding to an unplanned module failure, or executing a planned control cabinet upgrade, the DAO01 delivers the signal fidelity and backplane compatibility required to maintain production continuity without compromising process integrity.

NINERMAS maintains ready inventory of the ABB DAO01 P3717-4-0369629, pre-shipment tested and backed by a 12-month warranty. Each unit undergoes functional verification prior to dispatch, ensuring that the module arrives ready for installation with minimal commissioning time on site.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB DAO01 into an existing control architecture requires a structured pre-installation review. Begin by auditing the current rack configuration: identify the TP830 baseplate slot occupied by the outgoing module and confirm that the TU830 terminal unit wiring schedule is documented and accessible. In most Advant OCS installations, the TU830 field wiring can be left undisturbed during a module swap, significantly reducing installation time and the risk of wiring errors.

The processor module — typically an ABB PM861 or PM864 — must be placed in stop mode before the DAO01 is removed. This protects the S800 I/O bus from transient faults and prevents spurious output signals from reaching field devices during the changeover. Once the replacement DAO01 is seated and the DIP switch address is confirmed to match the original configuration, the processor can be restarted and the output channels verified against the HMI faceplate values.

For installations where the control system also includes an ABB CI830 or CI854A PROFIBUS communication interface, verify that the DAO01 module address does not conflict with any PROFIBUS DP slave assignments. In mixed I/O architectures, the ABB AI830 analog input module and ABB DI831 digital input module may share the same rack; confirm that the backplane power budget — typically managed through the TP830 baseplate — remains within specification after the new module is installed.

Where the retrofit scope extends beyond a single module replacement, consider reviewing the status of adjacent components: the ABB DO831 digital output module, ABB DP840 pulse counter module, and any ABB AO845 analog output modules installed in parallel racks. End-of-life components in the same control cabinet should be identified and sourced proactively to avoid cascading failures during the next maintenance window. NINERMAS maintains cross-referenced inventory across the S800 I/O family, enabling customers to consolidate spare parts procurement in a single order.

HMI screen validation is a critical final step. After the DAO01 is commissioned, verify that all analog output tags associated with the replaced module are displaying correctly on the operator station. In systems running ABB Advant Station or equivalent SCADA platforms, tag binding is typically retained through a module swap, but a full I/O scan should be performed to confirm signal integrity before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a legacy analog output module in a live production environment. The ABB DAO01 P3717-4-0369629 is designed to support a cold-swap replacement procedure that can typically be completed within a single planned maintenance window of 30 to 60 minutes, depending on the complexity of the surrounding I/O architecture.

Before initiating the swap, export and archive the current processor program from the PM861 or equivalent controller. This backup protects against configuration loss in the event of an unexpected fault during the changeover. If the facility operates under a change management protocol, ensure that the replacement is logged with the original module serial number, the new module serial number, and the date of installation.

To maintain field control continuity during the transition, place all affected output loops in manual mode at the DCS or SCADA level before removing the outgoing module. This prevents process upsets caused by loss of output signal during the physical swap. Once the DAO01 is installed and the processor has completed its I/O scan, transfer each loop back to automatic control individually, verifying the output value at the field device before proceeding to the next channel. This staged handover approach reduces the risk of simultaneous process disturbances and allows the commissioning engineer to isolate any channel-specific issues before they affect production.

Retrofit Support FAQ

Q: Is the ABB DAO01 P3717-4-0369629 a direct replacement for the original DAO01 installed in my Advant OCS system?
A: Yes. The DAO01 P3717-4-0369629 is a form-fit-function compatible replacement for the original ABB DAO01 module. The TU830 terminal unit wiring and TP830 baseplate can be retained without modification in standard installations.

Q: Does NINERMAS perform pre-shipment testing on the ABB DAO01?
A: Every ABB DAO01 unit shipped by NINERMAS undergoes functional verification prior to dispatch, including analog output signal accuracy testing across all four channels. A test report is available upon request.

Q: What is the warranty coverage for the ABB DAO01 P3717-4-0369629?
A: NINERMAS provides a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team via email and phone.

Q: Can NINERMAS supply other S800 I/O modules to complete my retrofit project?
A: Yes. NINERMAS maintains inventory across the ABB S800 I/O family, including AI830, DI831, DO831, CI830, CI854A, PM861, TU830, TP830, AO845, and DP840 modules. Contact our team to confirm availability and lead times for your specific project requirements.
