ABB 3ASD489301A410 Service-Ready Spare Part for Maintenance

ABB 3ASD489301A410 Service-Ready Spare Part for Maintenance

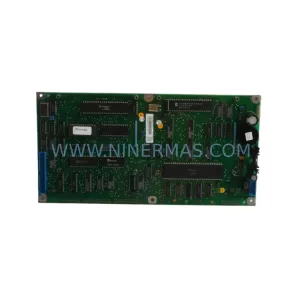

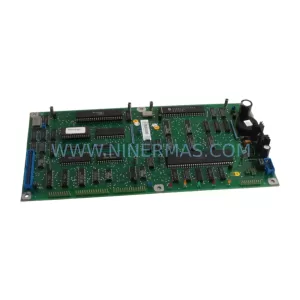

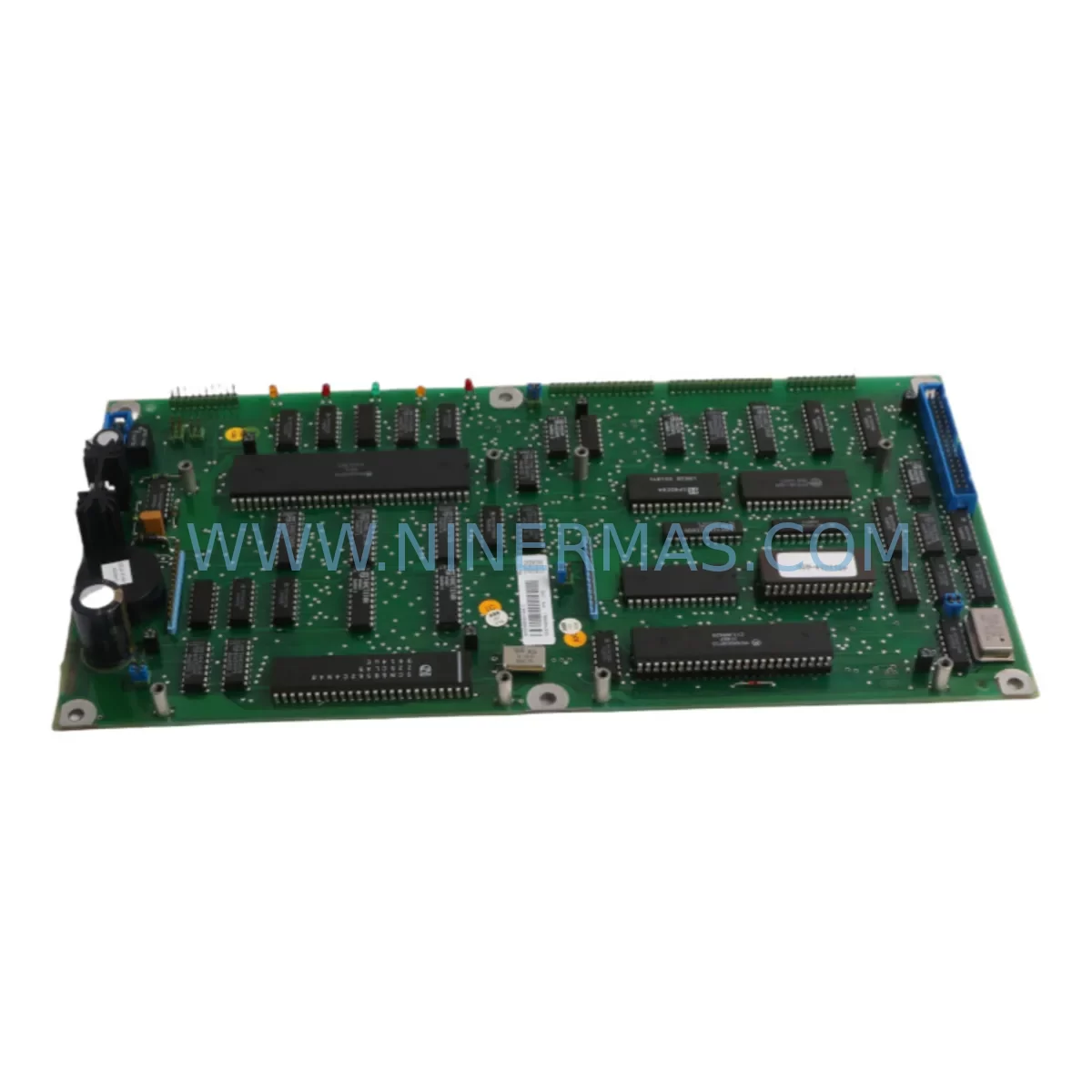

The ABB 3ASD489301A410 (YPK107E) is an original IGBT gate driver board engineered for ABB ACS800 series variable frequency drives. In industrial environments where unplanned downtime translates directly into production loss, having a verified, service-ready spare on the shelf is not optional — it is a core element of any responsible maintenance strategy. This gate driver board governs the switching signals delivered to the IGBT power modules within the ACS800 drive frame, making it one of the most operationally critical components in the entire drive assembly. A failure of this board typically results in immediate drive trip, loss of motor control, and in severe cases, cascading damage to downstream power components if the fault is not isolated promptly.

NINERMAS maintains service-ready stock of the ABB 3ASD489301A410, sourced through verified industrial supply channels. Every unit undergoes pre-shipment functional testing and is covered by a 12-month warranty from the date of delivery. For maintenance engineers managing aging ACS800 installations, procurement engineers building annual spare parts budgets, or plant managers responding to an emergency drive fault, this listing provides a reliable, traceable supply path with fast dispatch capability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3ASD489301A410 gate driver board is rarely an isolated task. In a properly structured maintenance workflow, the replacement of this component should trigger a broader inspection of the surrounding drive assembly and control cabinet. Maintenance engineers who have worked with ACS800 drives understand that gate driver faults are often symptomatic of upstream or downstream stress — not always a standalone component failure.

When servicing the 3ASD489301A410, the following components and assemblies should be inspected or replaced as part of the same maintenance window:

IGBT Power Modules (e.g., IGBT stack within ACS800-04 frame): The gate driver board interfaces directly with the IGBT modules. If the driver board has failed due to overcurrent or overvoltage stress, the IGBT modules themselves may show latent damage. Inspect gate-emitter resistance and collector-emitter saturation voltage before returning the drive to service.

RDCU-12C (Drive Control Unit): The RDCU-12C is the main control board of the ACS800 and communicates directly with the gate driver layer. If the 3ASD489301A410 has failed, verify that the RDCU-12C has not logged persistent fault codes (F-codes) that indicate a control-side issue rather than a pure driver failure. A spare RDCU-12C should be part of any ACS800 critical spare kit.

RMIO-01C (Motor Control and I/O Board): The RMIO-01C handles analog and digital I/O for the ACS800. During a gate driver fault event, I/O signal integrity can be compromised. Verify all speed reference, torque reference, and digital input signals are within specification after the 3ASD489301A410 replacement.

AGPS-11C (Gate Power Supply Board): The AGPS-11C provides isolated gate power to the driver boards. A failed or degraded AGPS-11C can cause intermittent gate driver faults that mimic a 3ASD489301A410 failure. Always test the gate power supply output voltages before condemning the driver board itself.

AINT-02C (Analog I/O Extension): For drives with extended analog I/O configurations, the AINT-02C should be inspected for signal drift or connector corrosion, particularly in high-humidity or high-vibration environments.

NPOW-42C (Power Supply Board): The internal 24 V and 5 V logic power supply board feeds the control electronics. Voltage ripple or dropout on these rails can cause gate driver instability. Measure supply rail voltages under load before and after the 3ASD489301A410 replacement.

OTAC-01 (Optical Link Module): In ACS800 configurations using fiber-optic communication between the control board and gate drivers, the OTAC-01 optical link module should be inspected for fiber connector cleanliness and signal integrity. Dirty or damaged fiber connectors are a common cause of spurious gate driver fault codes.

NINT-43C (IGBT Interface Board): In larger ACS800 frame sizes, the NINT-43C provides the interface between the control layer and the IGBT gate driver boards. Inspect this board for solder joint integrity and connector seating.

Terminal Blocks and Control Wiring: Inspect all control cabinet terminal blocks for loose connections, corrosion, or insulation breakdown. Loose terminals on the gate signal wiring can introduce noise that triggers false gate driver faults.

DC Bus Capacitor Bank (3AUA0000108389 or equivalent): Capacitor degradation increases DC bus ripple, which stresses gate driver components. If the drive has been in service for more than five years, capacitor ESR testing should be performed as part of the same maintenance event.

Site Replacement Workflow

Replacing the ABB 3ASD489301A410 on-site requires a structured approach to minimize downtime and ensure the drive returns to service correctly. The following workflow is recommended for maintenance engineers performing this replacement in the field:

Step 1 — Isolation and Lockout/Tagout: De-energize the ACS800 drive and apply LOTO procedures. Allow a minimum of 5 minutes for DC bus capacitors to discharge before opening the drive enclosure. Verify DC bus voltage is below 50 V using a calibrated meter before touching internal components.

Step 2 — Fault Code Documentation: Before removing any components, record all active and historical fault codes from the RDCU-12C control panel or via the DriveWindow software interface. This data is essential for root cause analysis and warranty documentation.

Step 3 — Component Identification: Confirm the part number on the installed gate driver board matches 3ASD489301A410 (YPK107E). Verify the replacement unit’s part number and revision level are compatible with the installed drive frame and IGBT module type.

Step 4 — Board Replacement: Disconnect all connectors from the gate driver board in sequence, noting connector positions. Remove the board using appropriate ESD precautions. Install the replacement 3ASD489301A410, reconnect all connectors, and verify seating.

Step 5 — Pre-Energization Checks: Before re-energizing, verify gate power supply output (AGPS-11C), control power rails (NPOW-42C), and fiber optic connections (OTAC-01 if applicable). Confirm no tools or foreign objects are present in the drive enclosure.

Step 6 — Commissioning and Verification: Re-energize the drive and perform a no-load test run. Monitor for fault codes, verify motor rotation direction, and confirm speed reference tracking. Log the replacement in the maintenance record with part number, serial number, and date.

This structured approach reduces the risk of repeat failures, ensures system compatibility, and provides the documentation trail required for warranty claims and regulatory compliance in industrial environments.

Spare Parts Support FAQ

Q1: What is the expected service life of the ABB 3ASD489301A410, and when should it be proactively replaced?
The 3ASD489301A410 gate driver board does not have a fixed calendar-based replacement interval under normal operating conditions. However, in drives operating in high-ambient-temperature environments, high-cycle applications, or installations with frequent fault events, proactive replacement every 7–10 years is a reasonable maintenance strategy. Any drive generating recurring IGBT fault codes (e.g., F-0022, F-0023 in ACS800 fault nomenclature) should have the gate driver board inspected as a priority action.

Q2: How should maintenance teams structure their ACS800 spare parts inventory to minimize downtime risk?
For facilities operating multiple ACS800 drives, a tiered spare parts strategy is recommended. Tier 1 (on-site critical spares) should include at minimum one 3ASD489301A410 gate driver board per drive frame type, one RDCU-12C control unit, and one AGPS-11C gate power supply. Tier 2 (regional warehouse) should include IGBT modules, RMIO-01C boards, and DC bus capacitor banks. NINERMAS can support long-term supply agreements and reserved inventory arrangements for high-volume or multi-site customers.

Q3: How is the 3ASD489301A410 tested before shipment, and what does the 12-month warranty cover?
Every 3ASD489301A410 unit shipped by NINERMAS undergoes pre-shipment functional testing to verify gate signal output integrity, power supply rail voltages, and connector continuity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental parameters. Warranty claims are supported with full documentation and replacement dispatch.

Q4: Can the ABB 3ASD489301A410 be used as a direct replacement for older ACS800 gate driver board variants?
Compatibility depends on the specific ACS800 frame size, IGBT module type, and hardware revision. The 3ASD489301A410 (YPK107E) is designed for specific IGBT stack configurations within the ACS800 family. Before ordering, customers should confirm the drive’s type designation, frame size, and the part number of the currently installed gate driver board. NINERMAS technical support can assist with compatibility verification based on the drive nameplate data and existing board part number.
