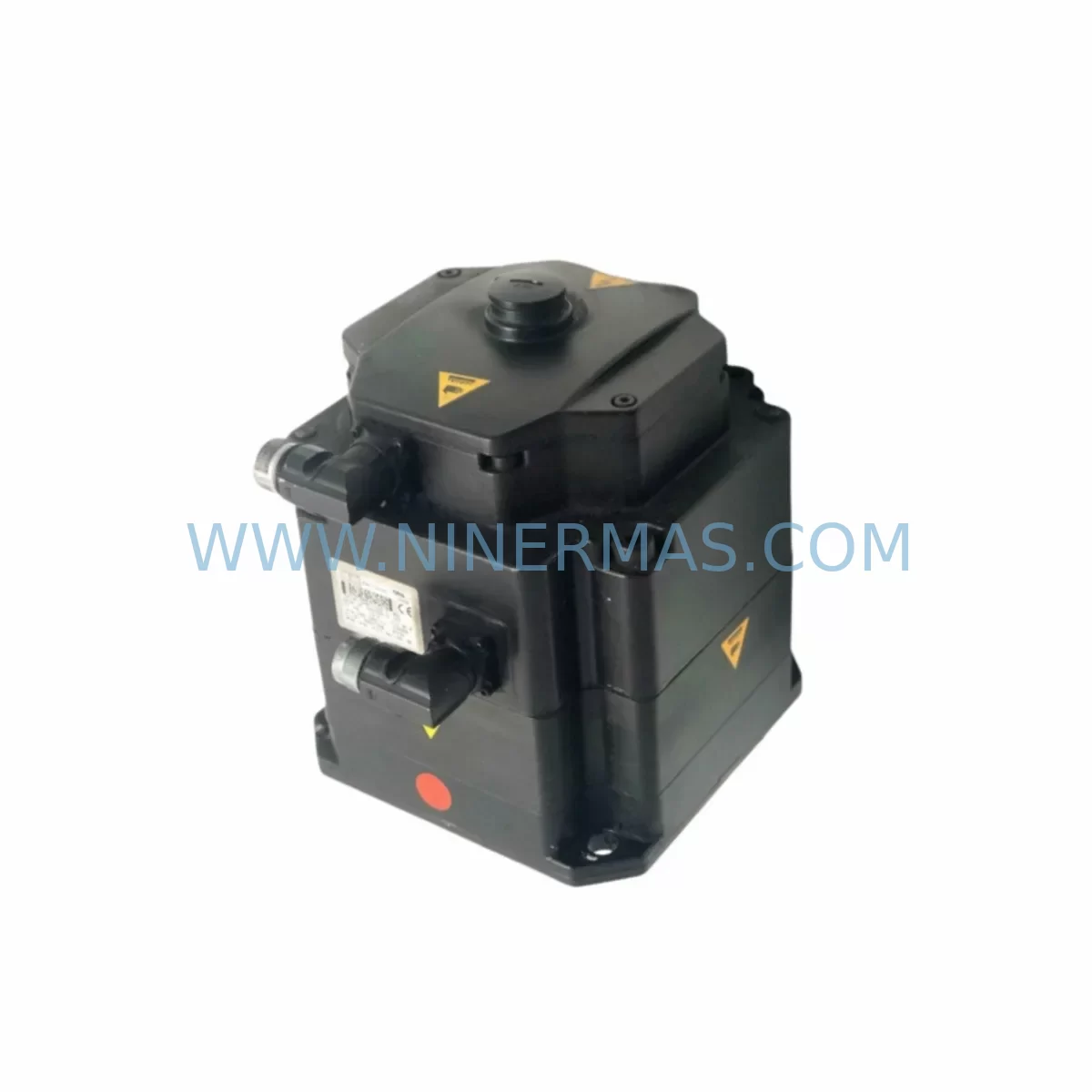

The KUKA 00-117-606 (1FK7100-5AZ91-1ZZ9-Z, 3.2 kW) and its paired unit KUKA 00-119-768 (1FK7103-5AZ91-1ZZ9-Z, 5.9 kW) are Siemens 1FK7 series synchronous servo motors integrated into KUKA robot drive systems. As these models reach end-of-life and original supply chains become unreliable, industrial facilities operating KRC2 and KRC4 robot controllers face increasing pressure to source verified replacement units or plan structured retrofit upgrades. NINERMAS provides pre-tested, retrofit-compatible servo motor assemblies with a 12-month warranty, enabling maintenance teams to restore robot axis performance with minimal disruption to production schedules.

Whether you are replacing a failed axis motor on a welding robot, upgrading a legacy paint line, or modernizing a press-tending cell, the 00-117-606 and 00-119-768 units require careful attention to mechanical mounting, encoder interface, power connector pinout, and drive parameter compatibility before installation. This page provides structured guidance for engineers and procurement teams managing these replacement and retrofit projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the KUKA 00-117-606 or 00-119-768 servo motor begins well before the replacement unit arrives on site. Maintenance engineers should first audit the existing drive cabinet to confirm that the KUKA KSP 600-3×64 servo drive module assigned to the affected axis is functioning correctly and that its firmware version is compatible with the replacement motor’s encoder type. If the KSP 600 module itself shows fault history or thermal damage, it should be replaced concurrently to avoid repeat failures after the new motor is installed.

Power supply integrity is equally critical. The KUKA KPP 600-20-1×40 power supply module must deliver stable DC bus voltage within specification before the new motor is energized. A degraded KPP module can cause immediate overcurrent faults on the replacement axis, which are often misdiagnosed as motor defects. Verify bus voltage under load before closing the cabinet.

The KUKA 00-128-358 RDC (Resolver Digital Converter) board, located inside the KRC4 controller, processes encoder signals from all robot axes. When replacing a 1FK7 series motor, confirm that the RDC board’s channel assignment for the affected axis is intact and that no signal cable damage occurred during the original motor failure. A faulty RDC channel will prevent successful mastering even with a fully functional replacement motor.

For systems using the KUKA 00-130-764 SIB (Safety Interface Board), verify that the safety-rated encoder monitoring channel for the replaced axis is re-enabled and validated after installation. Many KRC4 systems with functional safety options require a safety acceptance test following any axis motor replacement, and skipping this step can leave the robot in a restricted operating mode.

Wiring adaptation is another common challenge. The 1FK7 series uses M23 circular connectors for both power and encoder circuits. If the existing cable harness shows insulation wear or connector corrosion, replace the motor cable assembly — typically a KUKA 00-113-405 DSE-IBS signal cable or equivalent — at the same time as the motor. Reusing a degraded cable with a new motor introduces intermittent encoder faults that are difficult to diagnose under production conditions.

Teams upgrading from older KRC2 platforms to KRC4 should also account for changes in the KUKA SmartPAD 00-168-334 teach pendant interface. WorkVisual project files must be updated to reflect the new motor’s drive parameters, and any axis-specific HMI screens or operator guidance panels should be reviewed to confirm that torque and speed limit displays remain accurate after the motor swap.

In multi-axis robot cells where the 00-117-606 drives a primary axis and the 00-119-768 drives a secondary axis, both motors should be replaced or inspected together if the system has accumulated similar operating hours. Replacing only one motor in a mechanically coupled axis pair can create torque imbalance during coordinated motion, increasing wear on the retained original unit.

For facilities managing a broader fleet of KUKA robots, maintaining reserved stock of the Siemens 1FK7060-5AF71 (a smaller 1FK7 frame motor used on wrist axes) alongside the 00-117-606 and 00-119-768 units provides comprehensive axis coverage and reduces emergency procurement lead times across the robot population.

Downtime Control During System Migration

Minimizing unplanned downtime during a servo motor replacement requires a structured pre-work checklist completed before the production line is taken offline. Before shutdown, use KUKA WorkVisual or the SmartPAD to export the current robot project file, including all axis mastering data, load data, and safety configuration. Store this backup on an external device independent of the KRC controller, as controller power loss during the replacement procedure can corrupt internal project storage.

During the physical motor swap, protect the gearbox output flange and robot arm structure from contamination. The 1FK7 series motors use precision shaft fits, and any debris introduced into the gearbox interface during replacement can cause premature bearing failure. Use clean-room practices appropriate to the installation environment.

After mechanical installation and cable reconnection, perform encoder offset calibration using the KUKA mastering procedure before running any automatic program. Do not attempt to restore the previous mastering offset values manually — always re-master the axis with the robot in the mechanical zero position using the mastering gauge or electronic mastering tool. Skipping this step is the most common cause of post-replacement path deviation errors.

Once mastering is complete, run the robot through a slow-speed test cycle covering the full working envelope of the replaced axis before restoring production speed. Monitor axis current and temperature via the KRC diagnostics interface during this test cycle to confirm that the replacement motor is operating within expected parameters. Document the test results as part of the maintenance record for the replaced axis.

NINERMAS ships the 00-117-606 and 00-119-768 units with pre-shipment test reports confirming rotation direction, encoder signal integrity, winding insulation resistance, and no-load current draw. These reports support your internal maintenance documentation and can be referenced during any post-installation audit or safety review.
