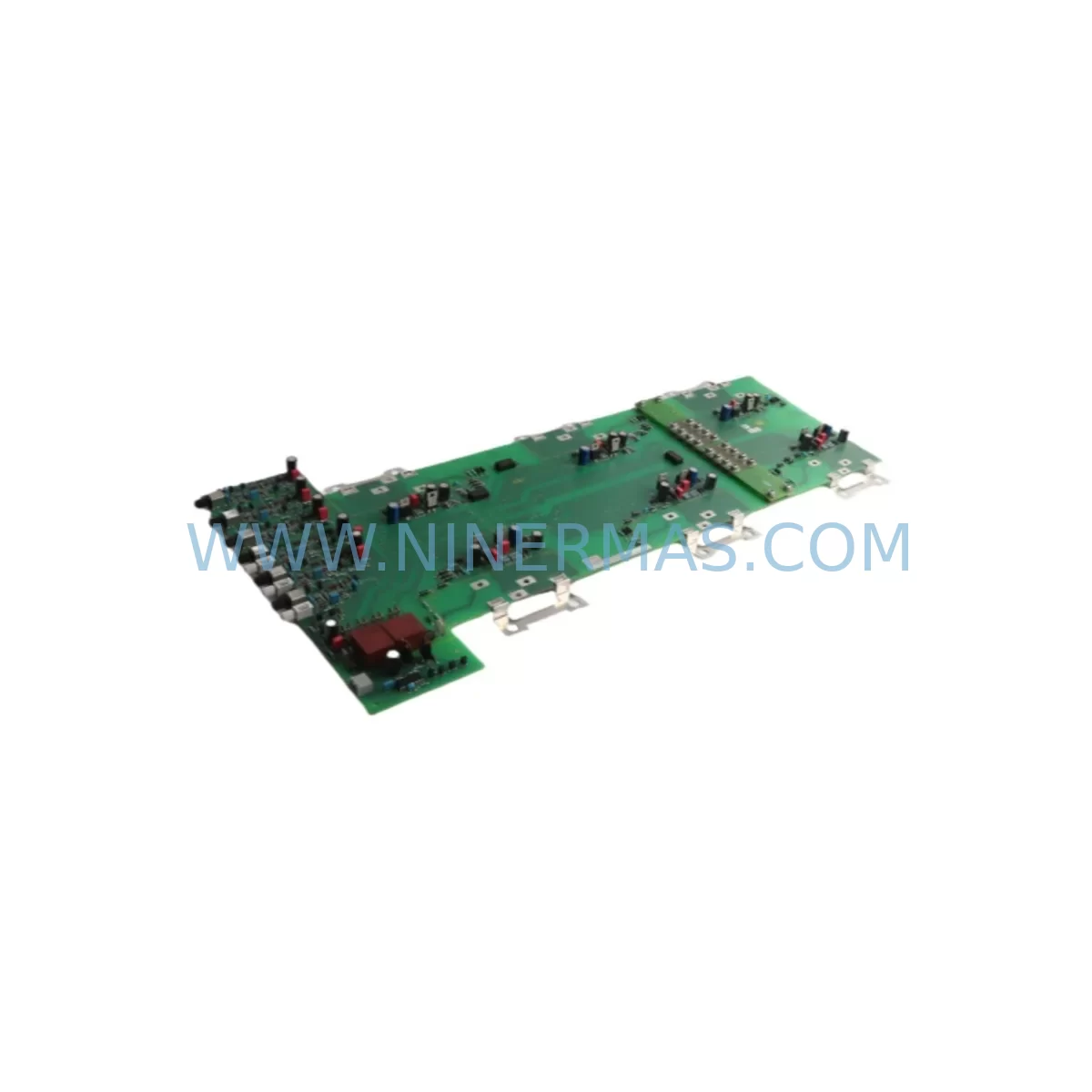

SIEMENS 6SE7035-1EJ84-1JC2 Retrofit-Compatible Inverter

SIEMENS 6SE7035-1EJ84-1JC2 Retrofit-Compatible Inverter for Legacy System Modernization

The SIEMENS 6SE7035-1EJ84-1JC2 is a high-performance AC frequency inverter from the SIMOVERT MASTERDRIVES series, engineered for demanding industrial drive applications. As legacy automation systems reach end-of-life and original spare parts become increasingly scarce, this unit serves as a critical retrofit solution for engineers and maintenance teams tasked with modernizing aging production lines, upgrading control cabinets, and extending the operational lifespan of existing automation infrastructure.

Whether you are replacing a discontinued drive module in a paper mill, steel plant, chemical processing facility, or material handling system, the 6SE7035-1EJ84-1JC2 provides a reliable, field-proven path to system continuity. Its compatibility with the SIMOVERT MASTERDRIVES platform means that existing wiring harnesses, terminal layouts, and backplane interfaces can often be retained with minimal modification, significantly reducing engineering hours and unplanned downtime during the changeover process.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the physical swap. When integrating the 6SE7035-1EJ84-1JC2 into an existing control architecture, engineers must first audit the power supply capacity of the control cabinet. The SIMOVERT MASTERDRIVES platform draws regulated DC bus power, and the existing 6SE7035 rectifier/regenerative unit or common DC bus supply must be verified to support the load profile of the replacement inverter module. In multi-axis systems sharing a common DC bus, the addition or replacement of a drive module can shift the total power balance, requiring recalculation of the bus capacitor bank and braking resistor sizing.

Terminal wiring adaptation is the next critical step. The 6SE7035-1EJ84-1JC2 uses the standard MASTERDRIVES terminal strip layout, but legacy installations may have custom jumper configurations for analog input scaling, digital I/O polarity, or enable logic. Before disconnecting the old unit, document all terminal assignments and compare them against the replacement module’s default parameter set. Pay particular attention to the X101 and X102 control terminal blocks, which handle speed reference inputs, relay outputs, and fault signals routed to the SIMATIC S7-300 or S7-400 PLC in the host control system.

For systems using PROFIBUS-DP communication, the drive’s node address must be re-assigned to match the original unit’s address in the network configuration. If the host PLC program references the drive via a SIMATIC NET CP 342-5 or similar communications processor, the GSD file and hardware configuration in STEP 7 or TIA Portal should be reviewed to confirm the telegram type and process data word mapping remain consistent. Mismatched telegram structures are a common source of commissioning delays in PROFIBUS-based retrofit projects.

I/O expansion requirements should also be assessed during the planning phase. If the legacy system relied on an SBP (Sensor/Actuator Box) or external 6SE7090-0XX84-0AB0 technology board for encoder feedback or positioning functions, confirm that the replacement unit’s option slot is compatible with the same technology option board. In cases where the original technology board is no longer available, an alternative encoder interface module or a 6SL3055-0AA00-4BA0 SMC30 sensor module from the SINAMICS platform may be evaluated as part of a broader migration strategy.

HMI integration is another area requiring careful attention. If the production line uses a SIMATIC HMI TP270 or MP370 panel communicating with the drive via USS protocol over RS485, the baud rate, station address, and telegram length parameters must be preserved in the replacement unit’s parameter set. Failure to replicate these settings will result in communication faults on the HMI and loss of remote speed reference and status monitoring capability.

Finally, confirm that the physical installation space in the control cabinet accommodates the 6SE7035-1EJ84-1JC2’s dimensions and cooling airflow requirements. MASTERDRIVES chassis-mount units require adequate vertical clearance above and below the module for forced-air cooling. If the cabinet layout has been modified since original installation, a physical mock-up or dimensional check against the module’s datasheet is strongly recommended before scheduling the maintenance window.

Downtime Control During System Migration

Minimizing production downtime is the primary operational concern in any drive retrofit project. For the 6SE7035-1EJ84-1JC2, a structured pre-commissioning approach can reduce the actual switchover window to as little as two to four hours for a single-axis replacement, provided all preparatory work has been completed in advance.

Begin by uploading and archiving the complete parameter set from the existing drive using DriveMonitor or a 6SE7090-0XX84-2FK0 PMU (Parameterization Unit) before the maintenance window opens. This backup serves as the reference for re-parameterizing the replacement unit and provides a recovery baseline if commissioning issues arise. Store the parameter file alongside the motor nameplate data, wiring diagrams, and PLC program backup in a project documentation folder accessible to the site maintenance team.

During the switchover, follow a structured sequence: isolate and lock out the drive’s AC supply and DC bus connections, discharge the DC bus capacitors per the manufacturer’s safety procedure, remove the faulty or end-of-life unit, install the 6SE7035-1EJ84-1JC2, reconnect all power and control terminals, and restore the parameter set from the archived backup. Before releasing the drive to automatic control, perform a manual jog test at reduced speed to verify motor rotation direction, encoder feedback signal integrity, and relay output function.

To protect the original PLC program logic during the migration, avoid making any changes to the SIMATIC S7 program during the drive replacement. The PLC should remain in RUN mode with the drive in a faulted or disabled state during the physical swap, ensuring that all other axes and process interlocks continue to operate normally. Once the replacement drive is ready for commissioning, a controlled restart sequence — rather than a cold power cycle — will minimize the risk of process upsets in adjacent equipment such as conveyors, pumps, or compressors sharing the same control network.

All units supplied by NINERMAS undergo pre-shipment functional testing and are covered by a 12-month warranty from the date of delivery. In-stock availability ensures rapid dispatch, supporting urgent breakdown recovery scenarios where extended lead times from OEM channels are not acceptable.

Retrofit Support FAQ

Q1: Is the 6SE7035-1EJ84-1JC2 a direct drop-in replacement for my existing SIMOVERT MASTERDRIVES unit?
In most cases, yes. The 6SE7035-1EJ84-1JC2 is designed for the SIMOVERT MASTERDRIVES chassis platform and shares the same backplane interface, terminal block layout, and communication options as other units in the 6SE703x series. However, you should verify the power rating, DC bus voltage class, and installed technology option boards of your existing unit before ordering to confirm full compatibility.

Q2: Can I reuse my existing parameter set from the old drive?
Yes, provided the firmware version of the replacement unit is compatible with the parameter file format of the original. We recommend uploading the parameter set from the old drive using DriveMonitor before removal, then downloading it to the new unit during commissioning. Review all motor data parameters and I/O assignments after the download to confirm correct transfer.

Q3: What wiring changes are required during installation?
For a like-for-like replacement within the same MASTERDRIVES chassis, no wiring changes should be necessary if the terminal assignments of the original unit are documented and replicated. Pay particular attention to the control terminal block connections for analog references, digital inputs, relay outputs, and PROFIBUS or USS communication cables. Verify PE grounding and cable shielding continuity after reconnection.

Q4: What does the 12-month warranty cover, and how quickly can you ship?
All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. We maintain in-stock inventory of the 6SE7035-1EJ84-1JC2 and can arrange same-day or next-business-day dispatch for urgent orders. Pre-shipment testing is performed on all units before delivery. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead time.
