SIEMENS 6ES5948-3UR22 Retrofit-Compatible CPU for Legacy Systems

SIEMENS 6ES5948-3UR22 Retrofit-Compatible CPU for Legacy S5-155U Systems

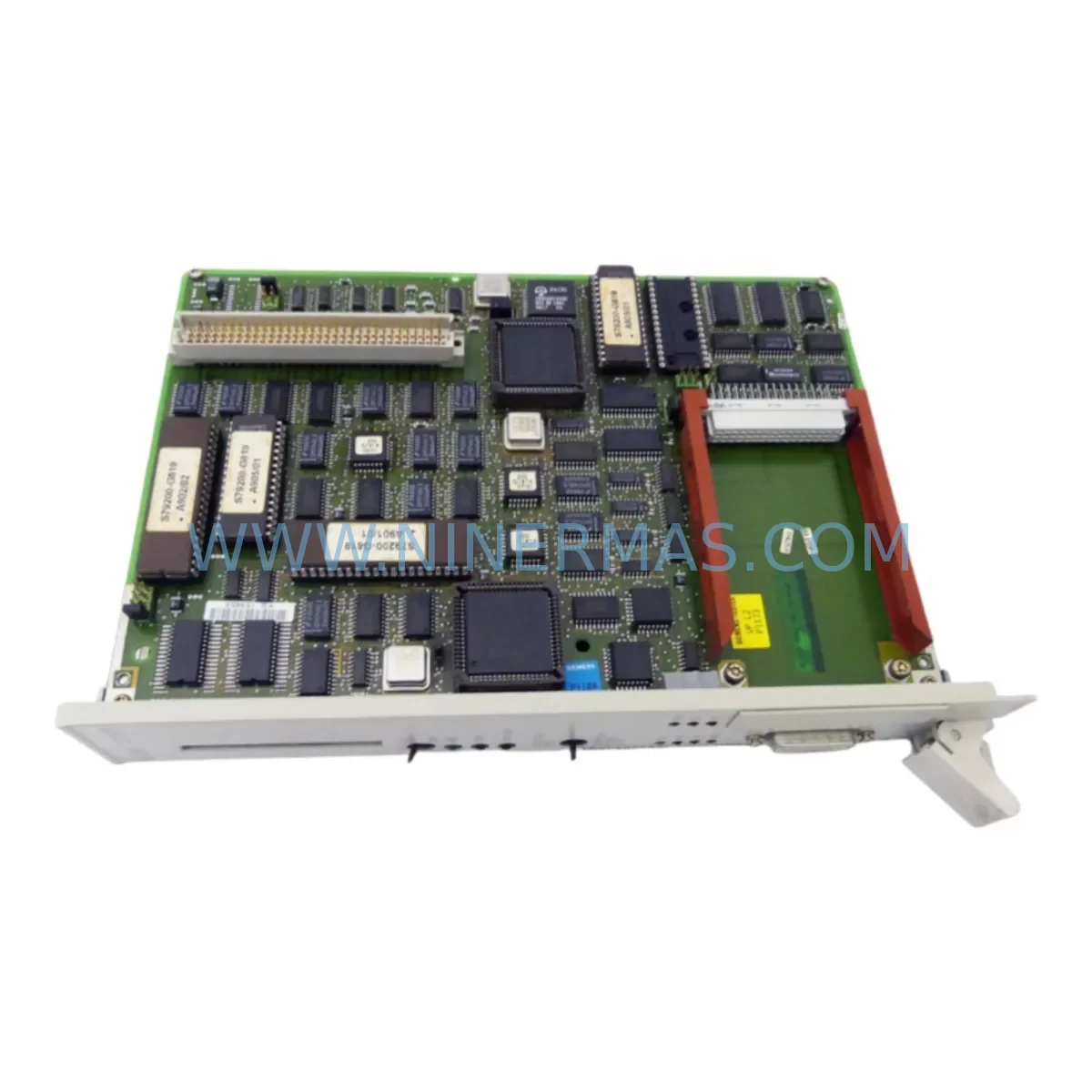

The SIEMENS 6ES5948-3UR22 is a high-performance CPU module designed for the SIMATIC S5-155U programmable logic controller platform. As original S5-series hardware reaches end-of-life and spare parts become increasingly scarce, the 6ES5948-3UR22 serves as a critical retrofit-compatible replacement for aging control systems across process industries, power generation, chemical plants, and discrete manufacturing environments. NINERMAS maintains verified stock of this module to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs — all backed by a 12-month warranty and pre-shipment functional testing.

Whether you are managing a phased migration from SIMATIC S5 to S7-300 or S7-400, or simply extending the operational life of an existing S5-155U rack, the 6ES5948-3UR22 provides the processing backbone your control architecture depends on. This module interfaces directly with the S5-155U central rack (6ES5700-series), communicates via the SINEC L1 and L2 bus structures, and supports the full range of S5 digital and analog I/O modules including the 6ES5430, 6ES5431, 6ES5450, and 6ES5451 series. Its compatibility with existing STEP 5 programs means no reprogramming is required for a like-for-like swap, dramatically reducing downtime risk during critical maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6ES5948-3UR22 in an operational S5-155U system requires careful pre-migration planning to avoid unplanned downtime and configuration errors. Before removing the existing CPU, engineers should archive the full STEP 5 program using a PG 740 or PG 760 programmer, or via a modern PC running S5 for Windows with a 6ES5734-series programming cable. Confirm that all DB (Data Blocks), FB (Function Blocks), and OB (Organization Blocks) are backed up and version-controlled.

The S5-155U central rack accommodates the CPU in Slot 0, with I/O modules occupying subsequent slots. When installing the replacement 6ES5948-3UR22, verify that the module address switches on the CPU match the original configuration — incorrect addressing will prevent the CPU from recognizing connected I/O modules such as the 6ES5430 (16-channel digital input) or 6ES5451 (16-channel digital output). Analog signal modules including the 6ES5464 (analog input) and 6ES5470 (analog output) must also be confirmed against the existing hardware configuration file (HCF) stored in the STEP 5 project.

Power supply capacity is a critical checkpoint. The S5-155U power supply modules — typically the 6ES5955-3LC41 or 6ES5955-3LF41 — must be verified to provide sufficient current for the full rack load including the CPU, I/O modules, and any communication processors such as the 6ES5521 (CP 521 SI) or 6ES5524 (CP 524) used for serial communications. Overloaded power supplies are a common cause of intermittent CPU faults in aging S5 installations.

For systems that include an IM 300 or IM 304 interface module for expansion rack connectivity, confirm that the inter-rack communication links remain intact after the CPU swap. The 6ES5948-3UR22 supports the standard S5 C-Bus and P-Bus architecture, ensuring compatibility with expansion racks connected via 6ES5700-series backplanes. If the installation includes a CP 5430 or CP 5431 communication processor for Profibus or Industrial Ethernet connectivity, verify that the communication parameters stored in the CPU’s system data are preserved during the replacement procedure.

HMI screens connected via SINEC L1 or operator panels using the S5-compatible PPI protocol should be tested after CPU replacement to confirm that all variable addresses and screen update cycles remain functional. In installations where a WinCC or ProTool HMI is connected, re-establish the communication link and verify tag mapping before returning the system to production.

Downtime Control During System Migration

Minimizing production downtime during a 6ES5948-3UR22 replacement requires a structured hot-swap preparation protocol. Begin by scheduling the replacement during a planned maintenance window and preparing a complete system snapshot: STEP 5 program backup, hardware configuration export, I/O force table documentation, and a photograph of all terminal wiring and module positions in the control cabinet.

The physical swap of the CPU module in the S5-155U rack takes approximately 10–20 minutes for a trained technician. However, the total migration window — including program reload, I/O verification, communication link re-establishment, and HMI confirmation — typically requires 2–4 hours for a standard installation. For complex systems with multiple expansion racks, CP modules, or networked SCADA connections, allow additional time for end-to-end functional testing.

To protect original program logic, never overwrite the CPU’s memory without first confirming the backup is complete and readable. Load the STEP 5 program to the replacement 6ES5948-3UR22 in offline mode before installation where possible, using a PG or PC programmer. This approach allows pre-verification of the program structure and eliminates one source of risk during the live commissioning phase.

For critical process control applications where even brief interruptions are unacceptable, consider maintaining a pre-programmed 6ES5948-3UR22 as a hot standby spare. NINERMAS can supply pre-tested, pre-configured modules to your specification, reducing field commissioning time to under 30 minutes in most cases. All modules are shipped with a 12-month warranty and a pre-shipment functional test report.

Retrofit Support FAQ

Q1: Is the 6ES5948-3UR22 a direct drop-in replacement for my existing S5-155U CPU?
Yes, in most cases. The 6ES5948-3UR22 is designed for the S5-155U platform and occupies the standard CPU slot (Slot 0) in the S5-155U central rack. Provided your existing STEP 5 program is compatible with the CPU variant (check memory capacity and special function requirements), the module can be swapped without hardware modification. Always verify the firmware version and memory configuration before installation.

Q2: What commissioning steps are required after installing the replacement CPU?
After physical installation, reload the STEP 5 program from your backup source using a 6ES5734-series programming cable and a PG or PC running S5 for Windows. Confirm the hardware configuration matches the installed I/O modules, set the CPU operating mode switch to RUN, and verify all I/O signals using the STEP 5 status and force functions. Check communication links to any CP modules, HMI panels, or SCADA systems before releasing the system to production.

Q3: Does NINERMAS test the 6ES5948-3UR22 before shipment?
Yes. Every 6ES5948-3UR22 unit supplied by NINERMAS undergoes a pre-shipment functional burn-in test to verify CPU operation, memory integrity, and bus communication. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, with technical support available throughout the warranty period.

Q4: Can you supply multiple units for a long-term spare parts program?
Yes. NINERMAS maintains verified stock of the 6ES5948-3UR22 and can support bulk orders for planned maintenance programs, insurance spares, and multi-site deployments. Contact our team to discuss quantity pricing, lead times, and long-term supply agreements tailored to your maintenance schedule.
