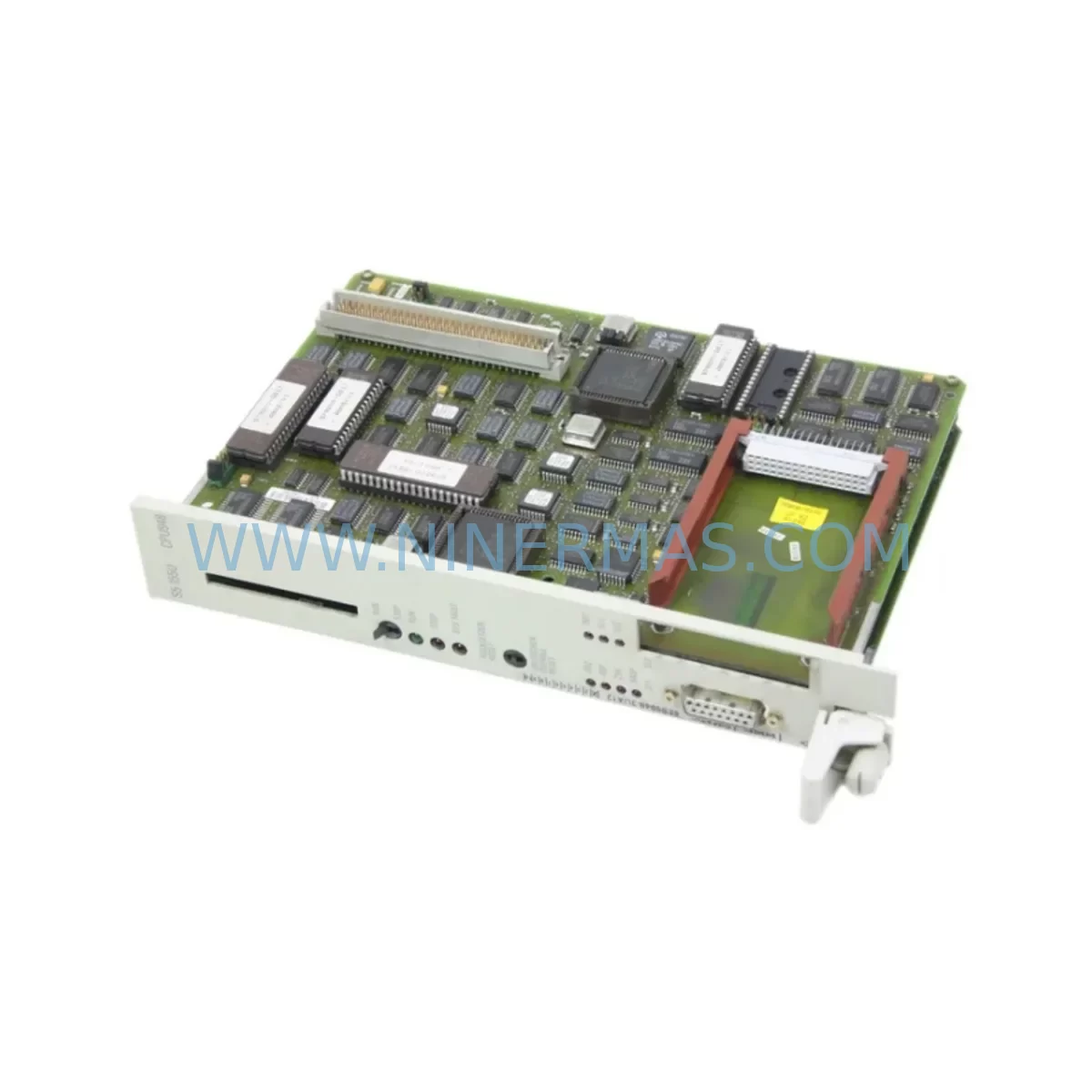

The Siemens 6ES5948-3UA13, commonly referenced as the CPU948, is one of the most capable central processing units produced for the SIMATIC S5 platform. Designed for high-performance process control in large-scale manufacturing environments, this CPU module continues to serve as a critical backbone in legacy automation systems across the chemical, automotive, steel, and energy sectors. As Siemens has officially discontinued the S5 product line, sourcing a verified, pre-tested 6ES5948-3UA13 has become a priority for maintenance engineers and system integrators managing aging control infrastructure.

NINERMAS maintains ready stock of the 6ES5948-3UA13 to support planned retrofits, emergency replacements, and long-term spare parts strategies. Each unit undergoes pre-shipment functional testing and is covered by a 12-month warranty, ensuring your production line can resume operation with confidence.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 6ES5948-3UA13 in an active production environment requires careful pre-engineering to avoid configuration mismatches and extended downtime. The CPU948 operates within the S5-155U or S5-155H rack, sharing the backplane with I/O modules, communication processors, and function modules. Before removal, engineers should document the existing rack layout, module addresses, and program block structure using STEP 5 or a compatible PG device connected via the 6ES5985-0AA11 programming cable.

Power supply integrity is the first checkpoint. The 6ES5951-7LB21 PS951 power supply module must deliver stable 24 VDC with sufficient current headroom for the CPU948 and all co-installed modules. If the existing PS951 shows signs of aging — voltage ripple, thermal stress, or intermittent faults — it is advisable to replace it concurrently with the CPU to avoid a secondary failure shortly after restart.

On the I/O side, digital input modules such as the 6ES5482-8MA13 and digital output modules such as the 6ES5454-7LA12 must retain their configured module addresses. The CPU948 reads these addresses from the S5 bus during initialization; any address conflict will prevent the CPU from entering RUN mode. Verify all DIP switch settings on I/O modules before powering up the replacement CPU.

For systems using analog signal conditioning, signal isolators installed between field transmitters and the S5 analog input modules should be checked for calibration drift. Replacing the CPU does not affect analog scaling, but a simultaneous recalibration pass reduces the risk of process deviations after restart.

Communication continuity is another critical factor. Many S5-155 systems use the CP5430 (6GK1543-0AA02) or similar communication processors to interface with PROFIBUS DP networks, SINEC H1 Ethernet segments, or serial links to HMI panels. The CPU948 replacement does not alter CP module configuration, but engineers should verify that the CP module’s DB (data block) assignments remain intact after the CPU swap. HMI screens connected via SINEC L2 or serial protocols should be tested for data consistency immediately after restart.

Where the retrofit scope extends beyond a like-for-like CPU replacement — for example, when migrating from S5 to S7-400 — the 6ES5948-3UA13 can serve as a stable interim controller while the new S7-400 rack (with CPU414-2 or CPU416-2) is commissioned in parallel. This phased approach allows engineers to validate the converted STEP 7 program against the live process before cutting over, significantly reducing migration risk. Backplane adapters and bus modules such as the 6ES5700-8MA11 may be required to maintain rack integrity during the transition period.

For systems requiring I/O expansion during the retrofit, the 6ES5491-0LB11 adapter module supports additional sub-rack connections, enabling engineers to extend the I/O count without replacing the central rack. This is particularly useful in control cabinets where physical space is constrained and a full rack replacement is not feasible within the planned maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a CPU948 in a running production environment. A structured replacement procedure begins with a full program backup — uploading all OBs, FBs, FCs, and DBs from the existing CPU to a PG or laptop running STEP 5. This backup serves as the restore baseline if the replacement unit encounters any initialization issue.

Before powering down the rack, place the CPU in STOP mode and confirm that all outputs are in a safe state. For processes with interlock logic, coordinate with the process control team to ensure that field devices (valves, drives, conveyors) are in a known safe position. Document the current CPU operating mode, memory utilization, and any active fault codes displayed on the CPU’s LED panel.

Physical replacement of the 6ES5948-3UA13 is straightforward — the module slides into the designated rack slot and is secured by the front panel locking mechanism. After seating the replacement CPU, restore the program from backup before switching to RUN mode. Verify that the CPU transitions cleanly through STOP → RESTART → RUN without generating bus faults or I/O errors. Monitor the first 15–30 minutes of operation closely, checking process values against pre-shutdown baselines to confirm correct program execution.

For high-availability S5-155H systems using redundant CPU pairs, the replacement procedure differs: the standby CPU is replaced first while the active CPU maintains control, then a controlled switchover is performed to validate the new standby before returning to redundant operation. This approach eliminates production interruption entirely when executed correctly.

Retrofit Support FAQ

Q: Is the 6ES5948-3UA13 a direct drop-in replacement for other S5 CPU948 variants?
A: The 6ES5948-3UA13 is compatible with S5-155U and S5-155H racks. It is not interchangeable with single-width CPU modules such as the 6ES5944-7UA22 (CPU944) or 6ES5946-3UA23 (CPU946) due to physical size and bus interface differences. Always verify the rack slot width and bus connector type before ordering.

Q: Does NINERMAS test the 6ES5948-3UA13 before shipment?
A: Yes. Every unit is functionally tested prior to dispatch. Testing covers power-on initialization, memory read/write integrity, bus communication, and port functionality. A 12-month warranty is included from the shipment date, covering defects in materials and workmanship under normal operating conditions.

Q: What programming software and cable are required to load a program onto the replacement CPU?
A: The 6ES5948-3UA13 requires STEP 5 software (v7.2 or later recommended) and a compatible programming cable such as the 6ES5985-0AA11 (TTY to RS-232 adapter). Some engineers use third-party USB-to-TTY adapters, but Siemens-original cables provide the most reliable communication, particularly for large program uploads.

Q: Can NINERMAS support long-term supply agreements for the 6ES5948-3UA13?
A: Yes. NINERMAS specializes in long-term spare parts supply for discontinued automation components. We can reserve stock, provide lead time commitments, and support multi-unit procurement for customers managing fleets of S5-based systems. Contact our team at sale@ninermas.com to discuss inventory reservation and pricing for volume orders.
