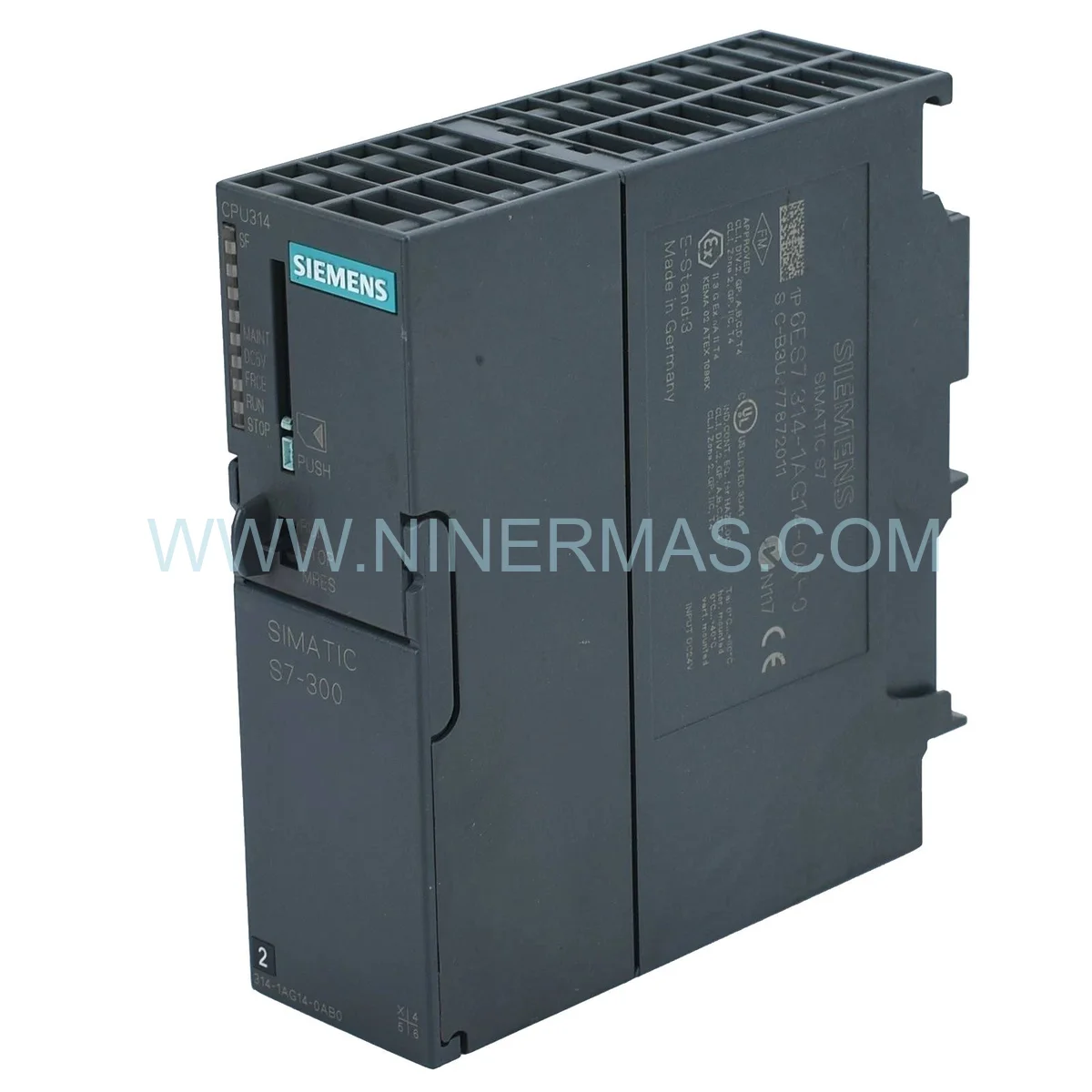

Siemens SIMATIC S7-300 CPU 314 (6ES7314-1AG14-0AB0) – New & Original

Siemens SIMATIC S7-300 CPU 314 (6ES7314-1AG14-0AB0) | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the 6ES7314-1AG14-0AB0 is a cornerstone automation component engineered to maximize system availability in medium-complexity industrial environments. This CPU module executes user programs with deterministic cycle times, manages distributed I/O via MPI and PROFIBUS DP networks, and delivers the process optimization performance demanded by mission-critical manufacturing lines, packaging systems, and material handling infrastructure. Its 128 KB integrated work memory and 32-bit RISC architecture ensure rapid scan cycles that directly translate to reduced unplanned downtime and improved operational excellence.

Designed for deployment in demanding plant-floor conditions, the 6ES7314-1AG14-0AB0 operates reliably across a 0°C to 60°C ambient temperature range with an IP20 protection rating, making it suitable for control cabinet installations in environments subject to vibration, electrical noise, and thermal cycling. During installation, engineers should ensure proper DIN rail mounting torque, verify 24 V DC supply stability within ±15% tolerance, and insert a Micro Memory Card (MMC) prior to first power-on — the CPU will not boot without load memory. Grounding the shield bus and maintaining minimum clearances per IEC 61131-2 are non-negotiable steps for long-term reliability.

As production lines age and OEM support windows close, maintaining a certified stock of the 6ES7314-1AG14-0AB0 as a strategic spare is essential. Mean-time-to-repair (MTTR) drops dramatically when a verified, original-factory module is available on-site, preventing the cascading costs of extended production stoppages that can reach tens of thousands of dollars per hour in high-throughput facilities.

Key Operational Features

128 KB Integrated Work Memory — Supports complex ladder logic, function block diagrams, and structured text programs without external expansion.
MPI & PROFIBUS DP Slave Interface — Seamless integration into multi-node industrial networks; supports up to 32 MPI nodes for system integration across distributed architectures.
Micro Memory Card (MMC) Load Memory — Up to 64 MB program retention without battery dependency; retentive data preserved through power cycles for high availability.
Redundancy-Ready Architecture — Compatible with S7-300 hot-standby configurations when paired with appropriate CP modules, supporting continuous process operation.
Certified Compliance — CE, UL, cULus, CSA certified; meets IEC 61131-2, EN 61000-6-2 (EMC immunity), and EN 61000-6-4 (EMC emissions) for global deployment.
Compact Form Factor — 40 — 125 — 130 mm footprint integrates into existing S7-300 racks without mechanical modification, minimizing retrofit engineering hours.

Maintenance & Performance Benchmarks

The 6ES7314-1AG14-0AB0 is architected to adapt across a broad spectrum of industrial network topologies. In standalone machine control applications, it operates as the sole processing node, directly interfacing with up to 32 digital/analog I/O modules on a single S7-300 rack — ideal for compact automation cells where footprint and cost efficiency are priorities.

In larger distributed architectures, the CPU’s MPI port connects to SIMATIC HMI panels, programming devices, and peer CPUs, while its PROFIBUS DP slave capability allows a higher-level S7-400 or S7-300 master to orchestrate multi-zone process control. This hierarchical topology is standard in automotive body shops, chemical dosing systems, and water treatment facilities where I/O modules are distributed across multiple physical locations.

Preventive maintenance benchmarks recommend a firmware version audit every 18-24 months using SIMATIC STEP 7 (v5.5 SP4 or later) or TIA Portal with legacy support enabled. Cycle time monitoring via the CPU’s diagnostic buffer should be reviewed quarterly; sustained cycle times exceeding 150 ms on a 128 KB program typically indicate memory fragmentation or unoptimized OB1 structures requiring code review. Fan-less passive cooling design eliminates a common failure mode, contributing to the module’s demonstrated MTBF exceeding 100,000 hours in controlled cabinet environments.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit dispatched from our facility is sourced directly from authorized distribution channels and ships in original factory packaging with intact tamper-evident seals, full documentation, and traceable batch codes. This guarantees authenticity verification against Siemens’ product database — a critical requirement for regulated industries including pharmaceuticals, food & beverage, and energy utilities.

For mission-critical procurement scenarios, we offer same-day dispatch on confirmed in-stock units (order confirmation before 14:00 CST), with DHL Express, FedEx International Priority, and UPS Worldwide Expedited options available to minimize logistics lead time. Our global supply network specifically addresses End-of-Life (EOL) and legacy module sourcing — the S7-300 platform, while mature, remains deeply embedded in global installed bases, and we maintain dedicated inventory buffers to support long-term plant maintenance programs without forcing premature system migrations.

Engineering Support & FAQ

Q1: What Micro Memory Card is compatible with the 6ES7314-1AG14-0AB0?
The CPU requires a Siemens SIMATIC Micro Memory Card (MMC) — compatible part numbers include 6ES7953-8LF31-0AA0 (4 MB), 6ES7953-8LJ31-0AA0 (8 MB), and 6ES7953-8LL31-0AA0 (64 MB). The MMC must be inserted before powering on; the CPU will enter STOP mode and display a fault LED if no MMC is detected.

Q2: Which STEP 7 firmware version is recommended for programming this CPU?
SIMATIC STEP 7 v5.5 SP4 or higher is recommended for full diagnostic and online monitoring capability. TIA Portal V16+ with the Classic PLC compatibility package also supports the 6ES7314-1AG14-0AB0 for organizations standardizing on the TIA engineering framework. Always verify the CPU firmware version via the module’s order number suffix before uploading programs compiled under a newer STEP 7 release.

Q3: Can this CPU be integrated into a PROFIBUS DP master network?
The 6ES7314-1AG14-0AB0 supports PROFIBUS DP in slave mode only. For DP master functionality, a CP 342-5 communication processor module must be added to the rack. The MPI interface natively supports programming device connections, HMI communication, and S7 routing at up to 187.5 kbps.

Q4: What is the warranty coverage and RMA process?
All units carry a 1-year warranty covering manufacturing defects and functional failures under normal operating conditions. To initiate an RMA, contact sale@ninermas.com with the order reference, serial number, and a brief fault description. Replacement units are dispatched within 3-5 business days upon fault confirmation, with advance replacement available for critical production environments subject to prior arrangement.

Q5: How do I perform a CPU memory reset (MRES) on the 6ES7314-1AG14-0AB0?
Set the mode selector to STOP, then turn the key to MRES and hold for 3 seconds until the STOP LED flashes rapidly ( 3 Hz). Release, then turn back to MRES within 3 seconds and hold again until the STOP LED flashes slowly — this confirms the memory reset is complete. Re-insert the MMC and download the program via STEP 7 before returning to RUN mode.

Q6: Is the 6ES7314-1AG14-0AB0 suitable for use in hazardous area (ATEX/IECEx) installations?
The standard module is rated IP20 and is not ATEX/IECEx certified for Zone 1/2 hazardous areas. For such environments, the CPU must be installed inside a certified Ex e (increased safety) or Ex p (pressurized) enclosure meeting the applicable zone classification. Consult your local safety authority and enclosure manufacturer for compliant installation design.
