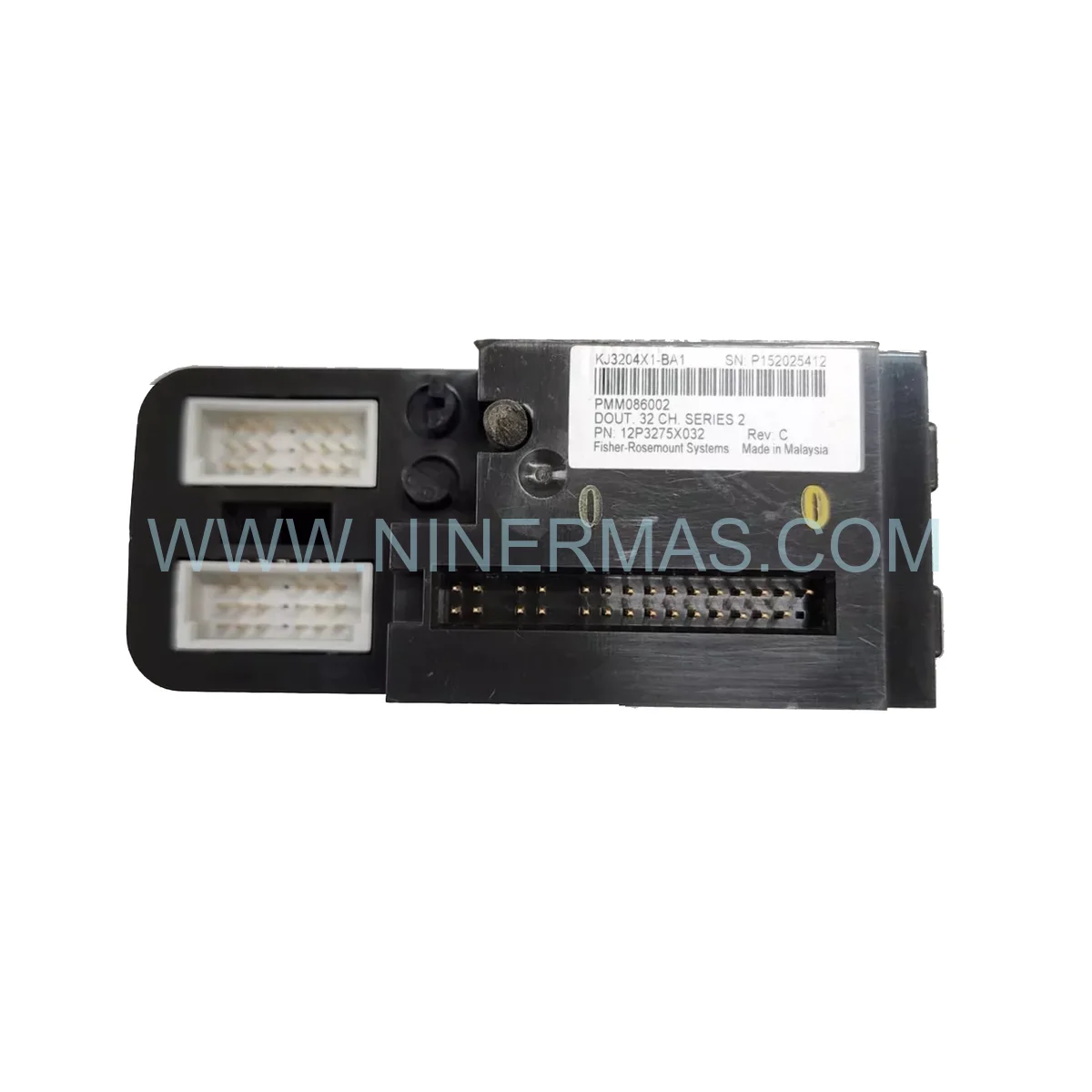

Emerson VE4002S1T2B5 (KJ3204X1-BA1) Discrete Output Module — New & Original

Emerson VE4002S1T2B5 KJ3204X1-BA1 | Reliable Automation Component for Mission-Critical Operations

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Emerson VE4002S1T2B5 (KJ3204X1-BA1) stands as a cornerstone I/O module within DeltaV M-series distributed control architectures. Its 32-channel high-side 24 VDC discrete output capability directly elevates system availability by enabling deterministic, high-density digital control across solenoid valve banks, motor starter circuits, and annunciator panels — all within a single chassis slot. For process facilities where Operational Excellence is non-negotiable, this module’s sub-10 ms response time and per-channel optical isolation translate directly into measurable uptime gains and reduced mean-time-to-repair (MTTR).

Deployed across refineries, chemical batch plants, and power generation facilities, the Emerson VE4002S1T2B5 (KJ3204X1-BA1) demonstrates exceptional durability under harsh industrial conditions — including high-humidity environments, vibration-prone machinery skids, and electrically noisy switchgear rooms. Conformal-coated PCBs and solid-state output drivers eliminate mechanical wear points, while integrated flyback diode suppression protects against inductive load transients during solenoid de-energization. Installation teams should verify backplane slot compatibility with DeltaV M-series chassis revisions and confirm 24 VDC field power bus capacity prior to commissioning.

As a mission-critical spare, this module belongs in every plant’s strategic automation components inventory. End-of-life procurement cycles for legacy DeltaV hardware make pre-positioned stock essential — a single unplanned outage caused by an unavailable output module can cost far more than maintaining a certified replacement on the shelf. Process Optimization begins with supply chain resilience.

Key Operational Features

32 Independent Discrete Output Channels — High-side 24 VDC sourcing, 0.5 A per channel, 8 A total module load
Per-Channel Optical Isolation — 1500 VDC channel-to-backplane isolation eliminates ground loops and protects controller backplane
Real-Time Fault Diagnostics — Short-circuit detection, open-load monitoring, and overcurrent protection with automatic channel shutdown
Seamless Integration with DeltaV M-series I/O chassis — Auto-configures on power-up via DeltaV Explorer for rapid System Integration
Hot-Swap Termination Assembly — KJ4001X1-CJ1 removable wiring block enables module swap without field wire disturbance, supporting High Availability maintenance strategies
Redundancy-Ready Architecture — Compatible with DeltaV redundant controller configurations for continuous process control without single-point-of-failure exposure

Maintenance & Performance Benchmarks

The VE4002S1T2B5 KJ3204X1-BA1 is engineered to adapt across industrial network architectures of varying scale — from compact skid-mounted DeltaV systems with a single I/O chassis to large-scale refinery DCS installations spanning hundreds of I/O cards across multiple controller pairs.

In small-to-medium installations, the module’s auto-discovery and self-configuration capability reduces commissioning time significantly. Engineers assign output channel functions directly within DeltaV Explorer, mapping discrete outputs to control module parameters, interlock logic, or operator-initiated commands — without manual DIP switch configuration or hardware jumpers.

In enterprise-scale architectures, the module integrates within DeltaV’s distributed I/O subsystem, supporting both local and remote I/O enclosures connected via the DeltaV I/O network. Its deterministic scan cycle aligns with DeltaV controller execution rates, ensuring synchronized output updates across all 32 channels without jitter — a critical requirement for burner management sequences and emergency shutdown (ESD) permissive logic.

MTBF ratings exceeding 200,000 hours, combined with convection-cooled passive thermal management, make this module a benchmark for long-term reliability in continuous process environments. Predictive diagnostics surface fault conditions before they escalate, enabling condition-based maintenance rather than reactive repair — a core principle of modern Operational Excellence programs.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every VE4002S1T2B5 KJ3204X1-BA1 unit shipped by NINERMAS COMPANY LIMITED is sourced directly from authorized distribution channels and arrives in Original Factory Packaging with full manufacturer traceability documentation. Batch certificates, date codes, and inspection records are available upon request for quality-critical procurement processes.

Same-Day Dispatch available for in-stock units — order confirmation before 14:00 (GMT+8) qualifies for same-business-day shipment
Worldwide Express Logistics via DHL, FedEx, and UPS — typical transit times of 3-7 business days to major industrial hubs globally
Global Supply for EOL & Legacy Modules — we maintain strategic inventory of discontinued and hard-to-source DeltaV automation components to support aging plant infrastructure
1-Year Warranty on all units — covering manufacturing defects and functional failures under normal operating conditions
Emergency Outage Support — dedicated expedite channel for unplanned shutdowns requiring critical spare delivery within 24-48 hours

Engineering Support & FAQ

Q1: What is the correct installation sequence for the VE4002S1T2B5 KJ3204X1-BA1 in a DeltaV M-series chassis?
A: Power down the I/O chassis before inserting the carrier module (KJ3204X1-BA1) into the target slot. Secure the module latch, then connect the KJ4001X1-CJ1 termination assembly and field wiring. Restore chassis power — DeltaV will auto-detect and configure the module. Verify channel assignments in DeltaV Explorer before returning the loop to service.

Q2: Which DeltaV firmware versions are compatible with this module?
A: The VE4002S1T2B5 is compatible with DeltaV v7.x through v15.x (DeltaV Live). For installations running v11.3 or earlier, confirm that the module’s hardware revision is supported by your controller’s I/O subsystem firmware. Contact our engineering team for revision-specific compatibility matrices.

Q3: Can this module be replaced online without shutting down the DeltaV controller?
A: Yes — the KJ4001X1-CJ1 termination assembly supports hot-swap field wiring disconnection. However, the carrier module (KJ3204X1-BA1) itself requires the I/O chassis slot to be powered down or the controller placed in maintenance mode before physical removal. Always follow your site’s Management of Change (MOC) procedure for live system modifications.

Q4: What diagnostic alarms does this module generate in the DeltaV operator interface?
A: The module reports per-channel fault alarms including: OPEN LOAD (field device disconnected or wiring break), SHORT CIRCUIT (output shorted to ground or supply), OVERCURRENT (load exceeding 0.5 A per channel), and MODULE FAILED (internal hardware fault). All alarms propagate to the DeltaV Alarm Management system and can be configured for operator notification and historian logging.

Q5: How does the warranty claim process work for units purchased through NINERMAS?
A: Units exhibiting functional failures within the 1-year warranty period should be reported to sale@ninermas.com with the purchase order number, date code, and a description of the fault condition. Our technical team will issue a Return Merchandise Authorization (RMA) within 24 business hours. Replacement units are dispatched upon receipt and inspection of the returned module.

Q6: Is this module available for legacy DeltaV systems that are no longer supported by Emerson?
A: Yes. NINERMAS maintains global sourcing networks specifically for end-of-life (EOL) and legacy automation components. The VE4002S1T2B5 KJ3204X1-BA1 is stocked to support plants operating older DeltaV M-series architectures where Emerson’s standard supply chain no longer provides ready availability. Contact us for long-term supply agreements and blanket order pricing.
