Emerson KJ2201X1-BA1 SLS1508 Retrofit Safety Logic Solver

Emerson KJ2201X1-BA1 SLS1508 Retrofit-Compatible Safety Logic Solver for Legacy Systems

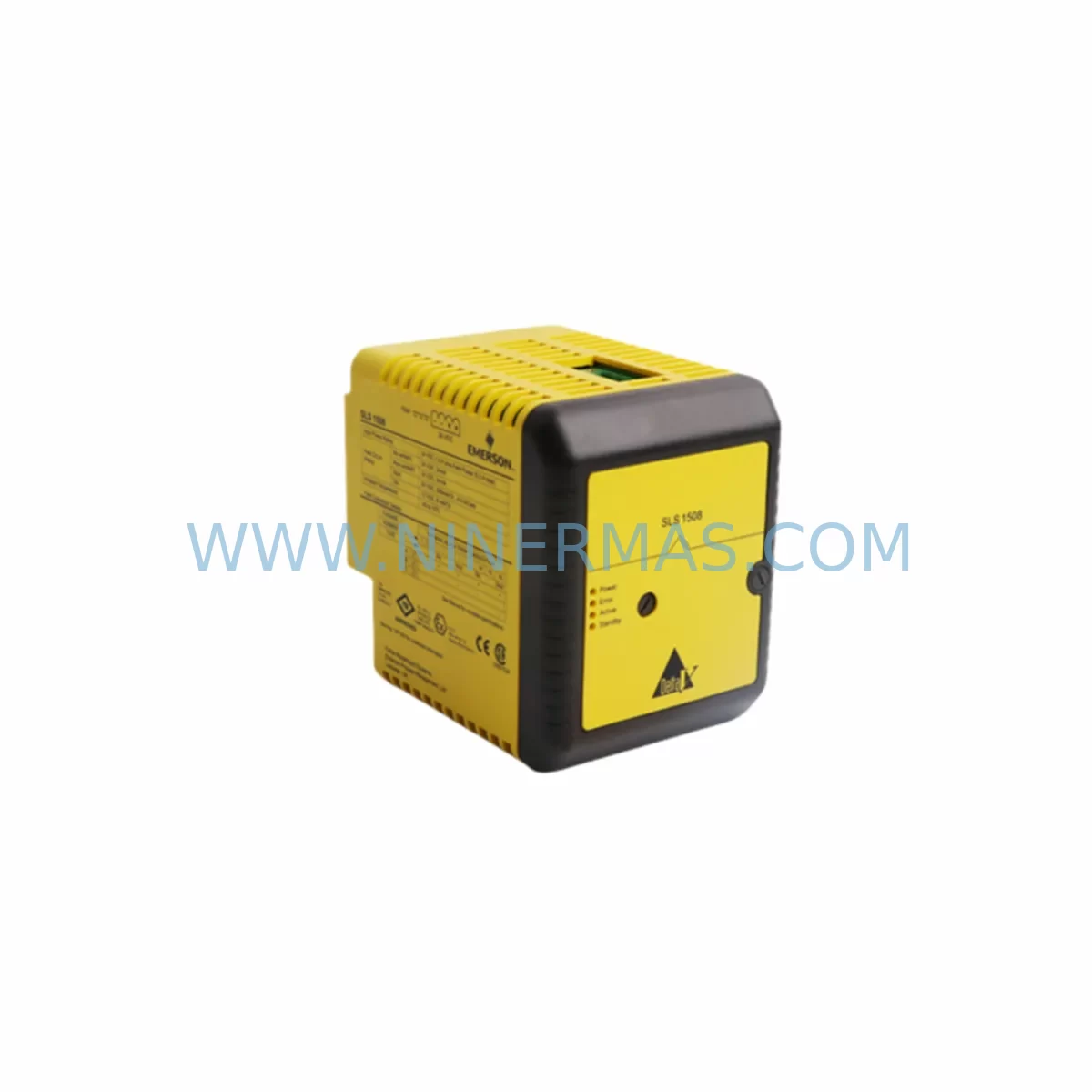

The Emerson KJ2201X1-BA1 (12P3162X142 / SLS1508) is a Safety Logic Solver module designed for use within the Emerson DeltaV SLS Safety Instrumented System platform. As process plants and manufacturing facilities face increasing pressure to maintain SIL-rated safety loops while managing aging infrastructure, this module serves as a proven retrofit-compatible replacement for discontinued or end-of-life safety controllers in legacy SIS architectures.

Whether you are managing a brownfield upgrade, replacing a failed safety module under a tight maintenance window, or executing a phased migration from an older Triconex, Hima, or first-generation DeltaV SIS platform, the KJ2201X1-BA1 SLS1508 provides a reliable, in-stock solution with a 12-month warranty and full pre-shipment functional testing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a safety logic solver in an operating facility demands careful pre-engineering. Before removing the legacy SLS1508 module, engineers must audit the existing DeltaV SIS controller configuration to confirm the module address assignment, safety function download version, and the state of all associated digital input safety cards and digital output safety cards mounted on the same carrier. Any mismatch in module addressing will prevent the safety application from loading correctly after the swap.

Power budget verification is a critical first step. The DeltaV SLS carrier power supply — typically a redundant 24 VDC supply module installed in the same chassis — must have sufficient headroom to support the replacement SLS1508 alongside all co-resident I/O modules. If the existing carrier is already near its rated load, a supplemental DeltaV SLS power supply module may need to be added before the logic solver replacement proceeds.

Terminal wiring on the associated DeltaV SLS I/O terminal blocks should be documented and photographed before any module removal. Field wiring connected to safety-rated digital inputs — typically from pressure switches, level switches, or emergency shutdown pushbuttons — must remain undisturbed during the logic solver swap. The KJ2201X1-BA1 does not directly terminate field wiring; all field connections route through the I/O carrier terminal assemblies, which remain in place during the module exchange.

For facilities running a hybrid safety architecture — for example, where the DeltaV SLS platform interfaces with a DeltaV distributed control system (DCS) controller via the SIS-to-DCS communication link — the communication link status must be verified before and after the module replacement. The SIS-to-DCS gateway configuration, including node address and network segment assignment, should be backed up from the DeltaV Engineering Workstation prior to any hardware change.

In retrofit projects where the plant is migrating from an older generation safety platform — such as a legacy Triconex TRICON or early Hima H41q system — the KJ2201X1-BA1 SLS1508 is typically deployed as part of a broader DeltaV SLS platform adoption. In these cases, the migration scope also involves replacing legacy safety I/O marshalling panels, re-engineering the cause-and-effect matrix in DeltaV SIS application software, and re-validating all safety instrumented functions (SIFs) against the original SIL assessment. The DeltaV SIS programming cable and associated engineering tools are required for the safety application download and online verification.

Where the existing control room uses a DeltaV operator workstation or third-party HMI connected to the safety system via OPC or the DeltaV native data highway, the HMI faceplates referencing SIS module status tags should be reviewed after the replacement to confirm that all safety-related displays — including bypass status, trip status, and manual override indicators — continue to reflect live data correctly.

Downtime Control During System Migration

Minimizing unplanned downtime during a safety logic solver replacement is a primary concern for any operations team. The KJ2201X1-BA1 SLS1508 is supplied pre-tested and ready for installation, which eliminates the risk of receiving a module that requires bench repair before deployment. Pre-shipment functional testing at NINERMAS covers power-on self-test, communication bus handshake verification, and basic I/O channel continuity checks — reducing the risk of a failed installation attempt during a planned maintenance window.

To protect the original safety application logic during the replacement, the existing safety program should be exported from the DeltaV SIS engineering workstation and archived before the module is removed. This ensures that if the replacement module requires a fresh download — rather than retaining the existing application in non-volatile memory — the correct and validated safety application version is available for immediate re-download without requiring a search through backup archives under time pressure.

Where the process cannot be fully shut down during the module swap, a partial bypass strategy may be employed: placing the affected safety instrumented function (SIF) into a documented manual bypass state, maintaining the process within safe operating limits through operator supervision, and restoring the SIF to automatic mode immediately after the replacement module has been commissioned and proof-tested. All bypass actions must be recorded in the plant’s safety management system in accordance with the applicable functional safety standard (IEC 61511 or equivalent).

For facilities with a DeltaV SIS redundant logic solver configuration, the replacement can often be performed online by removing the faulted module from the redundant pair while the partner module maintains safety function execution — further reducing the impact on production continuity. Confirm the redundancy status in the DeltaV SIS diagnostics display before proceeding with a hot-swap operation.

Retrofit Support FAQ

Q1: Is the KJ2201X1-BA1 SLS1508 a direct drop-in replacement for an existing SLS1508 module in a DeltaV SLS chassis?
A: Yes, for same-series DeltaV SLS carriers, the KJ2201X1-BA1 is a direct slot-for-slot replacement. Confirm that the firmware revision of the replacement module is compatible with the DeltaV SIS controller version running in your system. If a firmware update is required, this can be performed via the DeltaV engineering workstation after installation.

Q2: What wiring changes are required when installing the KJ2201X1-BA1 in place of a failed SLS1508?
A: No field wiring changes are required. All field terminations connect to the DeltaV SLS I/O carrier terminal blocks, which remain in place during the logic solver module swap. Only the logic solver module itself is removed and replaced. Verify terminal block seating and connector integrity after installation.

Q3: Does NINERMAS provide pre-shipment testing and what does the 12-month warranty cover?
A: Every KJ2201X1-BA1 SLS1508 unit shipped by NINERMAS undergoes a pre-shipment functional test covering power-on self-test, communication bus verification, and I/O channel checks. The 12-month warranty covers manufacturing defects and module failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specifications.

Q4: What is the typical lead time and stock availability for the KJ2201X1-BA1 SLS1508?
A: NINERMAS maintains inventory of the KJ2201X1-BA1 SLS1508 to support urgent spare-part and retrofit requirements. Standard orders are processed and dispatched within 3–5 business days. For large-quantity procurement or long-term spare-parts program commitments, contact our sales team to discuss dedicated stock allocation and extended supply agreements.
